COMeT10-3900

Description

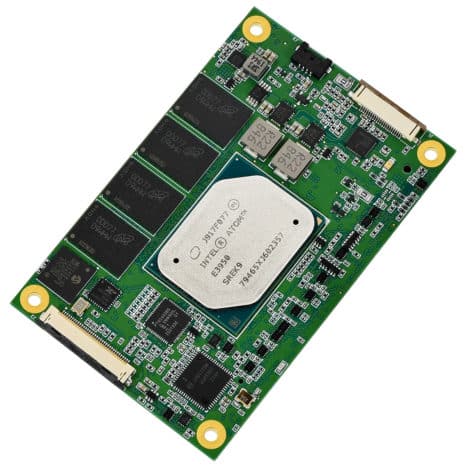

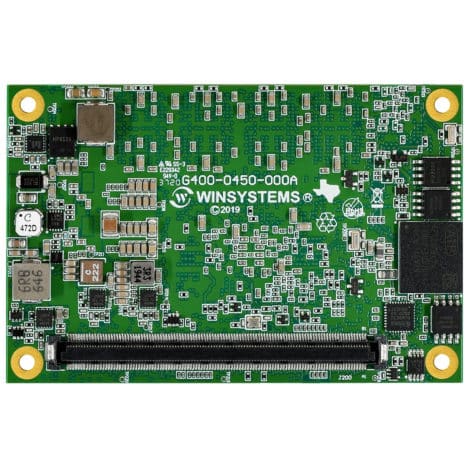

The COMeT10-3900 is an industrial COM Express® Type 10 Mini module with an Intel® Atom™ E3900 processor. This low power, industrial module was designed and manufactured in the USA. The small form factor module is designed as a processor mezzanine that can be plugged onto a carrier board that contains user specific I/O requirements.

Features

Performance for Industrial IoT

  • Intel Atom E3900 Processor, formally Apollo Lake-I
  • Up to 8GB LPDDR4 2400 MT/s System Memory
  • Intel Low Power Gen9 Graphics Engine
  • Full-HD and 3D Graphics acceleration

Security

  • On-board Discrete TPM 2.0 Hardware Security

Rugged Design

  • -40ºC to +85ºC Operating Temperature Range
  • COM Express Type 10 Mini, Small Form Factor
  • Wide Range Power Input (4.75V – 20V DC)

Expansion

  • 4x PCIe lanes configurable as 4×1, 2×1 + 1×2, or 1×4
  • 2x USB 3.1 Gen 1, 6x USB 2.0
  • 1x MIPI-CSI-2 (4-Lanes)
  • 1x i210 1Gb/s Ethernet RGMII with IEEE 1588 support
  • HD Audio
  • 2x SATA III (6 Gb/s)
  • 2x UART
  • 4x GPI, 4x GPO (SDIO option for MicroSD socket)

Storage

  • On-board eMMC 5.x (8GB to 128GB)

Display

  • 1x Dual Mode Display (DisplayPort, HDMI, DVI)
  • 1x eDP (optional single-channel LVDS)

Software Support

  • Custom configurable UEFI based AMI BIOS
  • System Management Libraries and Tools
  • EAPI v1.1 support for System Info, WDT, I2C, Brightness, GPIO, and User Storage Area
Features
  • COMeT10-E3930
  • COMeT10-E3940
  • COMeT10-E3950
Processor
  • Intel Atom x5-E3930 Dual-Core, up to 1.8 GHz (base frequency 1.3 GHz)
  • Intel Atom x5-E3940 Quad-Core, up to 1.8 GHz (base frequency 1.6 GHz)
  • Intel Atom x7-E3950 Quad-Core, up to 2.0 GHz (base frequency 1.6 GHz)
Memory
  • Up to 8GB LPDDR4 2400 MT/s (1200MHz) System Memory

  • Up to 8GB LPDDR4 2400 MT/s (1200MHz) System Memory

  • Up to 8GB LPDDR4 2400 MT/s (1200MHz) System Memory

Storage
  • On-board eMMC 5.x (64GB to 128GB)

  • On-board eMMC 5.x (64GB to 128GB)

  • On-board eMMC 5.x (64GB to 128GB)

Display
  • Two independent video outputs
    − 1x Dual Mode Display (DisplayPort, HDMI, DVI)
    − 1x eDP (optional LVDS)

  • Two independent video outputs
    − 1x Dual Mode Display (DisplayPort, HDMI, DVI)
    − 1x eDP (optional LVDS)

  • Two independent video outputs
    − 1x Dual Mode Display (DisplayPort, HDMI, DVI)
    − 1x eDP (optional LVDS)

Expansion
  • 4x PCIe lanes (4×1, 2×1 + 1×2, or 1×4)
    2x USB 3.1 Gen 1, 6x USB 2.0
    1x i210 1Gb/s Enet RGMII /w 1588 support
    1x MIPI-CSI-2 (4-Lanes)
    HD Audio
    2x SATA III (6 Gb/s)
    2x UART
    4x GPI, 4x GPO

  • 4x PCIe lanes (4×1, 2×1 + 1×2, or 1×4)
    2x USB 3.1 Gen 1, 6x USB 2.0
    1x i210 1Gb/s Enet RGMII /w 1588 support
    1x MIPI-CSI-2 (4-Lanes)
    HD Audio
    2x SATA III (6 Gb/s)
    2x UART
    4x GPI, 4x GPO

  • 4x PCIe lanes (4×1, 2×1 + 1×2, or 1×4)
    2x USB 3.1 Gen 1, 6x USB 2.0
    1x i210 1Gb/s Enet RGMII /w 1588 support
    1x MIPI-CSI-2 (4-Lanes)
    HD Audio
    2x SATA III (6 Gb/s)
    2x UART
    4x GPI, 4x GPO

Power
  • Wide Input: +4.75 to 20 VDC, Max Power Usage = 30W

  • Wide Input: +4.75 to 20 VDC, Max Power Usage = 30W

  • Wide Input: +4.75 to 20 VDC, Max Power Usage = 30W

Software
  • – Compatible: Linux, Windows10, other x86 operating systems
    – Custom configurable UEFI based AMI BIOS
    – System Management Libraries and Tools
    – EAPI v1.1 support for System Info, WDT, I2C, Brightness, GPIO, and User Storage Area

  • – Compatible: Linux, Windows10, other x86 operating systems
    – Custom configurable UEFI based AMI BIOS
    – System Management Libraries and Tools
    – EAPI v1.1 support for System Info, WDT, I2C, Brightness, GPIO, and User Storage Area

  • – Compatible: Linux, Windows10, other x86 operating systems
    – Custom configurable UEFI based AMI BIOS
    – System Management Libraries and Tools
    – EAPI v1.1 support for System Info, WDT, I2C, Brightness, GPIO, and User Storage Area

Environmental
  • – Operational from -40°C to +85°C (-40 to +185°F)
    – RoHS compliant

  • – Operational from -40°C to +85°C (-40 to +185°F)
    – RoHS compliant

  • – Operational from -40°C to +85°C (-40 to +185°F)
    – RoHS compliant

Mechanical
  • – Dimensions: 3.31 in x 2.17 in (84mm x 55mm)

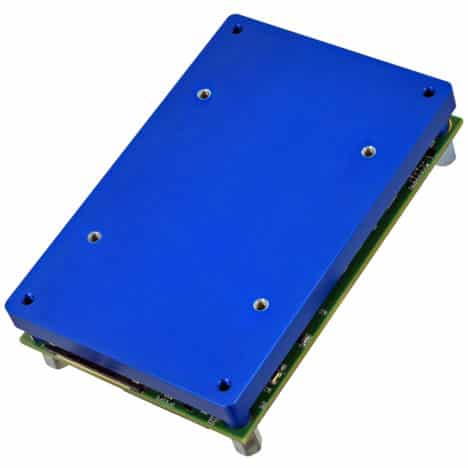

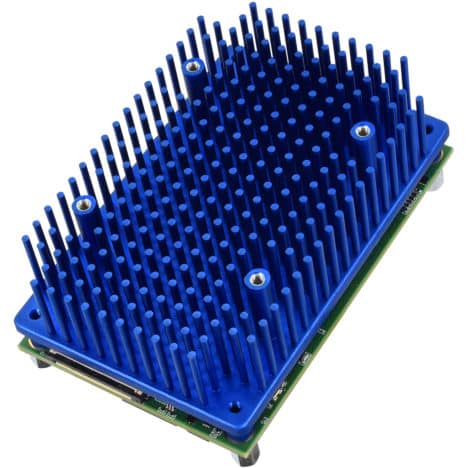

    – Weight: 8.0 oz (225 gm) with heat spreader
    – PC Board thickness: 0.078 inches

  • – Dimensions: 3.31 in x 2.17 in (84mm x 55mm)
    – Weight: 8.0 oz (225 gm) with heat spreader
    – PC Board thickness: 0.078 inches

  • – Dimensions: 3.31 in x 2.17 in (84mm x 55mm)
    – Weight: 8.0 oz (225 gm) with heat spreader
    – PC Board thickness: 0.078 inches
