| EPX-C380-S2-0 | Fanless EPIC single board computer with Intel N450 CPU and two Ethernet |
| EPX-C380-S1-0 | Low cost fanless single board computer with Intel N450 CPU and one Ethernet |

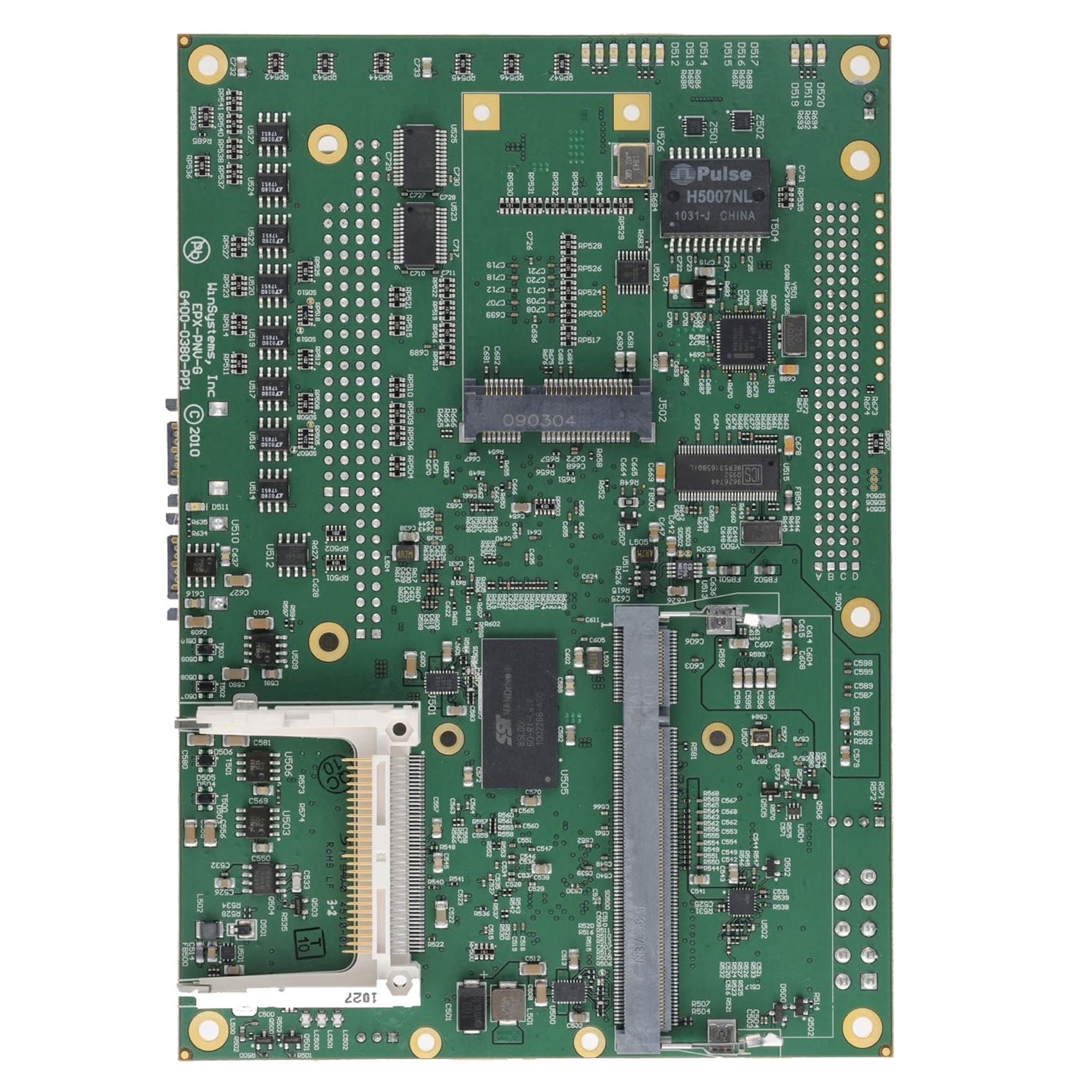

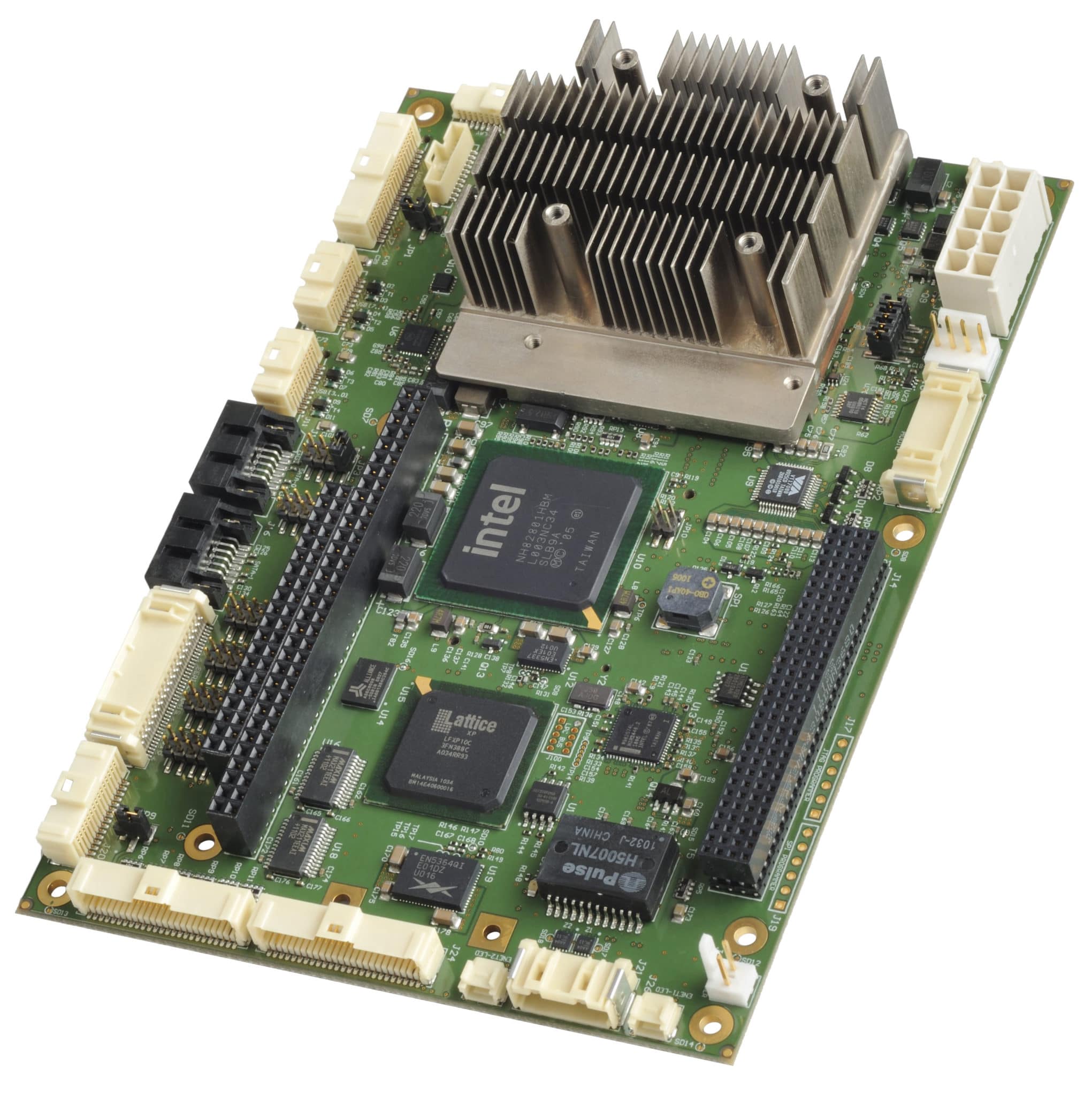

EPX-C380-S
Description
WINSYSTEMS’ Industrial EPX-C380-S is an EPIC-compatible Single Board Computer (SBC) which uses Intel’s Atom N450 single core 1.66GHz processor paired with the ICH8M I/O controller hub.
Features
- Low Power single core 1.66 GHz Intel® Atom™ N450 processor
- EPIC compatible single board computer (SBC)
- PC/104, PC/104-Plus, and Mini-PCIe expansion connectors
- Fanless operation
- 1 MB battery-backed SRAM
- Eight USB 2.0 ports
- Four serial ports
- Dual 10/100/1000 Mbps Ethernet ports
- 48 Bidirectional GPIO; 24 with event sense
- Dual video with simultaneous LVDS and CRT outputs
- Fanless -40°C to 85° Operation
- EPX-C380-S Datasheet (PDF)
Datasheets
- EPX-C380-S Product Manual (PDF)
Product Manuals
- EPX-C380 - Windows 7 (32-bit)
- EPX-C380 - Windows XP SP3
- Windows 7/8/10 (32-bit) - Watchdog Timer
- Windows 7/8/10 (64-bit) - Watchdog Timer
- Windows 7/8/10 (32-bit) - WS16C48 Digital I/O
- Windows 7/8/10 (64-bit) - WS16C48 Digital I/O
- Linux - Kernel 3+ - WS16C48 Digital I/O
- Linux - Kernel 2.6.36+ - WS16C48 Digital I/O
- Linux - Kernel 2.6.18+ - WS16C48 Digital I/O
- Linux - Kernel 3+ - Watchdog Timer
- Linux - Kernel 2.6.36+ - Watchdog Timer
Drivers
- CBL-LPT-002-12 | LPT – DB25, 12″
- CBL-LED3-001-12 | Ethernet – Remote LED, 1mm Molex Pico-Clasp, 12″
- CBL-LED3-000-14 | Ethernet – Remote LED, Unterminated, 14″
- CBL-ENET2-004-12 | Ethernet – Dual 2mm Molex Milli-Grid, 12″
- CBL-ENET2-003-12 | Ethernet – Dual RJ45 Male, 12″
- CBL-ENET2-002-12 | Ethernet – Dual RJ45 Female, 12″
- CBL-ENET2-001-12 | Ethernet – Dual 1.25mm Molex Duo-Clasp, 12″
- CBL-ENET1-102-12 | Ethernet – RJ45 Female, 12″
- CBL-DIO24-002-12 | Digital I/O – 50-pin IDC Female, 12″
- CBL-DIO24-001-12 | Digital I/O – Molex Pico-Clasp, 12″
- CBL-BKLT-000-14 | Video – (LCD Backlight) Unterminated, 14″
- CBL-AUDIO7-102-12 | Audio – Nine 3.5mm Mini-Jacks (7.1 Surround), 12″
- CBL-AUDIO7-100-14 | Audio – Unterminated (7.1 Surround), 14″
- CBL-AUDIO5-102-12 | Audio – Six 3.5mm Mini-Jacks (5.1 Surround), 12″
- CBL-AUDIO2-102-12 | Audio – Three 3.5mm Mini-Jacks (Line In, Line Out and Mic), 12″
- CBL-265-G-2-1.5 | Power – Unterminated, 18″
- ADP-IO-USB-002 | Termination Board – USB, Dual Type A
- ADP-IO-G-EBC0364 | Termination Board – Ethernet & USB, Dual RJ45 & Type A
- ADP-IO-ENET-002 | Termination Board – Ethernet, Dual RJ45
- CBL-SET-380-2 | Cable Set for EPX-C380 with Dual Ethernet
- BAT-LTC-E-36-27-2 | External 3.6V, 2400 mAH battery
- BAT-LTC-E-36-16-2 | External 3.6V, 1650 mAH battery
- RISER-PPM-1 | Spacer board with PCI-104 Connector
- RISER-PCM-1 | Spacer board with PC/104 Connector
