PCM-CAN-2-ISO | PC/104 dual channel CAN module with isolation |
PCM-CAN-2 | PC/104 dual channel CAN module |
PCM-CAN-1-ISO | PC/104 single channel CAN module with isolation |
PCM-CAN-1 | PC/104 single channel CAN module |
PCM-CAN
Description

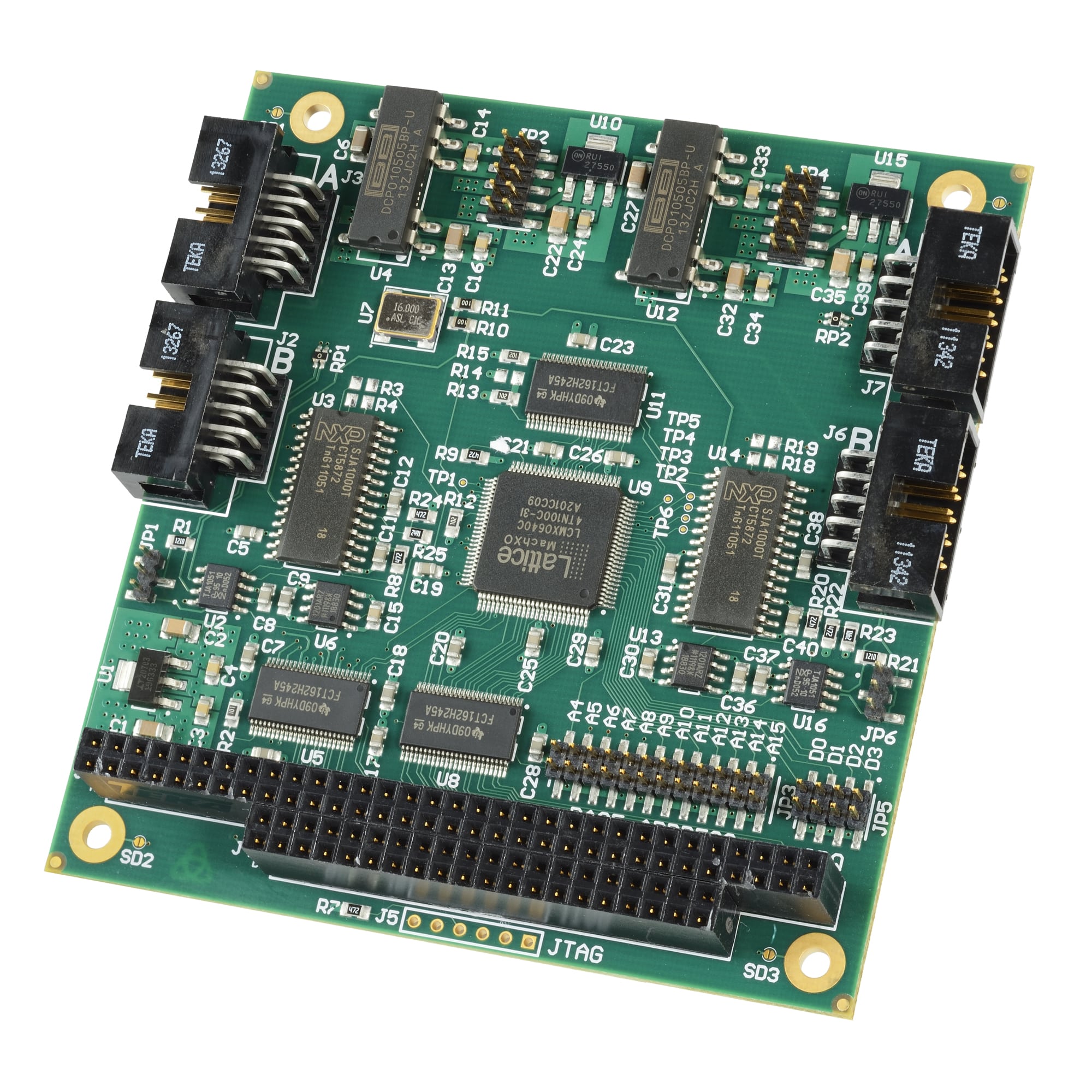

WINSYSTEMS’ PCM-CAN-2-ISO is a PC/104-compliant, isolated Controller Area Network (CAN Bus) peripheral module. This board uses two NXP SJA-1000 CAN controller ICs with advanced features for use in automotive and industrial applications.
Features
- Two NXP SJA-1000 CAN Bus controllers
- Compliant with CAN Bus specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
- Transfer rates up to 1 Mbps
- Channel-to-channel and channel-to-system isolation
- Isolation on the CAN Bus data connection up to 1000V
- On-board isolated 1W power supply for interface
- Jumper selectable termination resistors

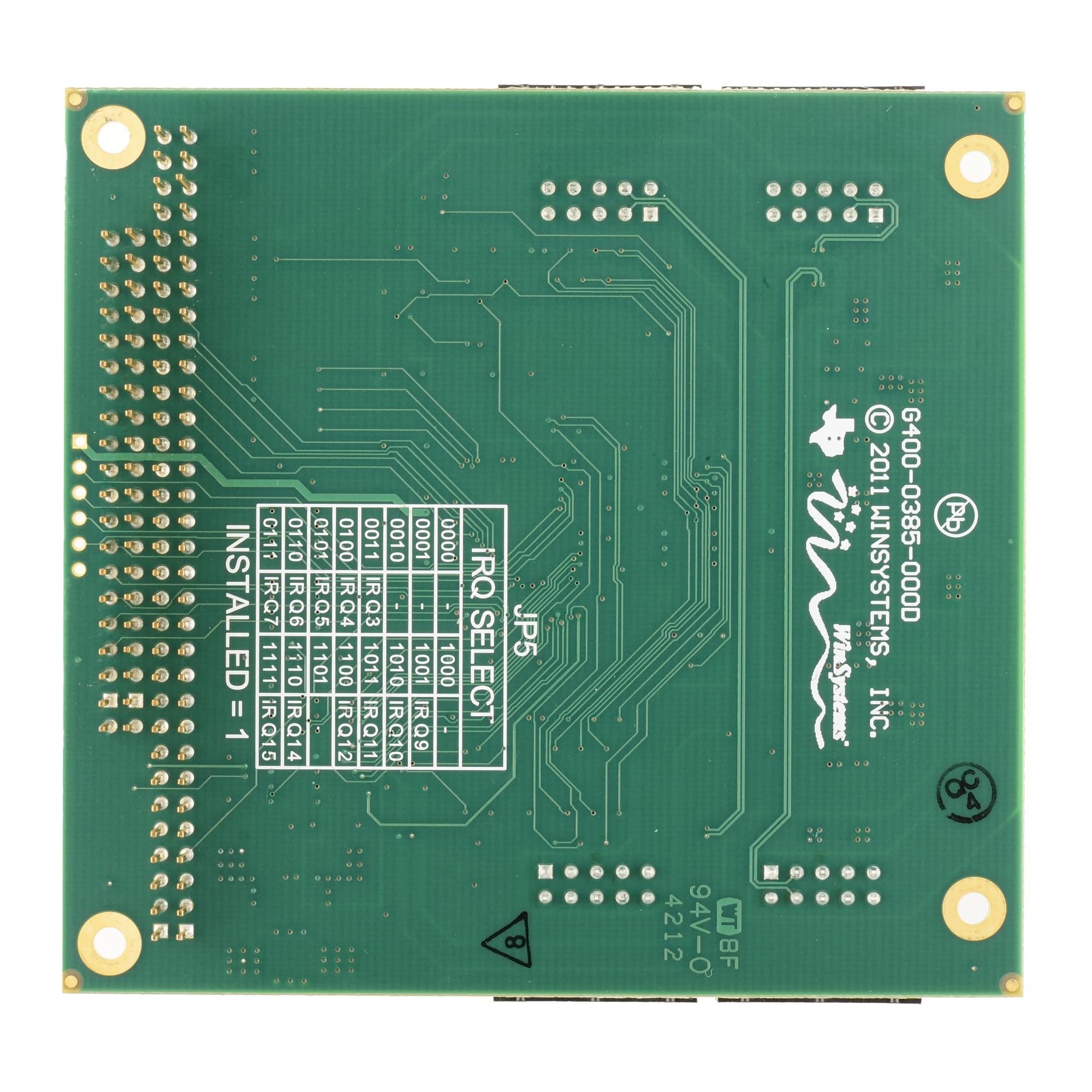

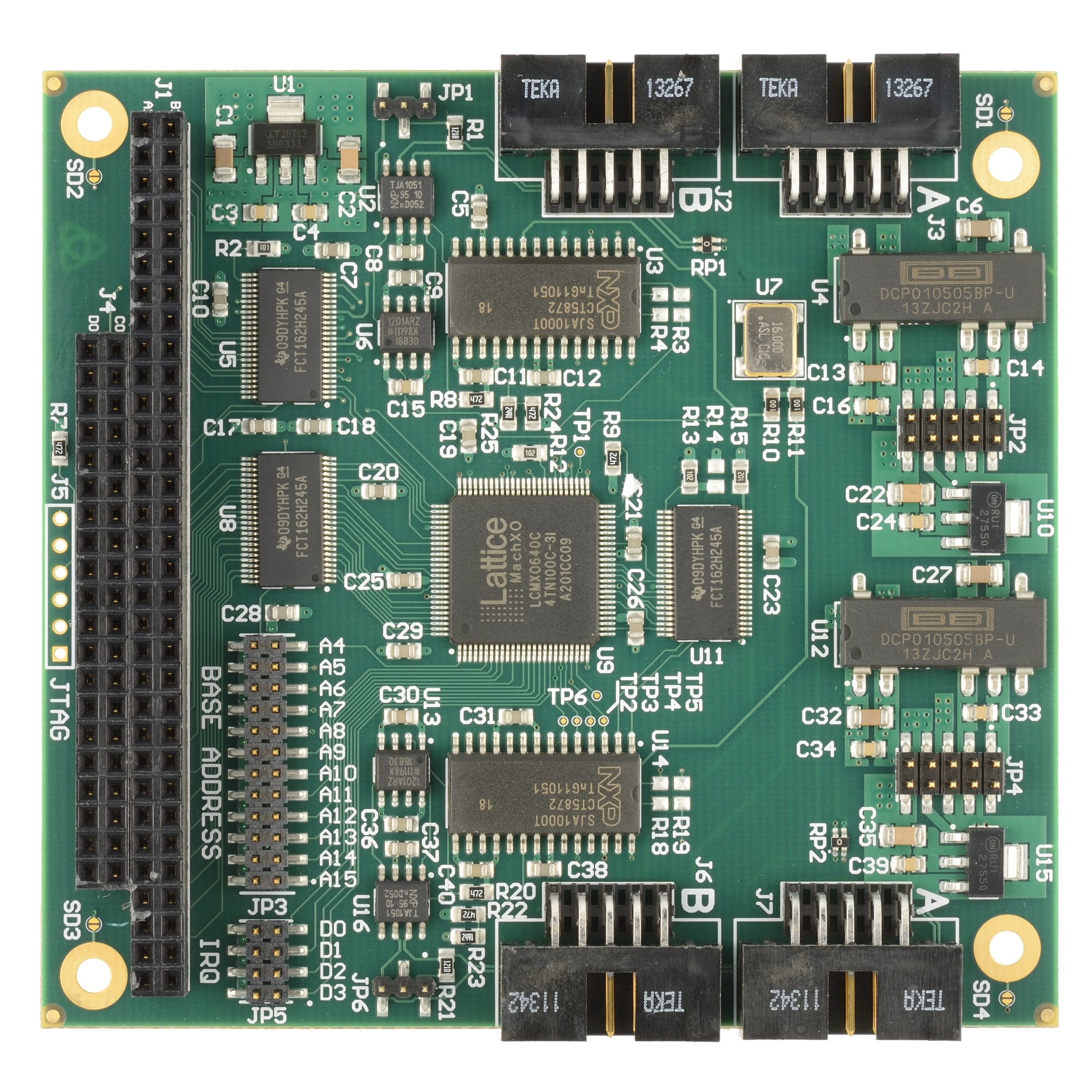

- Jumper selectable IRQ and I/O base address
- Software drivers available for Linux and Windows
- Industrial -40° to +85°C operational temperature
- PCM-CAN-2-ISO Datasheet (PDF)
- PCM-CAN-1-ISO Datasheet (PDF)
- PCM-CAN-2 Datasheet (PDF)
- PCM-CAN-1 Datasheet (PDF)
Datasheets
- PCM-CAN-2-ISO Product Manual (PDF)
- PCM-CAN-1-ISO Product Manual (PDF)
- PCM-CAN-2 Product Manual (PDF)
- PCM-CAN-1 Product Manual (PDF)
Product Manuals
- PCM-CAN-2-ISO Mechanical Drawing (PDF)
- PCM-CAN-2-ISO Solid Works (ZIP)
- PCM-CAN-2-ISO Step (ZIP)
- PCM-CAN-2-ISO IGS (ZIP)
Mechanical Drawings
- Product EOL Notice
Product Change_Notice
