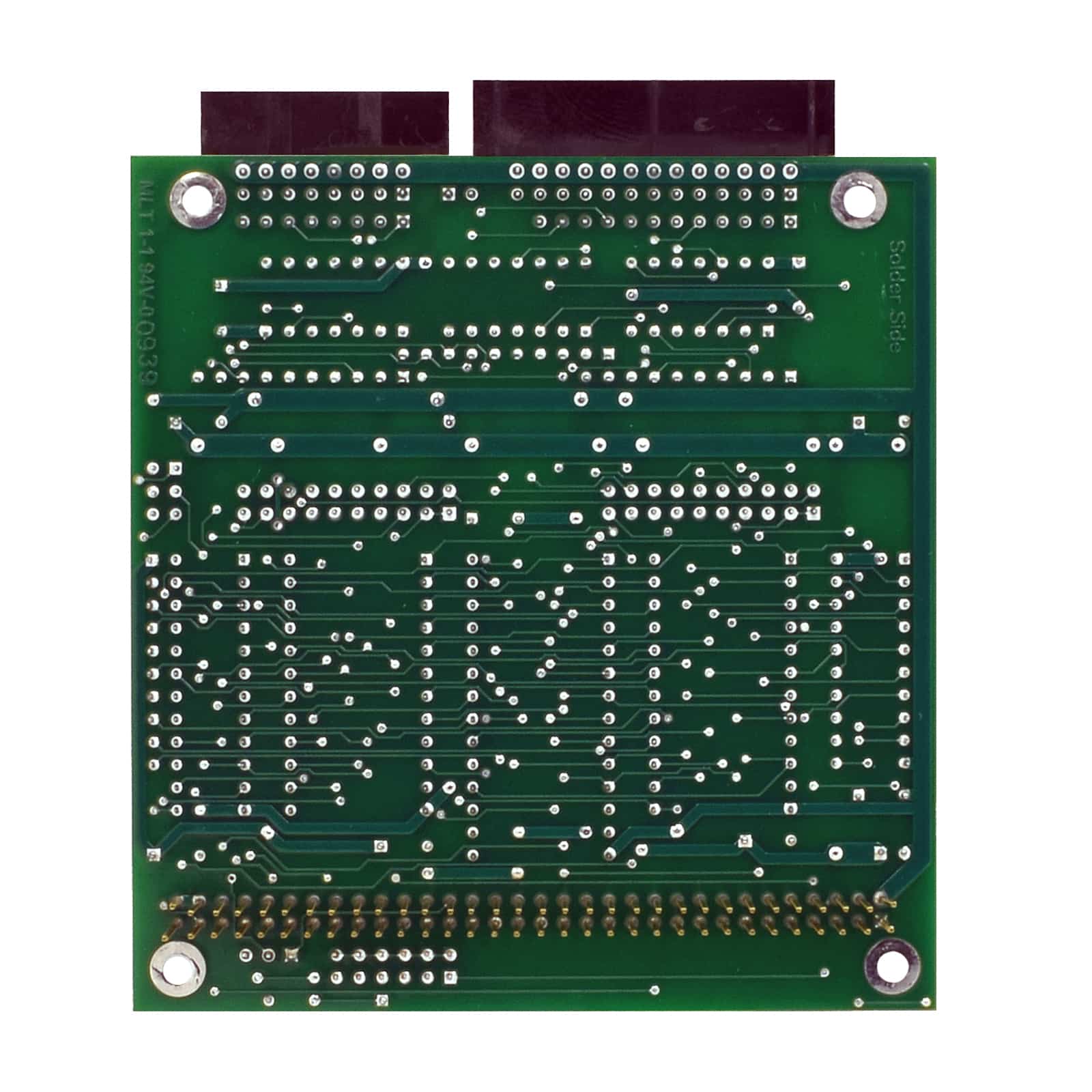

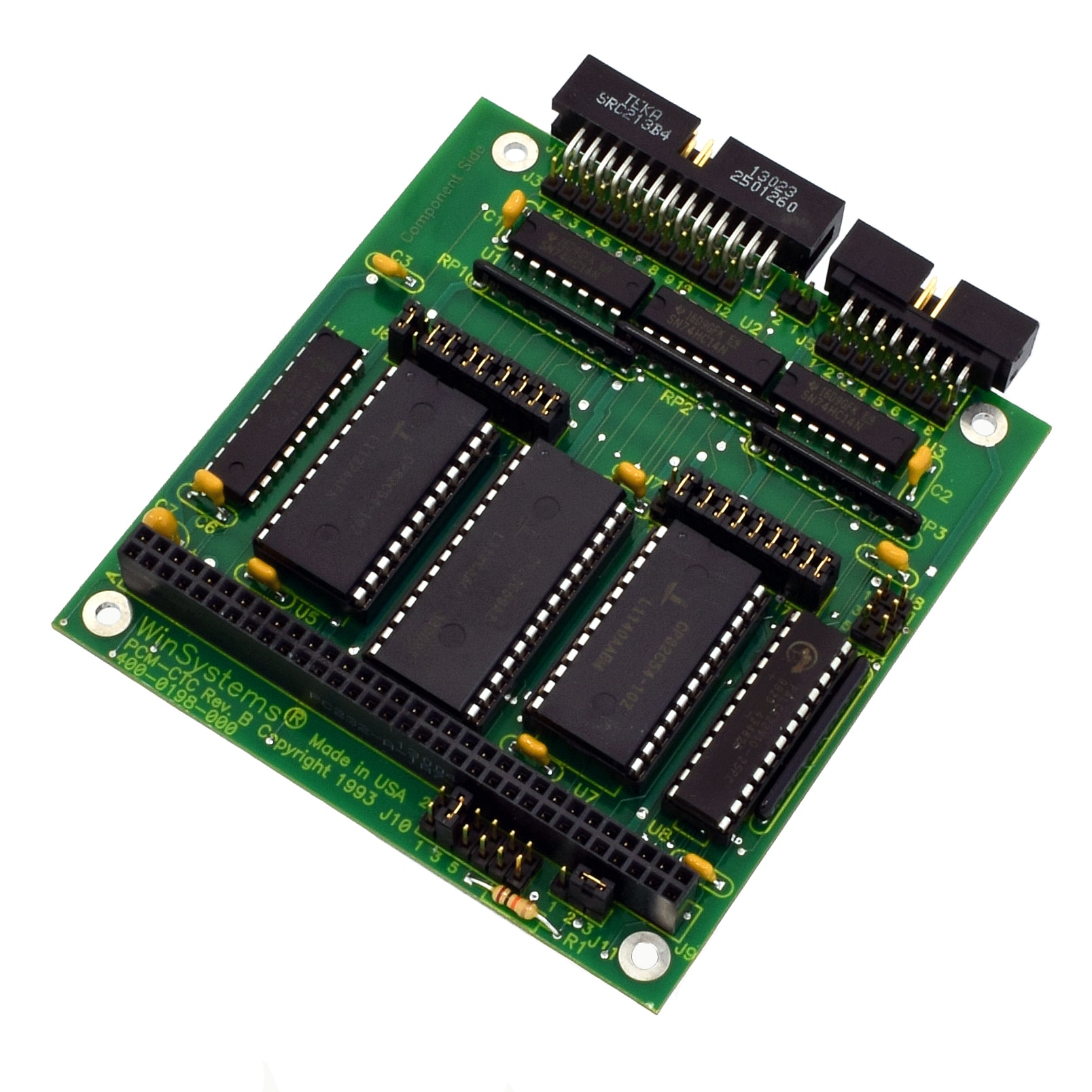

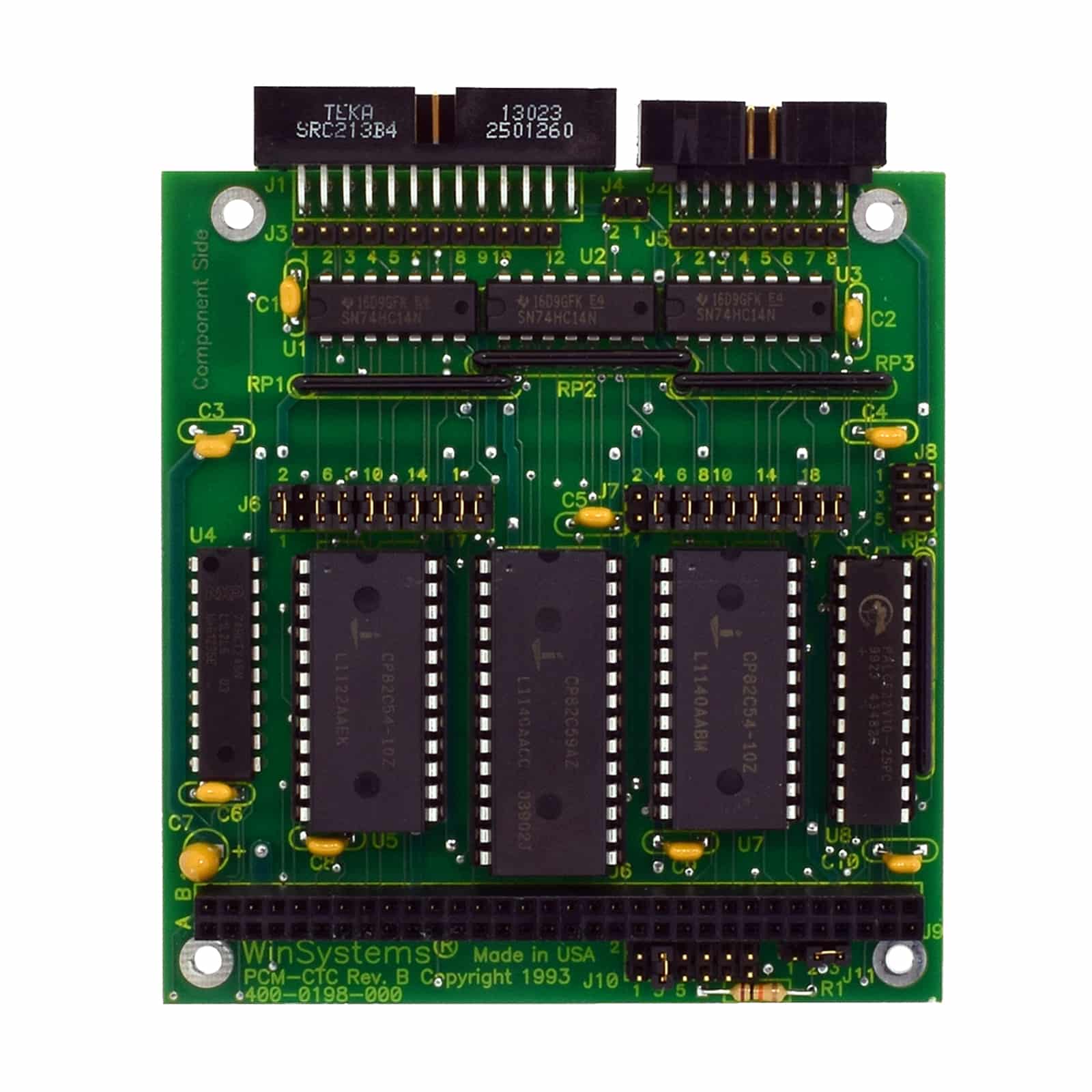

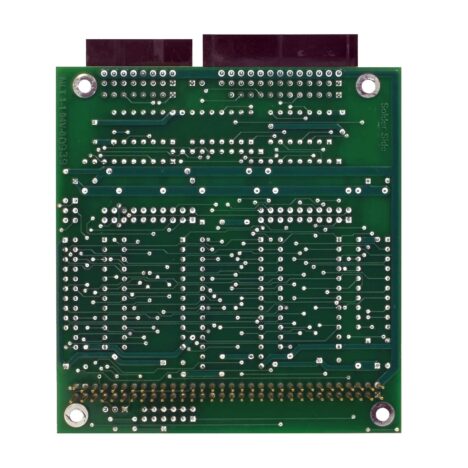

PCM-CTC

Description

The industrial PCM-CTC card is designed to solve the common timing problems in industrial systems design. Six independent 16-bit channels are capable of frequency/event counting from DC to 8 MHz, pulse marker or squarewave generation, time interval measurements, and oneshot simulation. All six channels have a buffered Clock, Gate, and Output available. Jumper headers provide source selection and cascading to yield maximum configuration flexibility.

PRODUCT MANUAL

DATA SHEET

PRODUCT INFO

Features

Six independent 16-bit Counter/Timers
Uses two 82C54 Programmable Interval Timers
Six programmable counter modes per channel
Handles inputs from DC to 8 MHz
Binary or BCD counting
Clock, Gate, and Out signals from 6 channels buffered and accessed via two connectors
Direct interface to WINSYSTEMS’ TRM-500-3 flow meter termination card
On-board 82C59A Interrupt Controller generates eight vectored interrupts
Two additional external interrupt input sources

Name*
First Last
Phone Number
Email*
Company*
City:*
City
State:*
State / Province / Region
ZIP/Postal Code:
ZIP / Postal Code
Country:*
Country
I am a:*
- New Customer
- Existing Customer
I'm looking to:*
- Fill out a general Contact Form
- Submit a new Project Inquiry
Message*
Please give us a little more info
I'm looking for:*
- Technical Support
- Information about a New Project Inquiry
Product Part Number*
Serial Number (If Available)
Brief Description of Issue*
Please describe the issue you would like support for. We'll contact you for more info, but please give us as much as possible.
Brief Description of Project & Technical Requirements*
Please describe the project. We'll contact you for more info, but please give us as much as possible.
How did you hear about us?
Privacy*
- By using this form you agree with the storage and handling of your data by this website.
All submissions are subject to our Terms of Use and Privacy Policy.

Features
Timer	Six 16-bit Counter/timers (82C54) DC inputs up to 8 MHz supported Two jumper-selectable clock sources Access to Clock, Gate and Out signals for each channel Binary or BCD counter operation
Interrupts	Two external interrupt input sources
Bus Interface	PC/104, 8-bit
Power	+5V required, 40 mA typical
Mechanical	PC/104-compliant Dimensions: 3.6 x 3.8 inches (90 x 96 mm)
Operating Temperature Range	-40°C to 85°C
