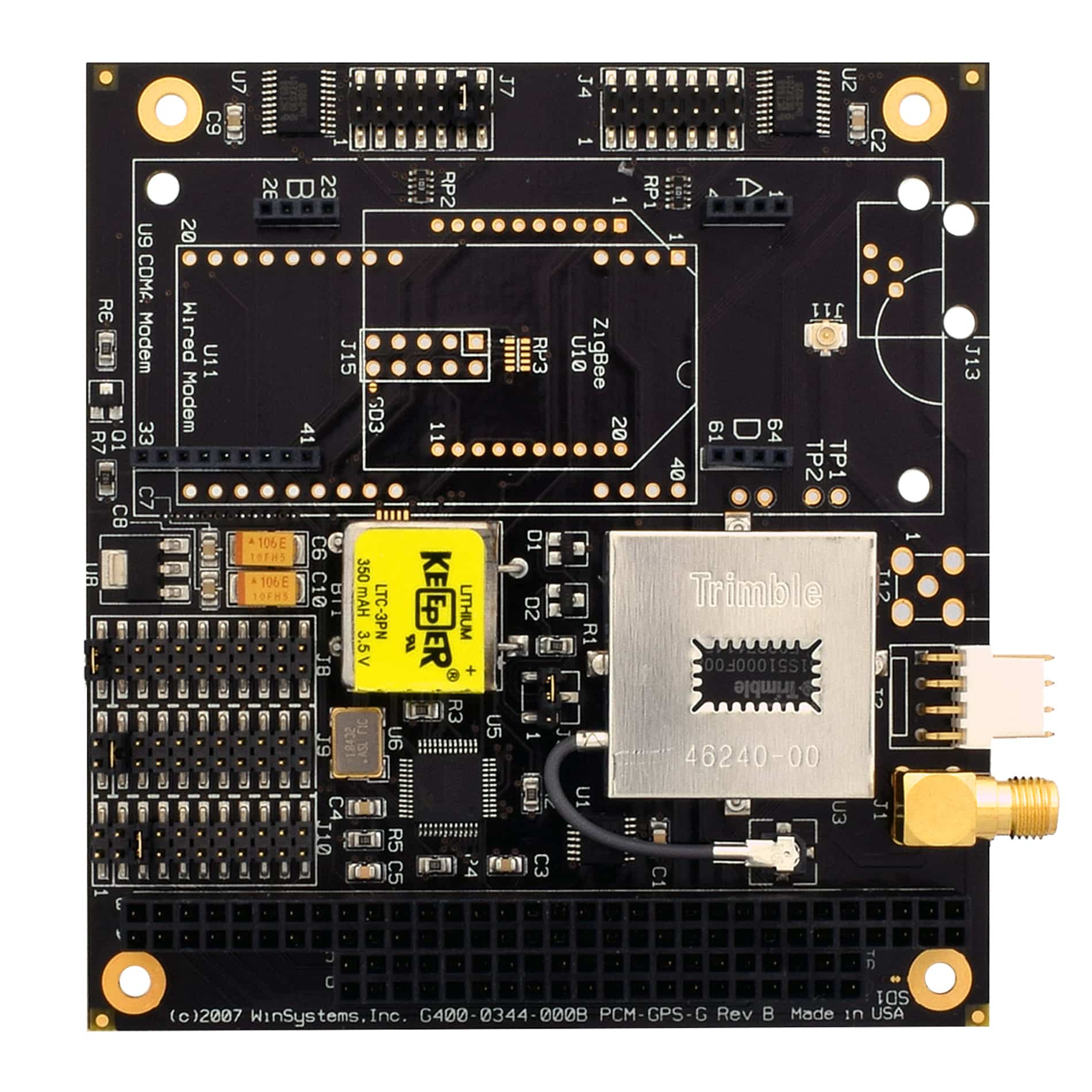

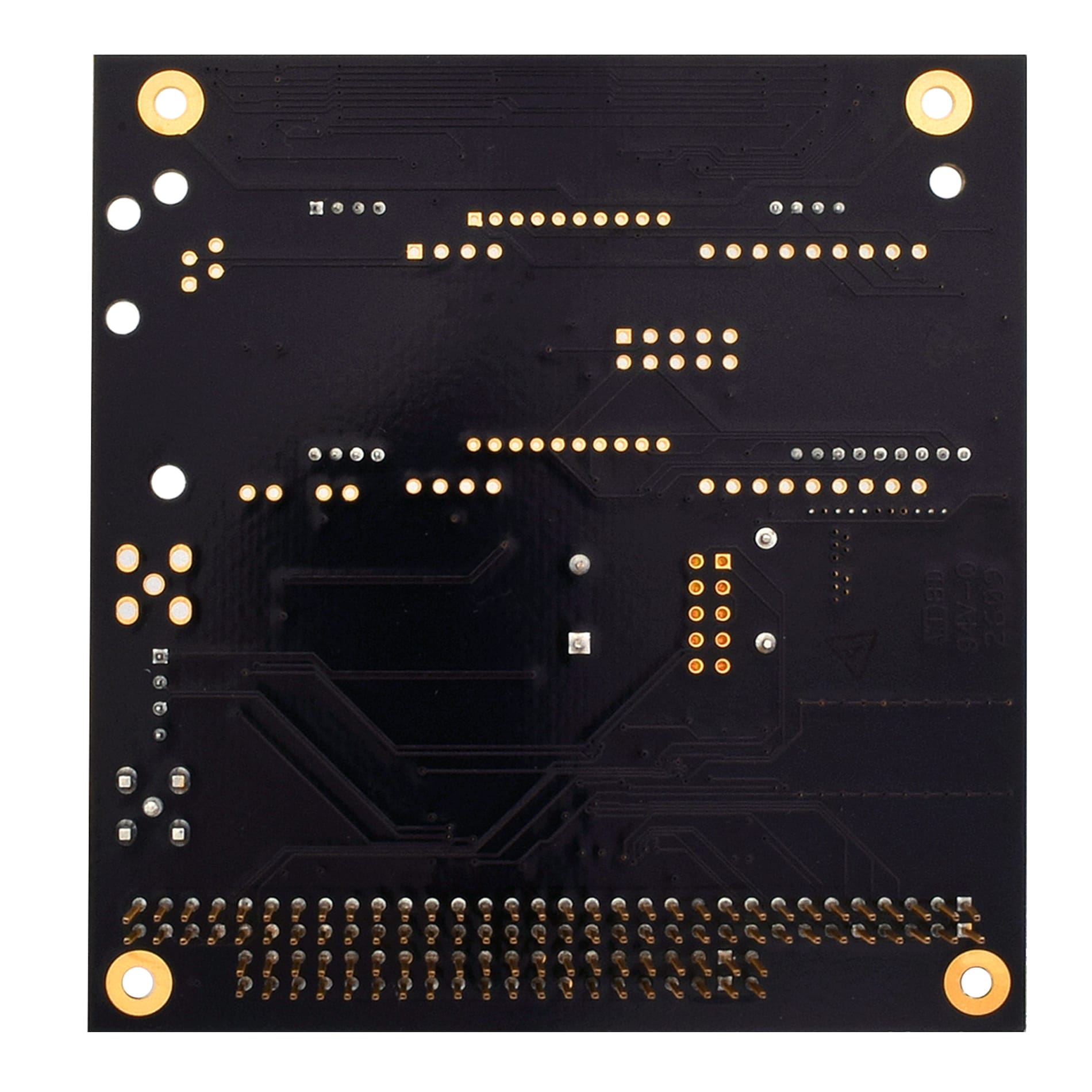

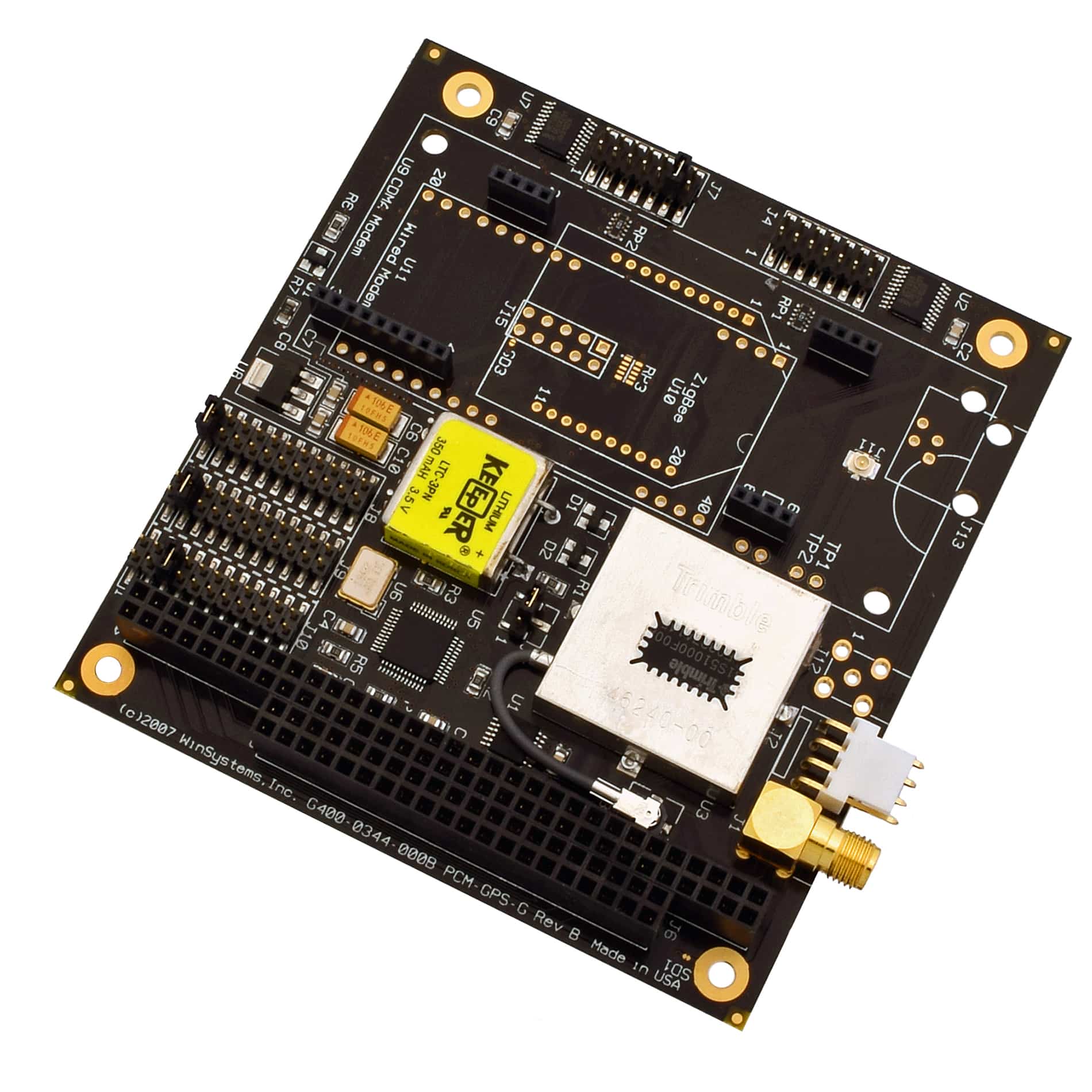

PC/104 GPS Receiver Module

Description

The PCM-GPS-G-0 is dual function PC/104-compatible module. It supports both a GPS receiver and a socketbased cellular modem. This board is ideal for both fixed and mobile applications that require navigation, tracking, data logging, and timing and/or communications functions.

Features

PRODUCT NOT RECOMMENDED FOR NEW DESIGNS
PC/104-compatible GPS receiver board with optional cellular modem supported
12 channel simultaneous operation
Dual sensitivity modes with automatic switching
Lassen iQ GPS receiver module provides position,velocity, and time (PVT) data
TSIP, TAIP, and NMEA 0183 protocol support
Optional Cellular wireless support includes:

GSM/GPRS and CDMA support
Socket support Multitech wireless module
Recognizes the standard AT commands
Alarm management, phone book management, and Short Message Services (SMS)

Data Sheet

Product Manual

Start Building Now

Name*
First Last
Company*
Email*
State:*
State / Province / Region
Country*
Please select your country
I am a:*
- New Customer
- Existing Customer
I'm looking to:*
- Fill out a general Contact Form
- Submit a new Project Inquiry
Message*
Please give us a little more info
I'm looking for:*
- Technical Support
- Information about a New Project Inquiry
Product Part Number*
Serial Number (If Available)
Brief Description of Issue*
Please describe the issue you would like support for. We'll contact you for more info, but please give us as much as possible.
Brief Description of Project & Technical Requirements*
Please describe the project. We'll contact you for more info, but please give us as much as possible.
How did you hear about us?
Privacy*
- By using this form you agree with the storage and handling of your data by this website.
All submissions are subject to our Terms of Use and Privacy Policy.

Feature	PCM-GPS-G-0
GPS	Trimble Lassen® receiver module TSIP, TAIP and NEMA 0183 protocols supported Pulse output support for accurate time standard External power antenna connection via a Standard SMA On-board battery retains GPS Almanac
Cell Modem (optional)	GSM/GPRS and CDMA standard support Socket support for MultiTech® wireless module Recognizes standard AT commands Alarm management, phone book management and Short Message Service (SMS) support
ZigBee (optional)	IEEE 802.15.4 Zigbee wireless interface Up to 1 mile line of sight range 2.4 GHz ISM frequency band 60 mW, 100 mW EIRP power output
Modem (optional)	56 kbps PC/104 modem V.42, MNP Class2-4 error correction V.42bis, MNP 5 compression Integrated DAA provides compliance to global telephone standards Built-in fuse and SiDactor Caller ID detection Parallel phone detection DTMF dialing
Bus Interface	PC/104
Power	+5V required, 50 mA typical
Mechanical	PC/104-compliant Dimensions: 3.6 x 3.8 inches (90 x 96 mm) Weight: 2.5 oz (70.87g)
Operating Temperature Range	-40°C to 85°C
