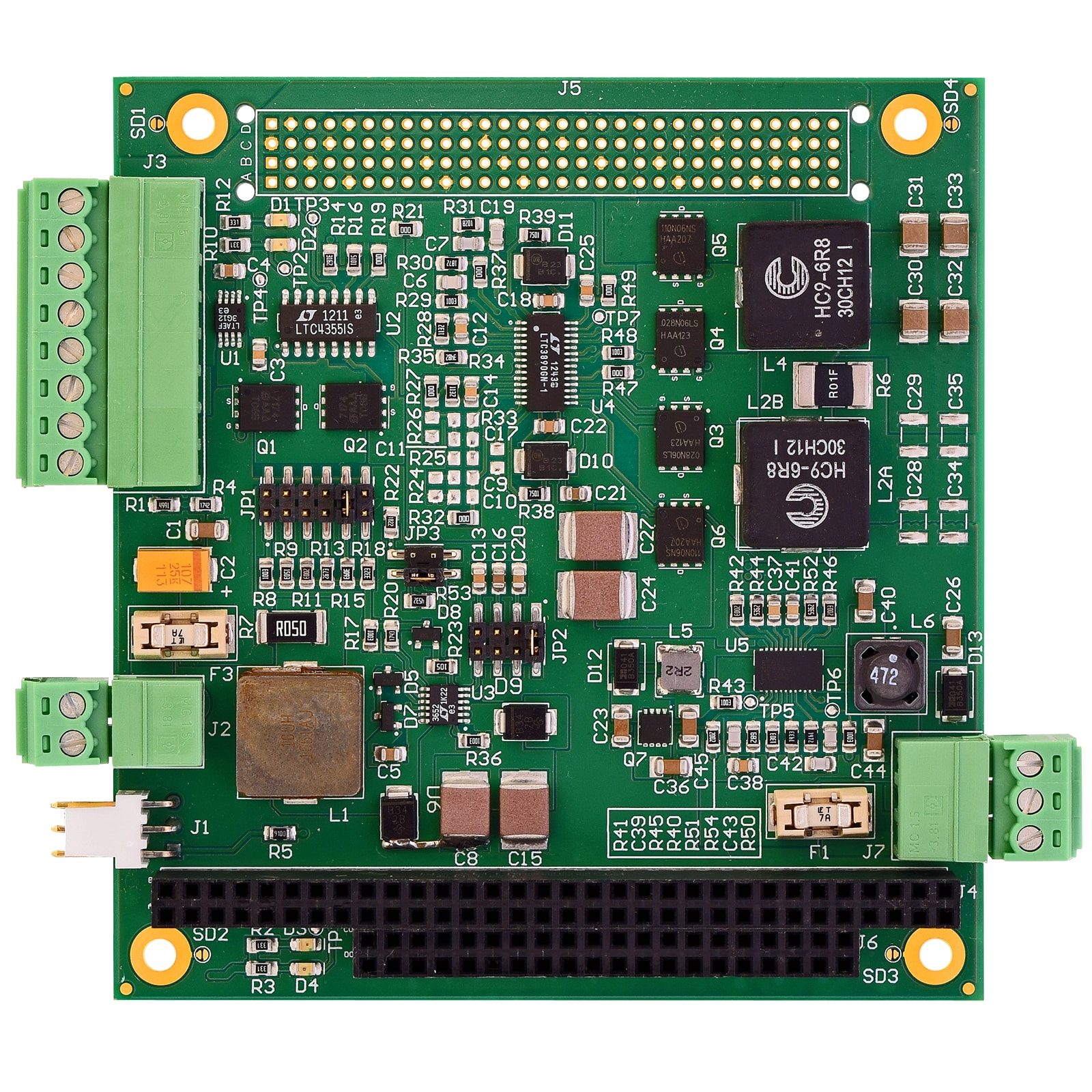

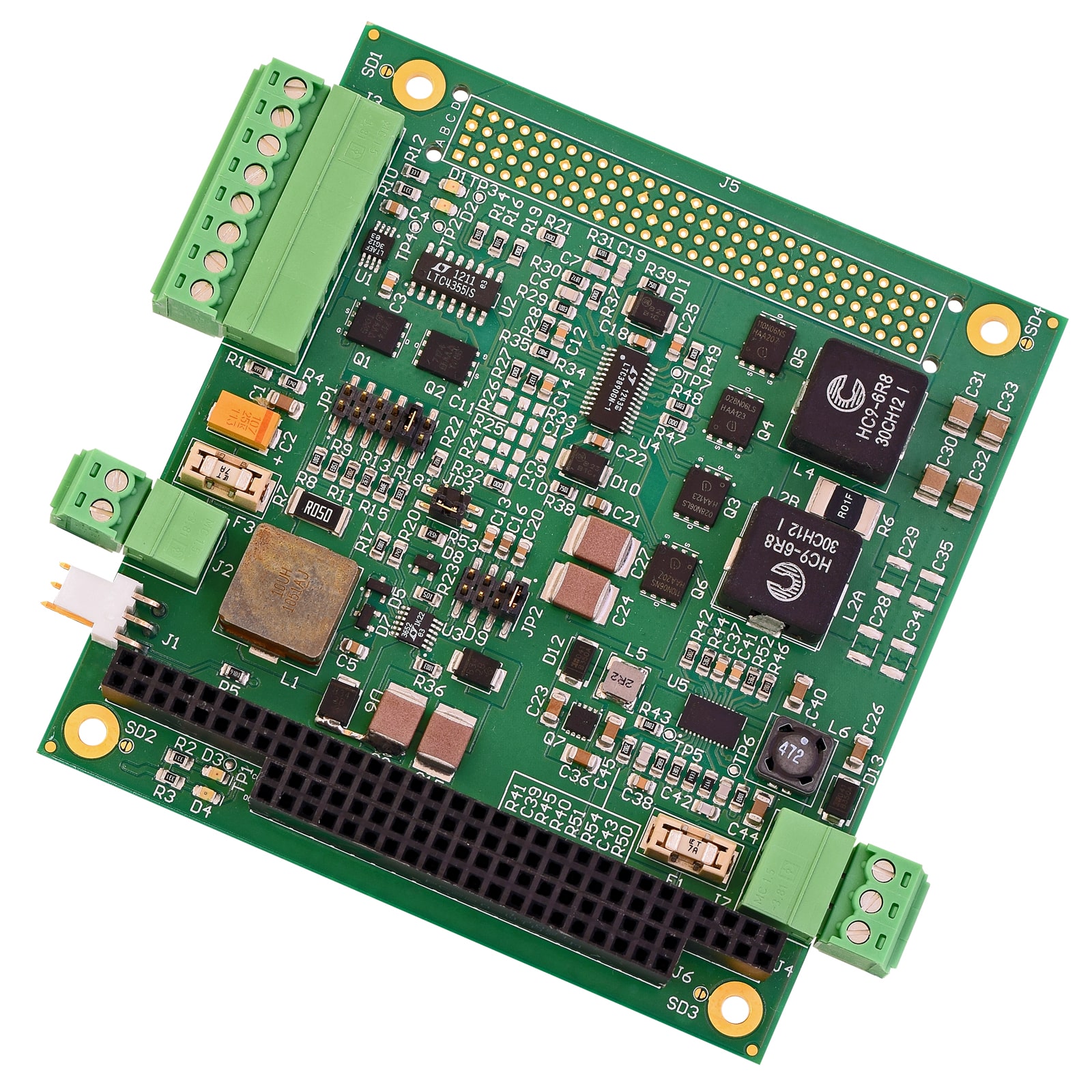

PCM-PS402-512
Description
WINSYSTEMS’ PCM-PS402-512 is a wide input range, triple output PC104 DC/DC converter with a built-in battery charger and uninterruptable power supply (UPS) controller. Designed for harsh environments, the power supply operates from -40° to +85°C without a fan or heatsink making it ideal for industrial applications.
Features
- Wide input range: 10V to 32 VDC
- Fused inputs accept solar panel, wind turbine, or other DC sources
- UPS operation with optional battery pack
- Battery charger supports Lead Acid, Li-Ion Polymer, LiFePO, and SLA chemistries
- MPPT charging supported for solar panels
- NTC thermistor input to monitor temperature

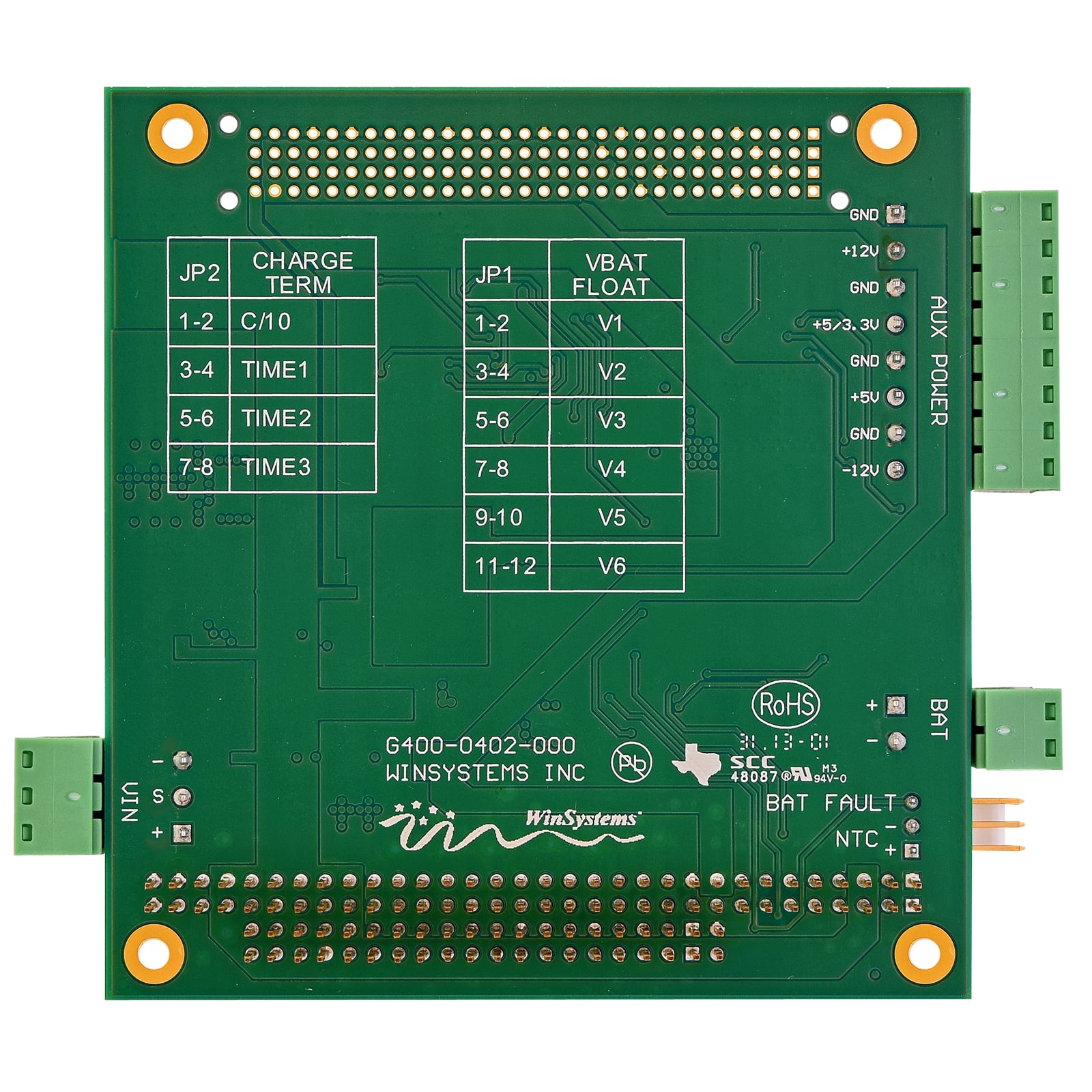

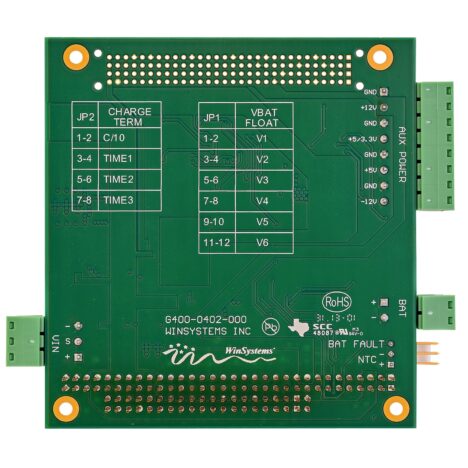

- Jumper configurable End of Charge and Float voltage
- Voltage outputs provide up to 50W combined power
- +5V, +12V, and -12V
- Outputs with short circuit, overload and overvoltage protection
- -40 to +85°C operation
