Es| Features | |
|---|---|
| PCM-VDX-1-256 | 500 MHz PC/104 SBC with 256 MB RAM |
| PCM-VDX-1-256-F | 500 MHz PC/104 SBC with 256 MB RAM and 512MB Flash Storage |
| PCM-VDX-1-256-ST | 500 MHz PC/104 SBC with 256 MB RAM with 512MB Flash Storage and Stackthrough |
| PCM-VDX-1-256-F-ST | 500 MHz PC/104 SBC with 256 MB RAM with Stackthrough |
PCM-VDX-1
Description

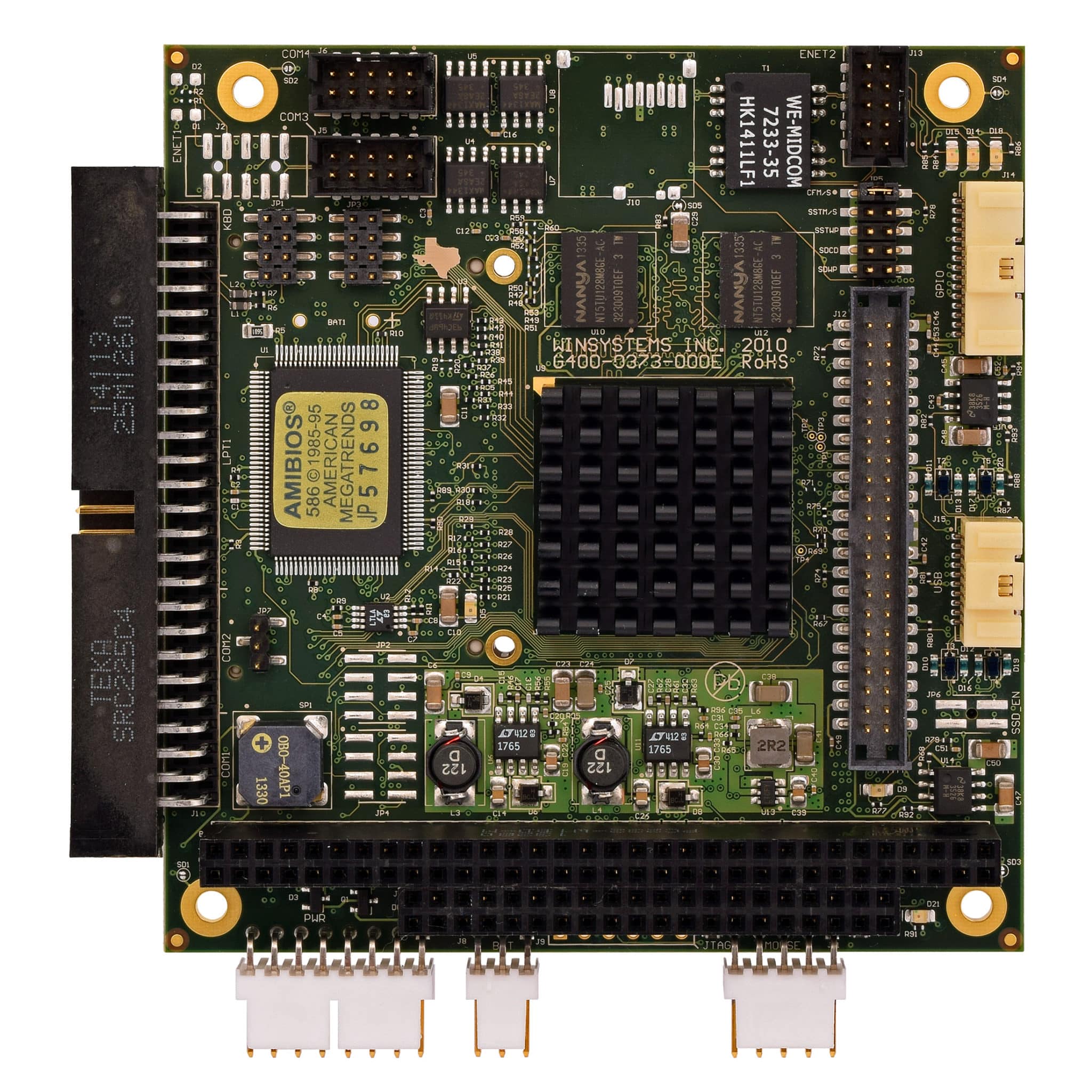

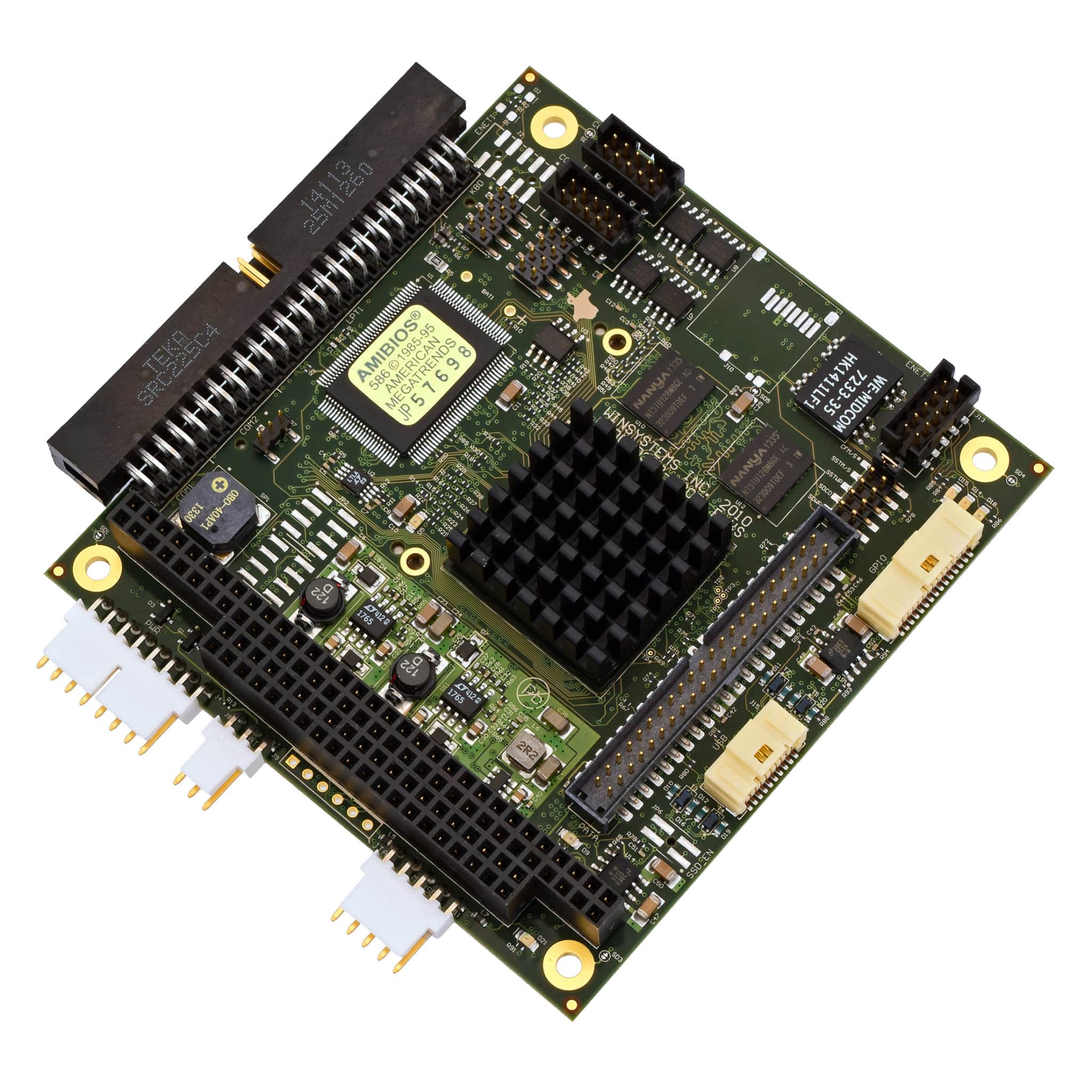

The PCM-VDX-1-256 is a 500 MHz, fanless PC/104 single board computer based upon the ultra low power Vortex86DX processor. The industrial single board computer includes four serial ports, Ethernet, USB, and GPIO while operating over an industrial temperature range of -40° to +85°C.
Features
- Low Power 500 MHz Vortex86DX processor
- 256 MB SDRAM (Soldered)
- Four USB 2.0 ports
- 4 serial ports (2 RS-232, 2 RS-232/422/485)
- 10/100 Mbps Ethernet port
- 16 Bidirectional GPIO with event sense

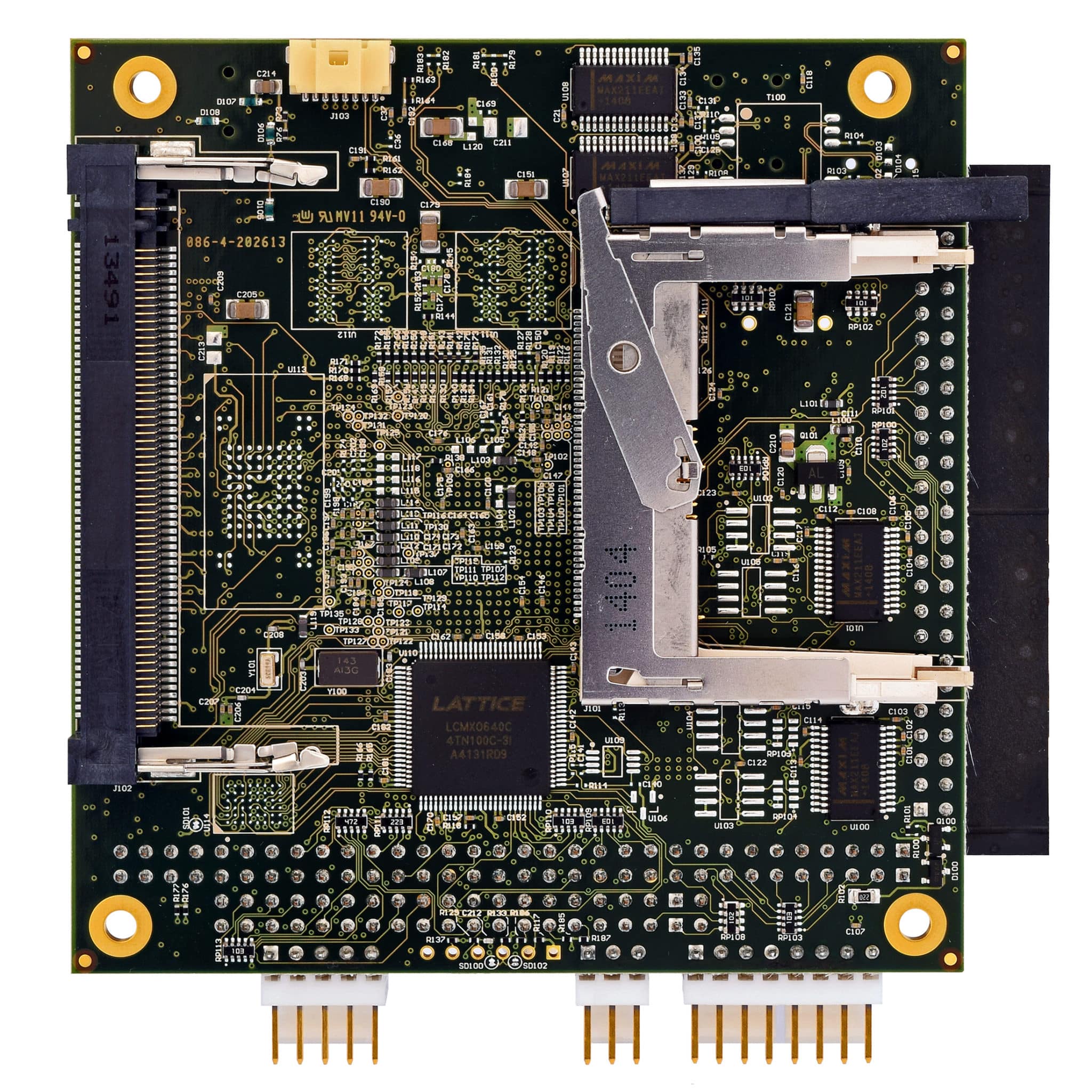

- CompactFlash socket
- Fanless: -40°C to +85°C operation
- PCM-VDX-1-256 Datasheet (PDF)
Datasheets
- PCM-VDX-1-256 Product Manual (PDF)
Product Manuals
- PCM-VDX-1-256 Mechanical Drawing (PDF)
- PCM-VDX-1-256 Solid Works
- PCM-VDX-1-256 Step
- PCM-VDX-1-256 IGS
- PCM-VDX-1-256 DWG
Mechanical Drawings
- Product Change Notice- ADP-IO (PDF)
Product Change_Notice
- |
- |
- ENC-104 | Low cost PC/104 enclosure
- CBL-USB4-002-12 | USB – Dual 2mm Molex Milli-Grid, 12″
- CBL-USB4-001-12 | USB – Dual 1mm Molex Pico-Clasp, 12″
- CBL-USB4-000-14 | USB – Unterminated, 14″
- CBL-SER1-202-12 | Serial – DB9, 12″
- CBL-ENET1-204-12 | Ethernet – 2mm Molex Milli-Grid, 12″
- CBL-ENET1-203-12 | Ethernet – RJ45 Male, 12″
- CBL-ENET1-202-12 | Ethernet – RJ45 Female, 12″
- CBL-DIO16-002-12 | Digital I/O – 30-pin IDC Female, 12″
- CBL-DIO16-001-12 | Digital I/O – Molex Pico-Clasp, 12″
- CBL-DIO16-000-14 | Digital I/O – Unterminated, 14″
- CBL-343-G-1-1.375 | Mouse – PS/2, 16.5″
- CBL-266-G-2-0.75A | IDE – 44-pin, 9″
- CBL-247-G-1-1.0 | Multi-I/O – KYB (PS/2), Serial (DB9) and LPT (DB25), 12″
- CBL-225-G-1-0.333 | Mouse – PS/2, 4″
- CBL-174-G-1-1.5 | Power – Unterminated, 18″
- ADP-IO-USB-002 | Termination Board – USB, Dual Type A
- CBL-SET-373-G-MIN | Minimal Cable Set for PCM-VDX-2-512
- CBL-SET-373-G-1 | Cable Set for PCM-VDX-1-256
- BAT-LTC-E-36-27-1 | External 3.6V, 2400 mAH battery
- BAT-LTC-E-36-16-1 | External 3.6V, 1650 mAH battery
- RISER-PPM-1 | Spacer board with PCI-104 Connector
- RISER-PCM-1 | Spacer board with PC/104 Connector
