Es| Features | |
|---|---|
| PCM-VDX-2-512 | 1 GHz PC/104 SBC with Dual Ethernet, 512 MB RAM |
| PCM-VDX-2-512-F | 1 GHz PC/104 SBC with Dual Ethernet, 512 MB RAM and 512MB Flash Storage |
| PCM-VDX-2-512-ST | 1 GHz PC/104 SBC with Dual Ethernet, 512 MB RAM with Stackthrough |
| PCM-VDX-2-512-F-ST | 1 GHz PC/104 SBC with Dual Ethernet, 512 MB RAM with 512MB Flash Storage and Stackthrough |
PCM-VDX-2
Description

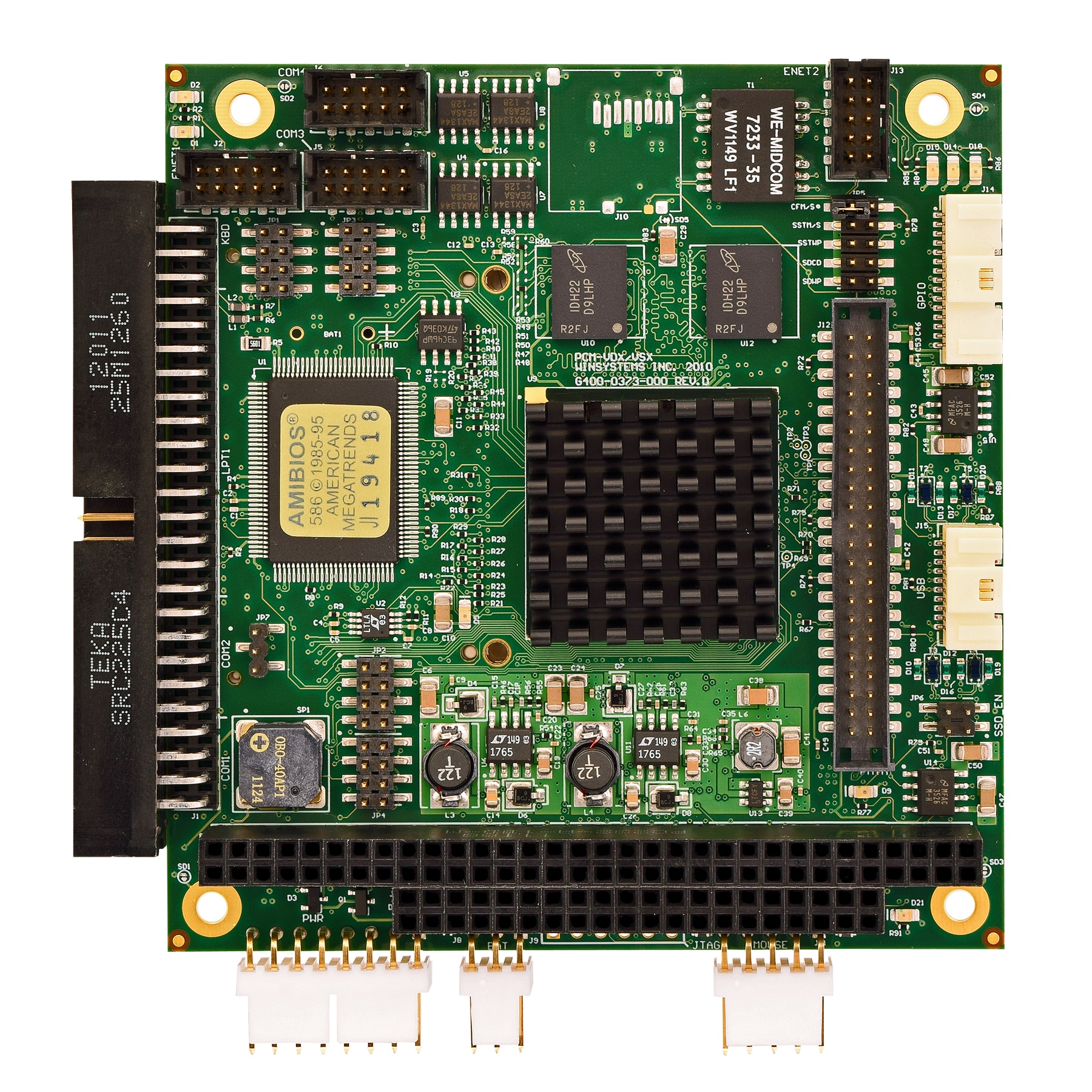

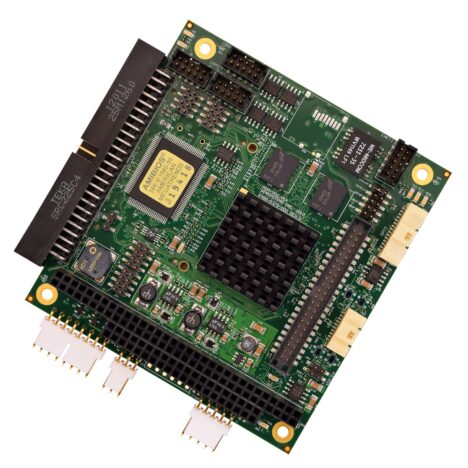

The PCM-VDX-2-512 is a 1GHz, fanless PC/104 single board computer based upon the ultra low power Vortex86DX processor with wired networking capability. This board requires about 6 Watts under full load while operating over an industrial temperature range of -40° to +85°C.
Features
- Low Power 1 GHz Vortex86DX processor
- 512 MB SDRAM (Soldered)
- 1 MB battery-backed SRAM
- Four USB 2.0 ports
- Four serial ports (RS-232/422/485)
- Two 10/100 Mbps Ethernet ports
- 16 Bidirectional GPIO with event sense
- CompactFlash socket
- Fanless: -40°C to +85°C operation
- PCM-VDX-2-512 Datasheet (PDF)
Datasheets
- PCM-VDX-2-512 Product Manual (PDF)
Product Manuals
- PCM-VDX-2-512 Mechanical Drawing (PDF)
- PCM-VDX-2-512 Solid Works
- PCM-VDX-2-512 Step
- PCM-VDX-2-512 IGS
- PCM-VDX-2-512 DWG
Mechanical Drawings
- Product Change Notice- ADP-IO (PDF)
Product Change_Notice
- DOS - GPIO and PWM Utilities
- DOS - Realtek RTL8100C Ethernet Packet Driver
- Linxu - Kernel 4.18.+ - SSD Driver
- Linux - Kernel 2.6.36+ - SSD Driver
- Linux - Kernel 2.6.36+ - Watchdog Timer
- Linux - Kernel 2.6.32+ - GPIO
- Linux - Kernel 2.6.32+ - PWM
- Linux - Kernel 2.4+; 2.6+ - Vortex86DX Internal Ethernet
Drivers
- CBL-SET-373-2 | Cable Set for PCM-VDX-2-512
- BAT-LTC-E-36-16-1 | External 3.6V, 1650 mAH battery
- RISER-PPM-1 | Spacer board with PCI-104 Connector
- CBL-SER1-202-12 | Serial – DB9, 12″
- CBL-ENET1-204-12 | Ethernet – 2mm Molex Milli-Grid, 12″
- CBL-ENET1-203-12 | Ethernet – RJ45 Male, 12″
- CBL-ENET1-202-12 | Ethernet – RJ45 Female, 12″
- CBL-DIO16-002-12 | Digital I/O – 30-pin IDC Female, 12″
- CBL-DIO16-001-12 | Digital I/O – Molex Pico-Clasp, 12″
- CBL-DIO16-000-14 | Digital I/O – Unterminated, 14″
- CBL-225-G-1-0.333 | Mouse – PS/2, 4″
- CBL-174-G-1-1.5 | Power – Unterminated, 18″
- ADP-IO-G-EBC0364 | Termination Board – Ethernet & USB, Dual RJ45 & Type A
- ADP-IO-ENET-002 | Termination Board – Ethernet, Dual RJ45
- CBL-USB4-002-12 | USB – Dual 2mm Molex Milli-Grid, 12″
- CBL-USB4-001-12 | USB – Dual 1mm Molex Pico-Clasp, 12″
- CBL-USB4-000-14 | USB – Unterminated, 14″
- CBL-343-G-1-1.375 | Mouse – PS/2, 16.5″
- CBL-266-G-2-0.75A | IDE – 44-pin, 9″
- CBL-247-G-1-1.0 | Multi-I/O – KYB (PS/2), Serial (DB9) and LPT (DB25), 12″
- ADP-IO-USB-002 | Termination Board – USB, Dual Type A
- RISER-PCM-1 | Spacer board with PC/104 Connector
- BAT-LTC-E-36-27-1 | External 3.6V, 2400 mAH battery
