PPC3-12-413

Description

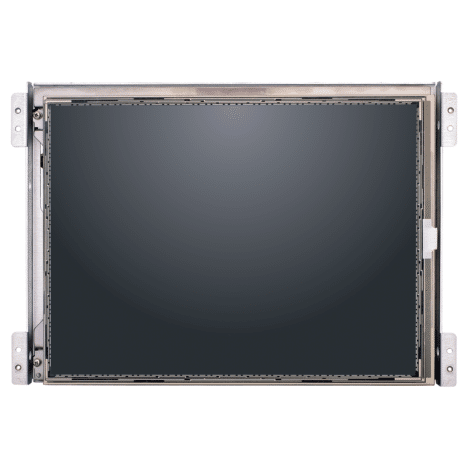

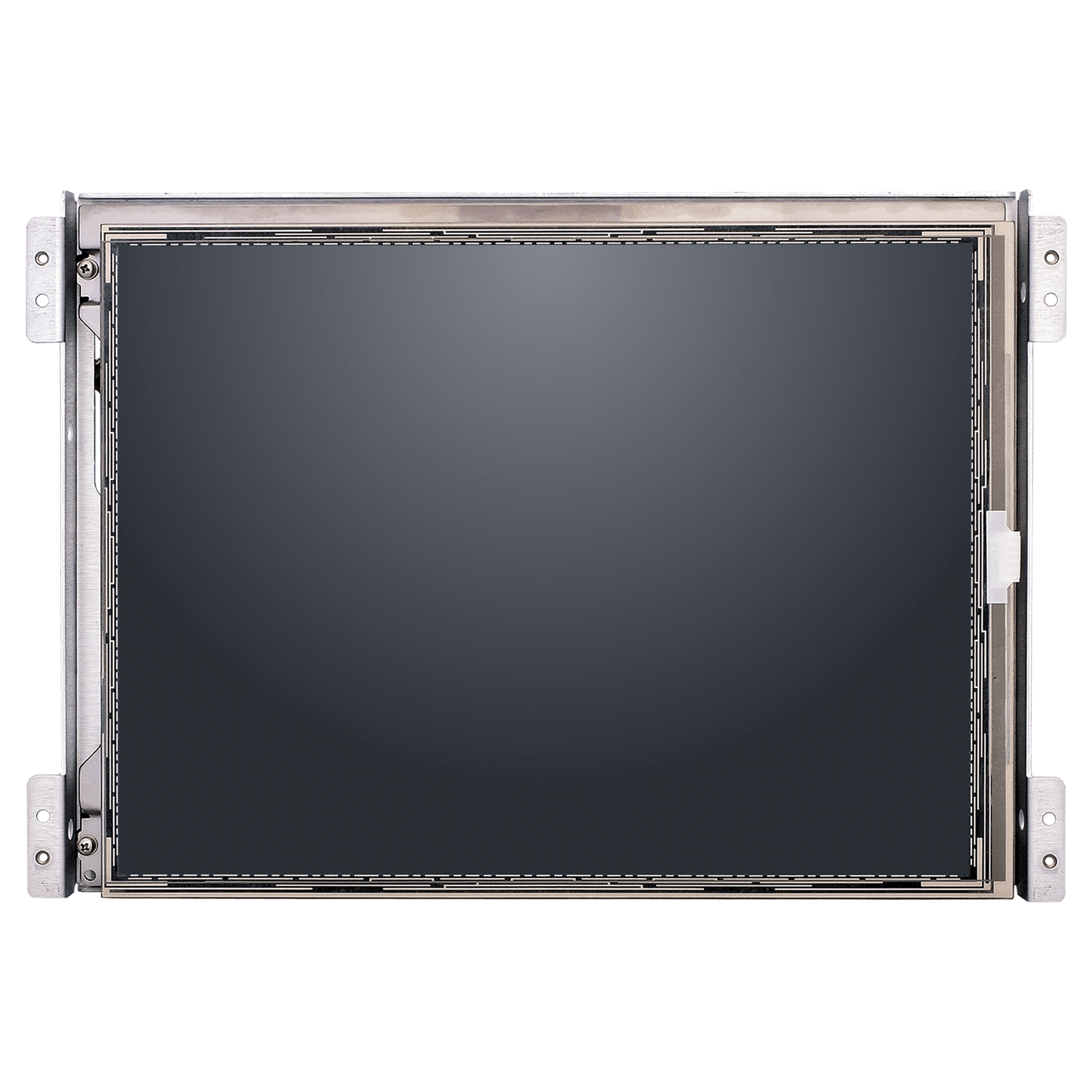

The PPC3-12-413 from WINSYSTEMS utilizes the E3800 family of Atom™ processors from Intel® to provide low power and high performance in a compact 12.1-inch Panel PC. Designed for harsh environments and reliability, the design includes fanless operating temperature ranges from -30ºC to +85ºC.

PRODUCT MANUAL
DATA SHEET
PRODUCT INFO

Features

  • Compact LCD Panel
    • 12.1-inch TN LCD panel with resistive touchscreen
    • Brightness up to 500 nits (cd/m2)
    • 1024 x 768 resolution
  • Performance for Industrial IoT Applications
    • Intel® Atom™ E3800 Processor
    • Up to 8 GB DDR3L System Memory
    • Time Coordinated Computing
  • Rugged Design for Demanding Environments
    • -30°C to +85°C Operating Temperature Range

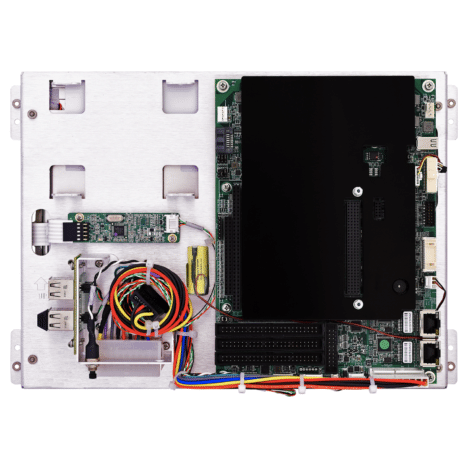

    • EBX Single Board Computer Form Factor
  • Fast Graphics at High Resolutions
    • Intel. Gen7 Graphics Engine
    • Multiple Displays Supported
    • Full-HD and 3D Graphics Acceleration
  • Secure and Trusted Data
    • Intel Security Engine
    • Cryptographic Acceleration
  • Connectivity and I/O for Embedded Systems
    • 2x Ethernet
    • 7x USB 2.0
    • 48x GPIO with Event Sense
    • 4x Serial Ports (RS232/422/485)
    • 1x LPT
  • Expansion Options
    • PC/104-Plus (PC/104 and PCI-104)
    • 2x MiniCard Sockets
    • 1x mSATA Socket (shared with MiniCard)
Features
PROCESSOR
  • Intel® Atom ™ E3825
    Dual-Core 1.33GHz, 1MB cache
  • Intel® Atom™ E3845
    Quad-Core 1.91GHz, 2 MB cache
MEMORY
  • Up to 8 GB of DDR3 SODIMM (Socketed)
  • Up to 8 GB of DDR3 SODIMM (Socketed)
STORAGE
  • SATA (2.0) channel
    mSATA socket (Shared with MiniPCIe)
    CFast Memory Socket
  • SATA (2.0) channel
    mSATA socket (Shared with MiniPCIe)
    CFast Memory Socket
DISPLAY
  • Dual, simultaneous video output supports two active displays from the 3 different interfaces
    LVDS with backlight and touch control output to 12.1-inch TFT-LCD panel PC
    – 1024 x 768 at 60 Hz resolution, 4:3 aspect ratio
    – LCD luminance = 500 cd/m2 (nits)
    Analog VGA resolution up to 2560×1600
    DisplayPort
  • Dual, simultaneous video output supports two active displays from the 3 different interfaces
    LVDS with backlight and touch control output to 12.1-inch TFT-LCD panel PC
    – 1024 x 768 at 60 Hz resolution, 4:3 aspect ratio
    – LCD luminance = 500 cd/m2 (nits)
    Analog VGA resolution up to 2560×1600
    DisplayPort
NETWORK INTERFACE
  • Two 1000 Mbps using the Intel i210 LAN controller
    – Supports Wake on LAN on both channels
    – Status & Activity LEDs for both Ethernet controllers
  • Two 1000 Mbps using the Intel i210 LAN controller
    – Supports Wake on LAN on both channels
    – Status & Activity LEDs for both Ethernet controllers
ONBOARD I/O
  • Digital I/O: 48 Bidirectional GPIO; 24 with event sense
    Serial I/O: 4 serial ports (RS-232/422/485)
    PS/2 keyboard and mouse controller
    Printer I/O: LPT interface with SPP/EPP support
    Speaker output for beep tones
    RTC with optional battery back up
    7 USB 2.0 Ports
    – 3x USB 2.0 Type A
    – 4x USB 2.0 via header
    Watchdog Timer: Adjustable from 1 second to 255 minute reset
    HD Audio supported Realtek ALC888S-VD2-GR
  • Digital I/O: 48 Bidirectional GPIO; 24 with event sense
    Serial I/O: 4 serial ports (RS-232/422/485)
    PS/2 keyboard and mouse controller
    Printer I/O: LPT interface with SPP/EPP support
    Speaker output for beep tones
    RTC with optional battery back up
    7 USB 2.0 Ports
    – 3x USB 2.0 Type A
    – 4x USB 2.0 via header
    Watchdog Timer: Adjustable from 1 second to 255 minute reset
    HD Audio supported Realtek ALC888S-VD2-GR
EXPANSION BUS
  • PC/104-Plus Expansion (includes PC/104 and PCI-104)
    2x Mini PCIe (1x shared mSATA or MiniPCIe)
  • PC/104-Plus Expansion (includes PC/104 and PCI-104)
    2x Mini PCIe (1x shared mSATA or MiniPCIe)
POWER
  • +5V DC required
  • +5V DC required
SOFTWARE
  • UEFI compliant BIOS in SPI Flash Device
    Compatible with Linux, Windows, DOS, and other x86 operating systems
  • UEFI compliant BIOS in SPI Flash Device
    Compatible with Linux, Windows, DOS, and other x86 operating systems
ENVIRONMENTAL
  • -10ºC to +70ºC Operational temperature
    RoHS-compliant
  • -10ºC to +70ºC Operational temperature
    RoHS-compliant
MECHANICAL
  • Dimensions – 12.25 x 8.60 x 1.90 inches
    (31.12 x 21.85 x 4.82 cm)
  • Dimensions – 12.25 x 8.60 x 1.90 inches
    (31.12 x 21.85 x 4.82 cm)
