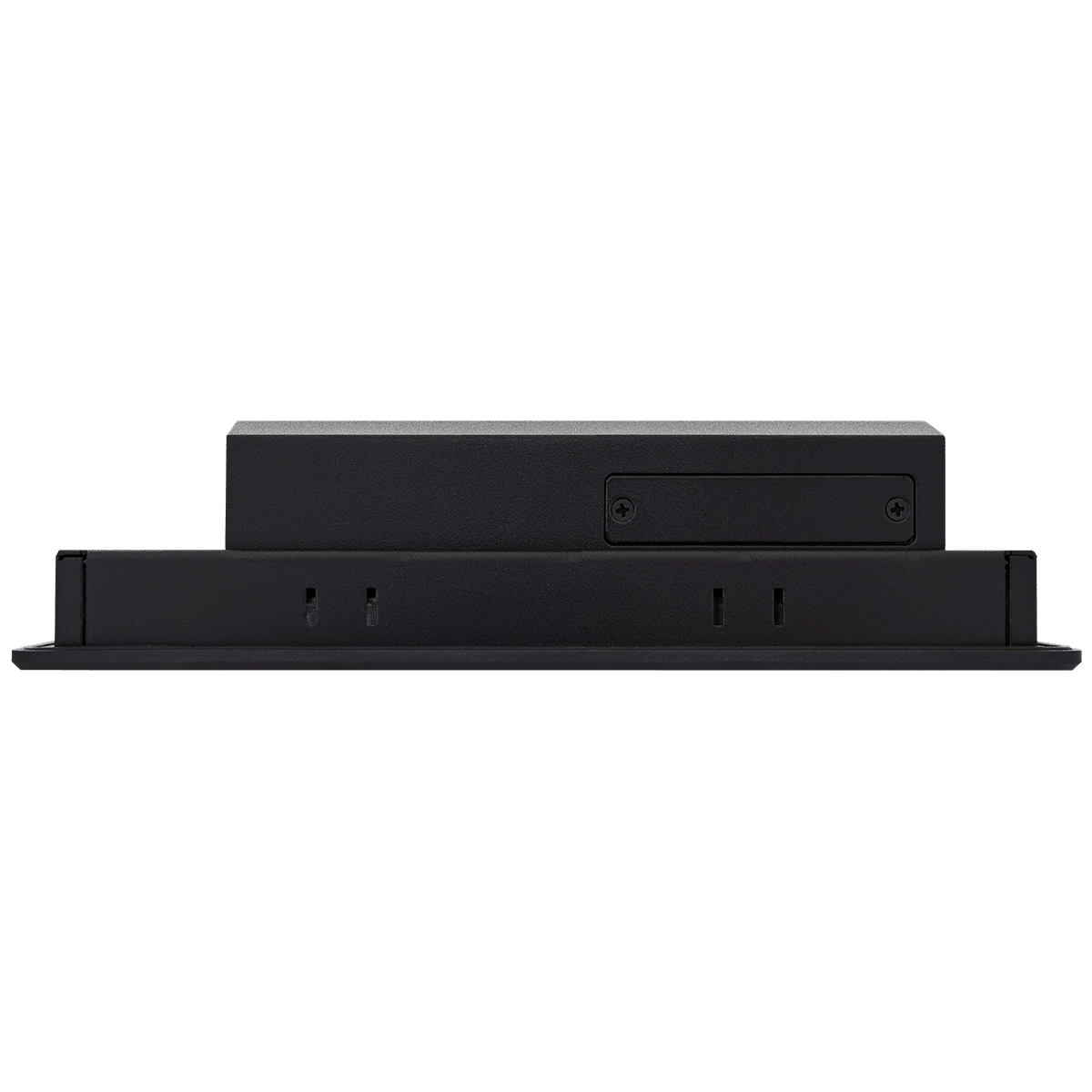

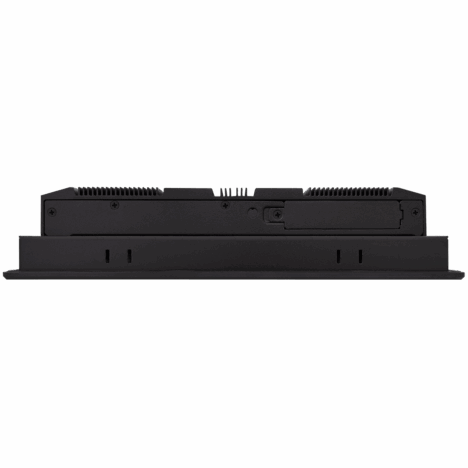

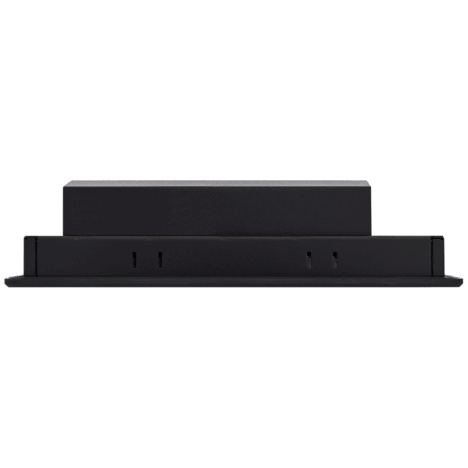

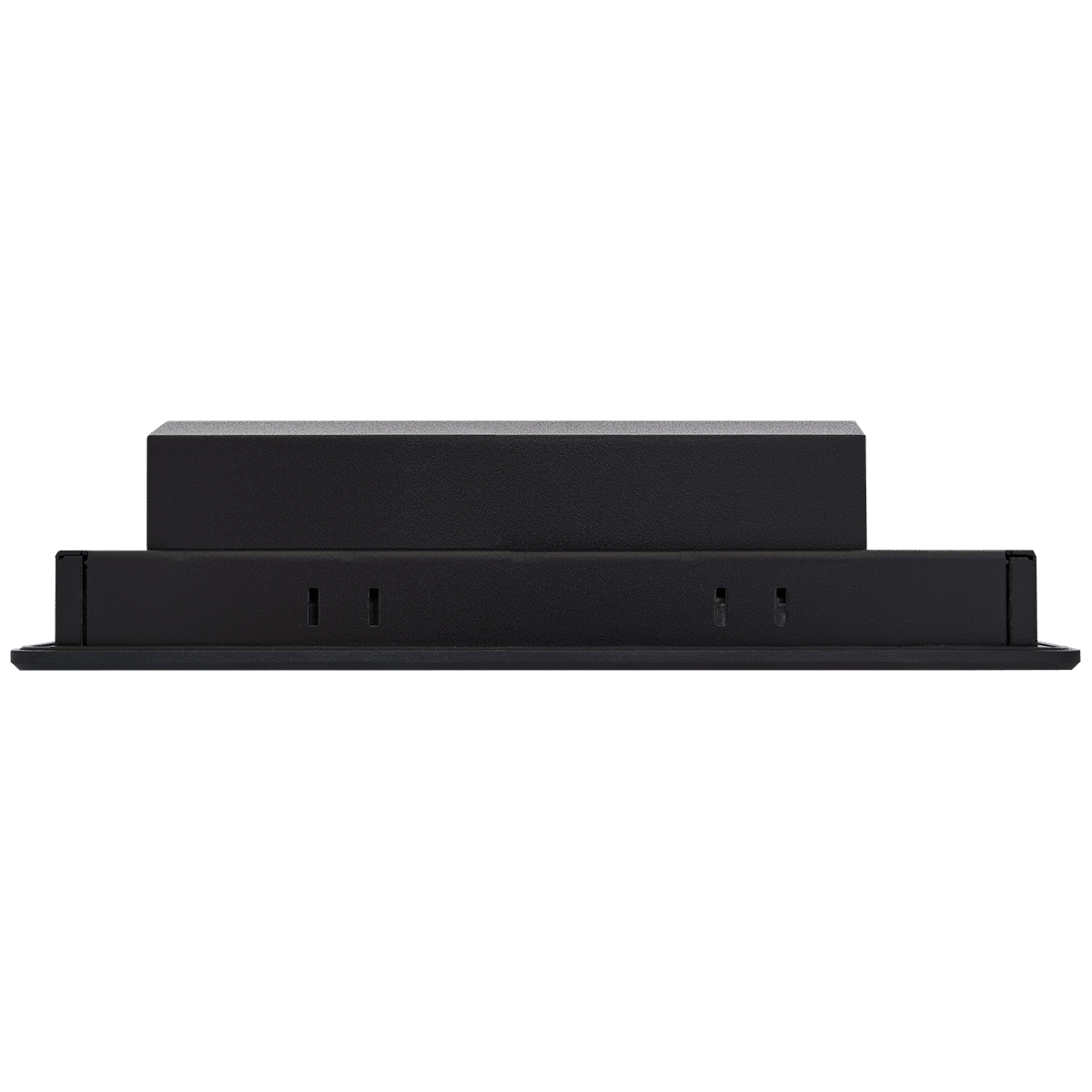

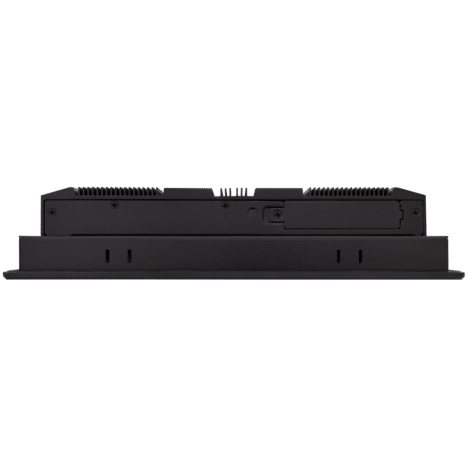

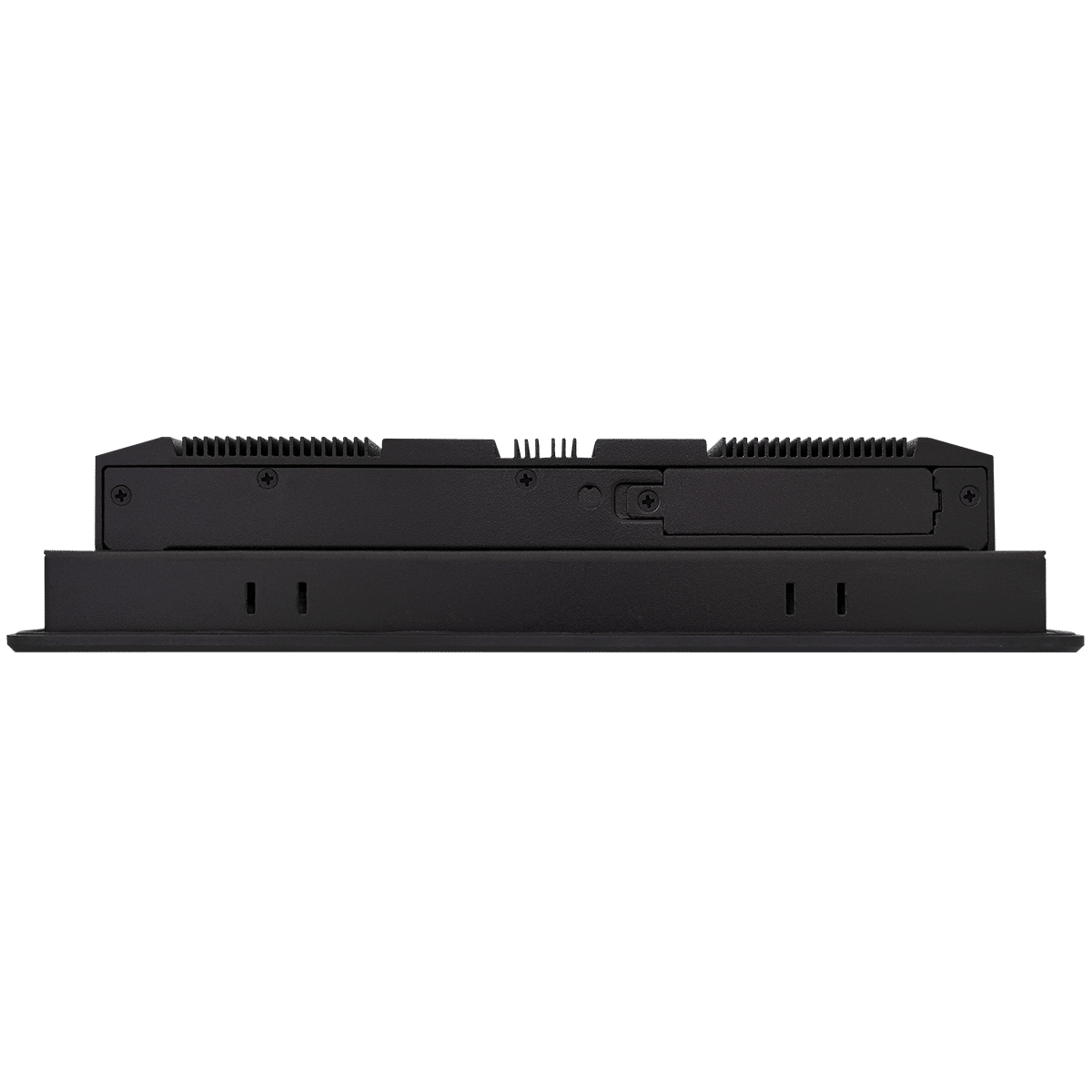

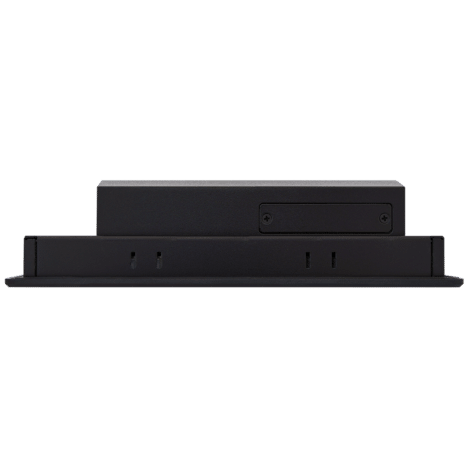

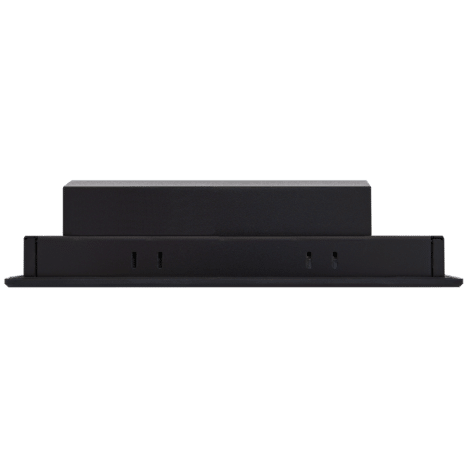

PPC65BP-1x

Description

WINSYSTEMS’ PPC65BP-1x Panel PC Series is IP65-certified and optimized for use in demanding market applications including industrial machinery, utilities, petroleum, transportation, pipeline and food processing, wherever there is a need for tight system integration in a minimal footprint.

High performance embedded applications will benefit from the PPC65BP-1x’s 1.9 GHz Quad-Core Intel. Atom™ E3845 processor. The panel PC is designed and engineered to operate without a fan—even with the quad-core processor—resulting in quieter operation, lower maintenance, and increased product service life.

The PPC65BP-1x is available in 5 screen sizes: 10.4″, 12.1″, 15″, 17″, and 19″. Technical specifications for all size options are available on the product datasheet.

PRODUCT MANUAL
DATA SHEET
PRODUCT INFO

Features

  • Performance for Industrial IoT Applications
    • 1.9 GHz Quad-Core Intel® Atom™ E3845 processor
    • Up to 8 GB of RAM
    • Supports Linux, Windows 10 Operating Systems
  • Rugged Design for Demanding Environments
    • IP65-compliant fanless panel PC

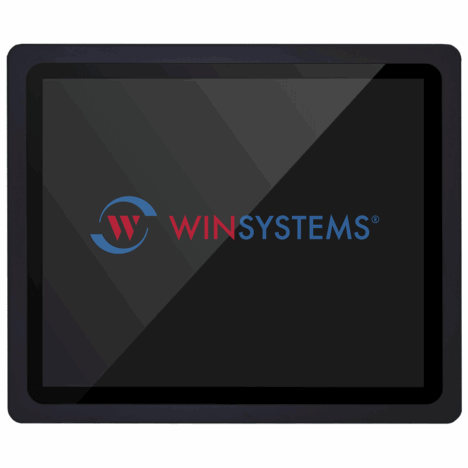

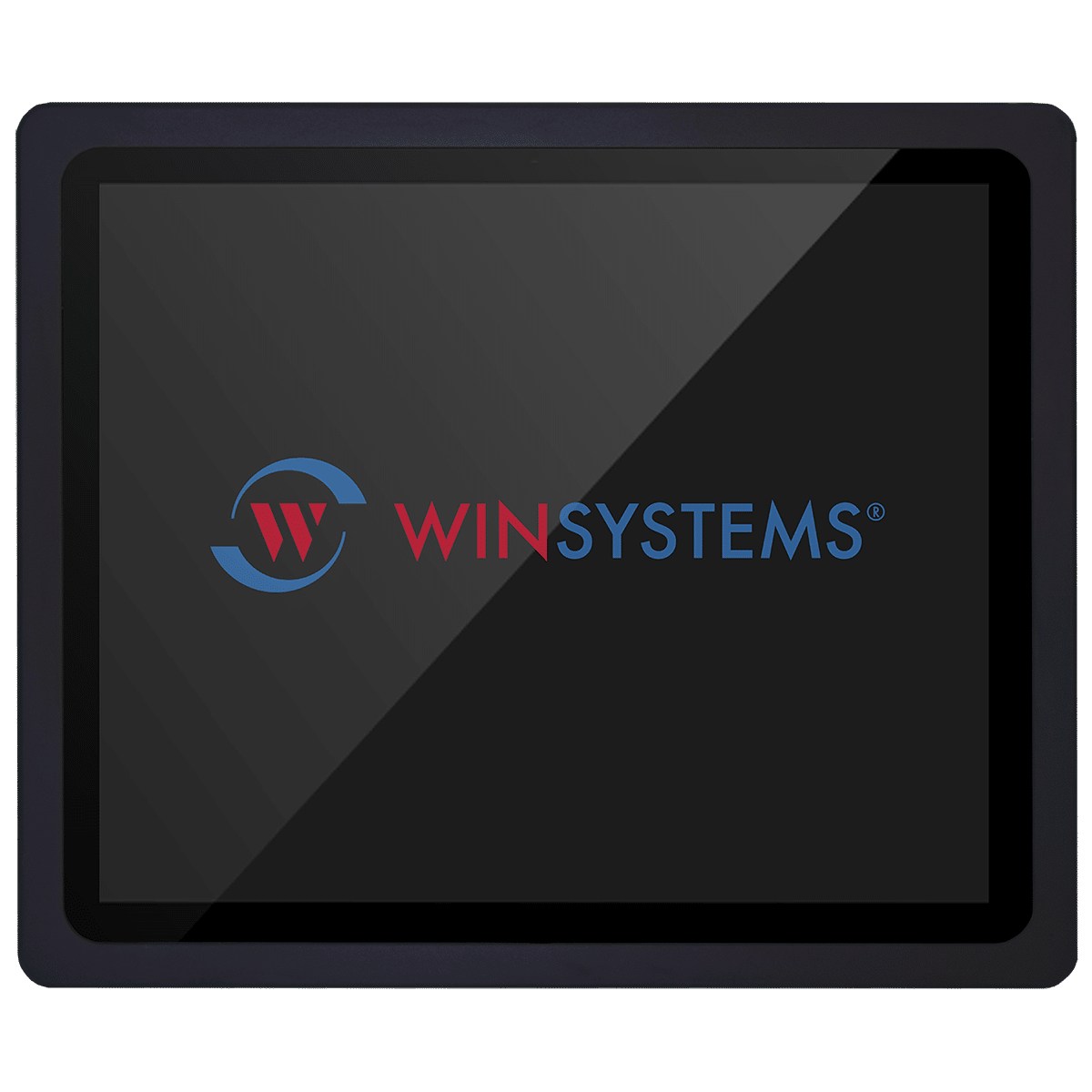

    • Front display sealed against water and dust
    • Panel or VESA mounting configurations
    • -25°C to +70°C operating temperature range
    • SATA controller with 2.5-inch HDD/SSD
    • Wide input power: 12-24V DC
  • Fast Graphics at High Resolutions
    • Projective capacitive multi-touch screen
    • Resolution: 1024 x 768 / 1280 x 1024
  • Connectivity and I/O for Embedded Systems
    • 2x Gigabit Ethernet ports
    • 1x USB 2.0 port (up to 3x with expansion)
    • 1x USB 3.0 port
    • Watchdog timer
  • Expansion Options
    • 2x RS-232/422/485 plus 2x USB (default)
    • 2x RS-232/422/485 plus 1x RS-232 (optional)
    • 1x line-out, 1x RS-232/422/485 plus 2x USB (optional)
Features
PPC65B-1x

IP65 Panel PC with RAM, 4xUSB, and 2xRS-232/485/422
Display

Backlight: LED type
Touch Window: Projective Capacitive Multi-Touch (10 points)
System

SOC: Intel® Atom™ Quad-Core E3845 (1.91 GHz)
Memory: DDR3L SO-DIMM 1333/1600 MHz max up to 8 GB
BIOS: AMI
Graphics: Intel® Gen7 Graphics
LAN: Chipset Dual Intel® I210IT Gigabit Ethernet
Audio: Realtek High Definition Audio Codec
Watchdog Timer: 1~255 levels reset
Storage Device: 2.5” SATA HDD / SSD, Compact Flash II and SD card
OS: Windows 10, Linux, and other x86 Operating Systems

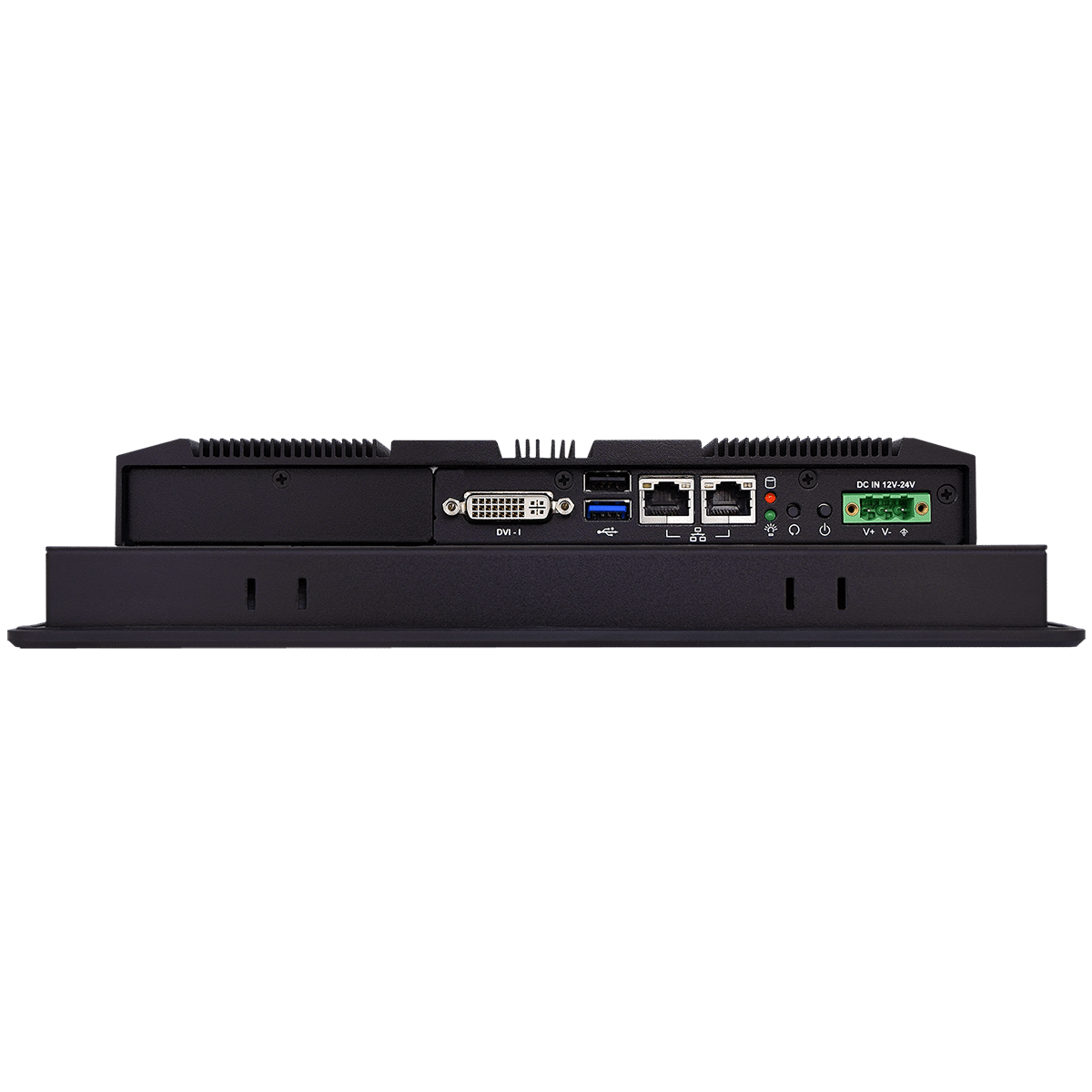

Onboard I/O

Serial Ports: 2 x RS-232/422/485 (Expansion: default)
Display: 1 x DVI-I
USB Options: 1 x USB 2.0 and 1 x USB 3.0 or 2 x USB 2.0 (Expansion: default)
Ethernet: 2 x Gigabit Ethernet
Half-Size Mini-PCIe Expansion slot
Others: 1 x SMA Antenna hole for WiFi/3G Solution
Expansion Options:
— Option 1 – 2 x RS-232/422/485, 1 x RS-232
— Option 2 – 1 x Line-out, 1 x RS-232/422/485, 2 x USB 2.0
Mechnical

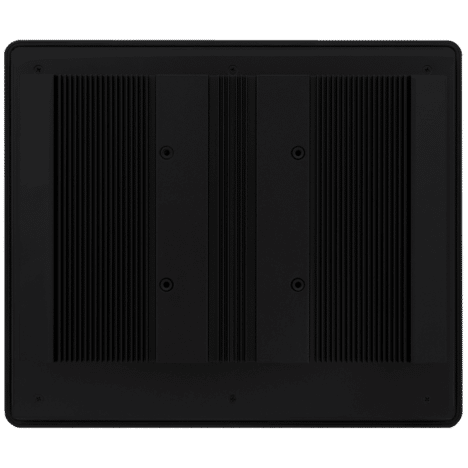

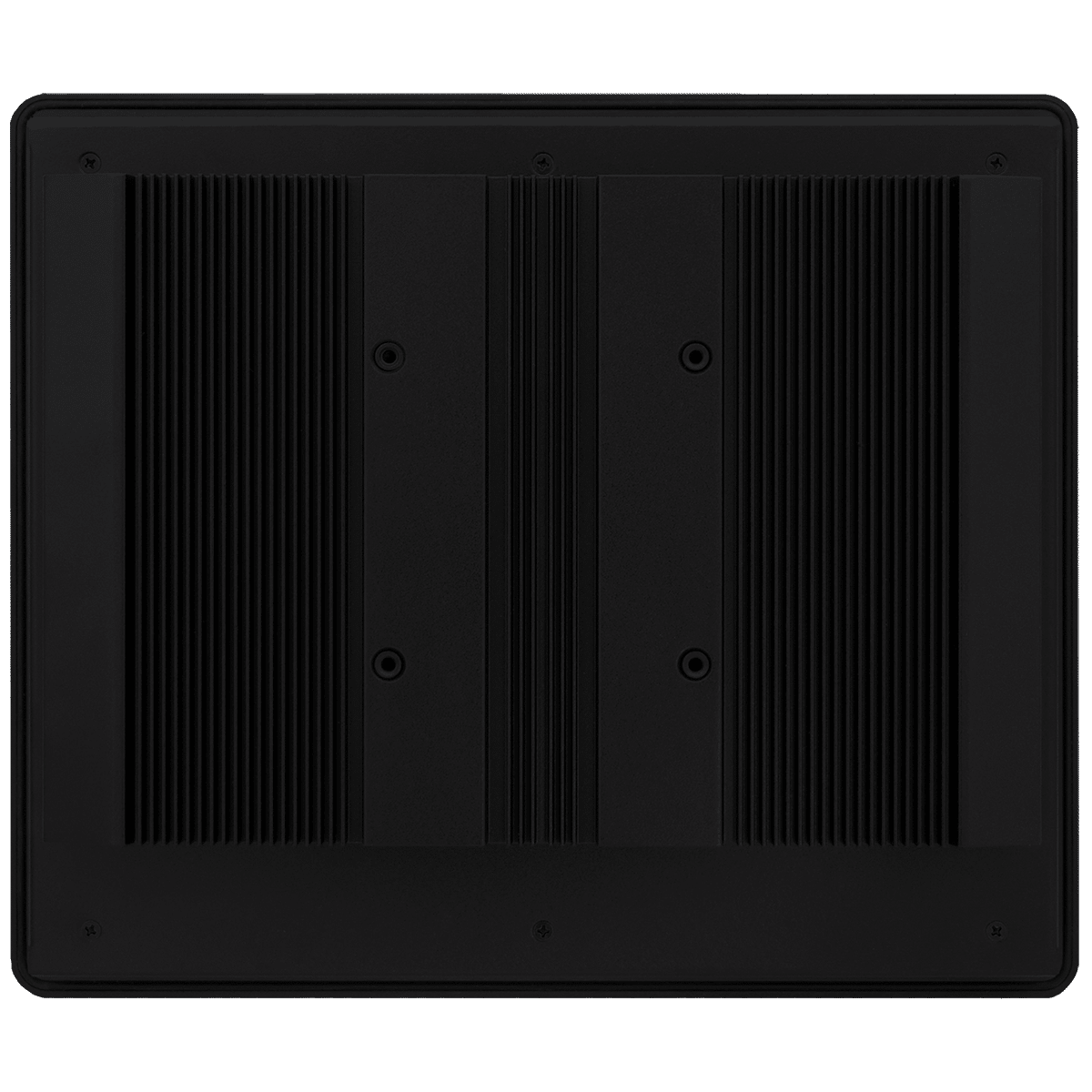

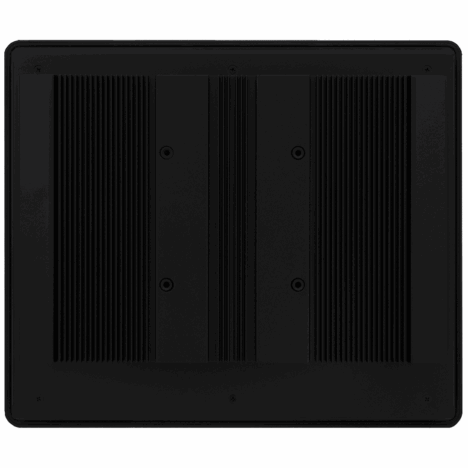

Mounting (mm): VESA Mount 75 x 75 & 100 x 100; Panel Mount
Power

Power Supply: DC 12-24V input with 3-pin Terminal Block Connector
Power Adaptor: 12V, 5A/60W (Optional)
Environmental

Operational Temperature Range: -25ºC to +70°C
Storage Temperature Range: -40ºC to +85°C (20-90% non-condensing)
Vibration: 1.0G (SD/CF/SSD) and 0.5G (HDD), Power on & 2.16G, Packaged; 5-500Hz, IEC 60068-2-64
Shock: 15G peak acceleration, 11 ms (Power on condition), IEC 60068-2-27
Drop: Package with Carton from 96.5 cm (1-Corner, 3-Axis, 6-Face), ISTA 2A Standard
Front Panel Protection: IP65 (Front) / IP20 (Rear), IEC 60529 Edition 2.1 Standard
Certification: CE/FCC Class A
