Es| Features | |
|---|---|
| PPM-C393-S1-0-0 | PC104-Plus SBC with Atom N455 processor, heat spreader, non-stackthrough |
| PPM-C393-S1-0-0-ST | PC104-Plus Computer with Atom N455 processor, heat spreader, stackthrough |
| PPM-C393-S1-0-1 | PC104-Plus Computer with Atom N455 processor, heat sink, non-stackthrough |
| PPM-C393-S1-0-1-ST | PC104-Plus Computer with Atom N455 processor, heat sink, stackthrough |
PPM-C393-S
Description

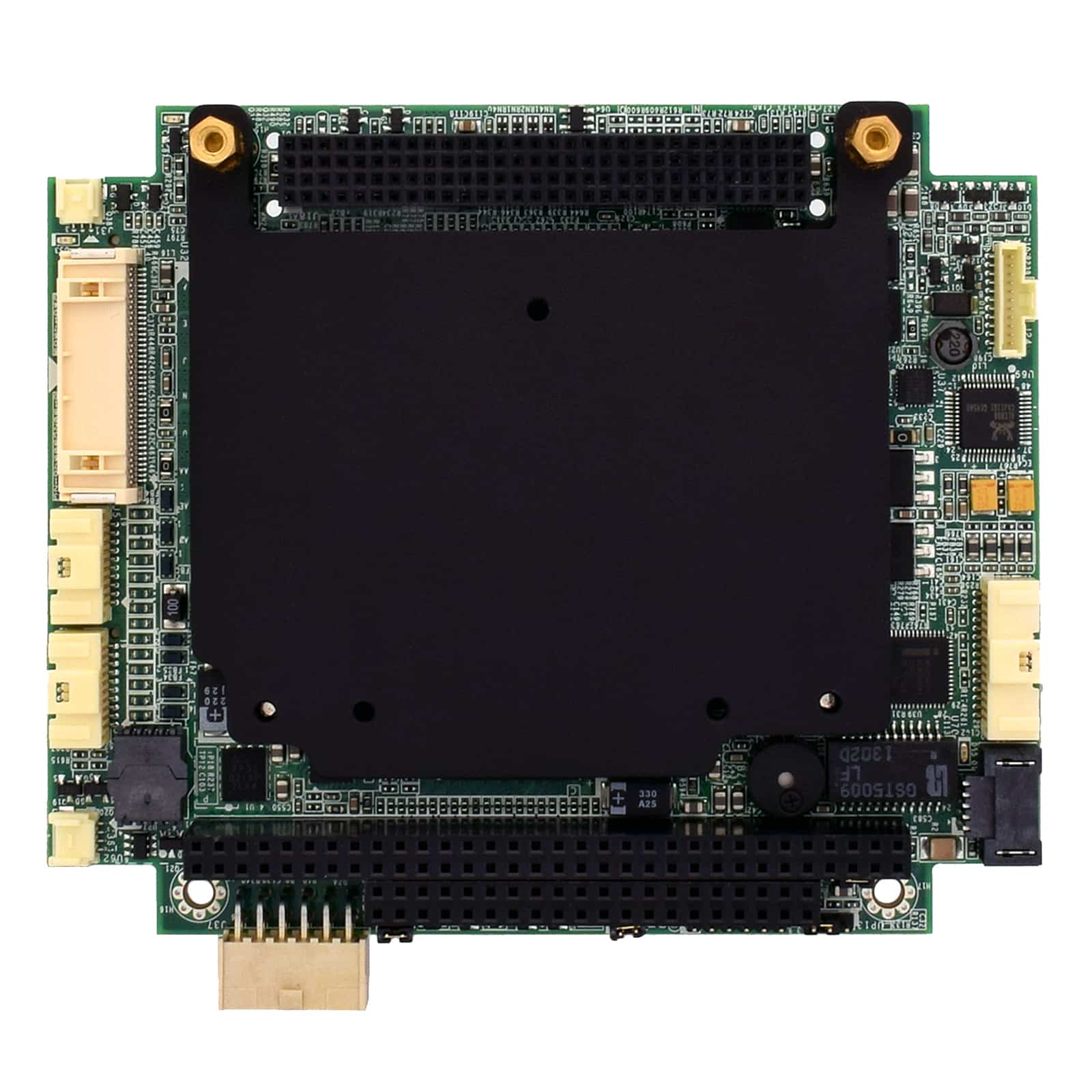

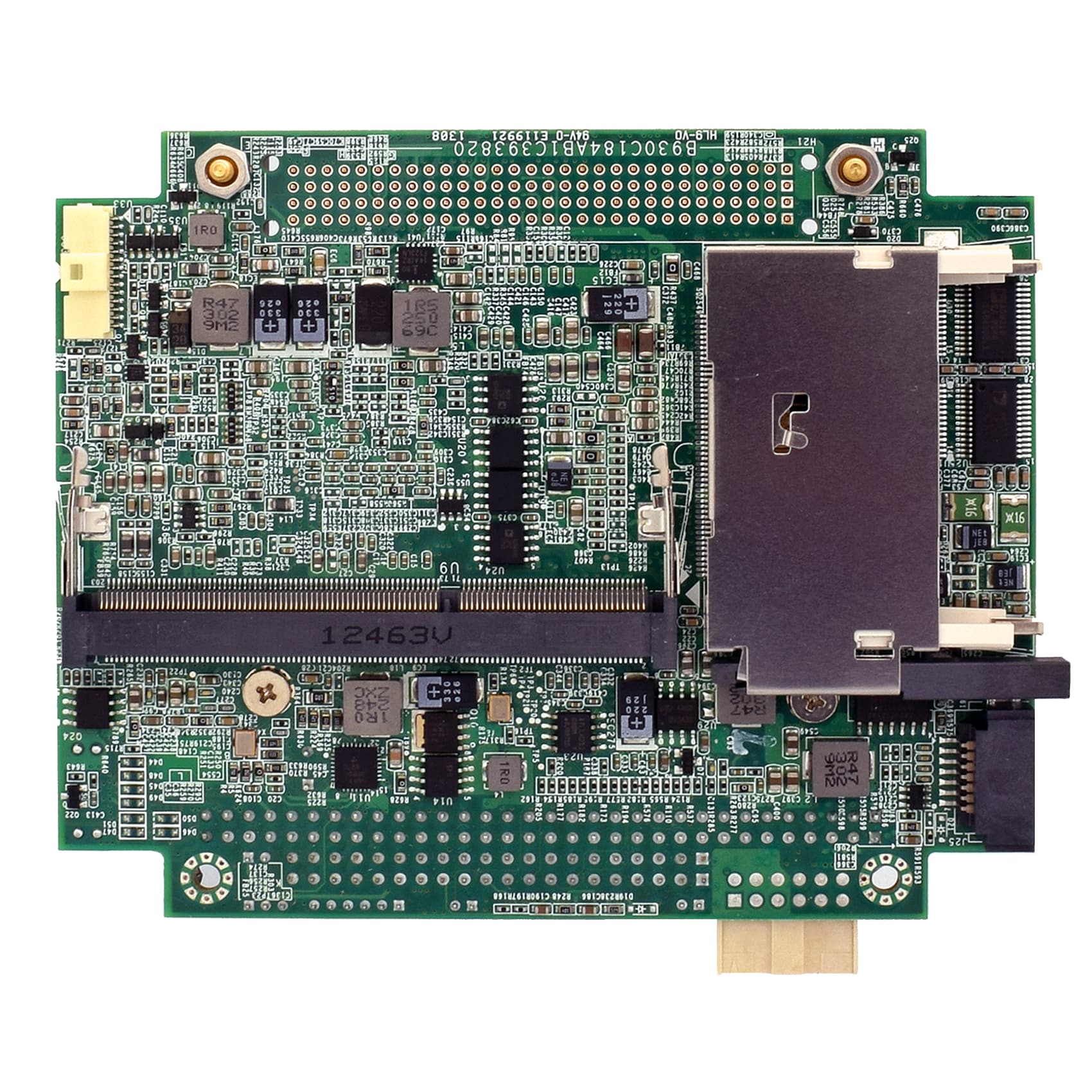

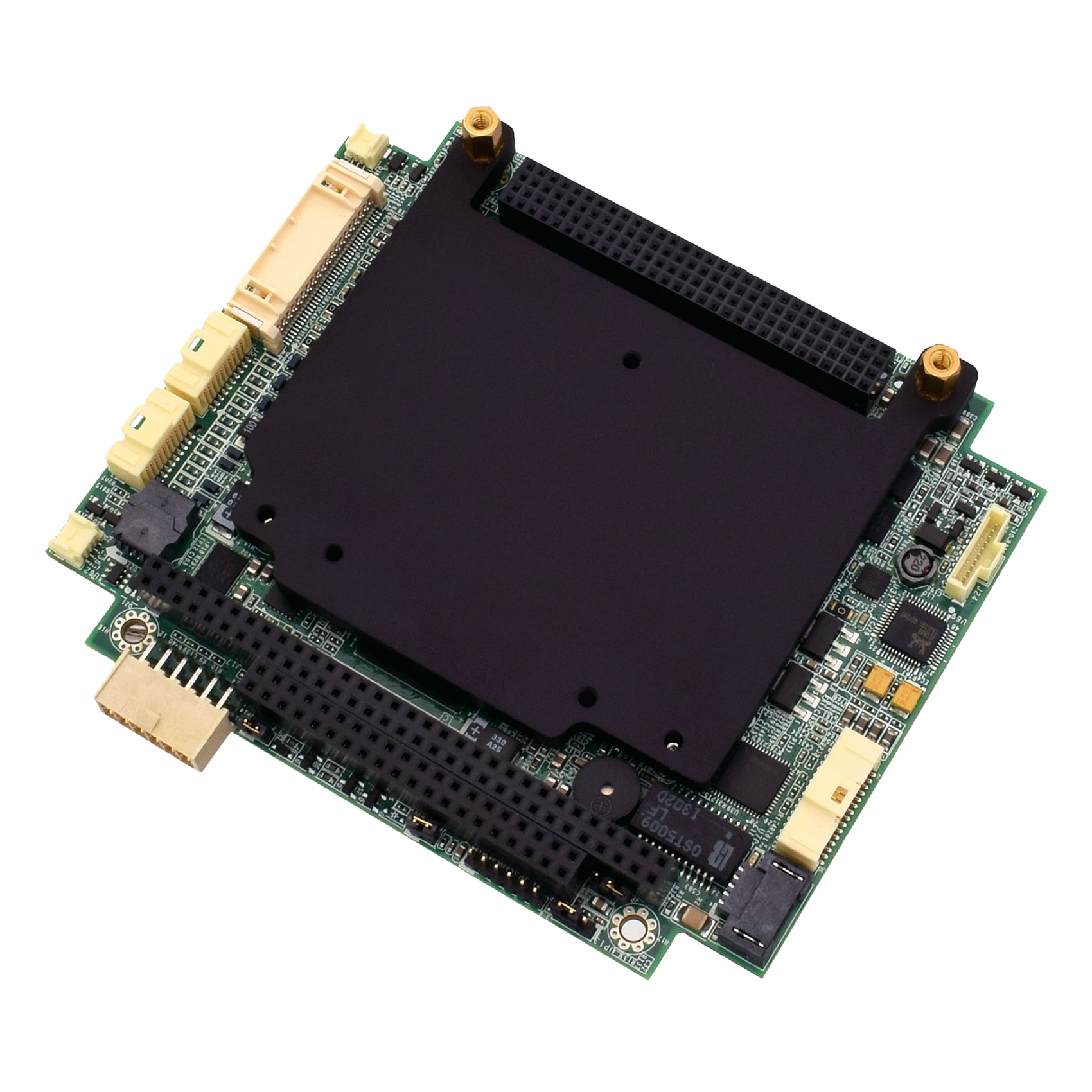

The PPM-C393-S is a Single Board Computer (SBC) with PC104-Plus expansion that uses Intel®’s Atom™ N455 single-core 1.66GHz processor paired with the ICH8M I/O controller hub. This SBC is a full-featured unit with onboard I/O that supports CRT/LVDS video simultaneously, a Gigabit Ethernet port, eight USB 2.0 ports, two serial RS-232/422/485 COM channels, two serial RS-232 COM channels, audio, and a watchdog timer.
Features
- Low Power 1.66 GHz Intel® Atom™ N455 processor
- PC104 computer module with PC104 and PC104-Plus Expansion
- Fanless operation
- Eight USB 2.0 ports
- Four serial ports (two RS-232/422/485 and two RS-232)
- 10/100/1000 Mbps Ethernet port
- CompactFlash socket
- Dual video with simultaneous LVDS and CRT outputs
- Stereo audio
- PPM-C393-S1-0-0 Datasheet (PDF)
Datasheets
- PPM-C393-S1 Product Manual (PDF)
Product Manuals
- PPM-C393-S1-0-0 Mechanical Drawing (PDF)
- PPM-C393-S1-0-0 Solid Works (ZIP)
- PPM-C393-S1-0-0 Step (ZIP)
- PPM-C393-S1-0-0 IGS (ZIP)
Mechanical Drawings
- Product Change Notice - ICH8 EOL Notice(PDF)
Product Change_Notice
