Features | |
---|---|
PPM-GIGE-2-POE | PC/104-Plus Dual Gigabit Ethernet module with POE |
PPM-GIGE-2 | PC/104-Plus Dual Gigabit Ethernet module |
PPM-GIGE-1-POE | PC/104-Plus Gigabit Ethernet module with POE |
PPM-GIGE-1 | PC/104-Plus Gigabit Ethernet module |
PPM-GIGE
Description

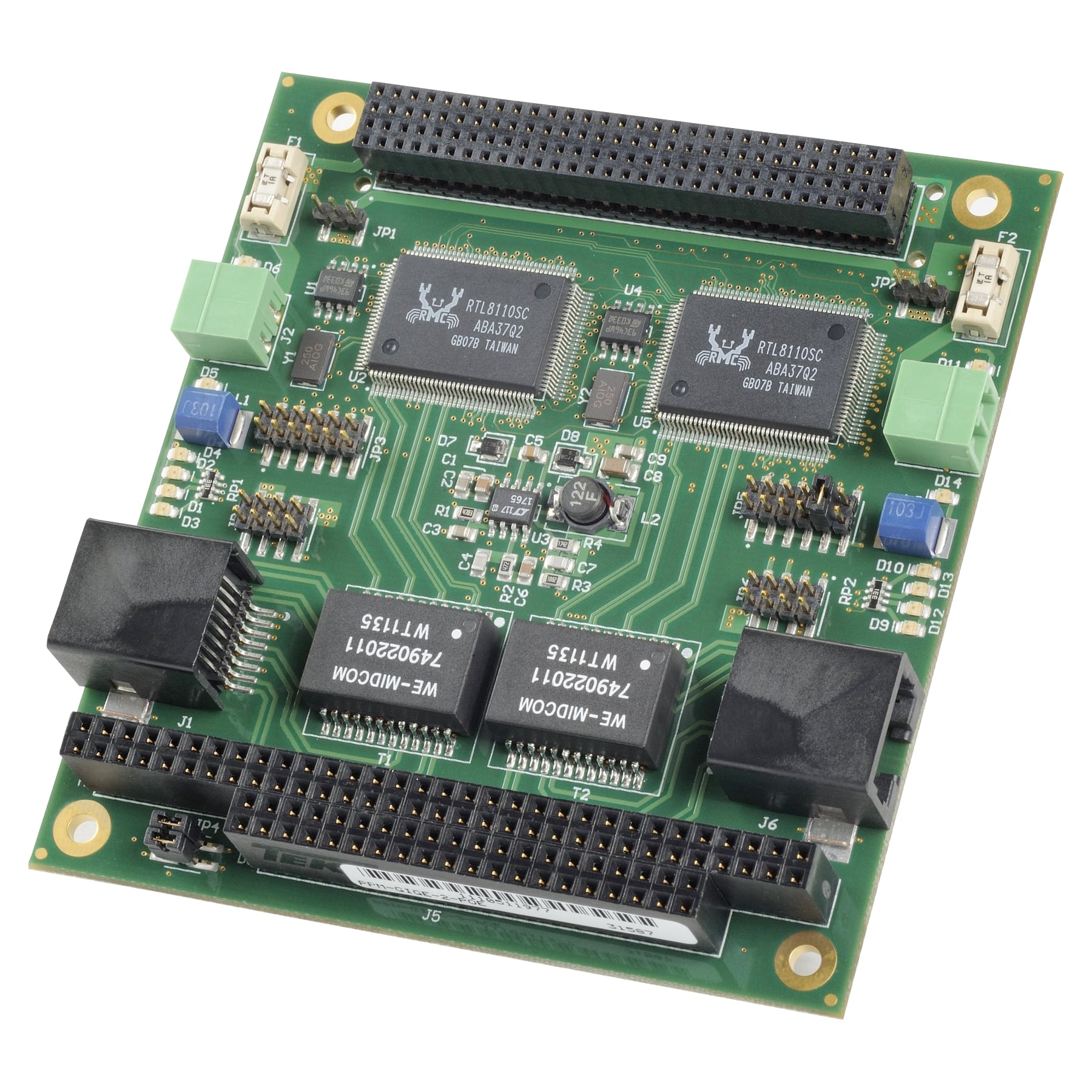

The PPM-GIGE-2-POE is a high-performance, PC/104-Plus compliant two channel, Gigabit Ethernet Power over Ethernet (POE) module. This add-in module allows connection to two 10, 100, and 1000 Mbps networks using standard CAT 5 twisted pair copper cables. It is based upon the popular Realtek RTL8110 controller that is supported by a wide range of operating systems including Windows, Linux, and other x86-compatible operating systems.
Features
- Two Gigabit Ethernet channels on a PC/104-Plus card
- IEEE 802.3 support for 1000BASE-T, 100BASE-TX, and 10BASE-T applications
- Automatic switching from 1 Gbps to 100 or 10 Mbps and full- and half-duplex operation
- Two Realtek RTL8110 Ethernet PCI controllers
- Auto-Negotiation with Next Page capability
- IEEE 802.3x-compliant full duplex flow control support
- Adaptive equalization supported
- 64 KByte Rx and 8K Tx packet FIFO on each channel
- PHY supports 2-pair and 3-pair cable downshift
- IEEE 802.3at/af POE compliant on each channel
- Up to 40W for single port PSE applications
- PPM-GIGE-2-POE Datasheet (PDF)
- PPM-GIGE-1-POE Datasheet (PDF)
- PPM-GIGE-2 Datasheet (PDF)
- PPM-GIGE-1 Datasheet (PDF)
Datasheets
- PPM-GIGE-2-POE Product Manual (PDF)
- PPM-GIGE-1-POE Product Manual (PDF)
- PPM-GIGE-2 Product Manual (PDF)
- PPM-GIGE-1 Product Manual (PDF)
Product Manuals
- PPM-GIGE Mechanical Drawing (PDF)
- PPM-GIGE Solid Works (ZIP)
- PPM-GIGE Step (ZIP)
- PPM-GIGE IGS (ZIP)
Mechanical Drawings
- PPM-GIGE EOL Notice
Product Change_Notice
