25W power supply +5V output

Description

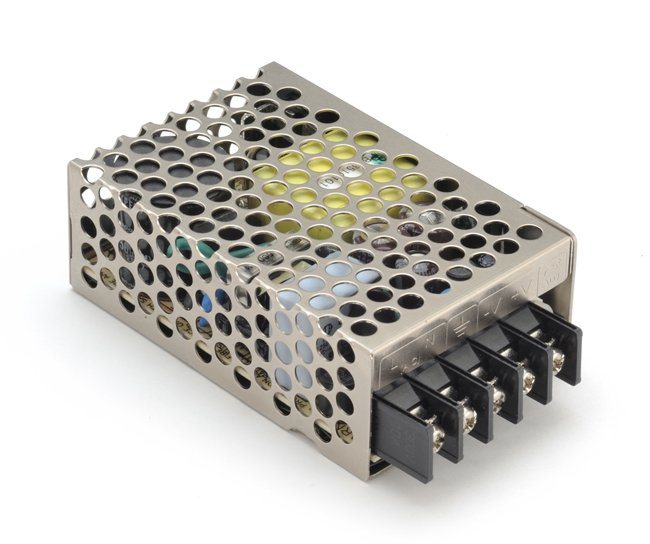

WinSystems’ PS-RS25-5 is a small, convection cooled 25W power supply for embedded systems. It is a universal design that accepts 88 to 264VAC input and generates up to 5A of current at +5 volts. The +5 volt output can be adjusted with an on board trimpot. The PS-RS25-5 is small, measuring only 79 x 51 x 28mm.

Features

Add Product

Universal AC input: 88 to 264 VAC
Output voltage: +5V @ 5A full load
No fan required, convection cooling
Short circuit protection
Overload and overvoltage protection
Withstands 300 VAC input surge for 5 seconds
Complies with safety, EMI, and EMS standards
Power-on LEDs provide visual status of power

Data Sheet

Contact a Sales Engineer

Name*
Full name
Company*
Email*
Phone*
State:*
State / Province / Region
Country*
Please select your country
I am a:*
- New Customer
- Existing Customer
I'm looking to:*
- Fill out a general Contact Form
- Submit a new Project Inquiry
Message*
Please give us a little more info
I'm looking for:*
- Technical Support
- Information about a New Project Inquiry
Product Part Number*
Serial Number (If Available)
Brief Description of Issue*
Please describe the issue you would like support for. We'll contact you for more info, but please give us as much as possible.
Brief Description of Project & Technical Requirements*
Please describe the project. We'll contact you for more info, but please give us as much as possible.
How did you hear about us?
Privacy*
- By using this form you agree with the storage and handling of your data by this website.

Part Number	Description
PS-RS25-5-0	25W power supply +5V output
PS-RS25-5-EPX	25W power supply +5V output with AC Power cord and DC cable for EPIC SBCs
PS-RS25-5-PCM	25W power supply +5V output with AC Power cord and DC cable for PC/104 SBCs
PS-RS25-5-PXM	25W power supply +5V output with AC Power cord and DC cable for micro-ATX SBCs

Feature	PS-RS25-5	PS-RS25-5-EPX	PS-RS25-5-PCM	PS-RS25-5-PXM
Input Voltage	88 VAC - 264 VAC continuous input 47 Hz - 63 Hz input frequency Withstands 300 VAC input surge for 5 seconds	88 VAC - 264 VAC continuous input 47 Hz - 63 Hz input frequency Withstands 300 VAC input surge for 5 seconds	88 VAC - 264 VAC continuous input 47 Hz - 63 Hz input frequency Withstands 300 VAC input surge for 5 seconds	88 VAC - 264 VAC continuous input 47 Hz - 63 Hz input frequency Withstands 300 VAC input surge for 5 seconds
Output Voltage	+5V@5A full load Output voltage adjustable Short circuit protection Overload and overvoltage protection LED indicator for Power-On visual status	+5V@5A full load Output voltage adjustable Short circuit protection Overload and overvoltage protection LED indicator for Power-On visual status	+5V@5A full load Output voltage adjustable Short circuit protection Overload and overvoltage protection LED indicator for Power-On visual status	+5V@5A full load Output voltage adjustable Short circuit protection Overload and overvoltage protection LED indicator for Power-On visual status
Cables Included	None	AC power cord and DC cable for EPIC SBCs	AC power cord and DC cable for PC/104 SBCs	AC Power cord and DC cable for micro-ATX SBCs
Mechanical	Dimensions: 79 x 51 x 28 mm Weight: 0.35 lbs (0.16 kg)	Dimensions: 79 x 51 x 28 mm Weight: 0.85 lbs (0.39 kg)	Dimensions: 79 x 51 x 28 mm Weight: 0.85 lbs (0.39 kg)	Dimensions: 79 x 51 x 28 mm Weight: 0.85 lbs (0.39 kg)
Operating Temperature Range	-25°C to +70°C	-25°C to +70°C	-25°C to +70°C	-25°C to +70°C
Storage Temperature Range	-40°C to 85°C	-40°C to 85°C	-40°C to 85°C	-40°C to 85°C
