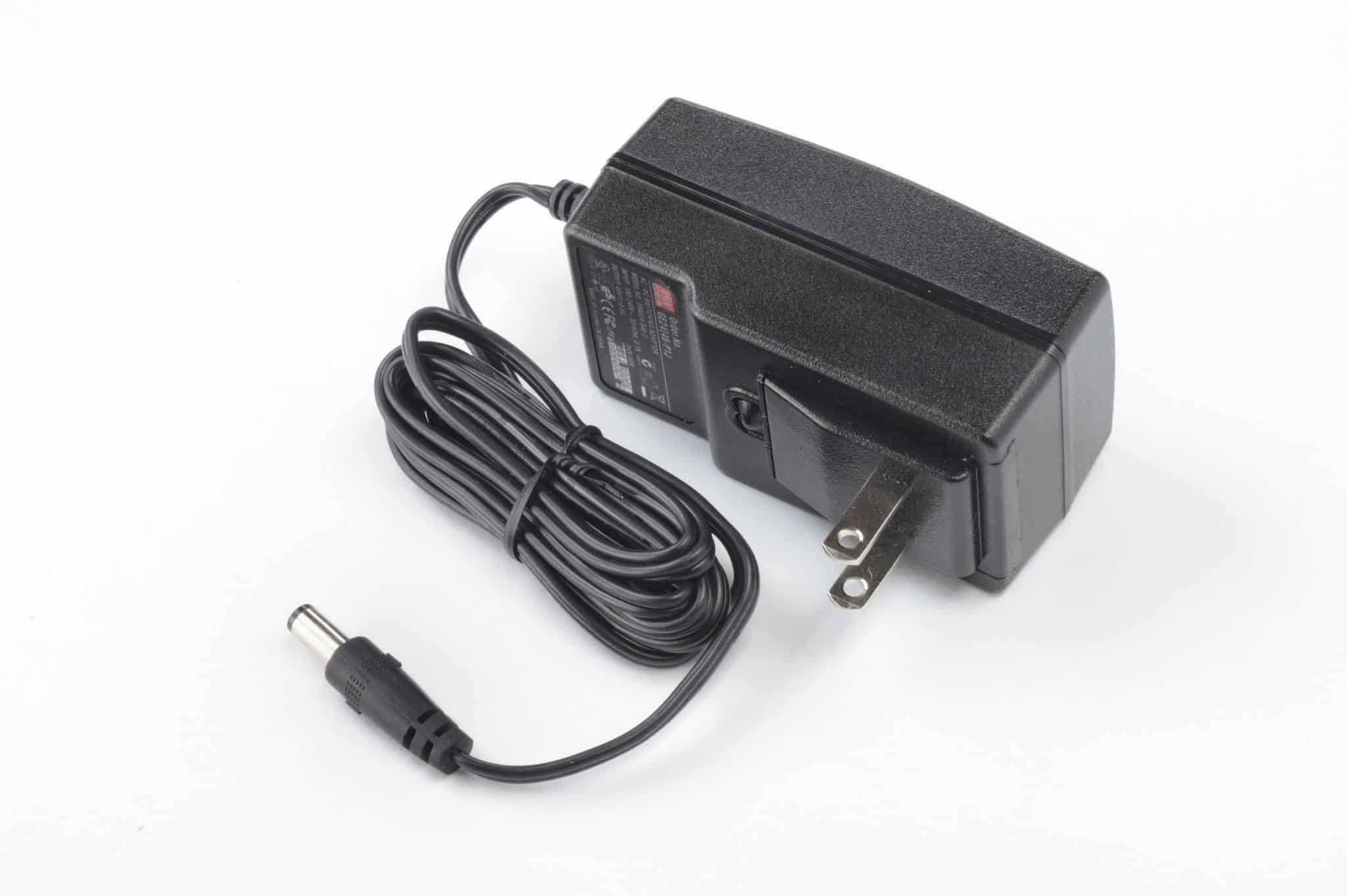

24Watt +12V DC output power supply with US AC inlet plug

Description

The PS-WT24-12-US is a small, convection cooled, 24W wall wart power supply for use with WinSystems’ embedded computer systems. The unit can be used as a power source for single board computers, industrial computers, or low power Panel PCs. It is a universal design that accepts 90 to 264VAC input and generates up to 0.5A of current at +48 volts.

Features

Universal AC input: 90 to 264 VAC
Output voltage: +12V @ 2.0A full load
Short circuit protection
Overload and overvoltage protection
Approvals from UL, CUL, TUV, CCC, CB, FCC, CE
LED provides visual status of power
High energy efficiency, ErP Step 2 rated

Data Sheet

Start Building Now

Name*
Full name
Company*
Email*
Phone*
State:*
State / Province / Region
Country*
Please select your country
I am a:*
- New Customer
- Existing Customer
I'm looking to:*
- Fill out a general Contact Form
- Submit a new Project Inquiry
Message*
Please give us a little more info
I'm looking for:*
- Technical Support
- Information about a New Project Inquiry
Product Part Number*
Serial Number (If Available)
Brief Description of Issue*
Please describe the issue you would like support for. We'll contact you for more info, but please give us as much as possible.
Brief Description of Project & Technical Requirements*
Please describe the project. We'll contact you for more info, but please give us as much as possible.
How did you hear about us?
Privacy*
- By using this form you agree with the storage and handling of your data by this website.

Datasheets

PS-WT24-12-US Datasheet (PDF)

Feature	PS-WT24-12-US
Input Voltage	88 VAC - 264 VAC continuous input 47 Hz - 63 Hz input frequency Withstands 300 VAC input surge for 5 seconds
Output Voltage	+48V @ 0.5A full load Short circuit protection Overload and overvoltage protection LED indicator for Power-On visual status
Mechanical	Dimensions: 81 x 43 x 40.5 mm Weight: 5.35 oz (152g)
Operating Temperature Range	-10°C to +50°C
Storage Temperature Range	-20°C to +85°C

PS-WT24-12-US

24Watt +12V DC output power supply with US AC inlet plug
