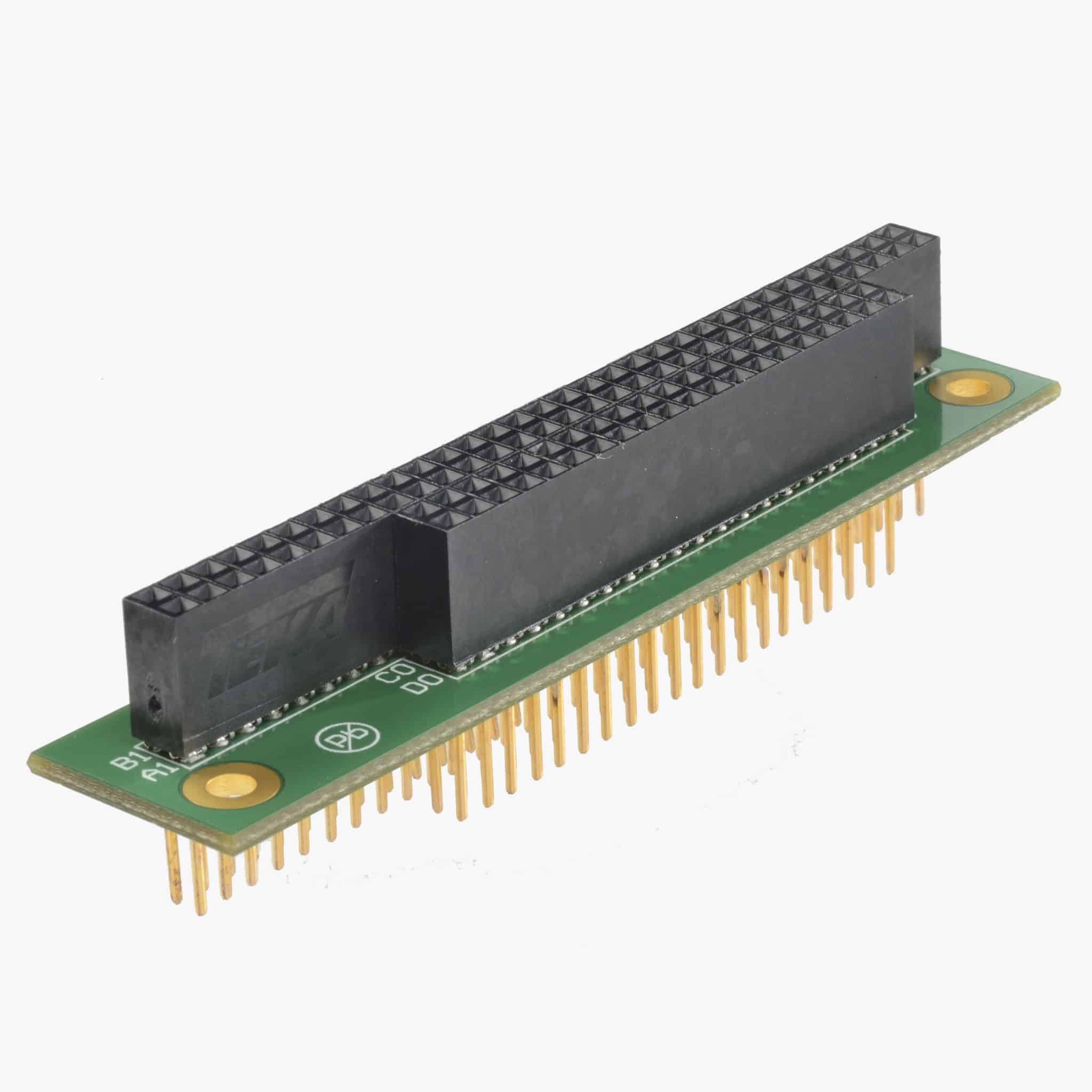

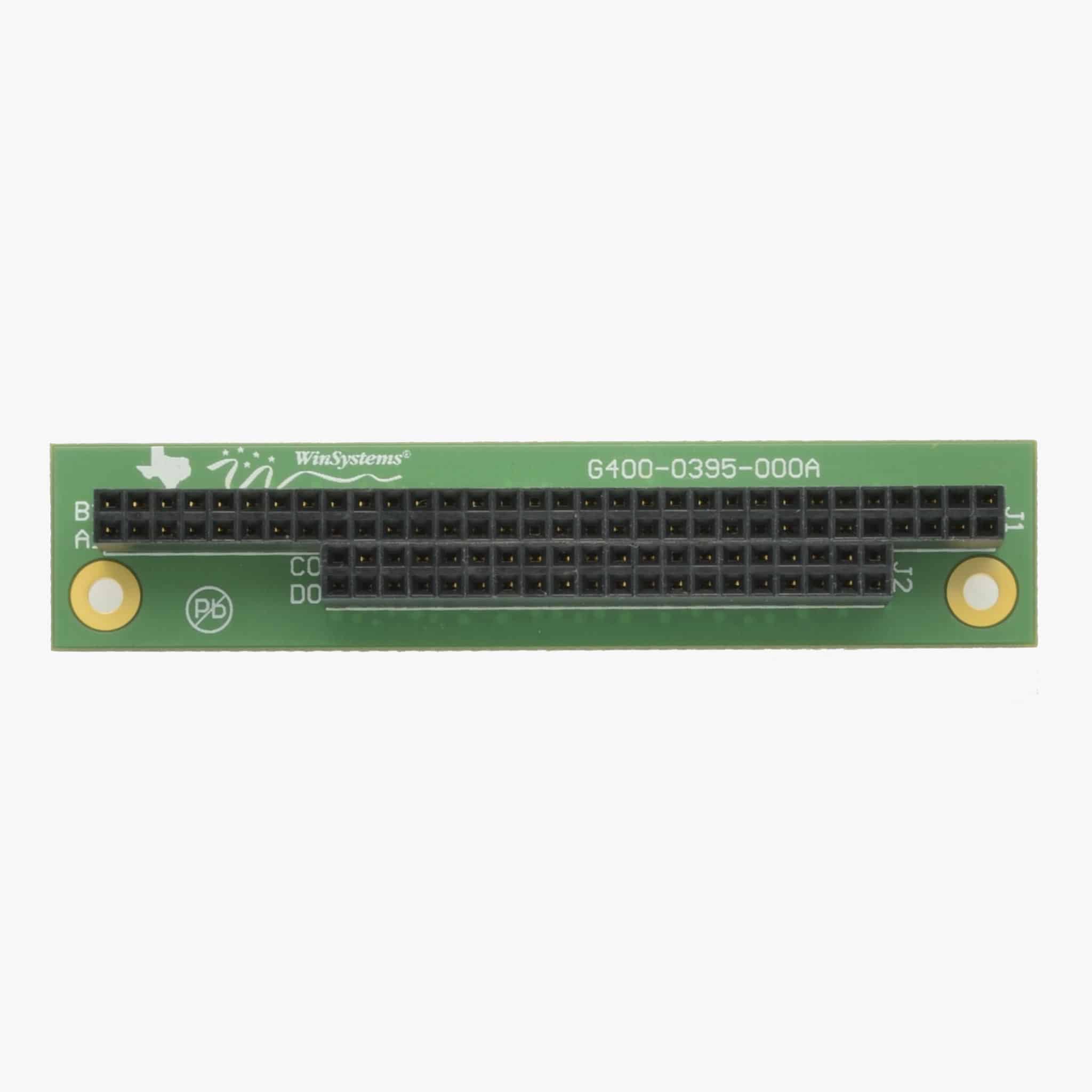

RISER-PCM-1

Description

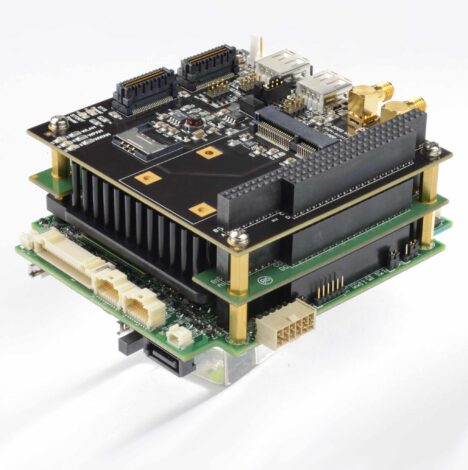

WINSYSTEMS’ RISER-PCM-1 boards are designed to provide extra space in a PC/104 stack. They are printed circuit boards (PCBs) with PC/104 mounting holes and bus connectors. They allow a board with either tall components or heat sinks to be placed in a stack of boards in a location other than only at the top. The additional separation is 0.60 inches using standard PC/104-type spacers.

DATA SHEET
PRODUCT INFO

Features

  • Provides additional space between boards for tall components, heat sinks, and other thermal solutions
  • RISER boards available with and without connectors
  • Includes nylon standoffs
  • RoHS-compliant
  • -40°C to +85°C operation
Features
RISER-PCM-1

Spacer board with PC/104 Connector
RISER-PCM-0

Spacer board without PC/104 Connector
