| Features | |
|---|---|
| Processor | Intel® Celeron® Processor J6413, Quad Core, 1.5 MB Cache, 1.8 GHz |
| Memory | 1x 260-Pin DDR4 2400/2667/3200MT/s SODIMM. Max. up to 32GB |
| Storage | 1x M.2 (B Key, 2242/3042/3052, PCIex 1 + USB 3.2 Gen2, Support 4G/5G Module) 1x mSATA (shared by 1x Mini PCI Express) 2x External SIM socket 1x Internal 2.5” SATA HDD Bay (support H=9.5 mm) |
| Display | 2x DisplayPort 1.4, DP++ (4096 x 2160@60Hz) Dual Display |
| Expansion | 1x Full-size Mini PCIe Expansion Module Options: – 2-port COM module with Super I/O Chipset, Support 2x Universal Slot Only – 4-Port USB module with USB hub, Support 1x Universal Slot Only – 1-Port DP 1.4 and DIO (4 in / 4 out, Isolated), Support 1x Universal Slot Only – 1-Port HDMI 2.0, Support 1x Universal Slot Only |
| I/O | 1x Mic-in, 1x Line-out 2x CAN 2.0 A/B 2-pin Internal header 2x RS-232/422/485 2x RJ45 (2.5 & 1 GbE) 3x Universal I/O Bracket (By mini PCIe interface, Proprietary Module) 3x USB 3.2 Gen 2 (10 Gbps) 1x USB 2.0 5x WiFi Antenna Holes 1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off 1x Internal CMOS Battery Cable 1x 4-PIN FAN Connector |
| Software | Supports Windows 10/11 and Linux Kernel AMI 256Mbit SPI BIOS |
| Power | Optional Power Adapter AC/DC 12V/5A, 60W Wide Range 9~36VDC |
| Environmental | Operating Temperature: -40°C to 70°C Storage Temperature: -40°C to 85°C Relative Humidity: 10% to 95% (non-condensing) Certification: UL, CE, FCC Class A Vibration: – With SSD: 5 Grms, 5 – 500 Hz, 0.5 hr/axis – With HDD: 1 Grms, 5 – 500 Hz, 0.5 hr/axis Shock: With SSD: 50G, half sine, 11ms |
| Mechanical | Dimensions: – 150 (W) x 105 (D) x 65 (H) mm – Weight 1 kg Construction: – Extruded Aluminum with Heavy Duty Metal Mounting Options: – Wall Mounting SIDE / VESA / DIN-Rail Mounting (Optional) |
SYS-6413-20
Description

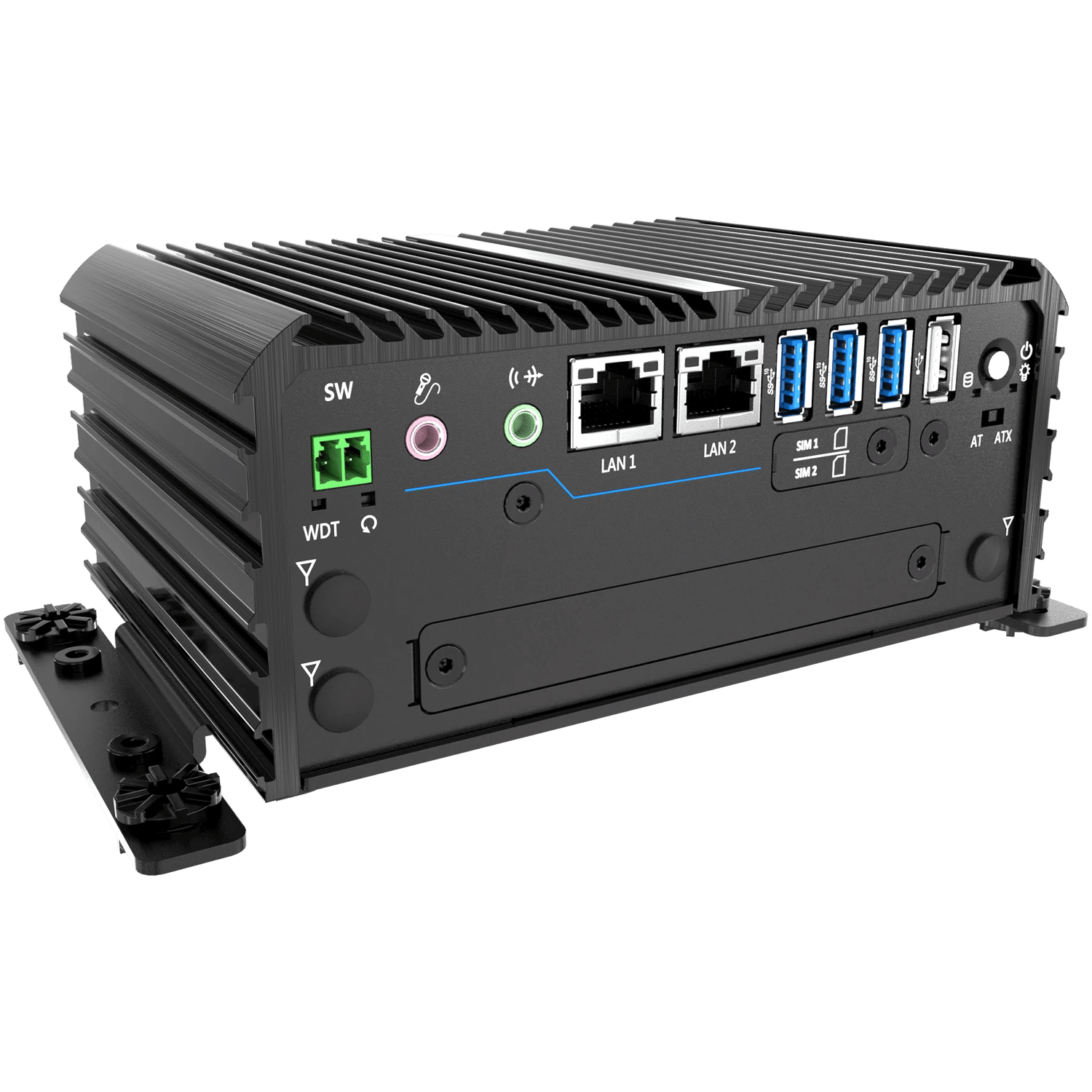

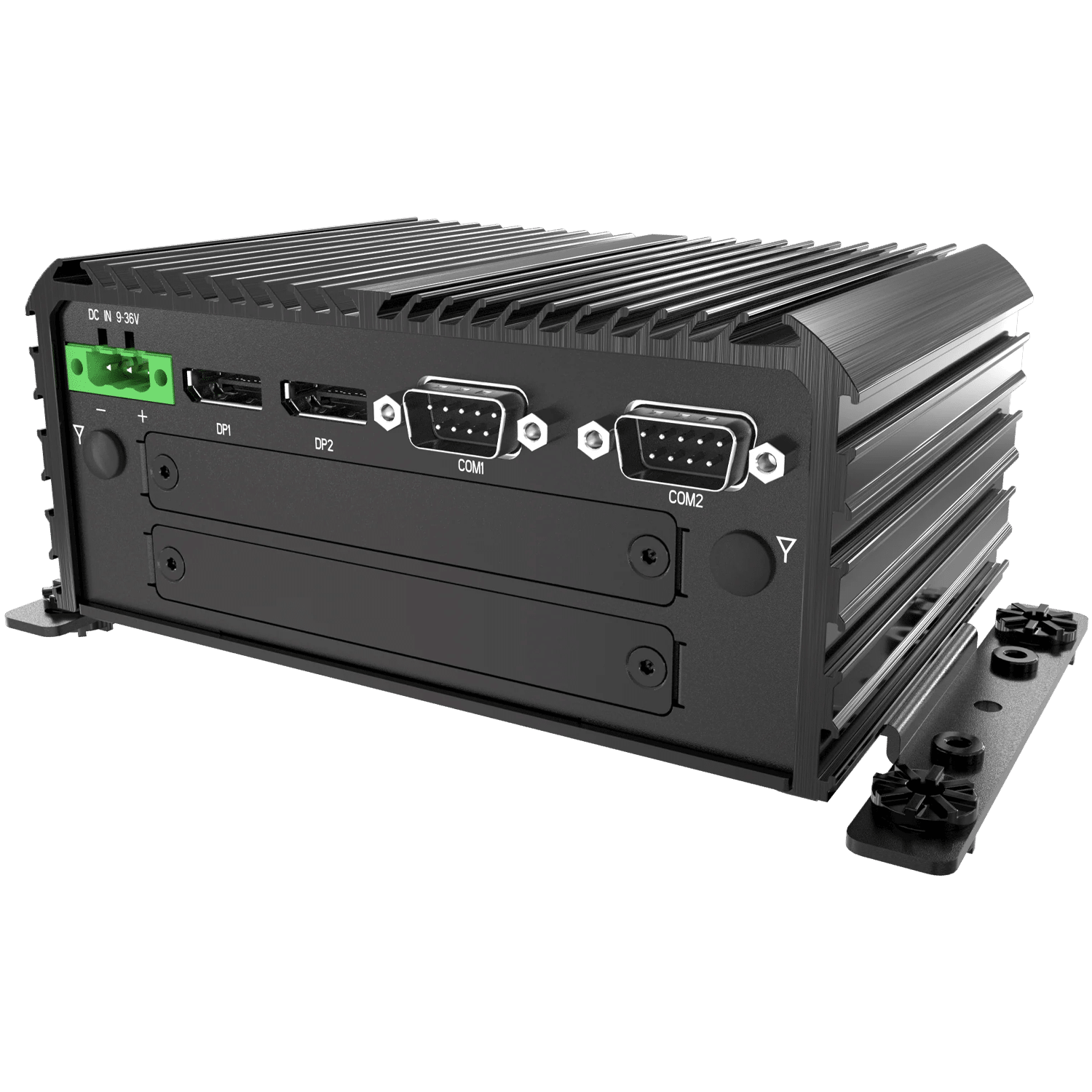

The SYS-6413-20 is a rugged industrial fanless embedded computer with the Intel® Celeron™ J6413 processor and modular I/O expansion. This Edge AI-ready computer has an onboard M.2 slot to consolidate resource-intensive machine learning and AI inferencing tasks and supports Windows 10/11 and Linux operating systems.
This encased computer is designed to deliver highly reliable operation in harsh environments and is ideal for industrial IoT applications.
Features
- SYS-6413-20 Datasheet (PDF)
