| Features | |
|---|---|
| Relays | – Sixteen, SPDT Form C medium current relays |
| Power | +5V required, 500 mA typical |
| Mechanical | Dimensions: 3.6 x 3.8 inches (90 x 96 mm) |
| Operating Temperature | -40°C to 85°C |

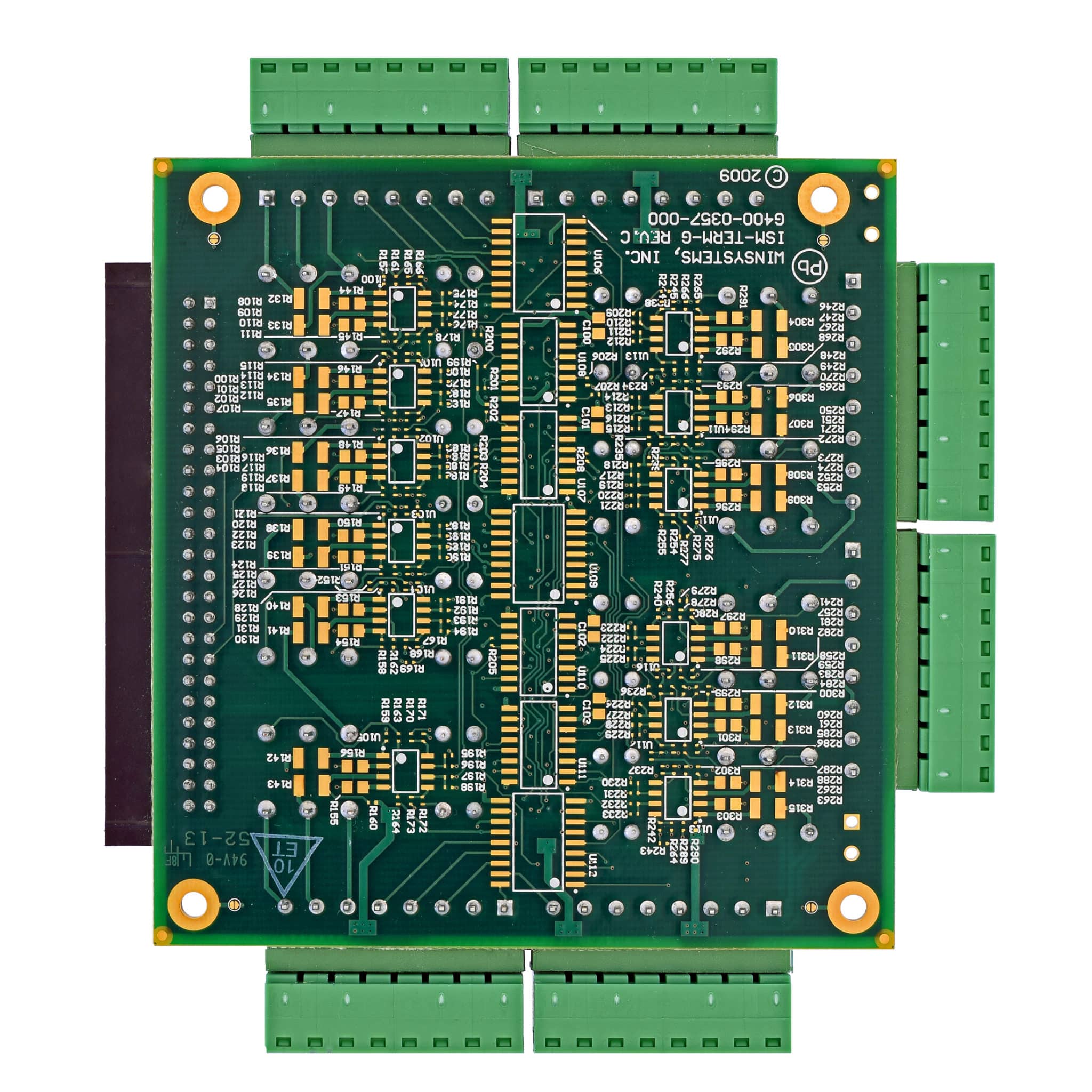

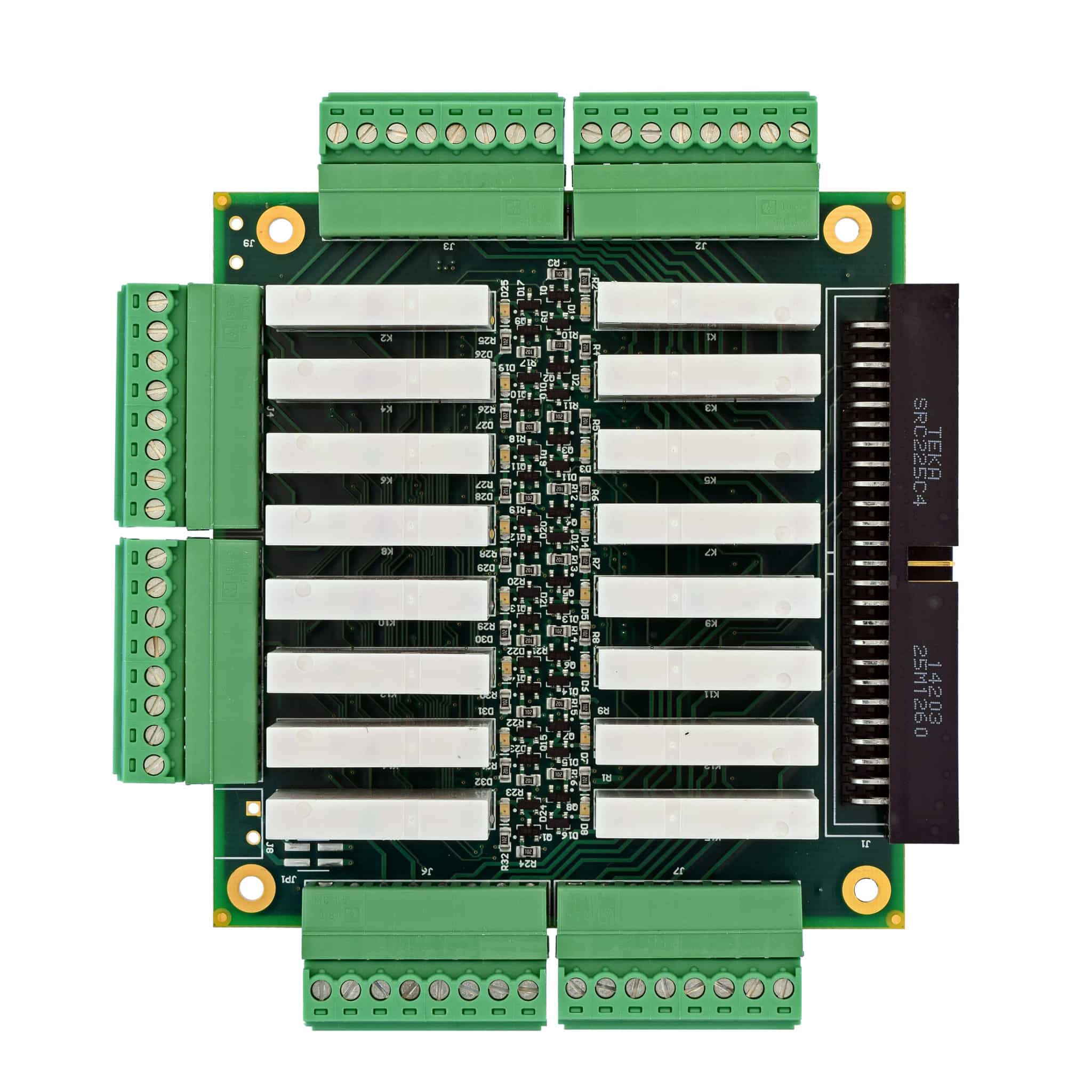

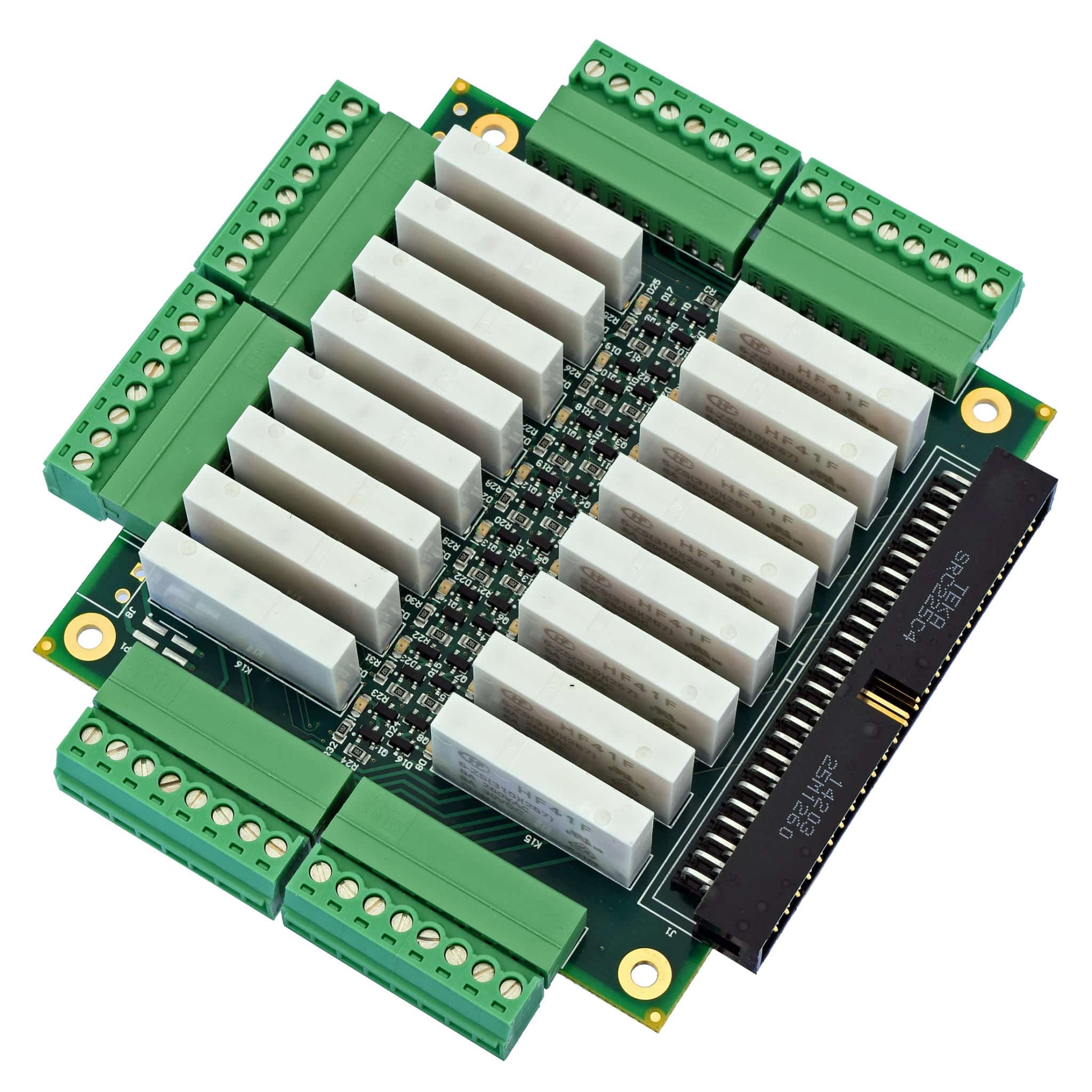

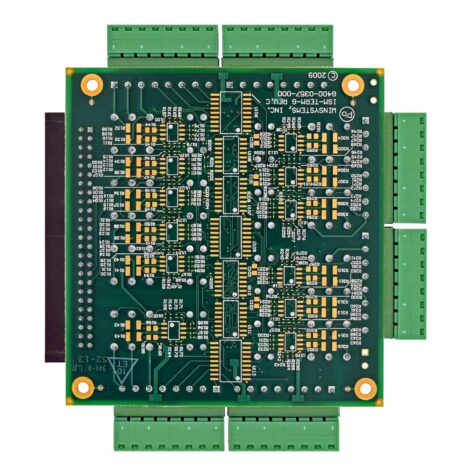

ISM-TRM-RELAY Industrial PC/104 Relay Board -16 SPDT Relays
No longer in production
This product is listed to provide access to its documentation.
WINSYSTEMS’ industrial ISM-TRM-RELAY provides 16 independent relays that are Single Pole Double Throw (SPDT) Form C devices. The contacts can handle 6A @ 250VAC /24VDC for applications requiring medium current capacity plus isolation between an embedded computer and monitoring/control points.
DATA SHEET PRODUCT INFOFeatures
- Sixteen, SPDT Form C medium current relays
- Contacts rated up to 6A @ 250 VAC/24 VDC
- Mechanical life exceeds 10 million cycles
- +5V nominal coil voltage
- LEDs provide visual status of each relay
- Each relay has up to 4000 VAC dielectric strength and 6000V surge strength
- -40 to +85°C operation
- Custom configurations available in OEM quantities
- ISM-TRM-RELAY Datasheet (PDF)
Datasheets
- ISM-TRM-RELAY Product Manual (PDF)
Product Manuals
- EOL Notice - All ISM-TRM Variants (PDF)
Product Change_Notice
