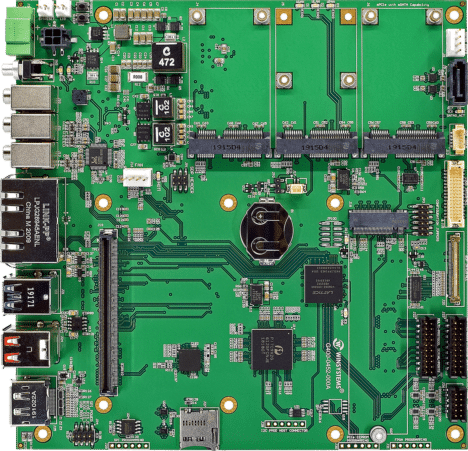

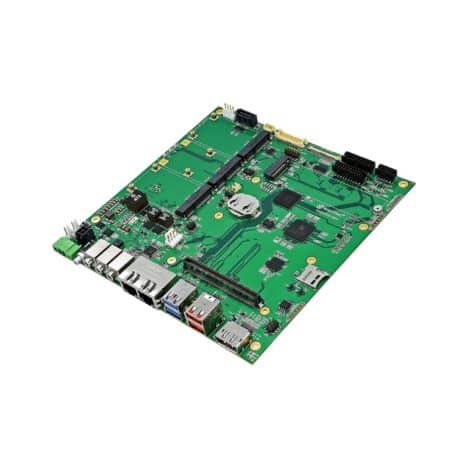

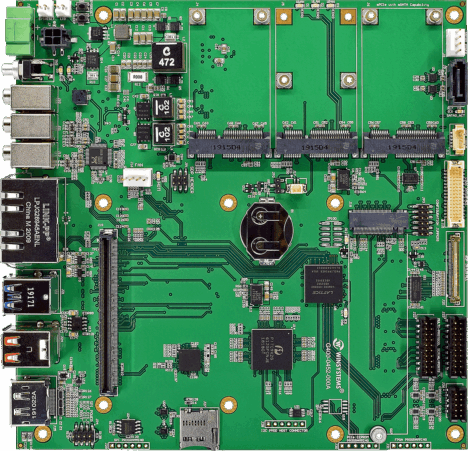

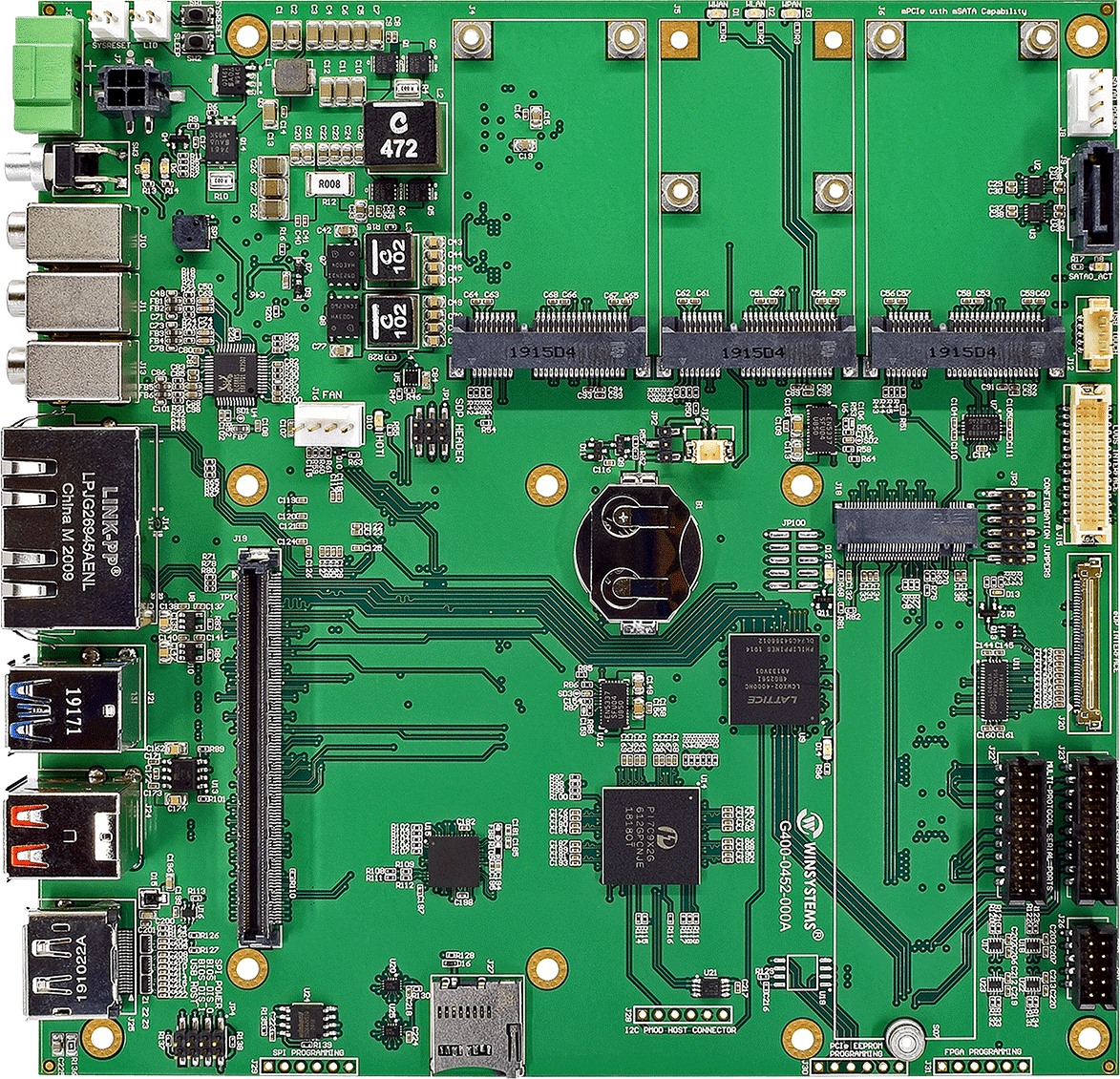

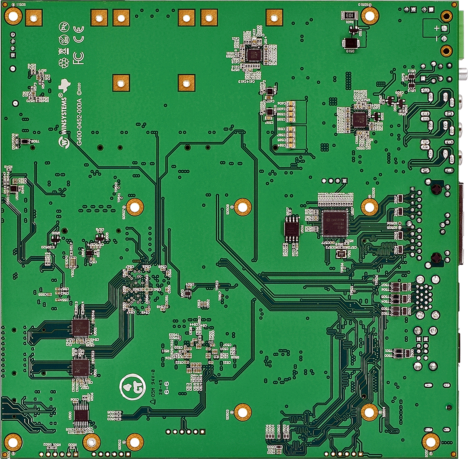

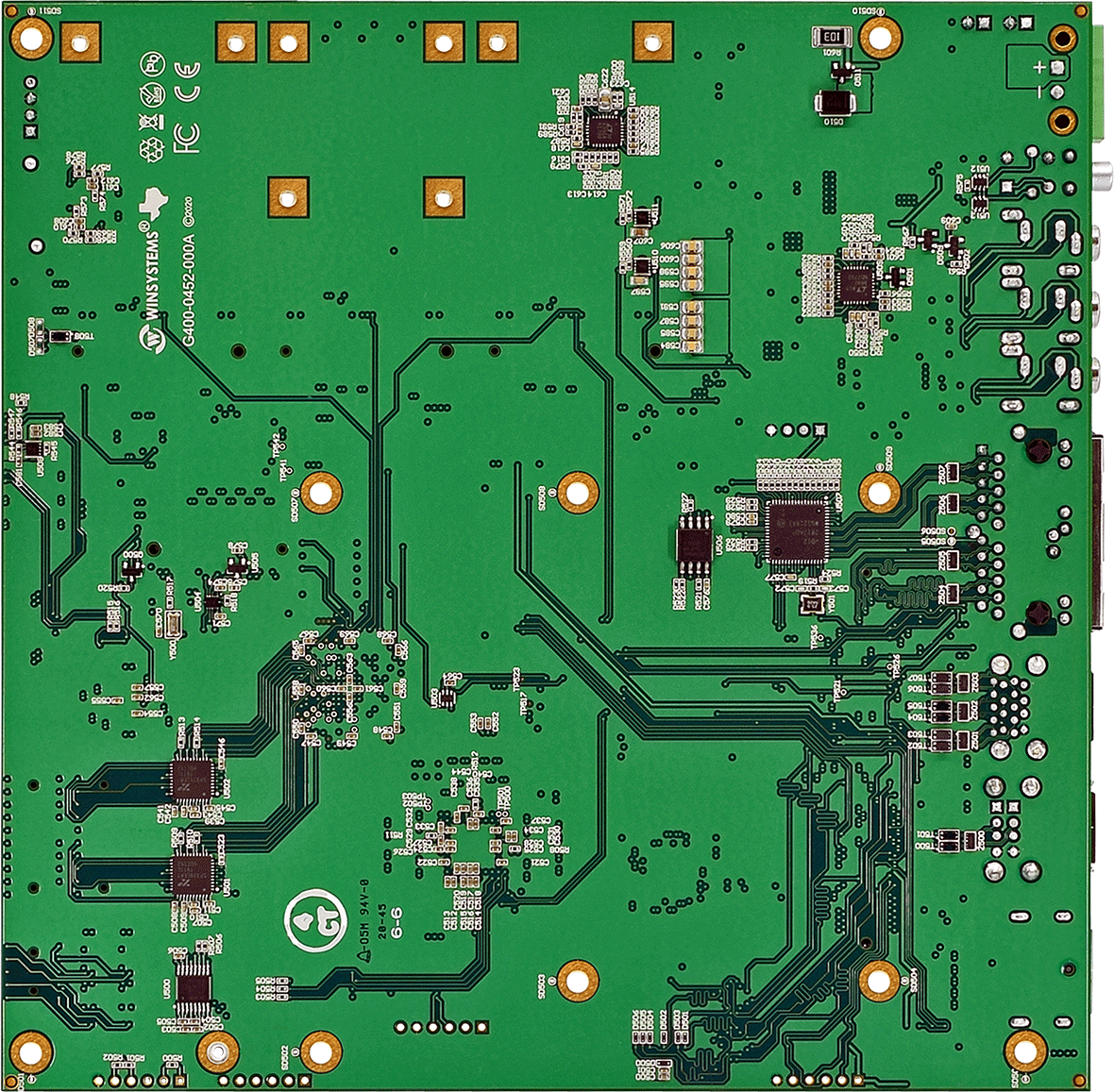

ITX-M-CC452-T10

Description

The ITX-M-CC452-T10 is an industrial Mini-ITX small form factor Type 10 reference carrier board designed to fully test WINSYSTEMS’ COMeT10-3900 COM Express Type 10 Mini module. The carrier board adheres to the PICMG COM Express specifications providing compatibility with other COM Express mini type 10 modules.

The ITX-M-CC452-T10 is primarily intended as a reference and evaluation carrier board for WINSYSTEMS Type 10 COM Express modules. However, it includes industrial rated components and is fully production-ready. It can be combined with a COM module, Mini-PCIe, display and M.2 SSD for a versatile solution to your embedded computing requirements.

PRODUCT MANUAL
DATA SHEET
PRODUCT INFO

Features



Rugged Design for Demanding Environments

  • -40ºC to +85ºC Operating Temperature Range
  • Wide Range Power Input (5-20 V DC)
  • Supports all interfaces on the T10 connectors for WINSYSTEMS COMeT10 modules

Graphics

  • Supports up to Two Independent Displays
  • 1x DisplayPort with 4K Resolution
  • 1x LCD with backlight and touch control

Connectivity and I/O for Embedded Data Acquisition

  • 2x Gigabit Ethernet
  • 2x USB 3.1 Gen 1 and 2x USB 2.0
  • 4x Serial Ports (2x RS232, 2x RS232/422/485)

Expansion and Configuration Options

  • 3x Mini-PCI Express (1x with mSATA support)
  • M.2 M-key 2280 with support for PCIe x4 NVMe
Features
STORAGE

microSD (muxed with GPIO)

SATA Connector provided by SATA channel from Type 10 module

mSATA provided by SATA channel from Type 10 module (shared with Mini-PCIe slot)
DISPLAY

Two independent video outputs

– LVDS/eDP output /w digital backlight, touch control

NOTE: The carrier board supports both eDP and LVDS from the Type 10 module and a mux to the eDP and LVDS connectors selectable via a jumper on-board the ITX-M-CC452-T10

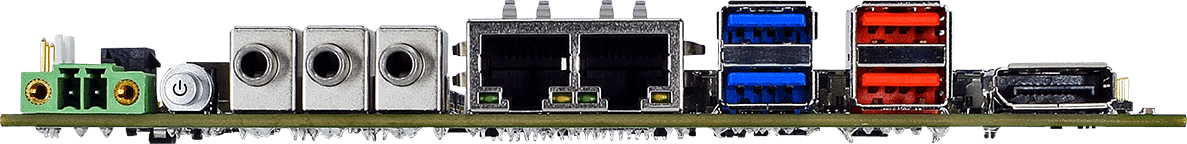

– 1x DisplayPort up to Ultra 4K Resolution provided by DDI from Type 10 module (Front Panel I/O)
NETWORK INTERFACE

1x Gigabit Ethernet Port supported from the Type 10 module

1x Gigabit Ethernet Port using Intel i210 provided by the on-board PCIe switch
ONBOARD I/O

Reference datasheet (page 3)
EXPANSION BUS

3x Mini-PCIe card (1x shared with mSATA)

1x M.2 M-key 2280 with support for PCIe x4 NVMe

Note: All the PCIe channels on the ITX-M-CC452-T10 are provided by an on-board PCIe switch. The PCIe switch is supported by 4x PCIe channels from the Type 10 module.
POWER

Wide Input: 5 to 20 VDC (±5%)

Battery back up for Type 10 module Real-time Clock (RTC)
ENVIRONMENTAL

Operational from -40ºC to +85ºC (-40ºF to +185ºF)

CE / CISPR B

FCC Class B

RoHS & REACH
MECHANICAL

Dimensions: 6.7 in x 6.7 in (mITX) (170 mm x 170 mm)

Weight: 8.0 oz (225 gm) without COMe Module

PC Board thickness: 0.078 inches
