ITX-N-3800

Description

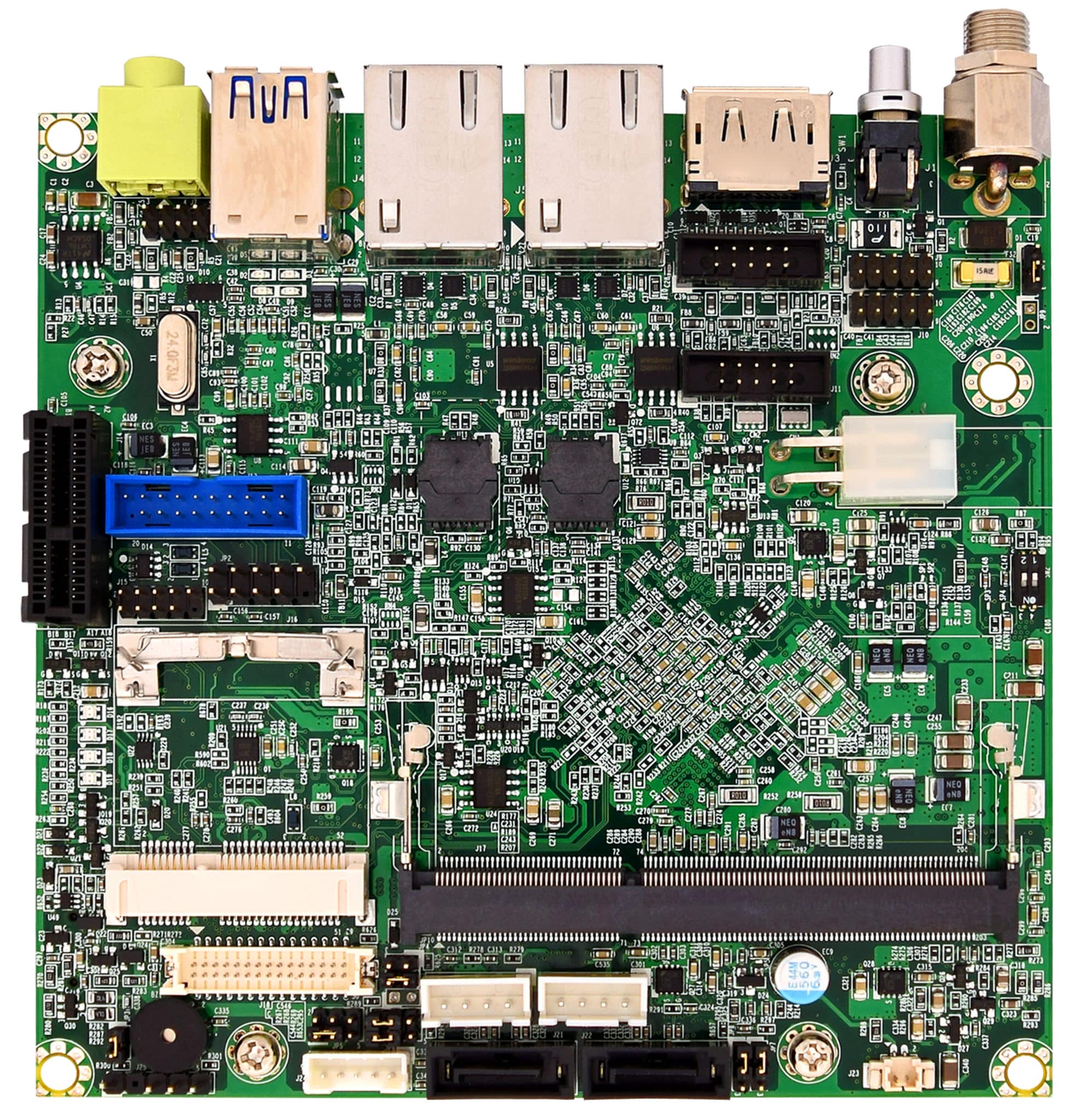

WINSYSTEMS’ ITX-N-3800 is a NANO-ITX Single Board Computer (SBC) based on the Intel® Atom™ E3800 Bay Trail processor family operating under 10W for fanless applications and industrial operating temperatures of -40º to +80ºC. It includes a SODIMM socket supporting up to 8 GB of DDR3 system memory and two high-speed SATA storage interfaces. Additional expansion is available through MiniPCIe and PCIe.

The ITX-N-3800 is a full-featured single board computer with onboard I/O that supports CRT/DisplayPort/LVDS video simultaneously, dual Gigabit Ethernet ports, four USB 3.0 ports, two USB 2.0 ports, one serial RS-232/422/485 port, 8 general purpose input-output (GPIO) lines, audio, and watchdog timer. It also has a half size MiniPCIe socket and 1x PCIe connectors for additional I/O expansion.

The single board computer supports Linux, Windows® 10 Desktop, Windows 10 IoT, and other x86-compatible real-time operating systems.

Drivers are available from the WINSYSTEMS’ website. The SBC is designed for long-term availability.

The ITX-N-3800 is FCC and CE certified and designed for industrial IoT, medical, communications, and digital signage applications.


Features

  • Intel® Bay Trail E3845/E3825/E3815 Processor
  • NANO-ITX Form Factor (120mm x 120mm)
  • -40°C to +80°C Operational Temperature
  • Up to 8GB DDR3-LV RAM
  • 4 USB 3.0 and USB 2.0 Ports
  • 1 Serial Port (RS-232/422/485)
  • Two 10/100/1000 Mbps Ethernet Ports
  • 8 GPIO
  • Hi-Definition Audio
  • 1 Half MiniPCIe Socket, 1 PCIe slot MSATA
  • Two SATA 3.0 ports and 1 Micro SD for storage
