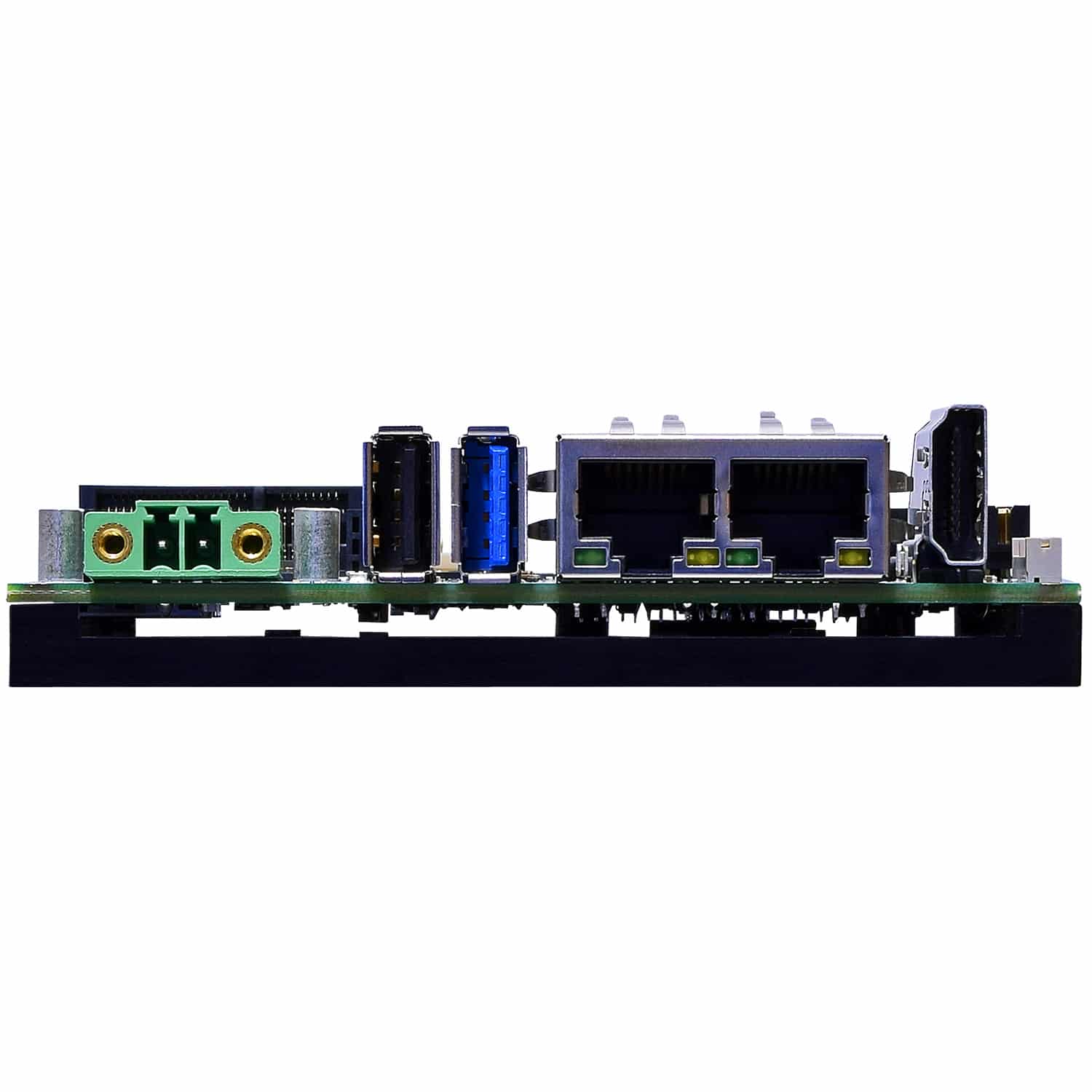

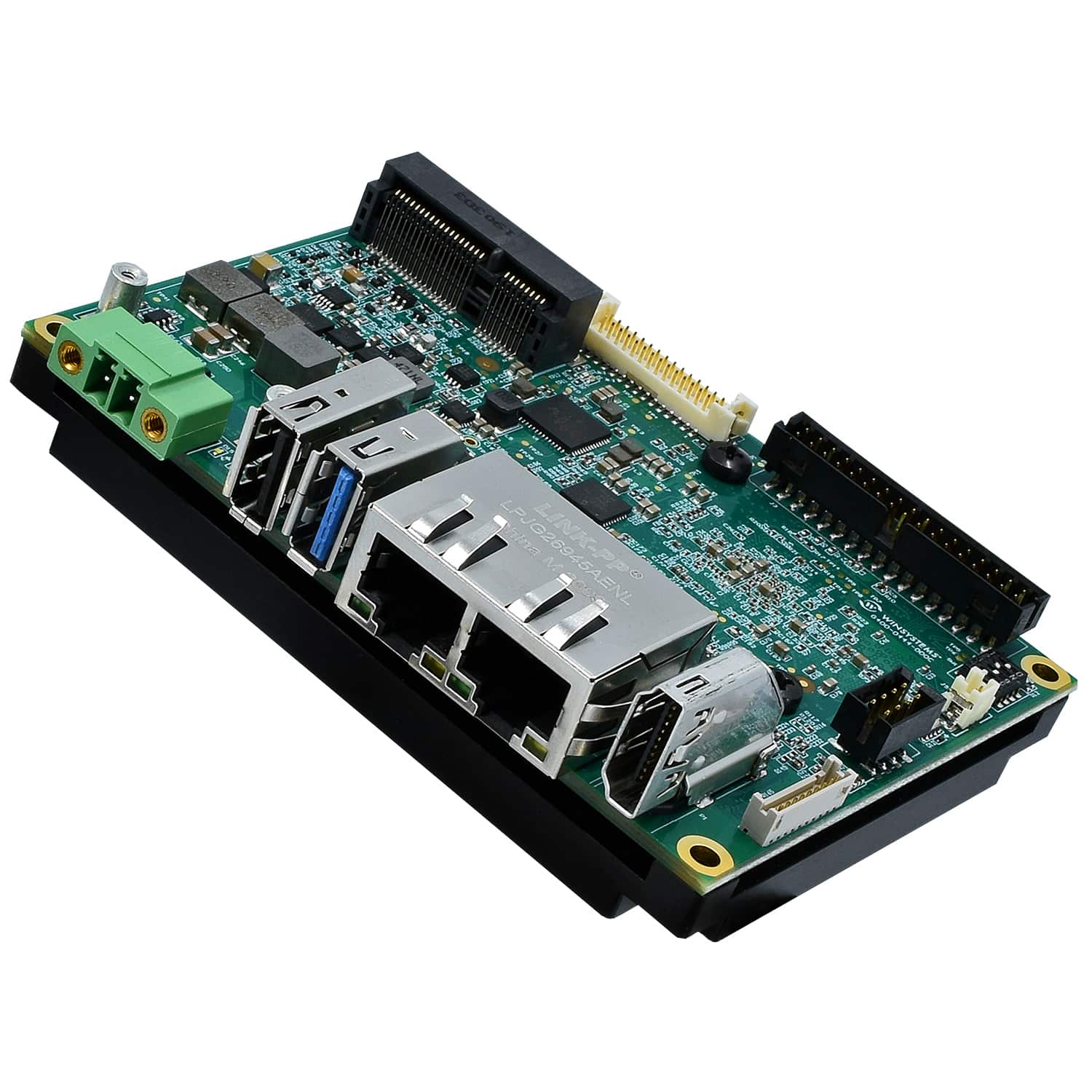

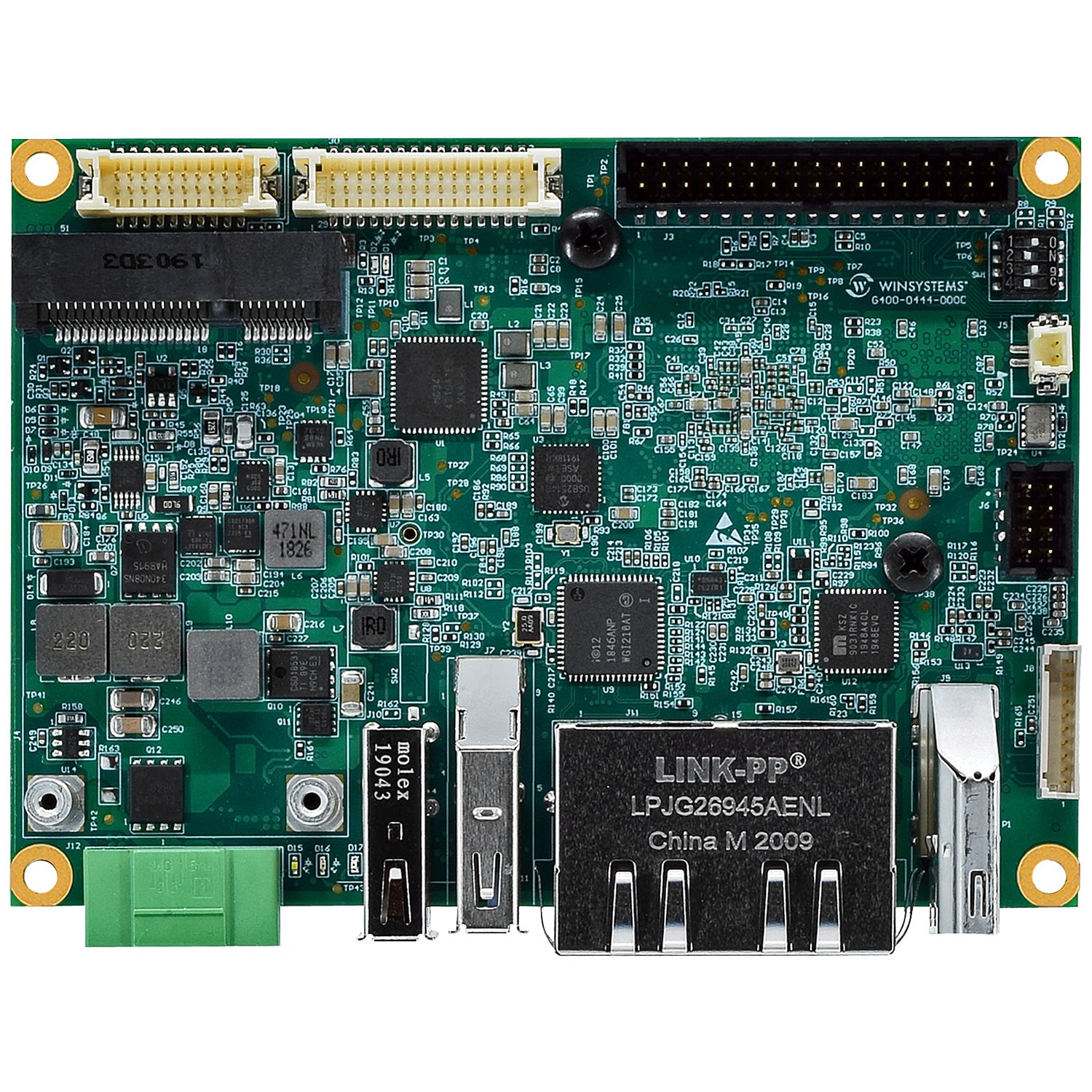

ITX-P-C444

Description

The ITX-P-C444 is an industrial Pico-ITX single board computer (SBC) based upon NXP’s i.MX8M application processor and packed with dual Ethernet, industrial I/O, and expansion options. The processor supports industry-leading video processing along with M4 microcontroller for real-time subsystems making it an ideal fit for industrial IoT applications requiring performance in harsh conditions such as digital signage, industrial automation, energy, building automation and others.

PRODUCT MANUAL
DATA SHEET
PRODUCT INFO

Features

Performance

  • NXP. i.MX8M Industrial Processor @ 1.3 GHz
  • Dual and Quad Arm. Cortex.-A53
  • Cortex-M4 core processor for low-power processing
  • Up to 4GB LPDDR4 RAM

Environment

  • -40°C to +85°C Operating Temperature Range
  • Pico-ITX Form Factor (102 x 73 mm)
  • Wide Range Power Input (9 – 36 DC)

Connectivity and I/O for Embedded Systems

  • 2x Gigabit Ethernet (GbE)
  • 1x USB 3.1 Gen 1
  • 3x USB 2.0
  • 2x RS-232/422/485 Serial ports
  • 6x General Purpose Input/Output (GPIO)
  • 1x MIPI-CSI (4-Lanes)
  • 1x SPI bus
  • 1x I2C bus
  • HD Audio Interface

Graphics Support

  • HDMI output with 4K UltraHD resolution and HDR capability
  • Single-channel LVDS output with backlight

Storage

  • Up to 32GB onboard eMMC
  • MicroSD Socket

Expansion Options

  • PCIe Mini Card (mPCIe)



Digi Key BTN

Features
Processor

NXP® i.MX8M
OS Compatibility

Linux, Android
Memory

Embedded LPDDR4 (up to 4GB)
Display

HDMI 2.0a

  • 4096 x 2160 at 60 Hz
  • HDR10

Single-channel LVDS output with backlight (18 and 24 bpp color panel support)
Hardware acceleration utilized for video playback
Video Input

MIPI/CSI Capture
Storage

eMMC
MicroSD
Network Interface

2x Gigabit Ethernet ports (Front Panel I/O)
Onboard I/O

1x USB 3.1 Gen 1 (Front Panel I/O)
3x USB 2.0 (1x Front Panel I/O)
2x RS-232/422/485 Serial ports
8x General Purpose Input/Output (GPIO)
1x MIPI-CSI (4-Lane)
1x SPI bus
1x I2C bus
HD Audio Interface (Line Out, Line In, Mic In)
Expansion BUS

PCIe Mini Card (mPCIe)
Power

+9 to 36 VDC
Environmental

Operational from -40°C to +85°C (-40°F to +185°F)
RoHS compliant
Mechanical

Dimensions: 3.93 in x 2.83 in (100 mm x 72mm)
Weight: 5.95 oz (168.5 g)
Board thickness: 0.078 inches
Additional Features

Hardware security – Trusted Platform Module (TPM) 2.0 enabled

Watchdog timer adjustable from 1 second to 255-minute reset

RoHS compliant

Backlight power supported

TXCO RTC clock/calendar
