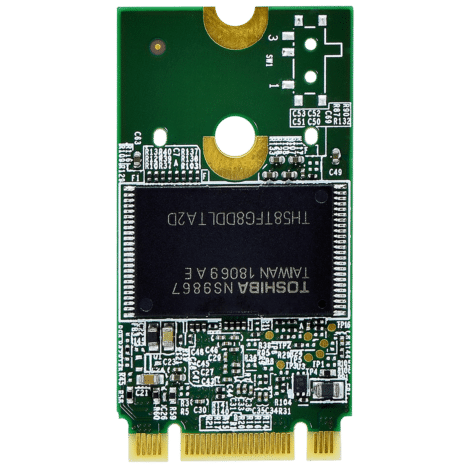

M.2 SSD (iSLC)

Description

Innodisk M.2 (S42) 3IE4 is characterized by L3 architecture with the latest SATA III (6.0GHz) Marvell NAND controller. Innodisk’s exclusive L3 architecture is L2 architecture multiplied LDPC (Low-Density Parity Check). L2 (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear-leveling algorithm to provide high performance and prolong lifespan with exceptional reliability.

Innodisk M.2 (S42) 3IE4 is designed for industrial applications and supports several standard features, including TRIM, NCQ, and S.M.A.R.T. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.

Features

  • SATA III solution for industrial field
  • Exclusive L3 architecture
  • Designed with hardware LDPC ECC engine
  • Supported iData Guard protection
  • DRAM-less, 100% data integrity
  • Excellent random performance
  • Supported TRIM/NCQ/SMART
  • Tested and approved for use with WINSYSTEMS embedded computers
Features
Interface

SATA III

Flash Type

iSLC

P/E Cycle

20,000

Capacity

8GB – 128GB

Max. Channels

2

Sequential R/W (MB/s, max.)

530/380 MB/s

Thermal Sensor

Yes

External DRAM Buffer
H/W Write Protect

Optional

ATA Security

Yes

S.M.A.R.T.

Yes

Dimensions

Width: 22.0 mm

Length: 42.0 mm

Height: 3.2 mm

Environment

Vibration: 20G @7~2000Hz

Shock: 1500G @ 0.5ms Storage Temperature: -40°C ~ +85°C

MTBF: 3 million hours

Part Number

RS-INO-M2B2242-xSI  (x = GB)

  • RS-INO-M2B2242-8SI
  • RS-INO-M2B2242-16SI
  • RS-INO-M2B2242-32SI
  • RS-INO-M2B2242-64SI
  • RS-INO-M2B2242-128SI
