PCM-C418

Description

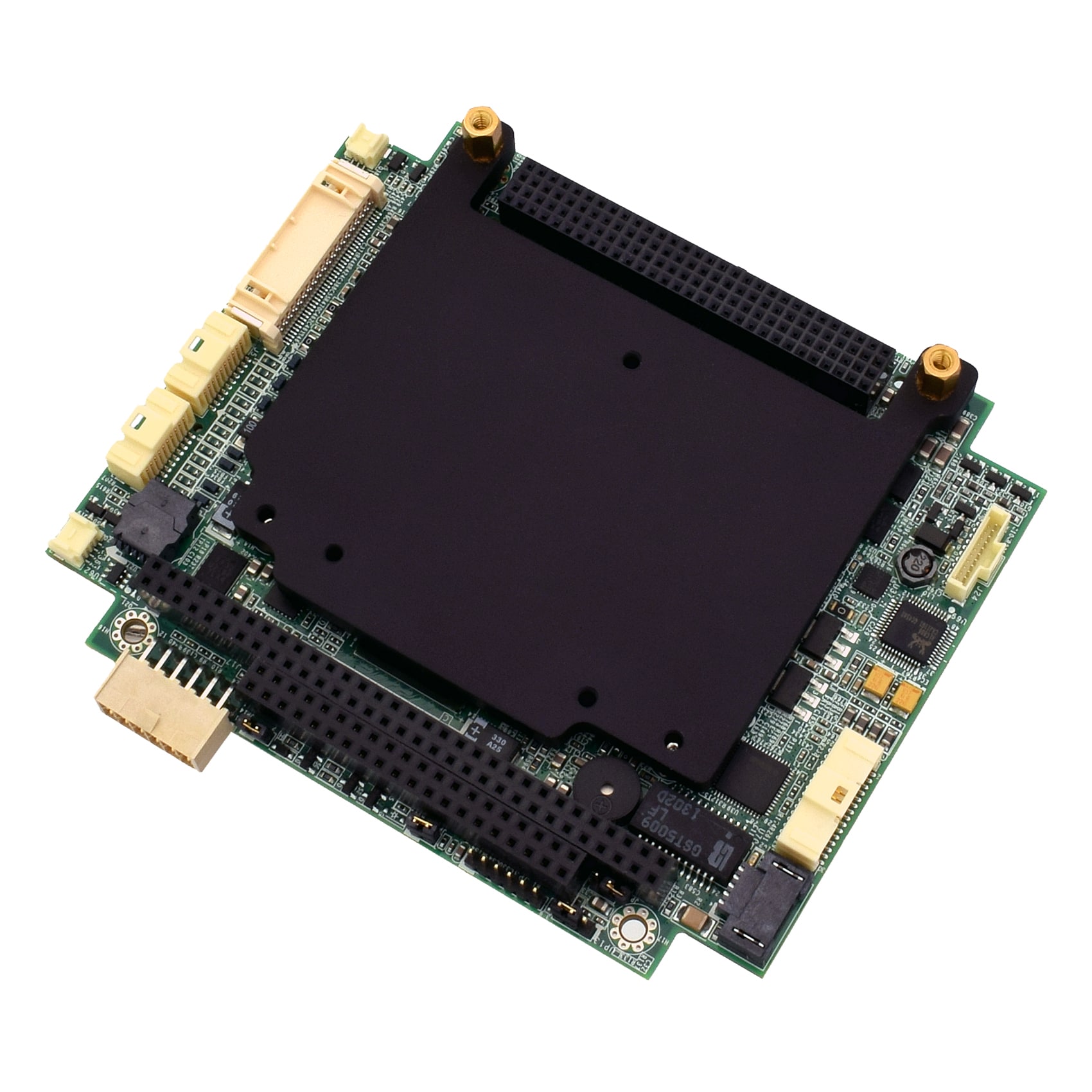

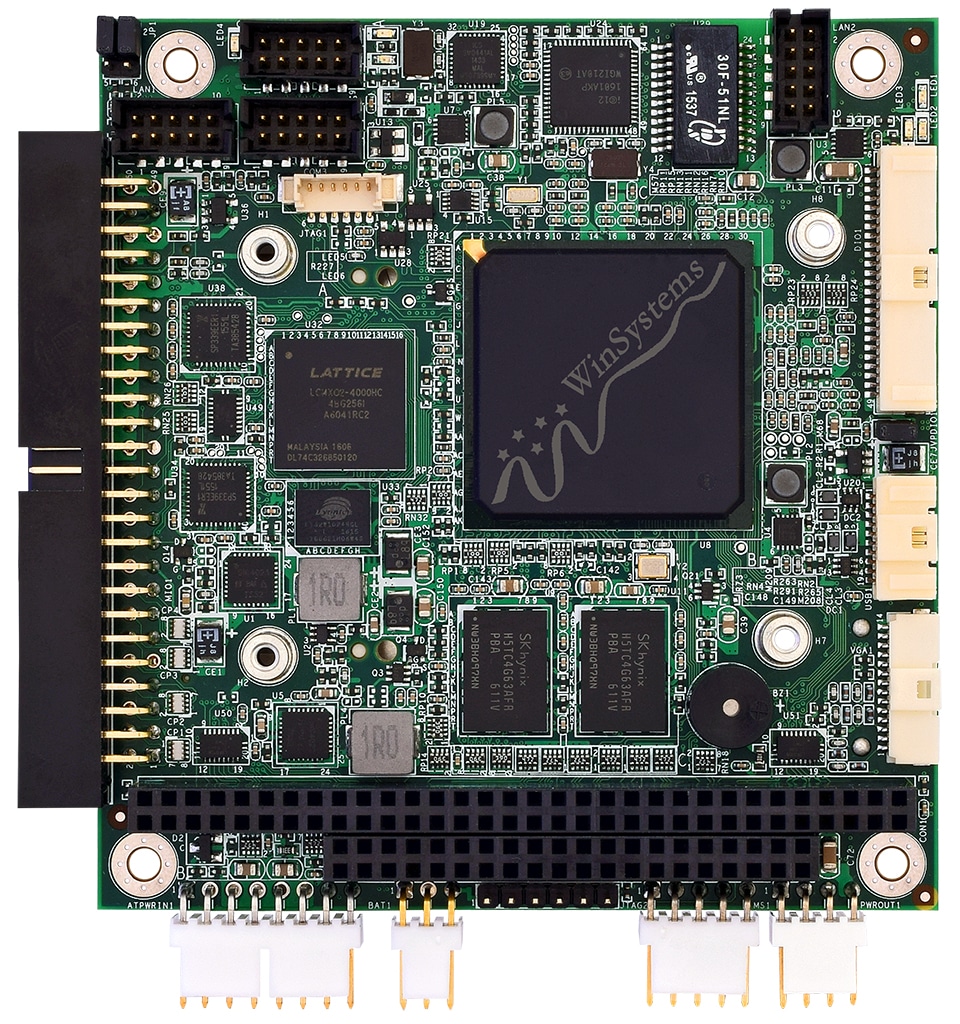

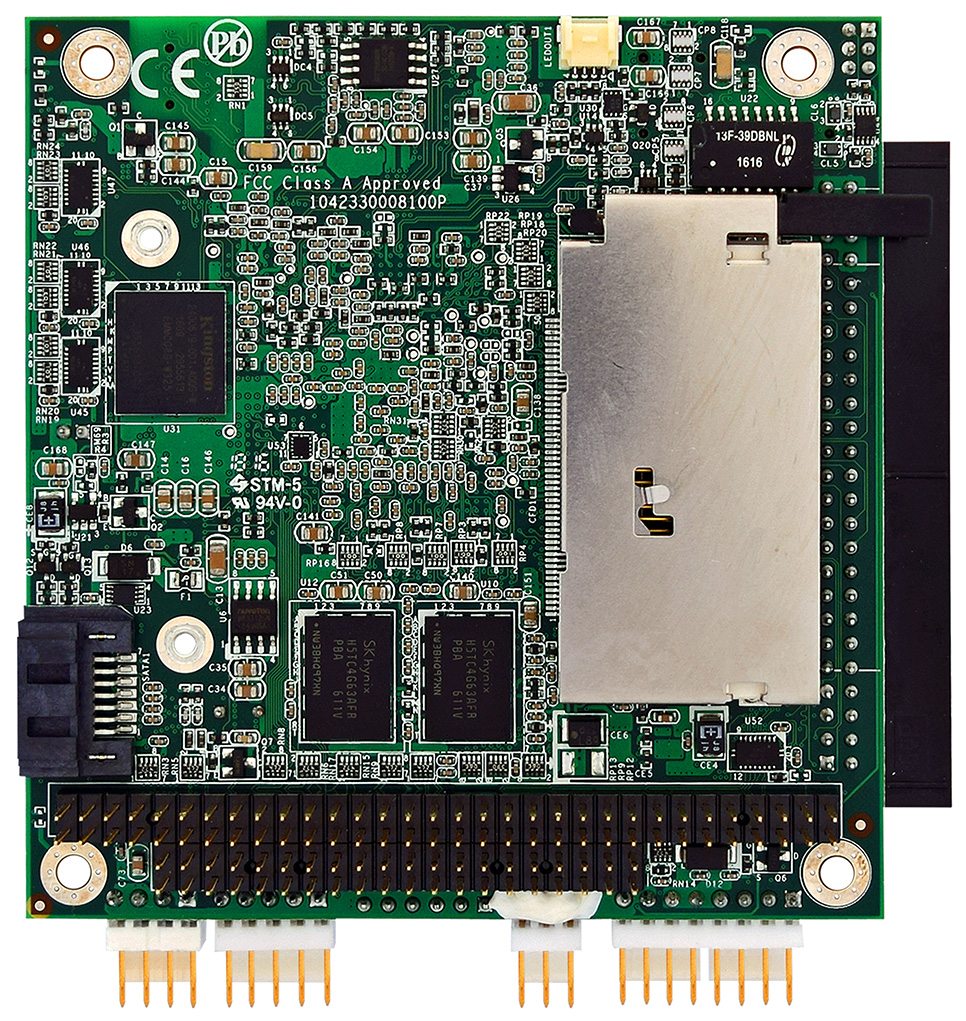

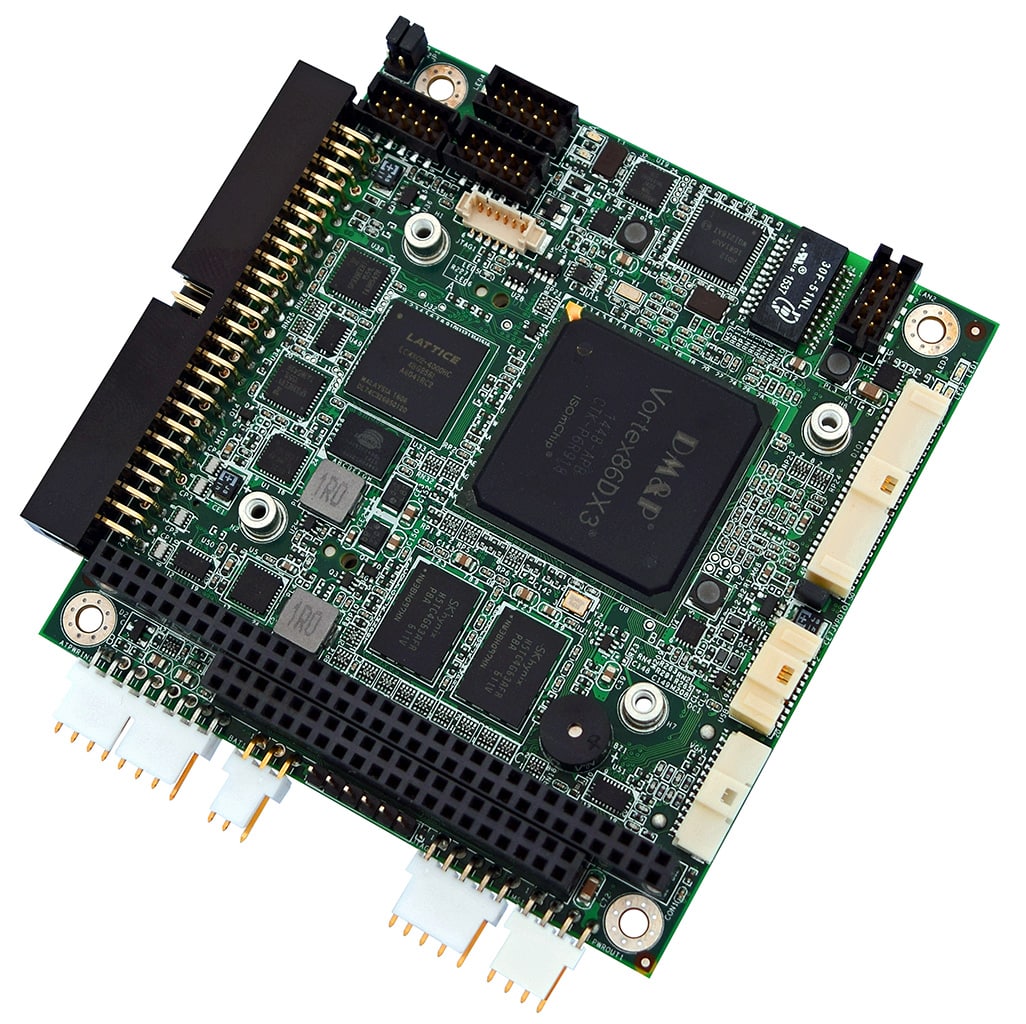

WINSYSTEMS’ PCM-C418 single board computer (SBC) is a PC104 form factor featuring the latest generation DM&P® Vortex86DX3® SOC processor. Its small size, low power, rugged design, and extended operational temperature range make it a great fit for industrial IoT applications and embedded systems in the industrial control, transportation, Mil/COTS, and energy markets.


PRODUCT MANUAL
DATA SHEET
PRODUCT INFO

Features

  • DMP® Vortex86DX3® Processor (Dual core)
  • 2 GB DDR3-LV System RAM (Soldered)
  • 1 MB battery-backed SRAM
  • Four USB 2.0 ports
  • Four serial ports (RS-232/422/485)
  • Two Ethernet ports
  • 24 Bidirectional GPIO with event sense
  • CompactFlash socket
  • Analog VGA Display Output
  • Fanless: -40°C to +85°C operation
Features
  • PCM-C418-2-0-ST
  • PCM-C418-2-1-ST
Processor
  • DMP Vortex86DX3 Dual-core 1 GHz
  • DMP Vortex86DX3 Dual-core 1 GHz
Operating System Compatibility
  • Compatible with Linux, Windows7, and other x86 OS
  • Compatible with Linux, Windows7, and other x86 OS
Memory (RAM)
  • 2GB of DDR3LV soldered-down memory
  • 2GB of DDR3LV soldered-down memory
BIOS
  • AMI BIOS
  • AMI BIOS
Video
  • Analog VGA resolution up to 1920×1440
  • Analog VGA resolution up to 1920×1440
Ethernet
  • − One 10/100/1000 Intel i210 Gigabit
    − One 10/100 Fast Ethernet
  • − One 10/100/1000 Intel i210 Gigabit
    − One 10/100 Fast Ethernet
Storage
  • 1 SATA (2.0) channel
    1 CompactFlash socket
    1 MB soldered down SRAM
    Up to 64GB eMMC soldered down SSD (MOQ Required)
  • 1 SATA (2.0) channel
    1 CompactFlash socket
    1 MB soldered down SRAM
    Up to 64GB eMMC soldered down SSD (MOQ Required)
General Purpose I/O
  • 24 general purpose I/O supported voltages to 30VDC
  • 24 general purpose I/O supported voltages to 30VDC
Serial I/O
  • Four serial ports (RS-232/422/485)
  • Four serial ports (RS-232/422/485)
LPT Parallel Port
  • SPP/EPP Compatible
  • SPP/EPP Compatible
USB
  • Four USB 2.0 ports
  • Four USB 2.0 ports
Watchdog Timer
  • Adjustable from 1 second to 255 minute reset
  • Adjustable from 1 second to 255 minute reset
Bus Expansion
  • PC/104 16-bit ISA (8-16MHz)
  • PC/104 16-bit ISA (8-16MHz)
Power
  • Typical Power = 5V @ 1.2A
    Maximum power = 5V @ 1.5A
  • Typical Power = 5V @ 1.2A
    Maximum power = 5V @ 1.5A
Mechanical
  • PC/104 Compliant
    Dimensions: 3.6 x 3.8 inches (90 x 96 mm)
    Weight: Weight: 6.4oz (182g)
    PC Board thickness: 0.078 inches (1.98mm)
  • PC/104 Compliant
    Dimensions: 3.6 x 3.8 inches (90 x 96 mm)
    Weight: Weight: 9.76 oz (277g)
    PC Board thickness: 0.078 inches (1.98mm)
Operating Temperature Range
  • -40°C to 85°C
  • -40°C to 85°C
