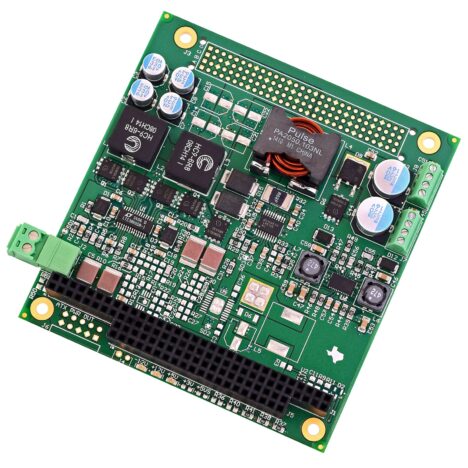

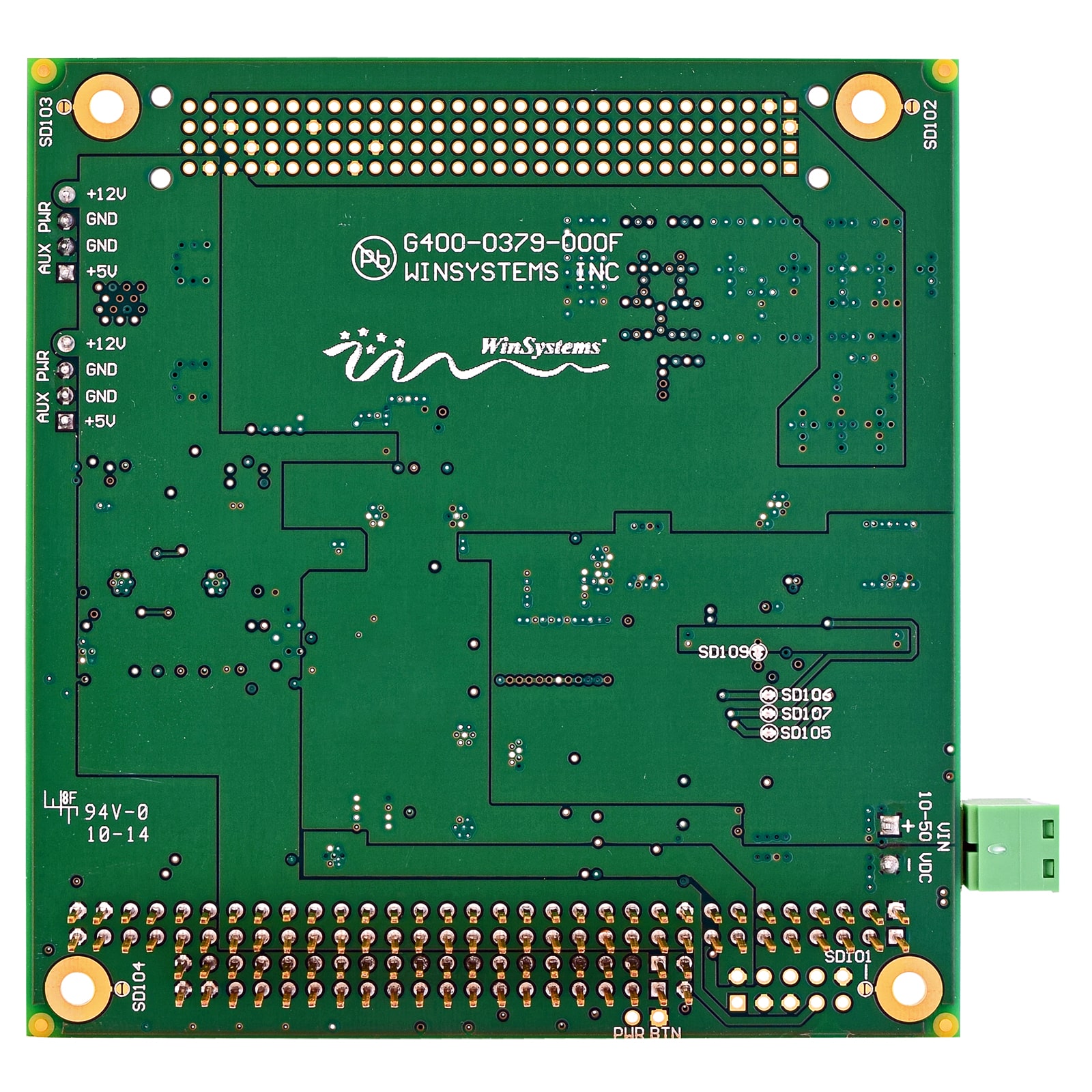

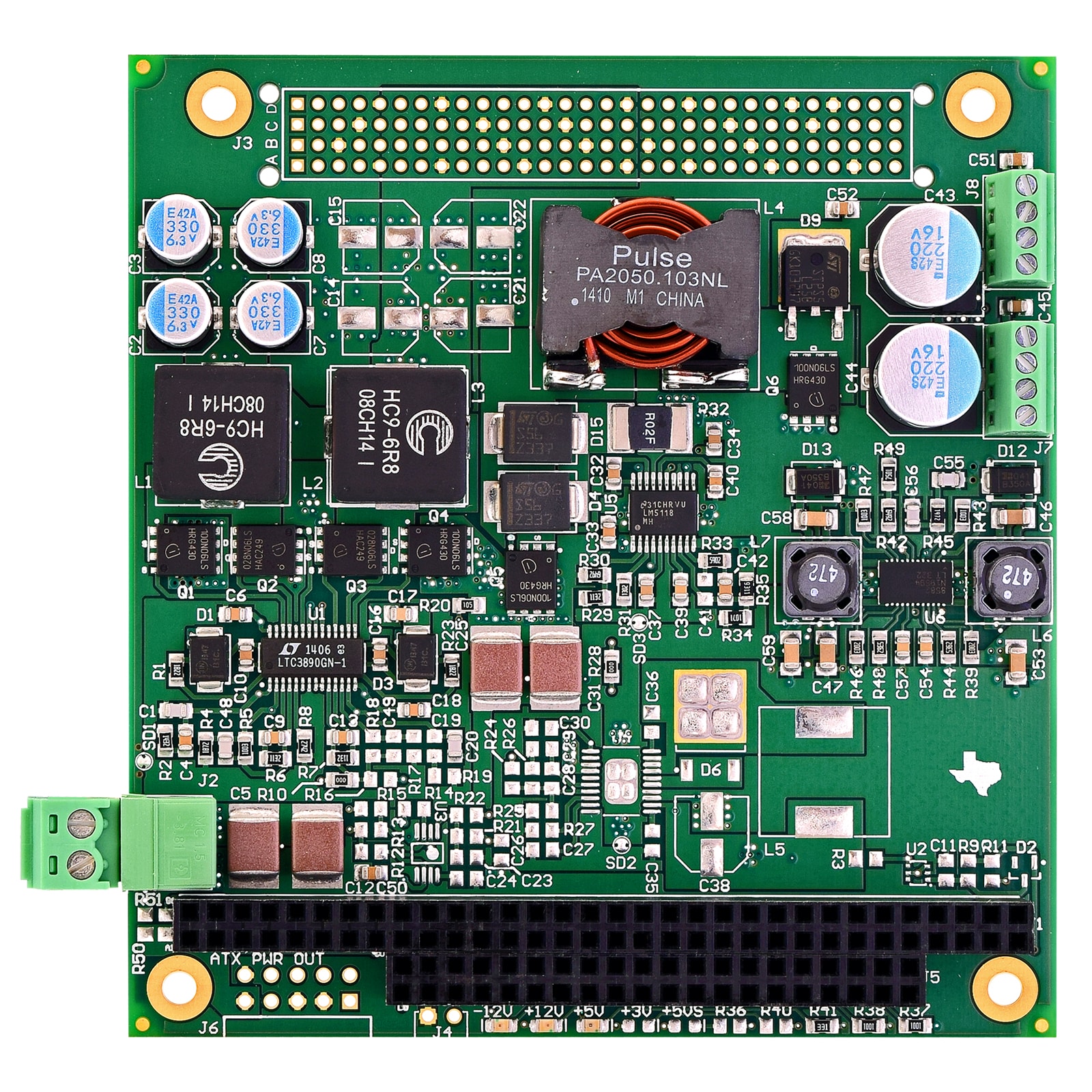

PCM-DC-AT512-P

Description

WINSYSTEMS’ PCM-DC-AT512-P is a triple output, DC/DC power supply that can mount anywhere in a PC104 stack. It features a very wide voltage input range from 10 to 50 volts DC. This allows the unit to operate with 12, 24, or 48 volt battery or distributed DC power systems. It opens up a wide array of applications including transportation, Mil/ COTS, security, solar-powered, and telecommunications.

PRODUCT MANUAL
DATA SHEET
PRODUCT INFO

Features

  • Wide input range: 10V to 50 VDC
  • Voltage output: +5V @ 20A, +12V @ 3A, and -12V @ 800 mA
  • -40 to +85°C operation
  • No fan or heat sink required
  • No minimum load required for regulation
  • Outputs with short circuit, overload and overvoltage protection
  • Power-on LEDs provide visual status of power
  • Screw terminals for accessory power connection
  • High efficiency design
  • Fast transient response
Features
Power Supply Module

PC104 triple output DC/DC power supply
No fan or heat sink required
Screw terminals for accessory power connection
Input Voltage

Wide range: 10-50 VDC
Output Voltage

+5V @ 20A
+12V @ 3A
-12V @ 800 mA
Over current protection (OCP) and over voltage protection (OVP) for all outputs
High efficiency
Fast transient response
Low voltage ripple
No minimum load required for regulation
Bus Expansion

PC104-Plus
PC104
Mechanical

PC104 Compliant
Dimensions: 3.6 x 3.8 inches (90 x 96 mm)
Weight: 4 oz (114g)
Operating Temperature Range

-40°C to 85°C
