WINSYSTEMS Industrial 12-inch Panel PC
WINSYSTEMS Industrial 12-inch Panel PC

PPC12-427

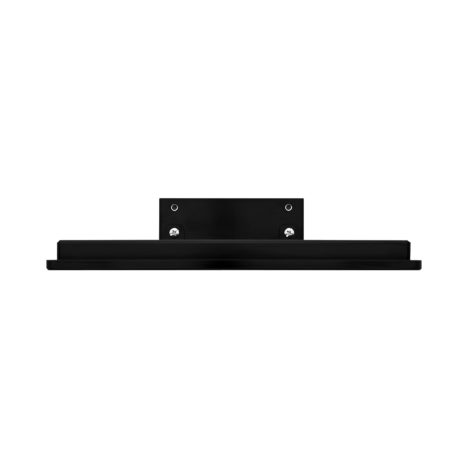

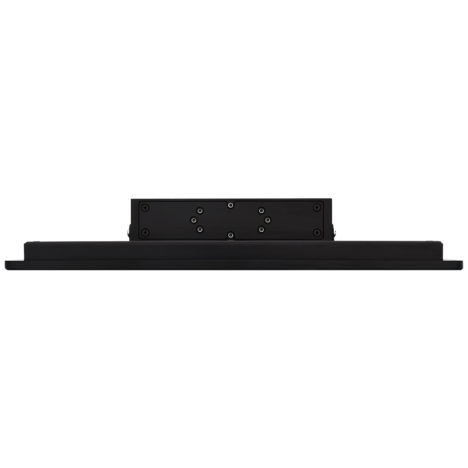

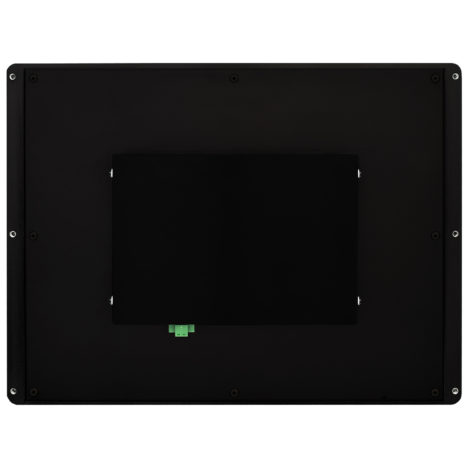

Description

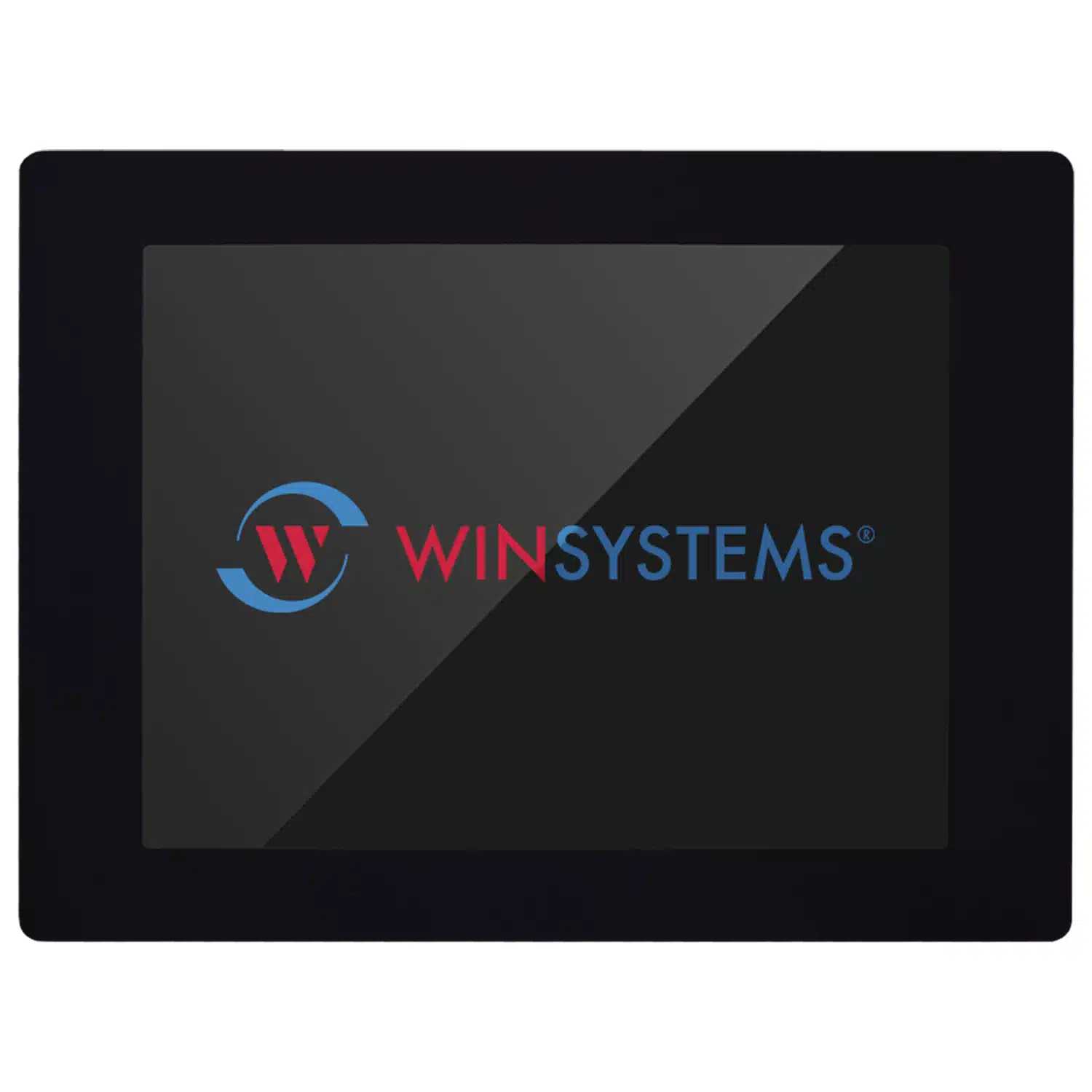

WINSYSTEMS’ PPC12-427 is a fanless, 12.1-inch panel PC featuring the latest generation Intel Apollo Lake-I SOC processor. Its small size, low power, extended operational temperature, and IP65 rating make it a great fit for harsh environments in the industrial control, transportation, energy, and industrial IoT markets.

PRODUCT MANUAL
DATA SHEET
PRODUCT INFO

Features

Graphics for Digital Signage and Kiosk Applications

  • 12-in. Panel PC with Projected Capacitive Multi-touch Screen
  • Supports up to two additional Displays
  • 2x DisplayPort with 4K Resolution

Performance for Industrial IoT Edge Computing

  • Intel Apollo Lake-I E3900 Processor (Dual or Quad-core)
  • Up to 8GB DDR3L ECC System Memory
  • Up to 2.0GHZ CPU Clock Rate
  • Time-Coordinated Computing
  • Soldered down TPM 2.0 Hardware Security Enabled
  • 10+ Year Availability

Rugged Design for Demanding Environments

  • -30°C to +85°C Operating Temperature Range
  • Wide Range Power Input (10 – 50 V DC)
  • IP65-Rated, Front Panel and Bezel

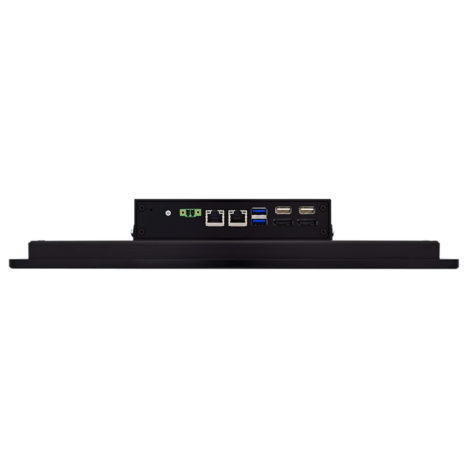

Connectivity and I/O for Embedded Data Acquisition

  • 2x Gigabit Ethernet
  • 2x USB 3.1 Gen 1 and 4x USB 2.0
  • 8x General Purpose Input/Output (GPIO)
  • 2x channel Analog-to-Digital (ADC)
  • 3x Serial Ports
  • HD Audio

Storage

  • eMMC
  • SATA with SATA Power
  • mSATA

Expansion and Configuration Options for Semi-Custom Solutions

  • Mini-PCI Express
  • M.2 E-Key 2230 Form Factor
  • WINSYSTEMS’ Modular IO80 Expansion

Digi Key BTN

Features
  • PPC12-4273EMM-RT-P-I
  • PPC12-4274EMM-RT-P-I
  • PPC12-4275EMM-RT-P-I
Processor
  • Intel Atom x5-E3930 Processor
  • Intel Atom x5-E3940 Processor
  • Intel Atom x7-E3950 Processor
Operating System Compatibility
  • Linux, Windows, and other x86 compatible
  • Linux, Windows, and other x86 compatible
  • Linux, Windows, and other x86 compatible
Memory (RAM)
  • SODIMM DDR3L ECC (up to 8GB)
  • SODIMM DDR3L ECC (up to 8GB)
  • SODIMM DDR3L ECC (up to 8GB)
BIOS
  • AMI – UEFI
  • AMI – UEFI
  • AMI – UEFI
Display
  • Three independent video outputs:
    – LVDS with digital backlight and touch control
    output to 12.1-inch TFT-LCD panel PC
    – 2x DisplayPort up to Ultra 4K Resolution
    (Front Panel I/O)
  • Three independent video outputs:
    – LVDS with digital backlight and touch control
    output to 12.1-inch TFT-LCD panel PC
    – 2x DisplayPort up to Ultra 4K Resolution
    (Front Panel I/O)
  • Three independent video outputs:
    – LVDS with digital backlight and touch control
    output to 12.1-inch TFT-LCD panel PC
    – 2x DisplayPort up to Ultra 4K Resolution
    (Front Panel I/O)
Ethernet
  • 2x Gigabit Ethernet ports (Front Panel I/O)
  • 2x Gigabit Ethernet ports (Front Panel I/O)
  • 2x Gigabit Ethernet ports (Front Panel I/O)
Storage
  • 1x eMMC (16/32/64G)
    1x SATA Connector
    1x mSATA
  • 1x eMMC (16/32/64G)
    1x SATA Connector
    1x mSATA
  • 1x eMMC (16/32/64G)
    1x SATA Connector
    1x mSATA
Data Acquistion
  • 8x lines of general purpose digital I/O
    2x channels Analog-to-Digital (ADC) (10-bit resolution)
  • 8x lines of general purpose digital I/O
    2x channels Analog-to-Digital (ADC) (10-bit resolution)
  • 8x lines of general purpose digital I/O
    2x channels Analog-to-Digital (ADC) (10-bit resolution)
Serial I/O
  • 1x Legacy RS232 Interface (8-wire)
    2x Multi-Protocol Serial Ports (4-wire)
  • 1x Legacy RS232 Interface (8-wire)
    2x Multi-Protocol Serial Ports (4-wire)
  • 1x Legacy RS232 Interface (8-wire)
    2x Multi-Protocol Serial Ports (4-wire)
Expansion
  • Mini PCI Express Socket
    M.2 Socket (E-Key)
    WinSystems Modular IO80 Interface
  • Mini PCI Express Socket
    M.2 Socket (E-Key)
    WinSystems Modular IO80 Interface
  • Mini PCI Express Socket
    M.2 Socket (E-Key)
    WinSystems Modular IO80 Interface
USB
  • 2x USB 3.0 ports (Front Panel I/O)
    2x USB 2.0 ports (Front Panel I/O)
    2x USB 2.0 ports
  • 2x USB 3.0 ports (Front Panel I/O)
    2x USB 2.0 ports (Front Panel I/O)
    2x USB 2.0 ports
  • 2x USB 3.0 ports (Front Panel I/O)
    2x USB 2.0 ports (Front Panel I/O)
    2x USB 2.0 ports
Watchdog Timer
  • Real-time Clock (RTC) w/ opt. battery backup
    Watchdog timer (Adj. 1 sec to 255 min)
  • Real-time Clock (RTC) w/ opt. battery backup
    Watchdog timer (Adj. 1 sec to 255 min)
  • Real-time Clock (RTC) w/ opt. battery backup
    Watchdog timer (Adj. 1 sec to 255 min)
Audio
  • HD Audio Interface (Line Out, Line In, Mic In)
    Speaker output for beep tones
  • HD Audio Interface (Line Out, Line In, Mic In)
    Speaker output for beep tones
  • HD Audio Interface (Line Out, Line In, Mic In)
    Speaker output for beep tones
Power
  • Wide Imput: +10-50V DC
  • Wide Imput: +10-50V DC
  • Wide Imput: +10-50V DC
Mechanical
  • Dimensions: 13.0 in. x 9.8 in. x 2.18 in.
    (330 mm x 250 mm x 55.6 mm)
    Weight: 5.25 lb (2.38 kg)
    PC Board thickness: 0.078 inches
  • Dimensions: 13.0 in. x 9.8 in. x 2.18 in.
    (330 mm x 250 mm x 55.6 mm)
    Weight: 5.25 lb (2.38 kg)
    PC Board thickness: 0.078 inches
  • Dimensions: 13.0 in. x 9.8 in. x 2.18 in.
    (330 mm x 250 mm x 55.6 mm)
    Weight: 5.25 lb (2.38 kg)
    PC Board thickness: 0.078 inches
Operating Temperature Range
  • -40°C to +85°C (-40 to +185°F)
    Requires airflow and high temperature grade DRAM
  • -40°C to +85°C (-40 to +185°F)
    Requires airflow and high temperature grade DRAM
  • -40°C to +85°C (-40 to +185°F)
    Requires airflow and high temperature grade DRAM
Security
  • Soldered down TPM 2.0 hardware security
  • Soldered down TPM 2.0 hardware security
  • Soldered down TPM 2.0 hardware security
Compliance
  • Shock – IEC 60068-2-27
    Vibration – IEC 60068-2-64
    FCC Class A
  • Shock – IEC 60068-2-27
    Vibration – IEC 60068-2-64
    FCC Class A
  • Shock – IEC 60068-2-27
    Vibration – IEC 60068-2-64
    FCC Class A
