PS-ATX150-ATX 150W ATX Power Supply

No longer in production

This product is listed to provide access to its documentation.

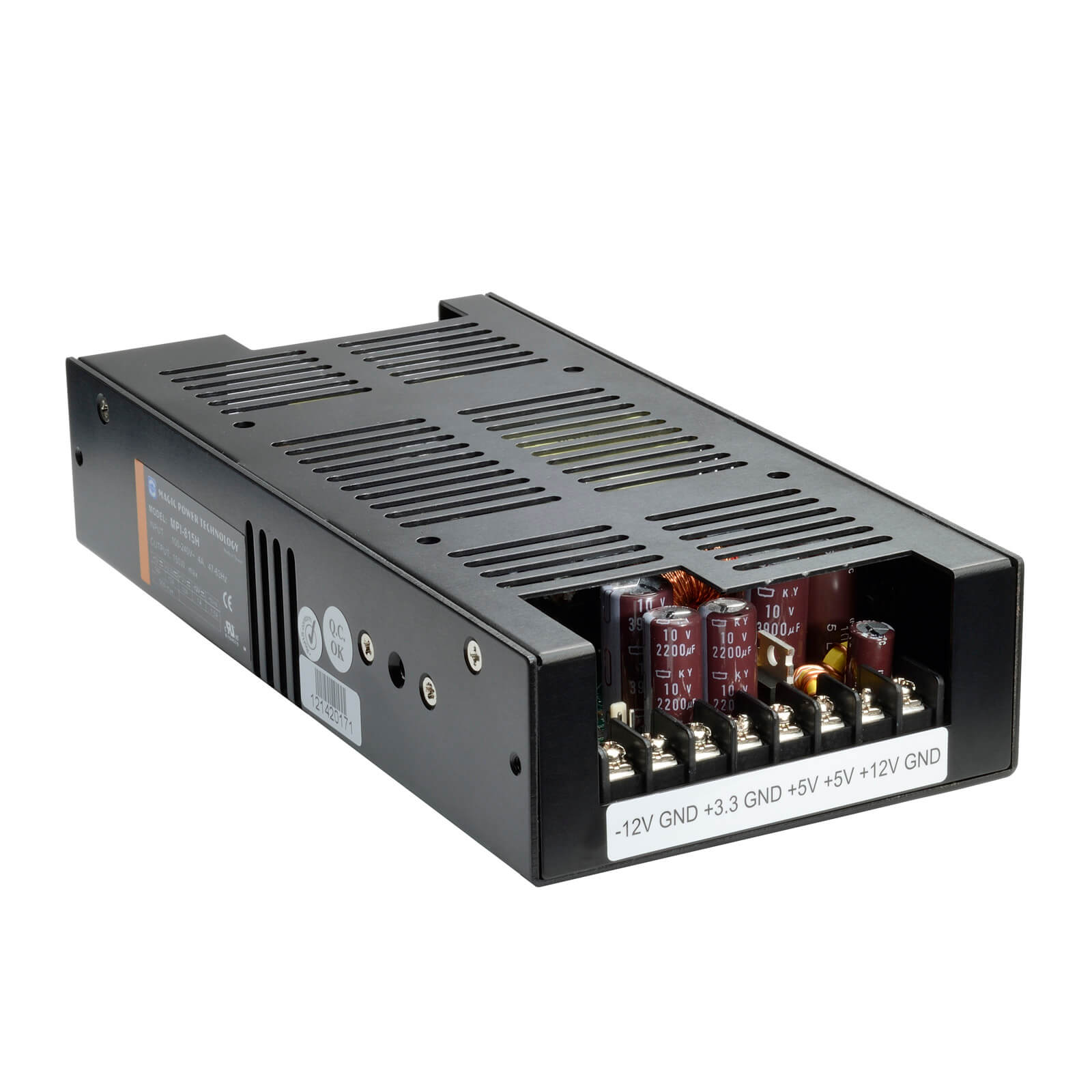

WINSYSTEMS’ PS-ATX150-ATX is a 150W, convection-cooled, power supply for ATX-compatible Single Board Computers (SBCs). It is a universal design that accepts 90 to 264VAC input and generates five different output voltages as well as supporting the ATX signals of Power Good, Power On, and Push Button.

DATA SHEET PRODUCT INFO

Features

  • Universal AC input: 90 to 264 VAC
  • Input frequency: 47-63 Hz
  • Five ATX-compatible DC output voltages: +3.3V, +5V, 5VSB, +12V, and -12V
  • Power Good, Power On, and Push Button supported
  • No fan required, convection cooling
  • Short circuit protection
  • Over temperature and overvoltage protection
Features
PS-ATX150-ATX

150W ATX power supply with cables
PS-ATX150-0

150W ATX power supply without cables
