Es| Features | |
|---|---|
| Processor | Industrial Freescale i.MX6S |
| Operating System Compatibility | Linux, Android™ |
| Memory (RAM) | 1 GB DDR3 RAM (Soldered) |
| Video | Up to 2 Active Displays |
| Ethernet | 1 Gbps Wake on LAN (WOL) IEEE-1588 |
| Storage | SD/SDIO Socket (Bootable) |
| Digital I/O | 24 GPIO lines tolerant to 30V |
| Serial I/O | 1 Serial port (RS-232/422/485) up to 1 Mbps |
| Bus Expansion | IO60 |
| USB | 2 USB 2.0 ports |
| Audio | HDMI 1.4 Type A |
| Power | POE PD: IEEE 802.3at (Up to 25W) |
| Mechanical | Dimensions: 4 x 5.75 inches(102 x 146 mm) |
| Operating Temperature Range | -40°C to 85°C |
| Random Vibration Testing | MIL-STD-202G, Method 214A, Condition D 0.1g/Hz (11.95g rms), 20 minutes per axis, 3 axis |
| Mechanical Shock Testing | MIL-STD-202G, Method 213B, Condition A 50g half-sine, 11 ms duration per axis, 3 axis |

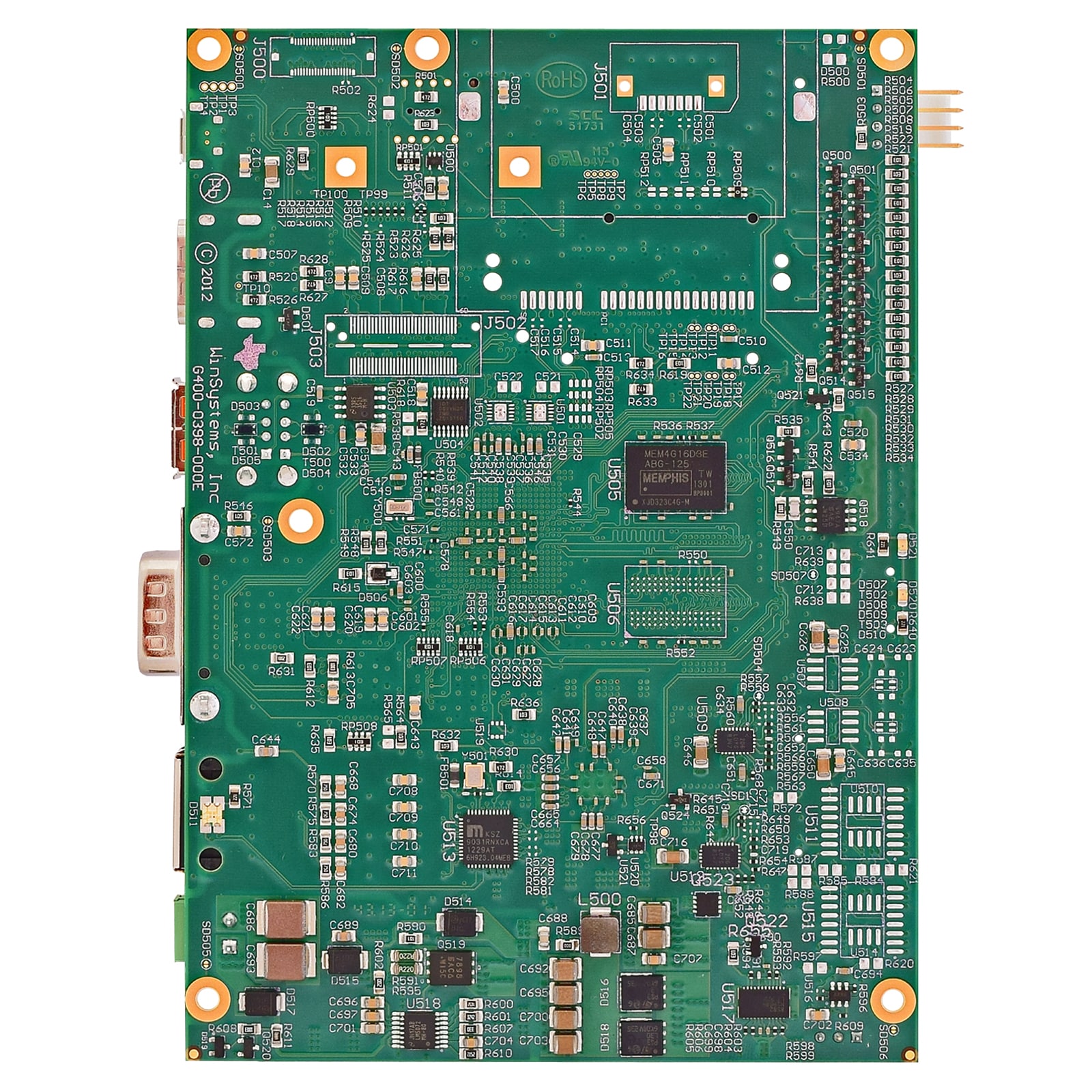

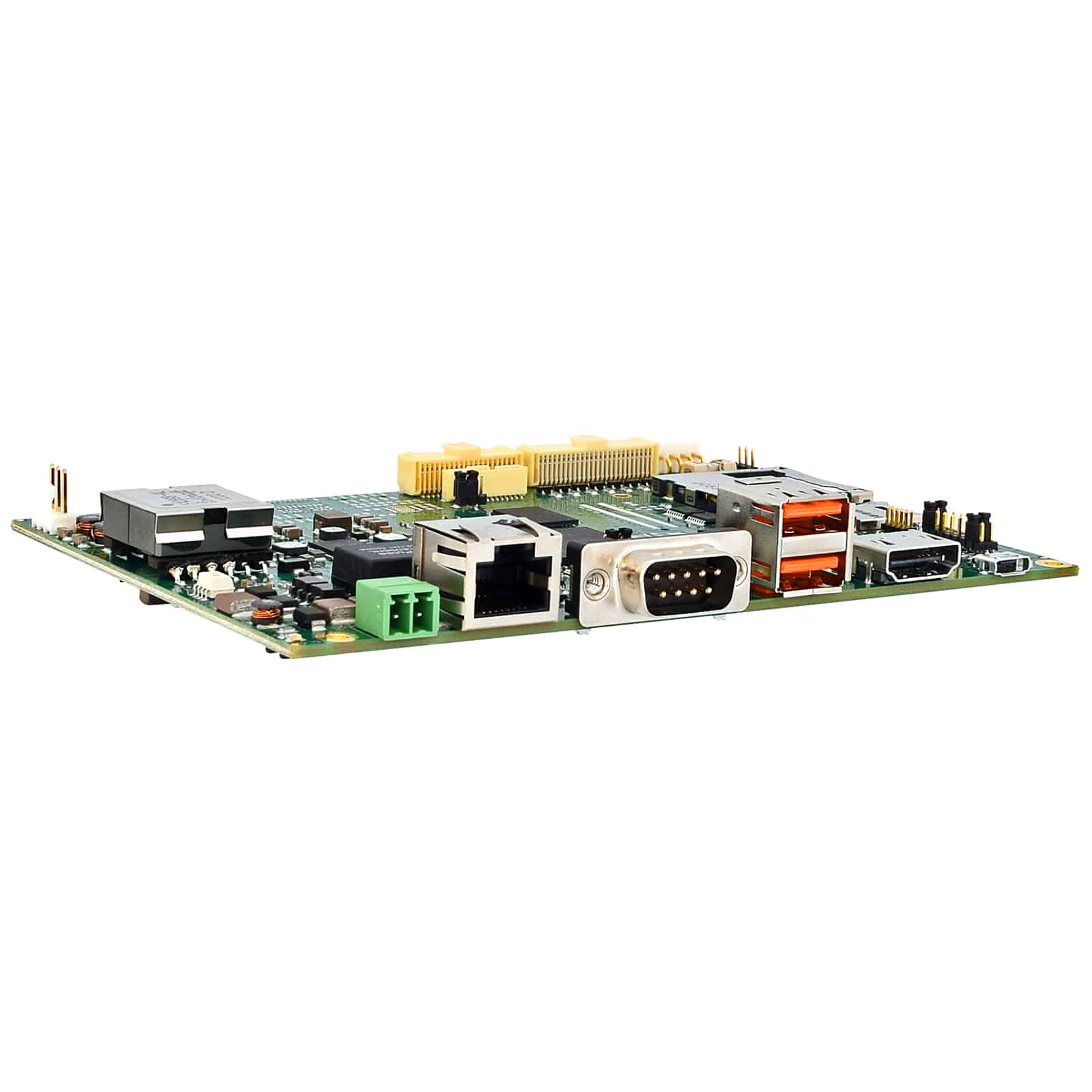

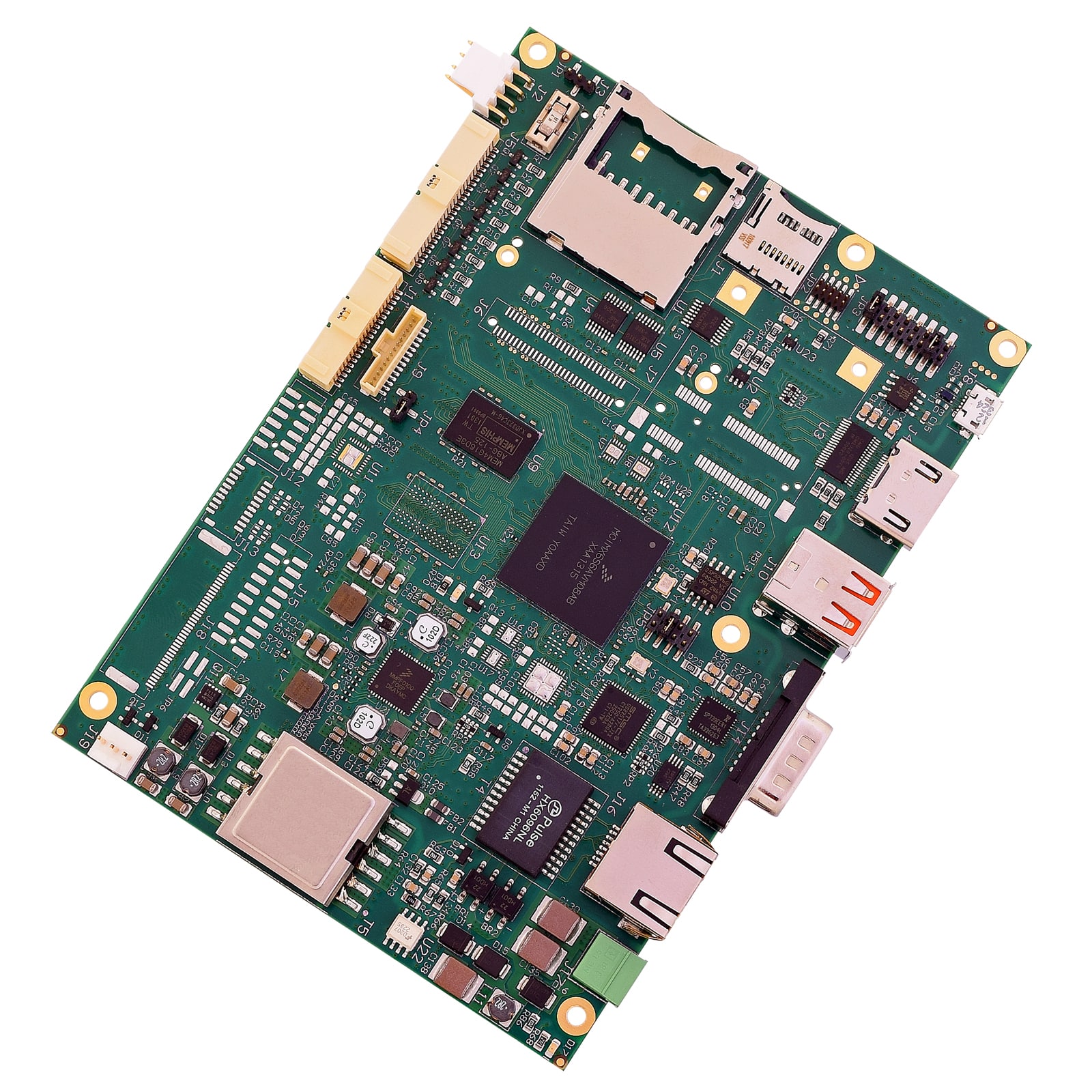

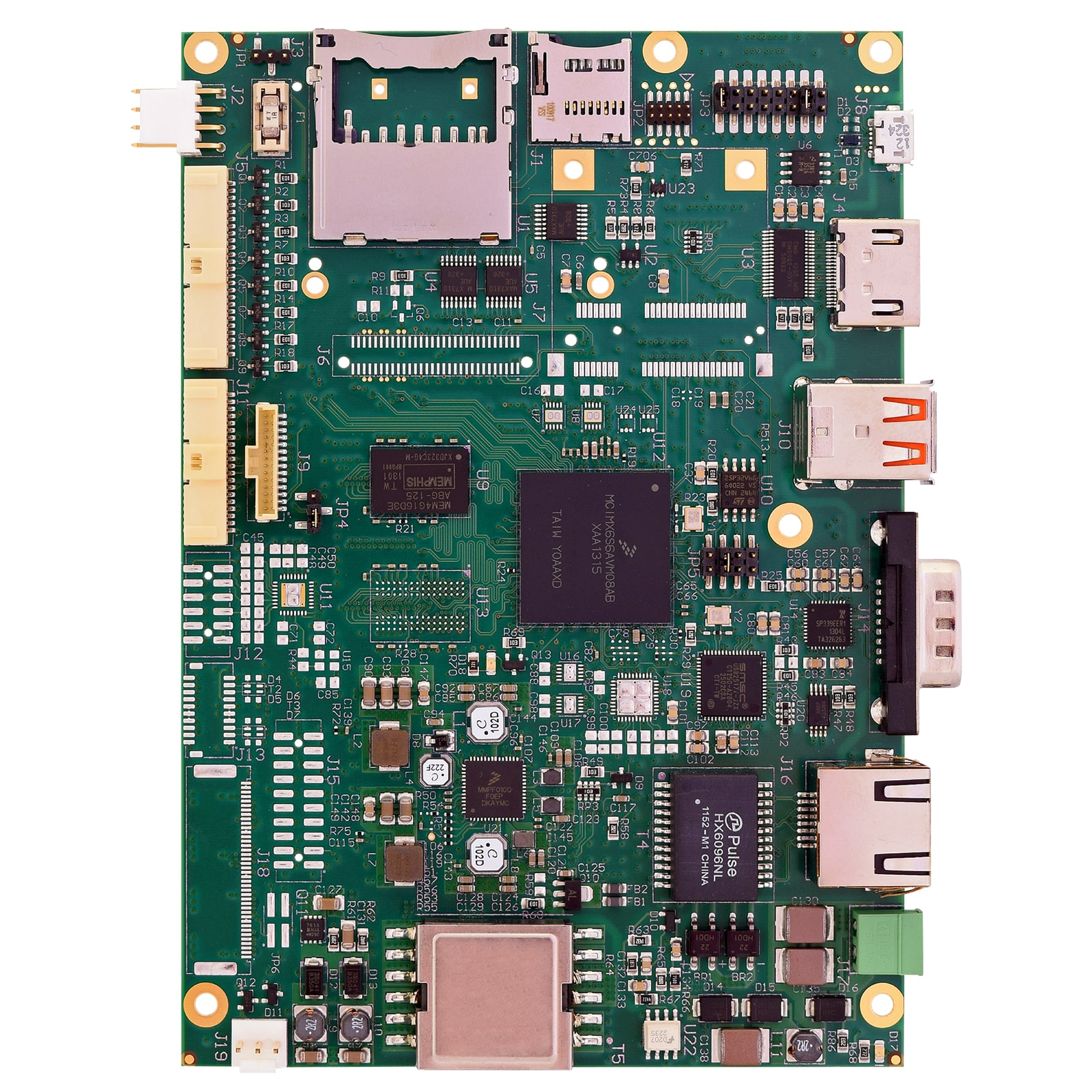

SBC35-C398S-1-0
Description
WINSYSTEMS’ SBC35-C398S low power single board computer combines high performance multimedia graphics with a rich mix of industrial I/O. The Freescale i.MX 6S processor’s integrated power management provides excellent efficiency and allows operation from -40° to +85°C without active cooling. It is designed for demanding graphical applications in security, transportation, medical, and digital signage.
Features
- Freescale® i.MX 6S Industrial ARM CPU @ 800 MHz
- 1GB of Soldered DDR3 RAM
- High-Performance Video and Graphics: HD1080p, 3D, and 2D HW Accelerators
- Multiple Video Interfaces: HDMI 1.4 and Two LVDS
- Gigabit Ethernet with IEEE-1588™
- Two USB 2.0 ports and one USB On-The-Go Port
- 24 lines GPIO tolerant up to 30 VDC
- SD/SDIO and MicroSD sockets
- IO60 expansion
- Wide range DC or Power over Ethernet (PoE) PD Power Input
- Fanless -40° to +85°C operational temperature
