| Features | |
|---|---|
| SBC35-CC405-3845-8-2 | Industrial Quad-Core SBC with Two Ethernet, USB 3.0, and 8GB DDR3 SDRAM |
| SBC35-CC405-3845-4-2 | Industrial Quad-Core SBC with Two Ethernet, USB 3.0, and 4GB DDR3 SDRAM |
| SBC35-CC405-3845-2-2 | Industrial Quad-Core SBC with Two Ethernet, USB 3.0, and 2GB DDR3 SDRAM |

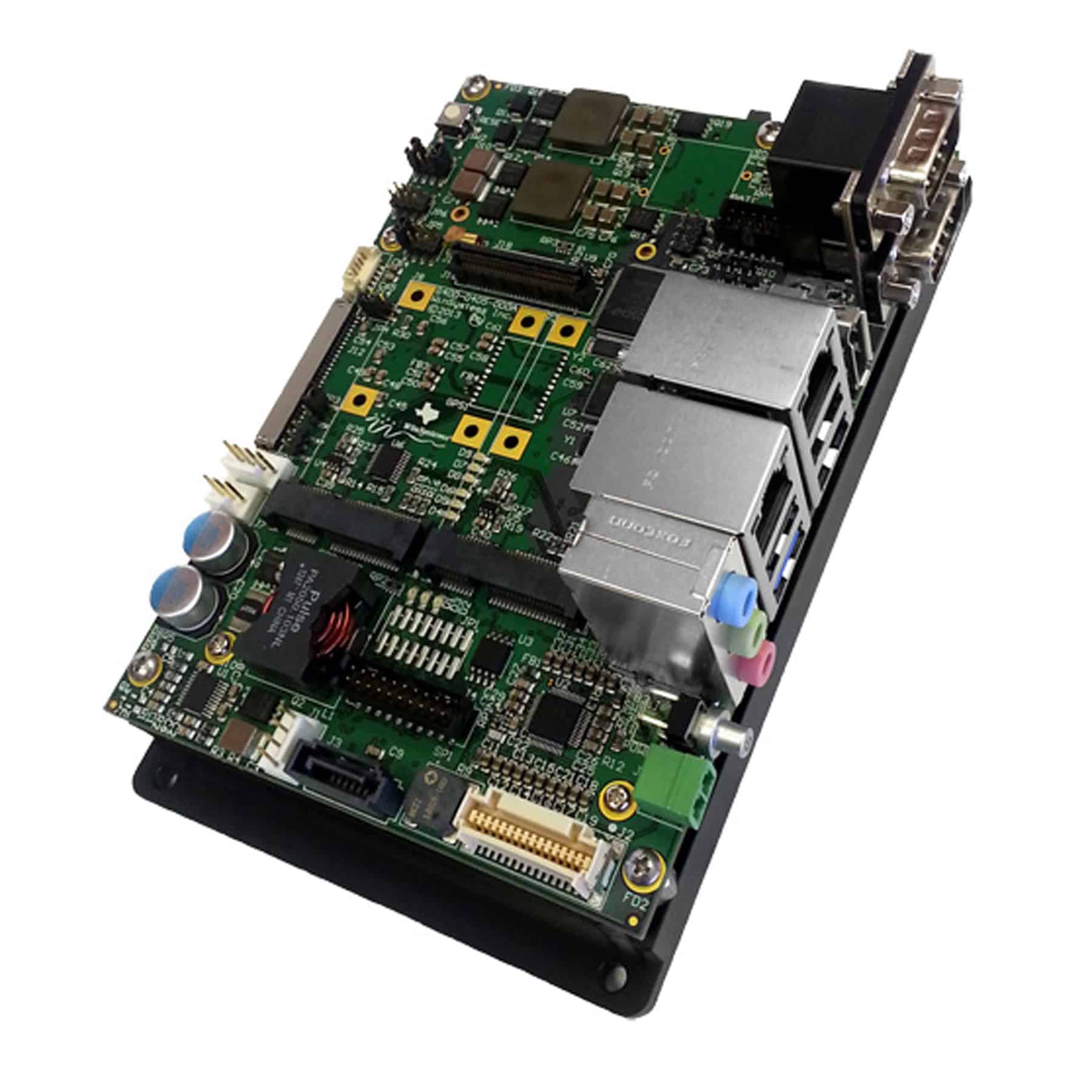

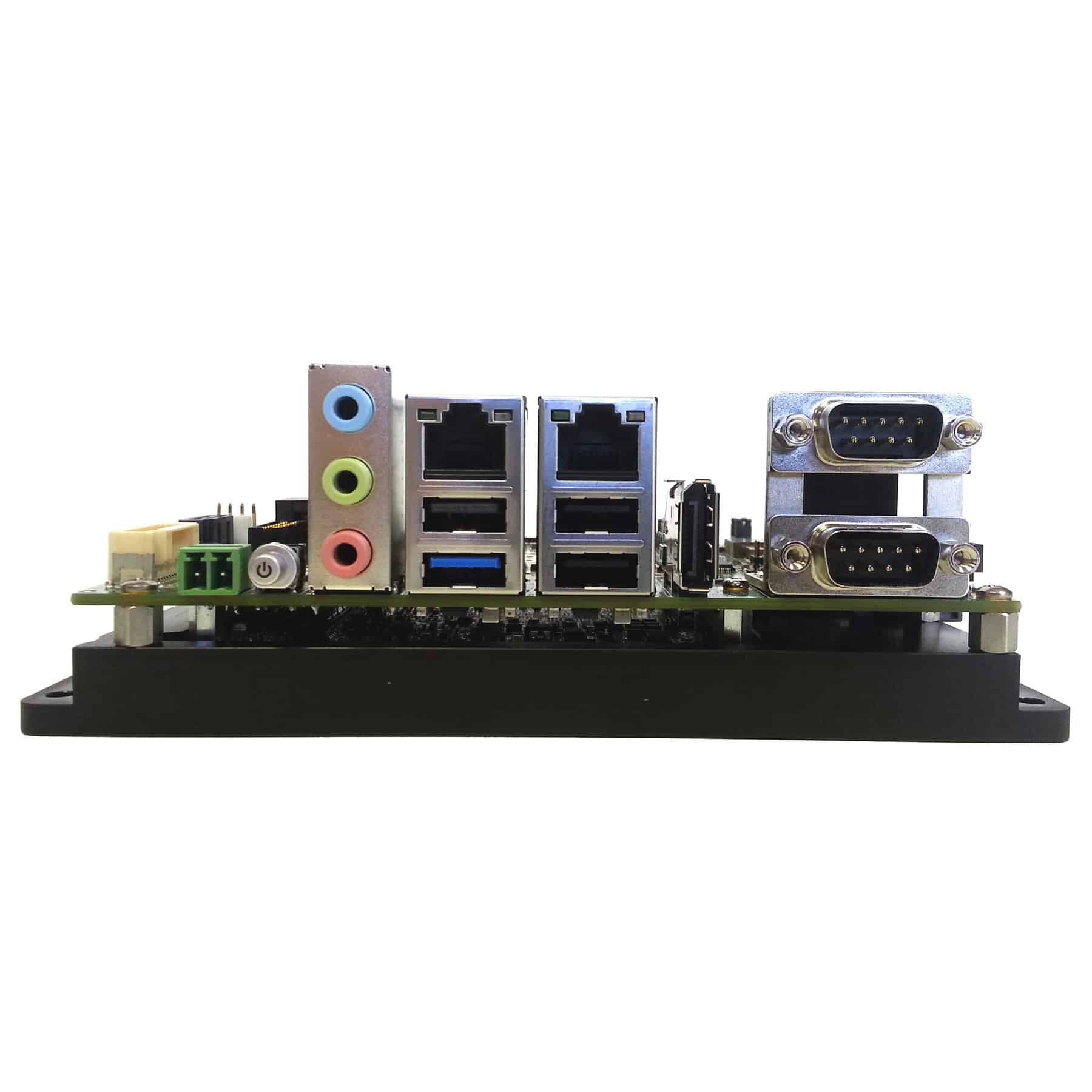

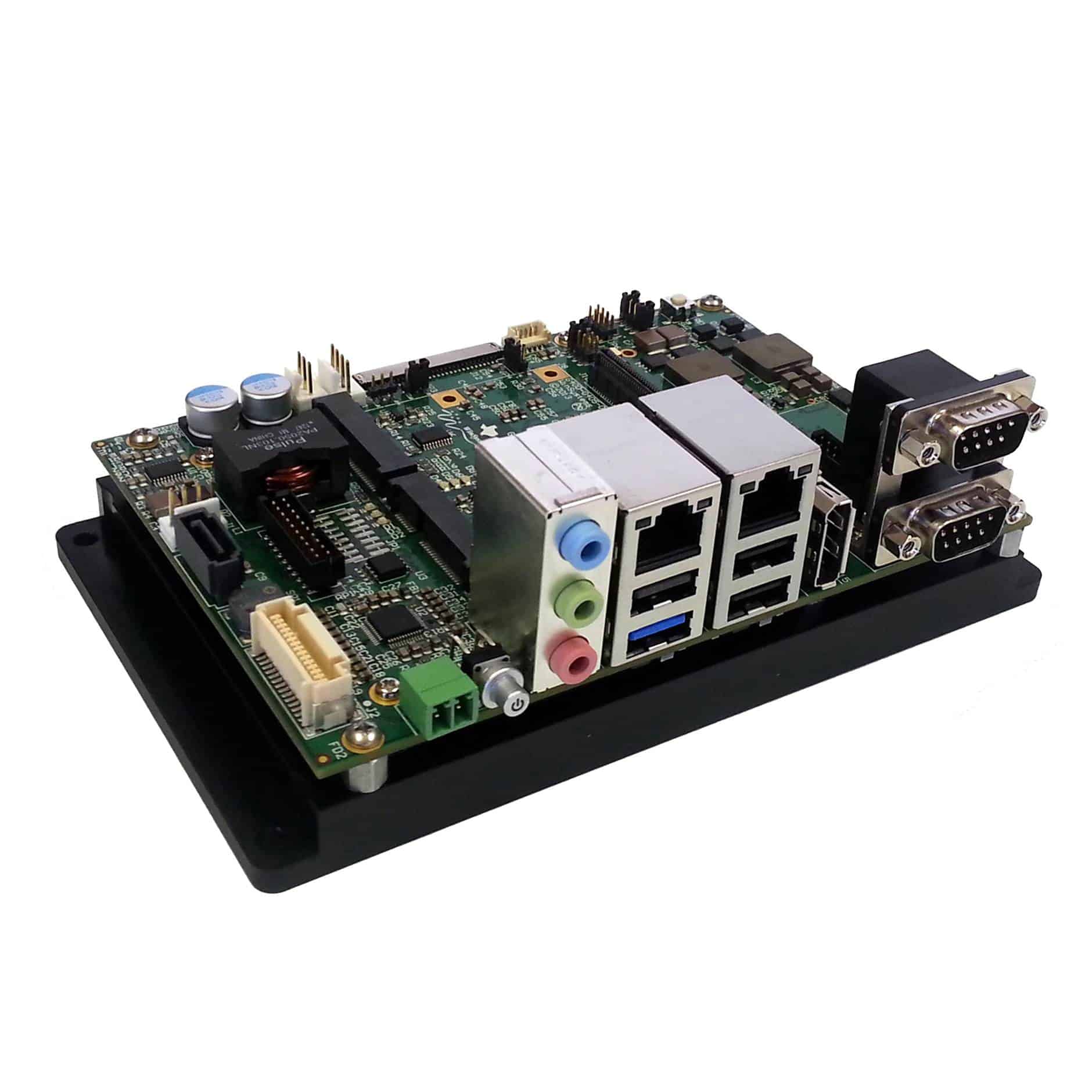

SBC35-CC405-3845 Industrial Quad-Core Intel® E3845 SBC with Two Ethernet and USB 3.0
Industrial embedded computer with Quad-Core Intel® Atom™ E3845 CPU, Dual Ethernet, Dual MiniPCIe, USB 3.0, RS-232/485/422 and two independent displays via DisplayPort, LVDS and/or Analog VGA.
DATA SHEET PRODUCT INFOFeatures
- Intel® Quad-Core Processor (Bay Trail) Atom™ E3845
- Intel® Gen7 Graphics and HD Audio
- Up to 2 independent displays
- VGA, LVDS, and DisplayPort
- Two 10/100/1000 Ethernet (Intel I210)
- Two serial ports (RS-232/422/485)
- Four USB ports (1x USB 3.0 and 3x USB 2.0)
- Bus Expansion
- Two MiniPCIe (one with mSATA)
- IO60 (SPI, I2C, PWM and UART)
- SATA, CFast, and mSATA
- Wide range +10 to +50V DC input
- Fanless -40° to +85°C operational temperature
- SBC35-CC405 Datasheet (PDF)
Datasheets
- SBC35-CC405 Product Manual (PDF)
- SBC35-CC405 Quick Start Guide (PDF)
Product Manuals
- Windows 7 32bit
- Windows 7 64bit
- Windows 8 32bit
- Windows 8 64bit
- Linux – IO60 SPI interface drivers
- Linux – IO60 I2C interface drivers
- Linux – IO60 Examples v1.1
- Linux – IO60 Examples v1.0
- Windows 7 IO60 SPI Examples
- Windows 7 IO60 I2C Examples
- Windows 7 32bit IO60 drivers
- Windows 7 64bit IO60 drivers
- Windows 10 64bit drivers
Drivers
