SYS-405Q Rugged Industrial Computer with Intel Atom® E3845, Two Ethernet and USB 3.0

DATA SHEET

No longer in production

This product is listed to provide access to its documentation for support purposes.

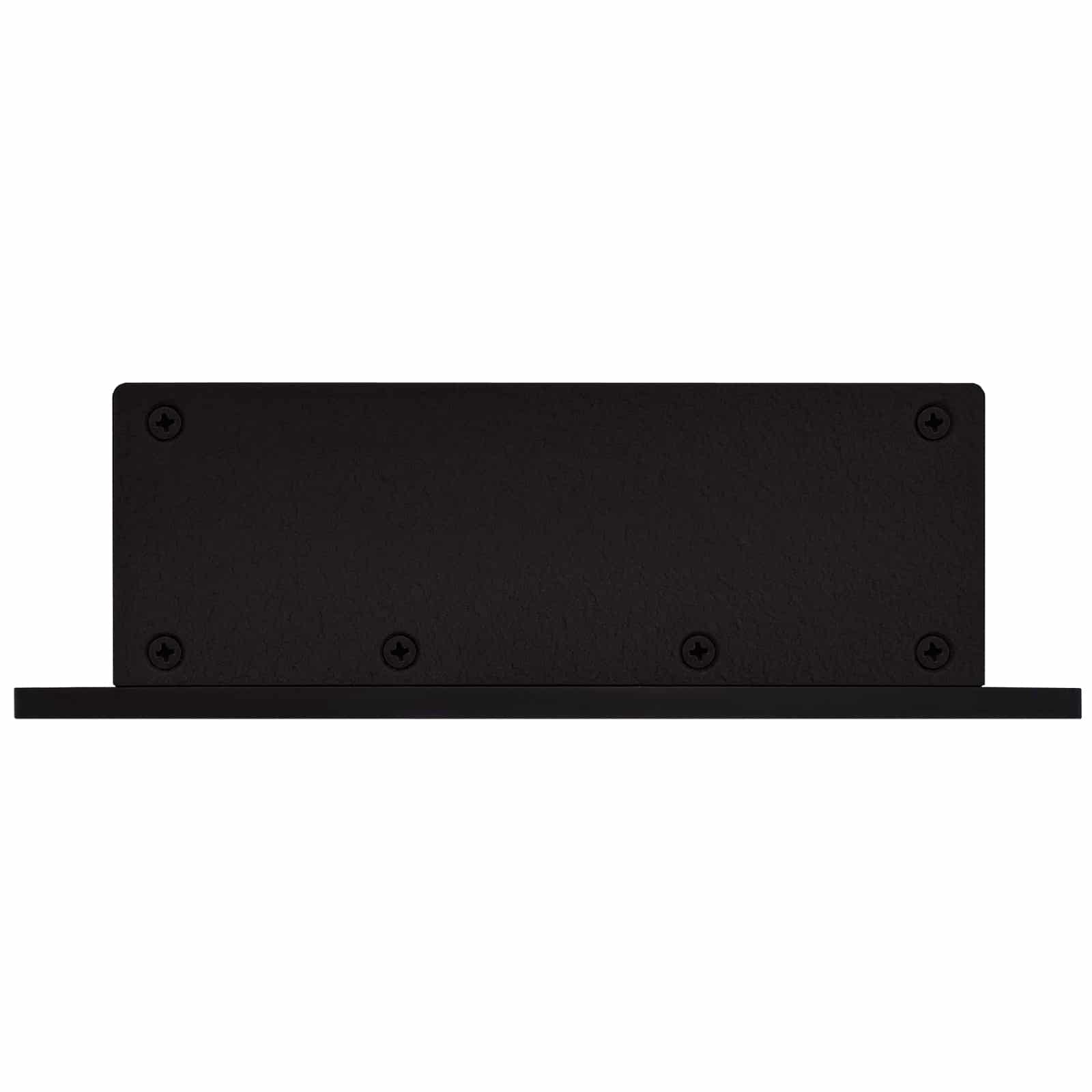

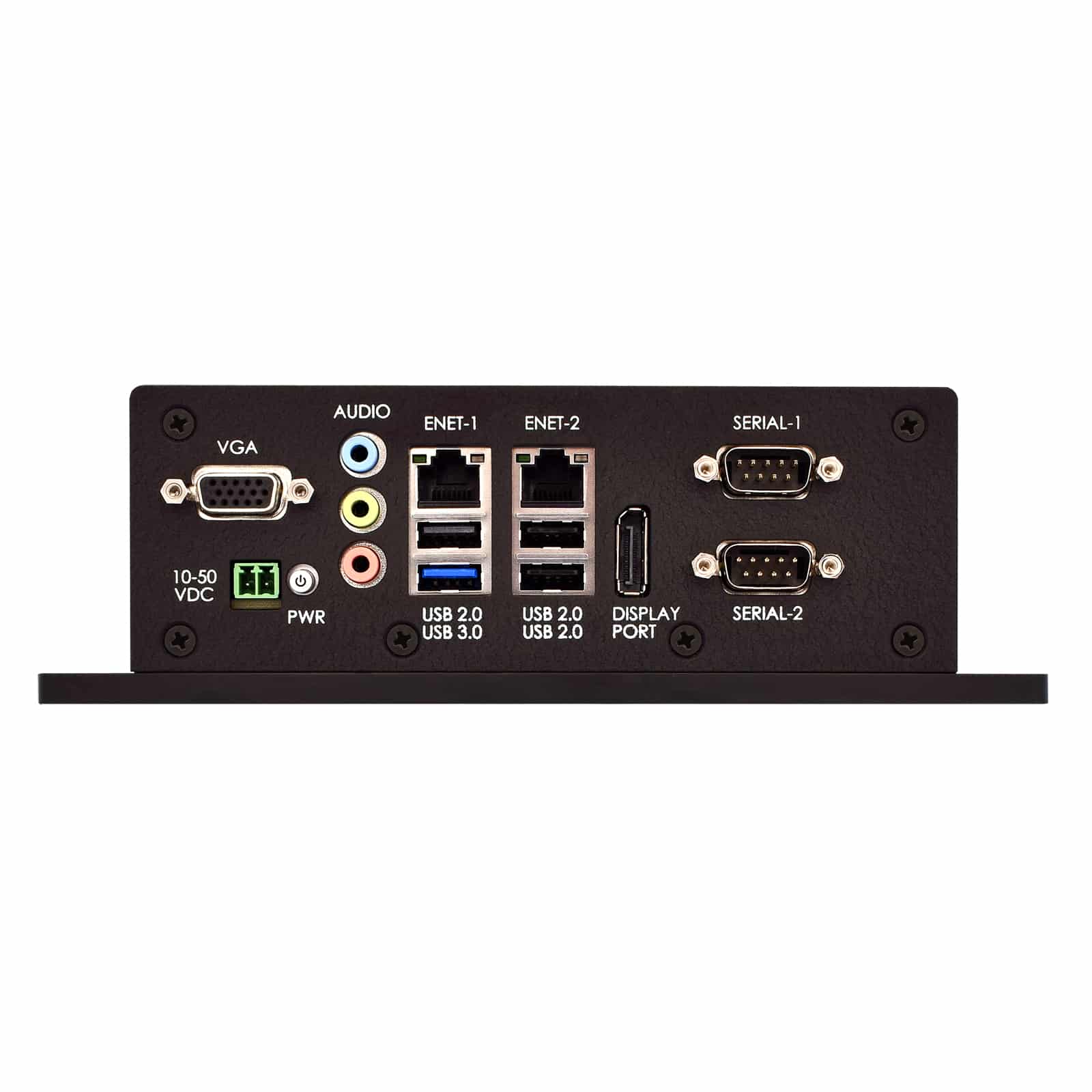

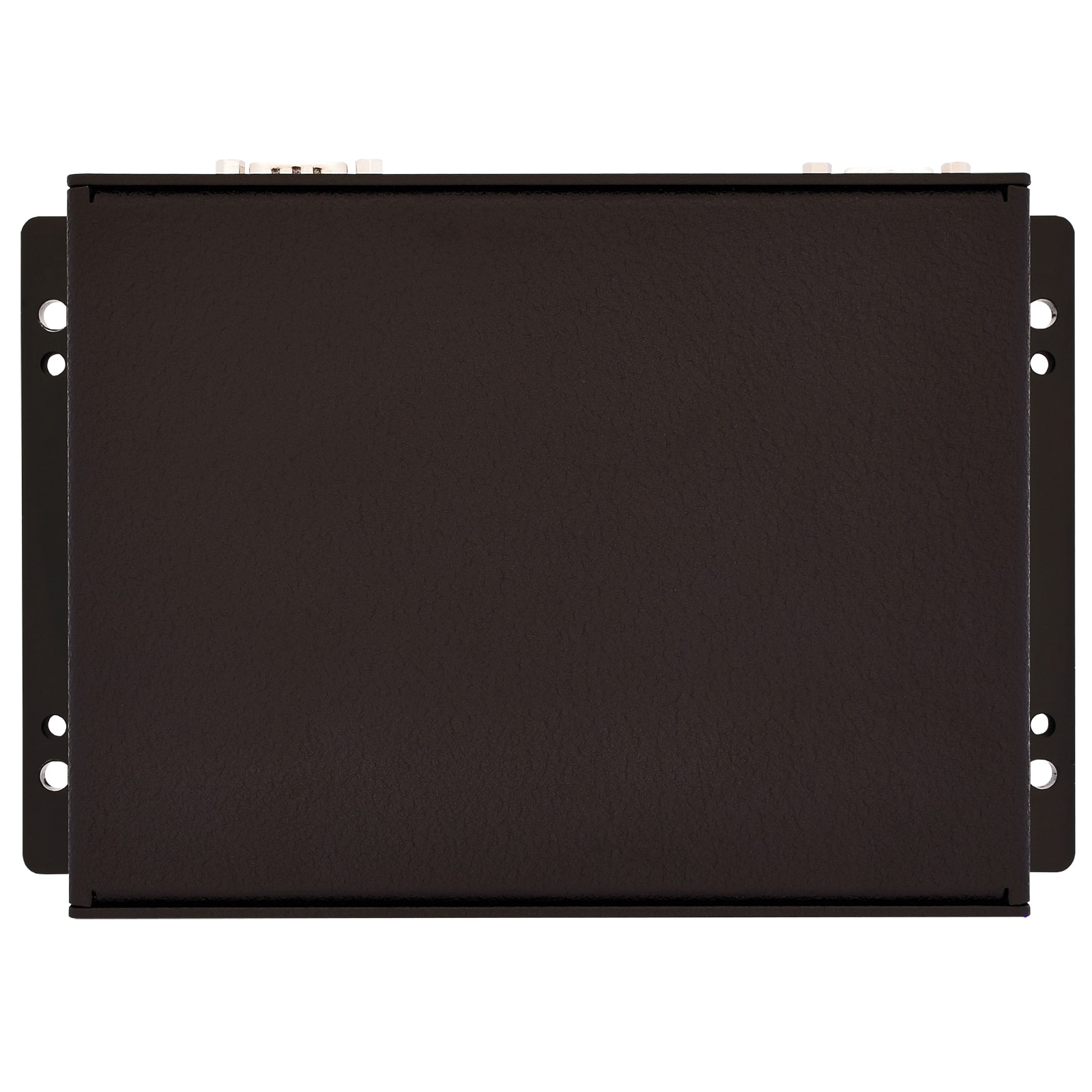

The SYS-405Q is a rugged industrial system capable of operating at extended temperatures from -40° to +85°C without requiring a fan or heat pipe. It is based on the quad-core Intel Atom® E3845 processor and is protected by a rugged enclosure. The SYS-405Q includes dual Ethernet, dual Mini PCIe, USB 3.0, serial ports with RS-232/422/485, and two independent displays via DisplayPort and/or Analog VGA.

DOCUMENTATION SOFTWARE Mechanical Drawings

Rugged Industrial Computer with Intel Atom® E3827 Dual-Core, Two Ethernet and USB 3.0

ROHS COMPLIANT

MADE IN THE USA

Features

Intel Atom® Quad-Core Processor (Bay Trail) E3845
Intel® Gen7 Graphics and HD Audio
- Up to 2 independent displays
- VGA, and DisplayPort
Two 10/100/1000 Ethernet (Intel I210)
Two serial ports (RS-232/422/485)
Four USB ports (1x USB 3.0 and 3x USB 2.0)
Bus Expansion
- Two MiniPCIe (one with mSATA)
- IO60 (SPI, I2C, PWM and UART)
Bootable SATA, CFast, and mSATA
Wide range +10 to +50V DC input
Fanless -40° to +85°C operational temperature
