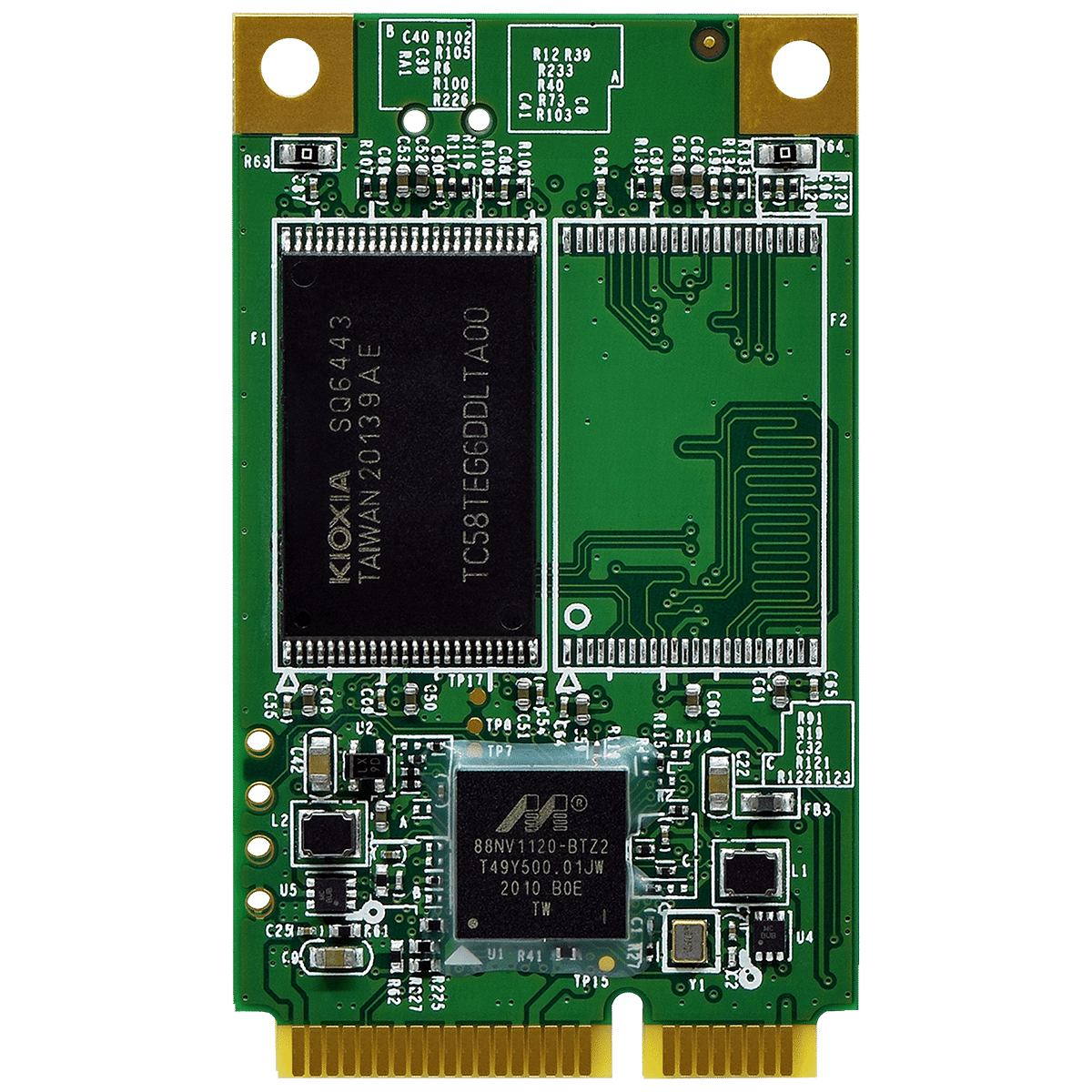

MSATA SSD (MLC) 3ME4 Series

Description

Innodisk mSATA 3ME4 is SATA III 6.0 Gb/s flash based disk, which adopts latest Marvell NAND controller with Innodisk’s exclusive L³ FW architecture. The upgraded L³ FW architecture, combining Innodisk signature 4K mapping algorithm L² FW architecture with powerful LDPC technology, makes 3ME4 series have outstanding high IOPS, better data integrity and extended lifespan through reducing the bad block number happening. Built-in thermal sensor, and iData Guard ensure data integrity and reliability of mSATA 3ME4 for industrial applications.

Features

  • SATA 6.0 Gb/s interface
  • Followed JEDEC MO-300/MO-300B standard
  • LDPC technology secures SSD reliability
  • DRAM-less, high-level data integrity
  • L³ architecture extends lifespan
  • Excellent IOPS boosts system performance
  • Built-in thermal sensor
  • Support S.M.A.R.T, TRIM, NCQ and iData Guard
  • Tested and approved for use with WINSYSTEMS embedded computers
Features
Interface

SATA III

Flash Type

MLC

Capacity

8GB – 256GB

Max. Channels

2

Sequential R/W

530/365 MB/s max.
Sequential performance based on CuystalDiskMark 3.01 with file size 1000MB

4KB Random (QD32) R/W

32,000/31,000 IOPS
Random performance based on IOmeter with Queue Depth 32

Power Consumption (Max.)

0.6 W ( 3.3 V x 0.2 A )

Thermal Sensor

Yes

External DRAM Buffer

H/W Write Protect

Optional

ATA Security

Yes

S.M.A.R.T.

Yes

Dimensions (WxLxH)

Width: 29.85 mm

Length: 50.8 mm

Height: 3.7 mm

Environment

Vibration: 20G @7~2000Hz

Shock: 1500G @ 0.5ms

Operational Temperature: -40°C to +85°C

Operational Temperature: -40°C to +85°C

Storage Temperature: -55°C ~ +95°C

MTBF: 3 million hours

Part Number

RS-INO-MSATA-M4-xG (x = GB)

  • RS-INO-MSATA-M4-8G
  • RS-INO-MSATA-M4-16G
  • RS-INO-MSATA-M4-32G
  • RS-INO-MSATA-M4-64G
  • RS-INO-MSATA-M4-128G
  • RS-INO-MSATA-M4-256G
