PCM-CFLASH2

Description

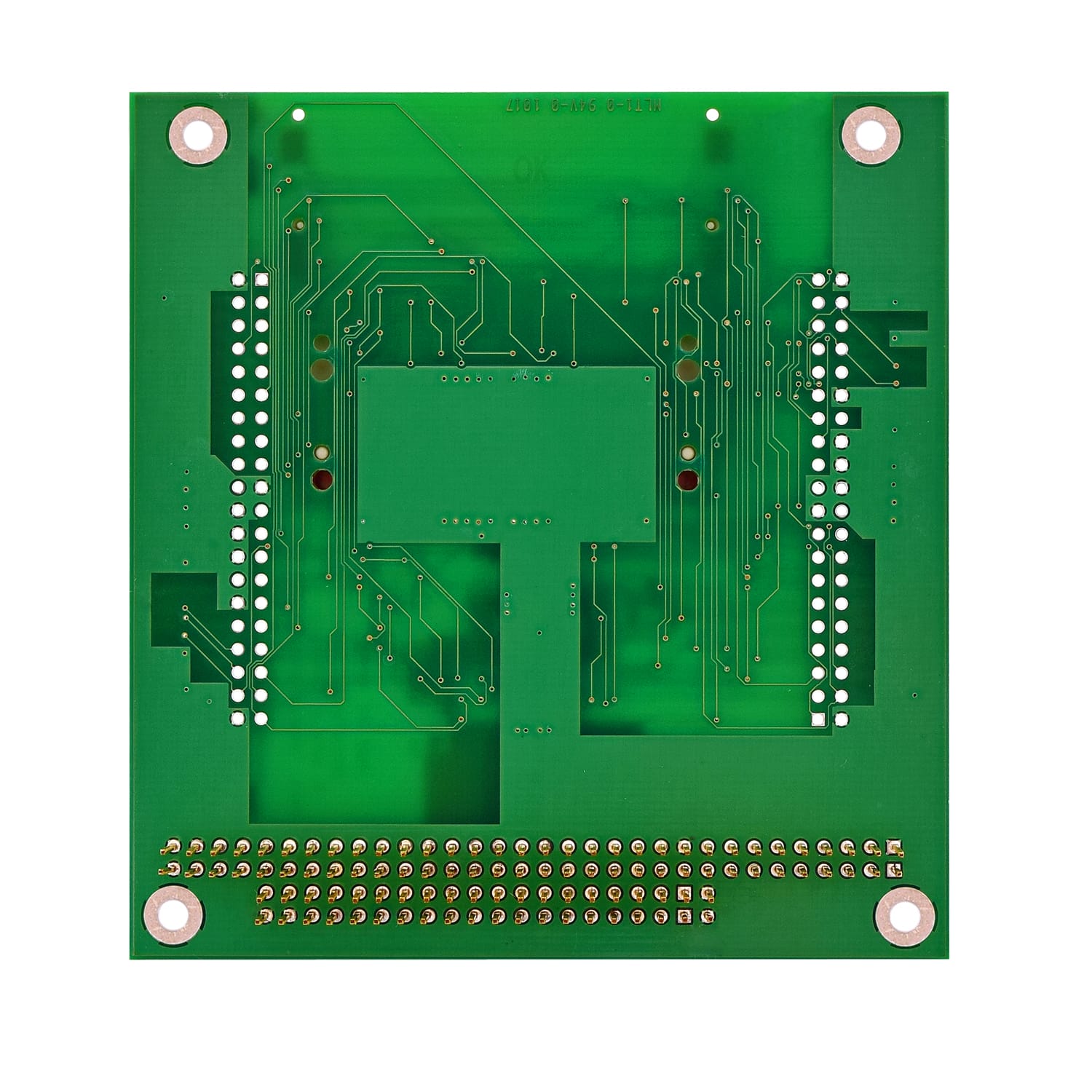

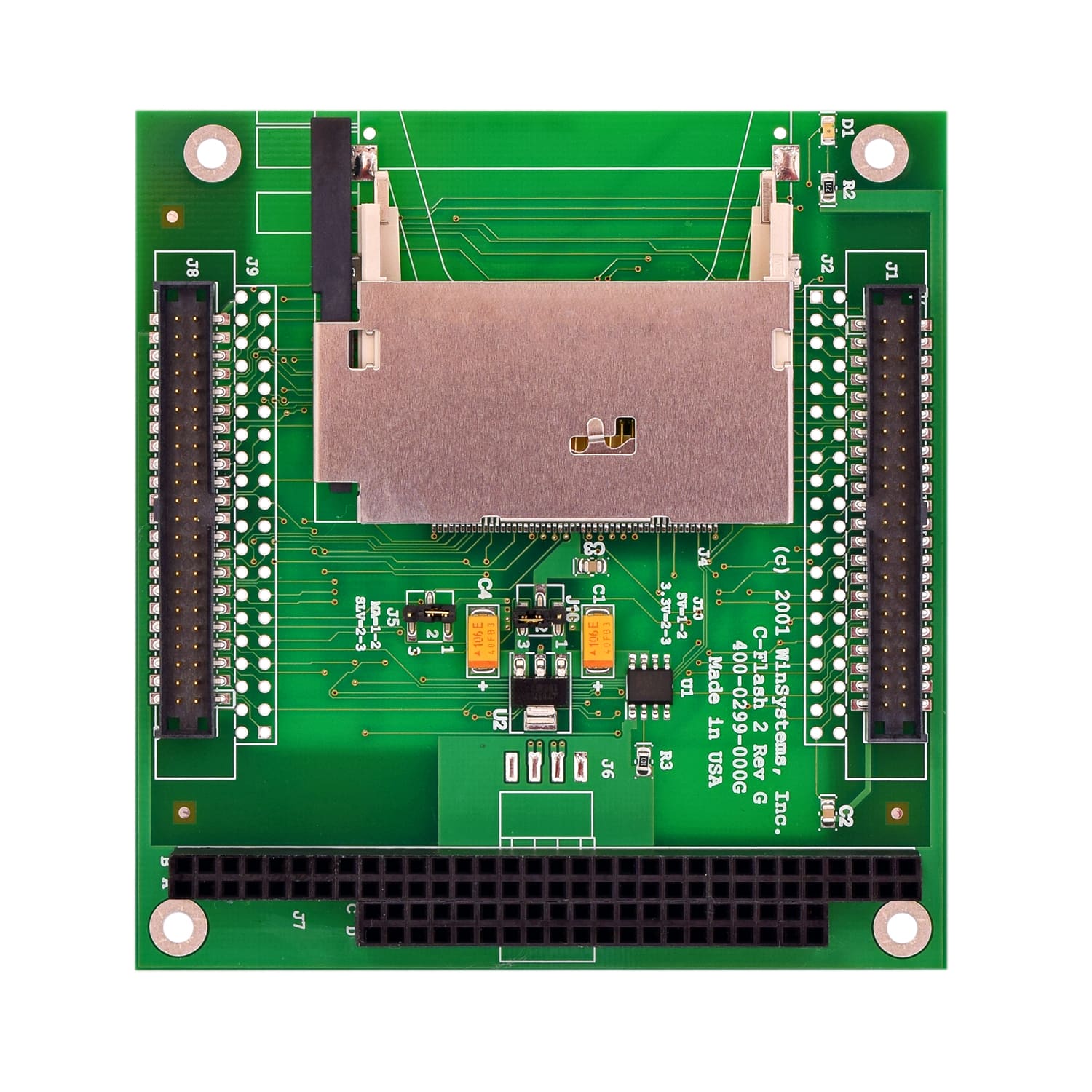

The PCM-CFLASH-2 is an industrial adapter module that links a Type I or II CompactFlash memory card to an IDE (ATA) interface. The adapter is small and designed to mount on a PC104 stack or stand alone for use with embedded systems. The result is that a system can support removable solid state mass storage while offering full hard disk software compatibility with nearly all operating systems.

PRODUCT MANUAL
DATA SHEET
PRODUCT INFO

Features

  • PC104 Compatible Flash disk adapter module
  • Supports Type I or II Compact Flash Cards and IBM microdrives.
  • Compatible with DOS, Windows, Linux, Qnx and other Operating Systems that support standard IDE/ATA interfaces
  • True IDE Mode compatible means that no special drivers or Flash file system is required
  • On-card automatic power management
  • Low power consumption
  • Industrial -40° to +85°C operational temperature
Features
PCM-CFLASH2-40-0

CompactFlash PC/104 module, 40-pin
PCM-CFLASH2-44-0

CompactFlash PC/104 module, 44-pin
ADP-CFLASH2-40-0

CompactFlash to IDE adapter, 40-pin
ADP-CFLASH2-44-0

CompactFlash to IDE adapter, 44-pin
