ENC-EBC-G-1000

Description

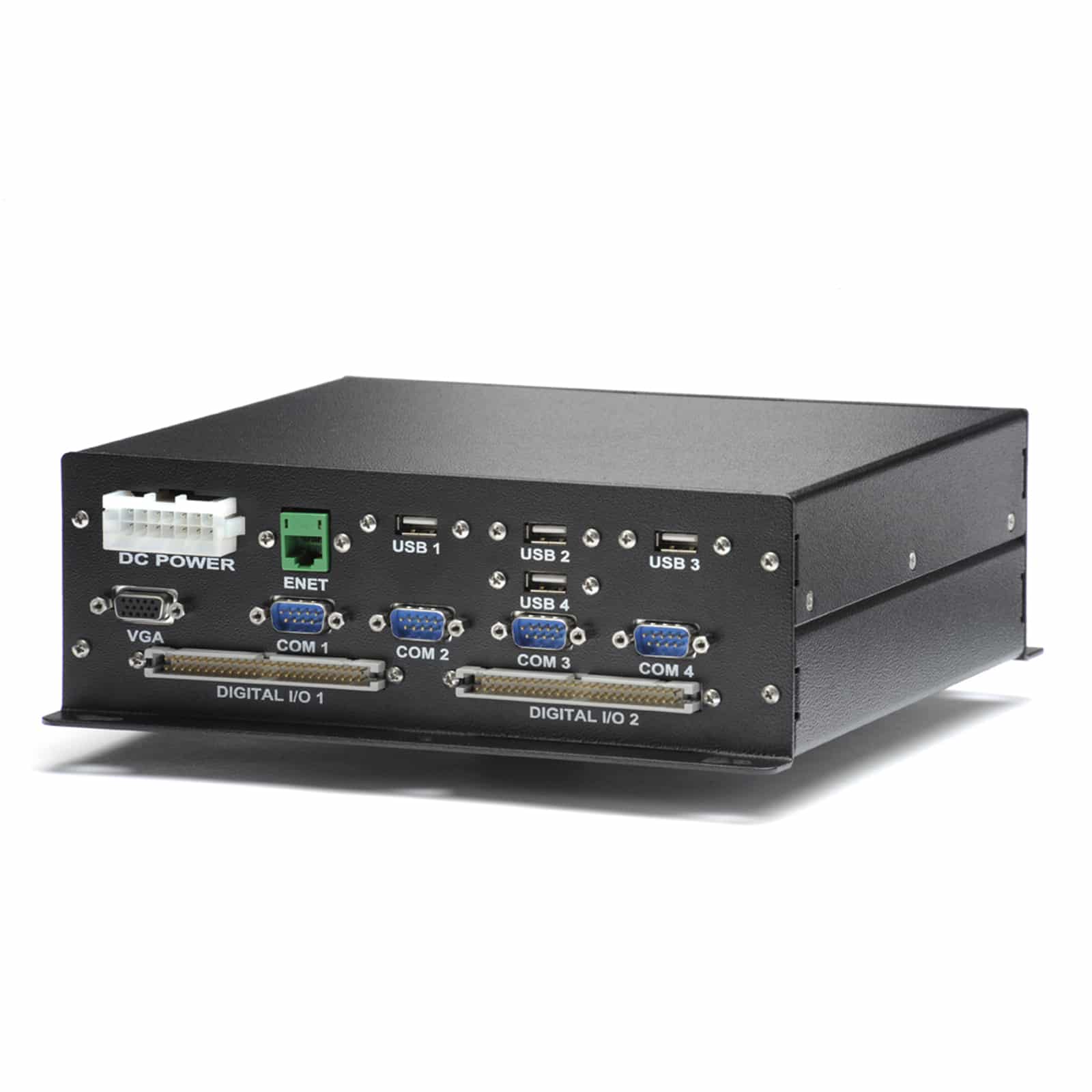

The ENC-EBC-G-1000 is a rugged enclosure designed to be used with EBX-compatible single board computers (SBCs) and PC/104 expansion I/O modules. Its simple design allows easy access to the electronics as well as ample routing areas for cable runs. The ENC-EBC-1000 is designed to mount in a variety of configurations. It is ideal for embedded applications requiring mounting inside NEMA boxes, OEM machinery, wiring closets, equipment rooms, and other areas where it is necessary to protect an EBX single board computer system with PC/104 expansion boards.

Features

  • Low cost EBX single board computer enclosure
  • Designed for easy assembly using two formed top and bottom “C” covers plus end plates
  • Black powder coat exterior finish
  • Heavy-duty 0.080” aluminum housing and end plates
  • Standard I/O connector cutouts provided for the end plate
Features
Enclosure

Low cost EBX SBC Enclosure
Designed for easy assembly
Accepts PC/104 modules
Separate sBC mounting plate with standoffs
Polyethlene grommet edging on mounting plate
Up to two PC/104 modules can be mounted inside
Custom configured end plates available
Custom labeling available in moderate volumes
Rugged 0.080-inch thick end plates
End plate I/O connector cutouts provided

Construction

Heavy duty extruded aluminum construction
Black powder coat exterior finish

Mechanical

Dimensions: 9.5 x 9.0 x 3.0 inches
