PC/104 Diagnostic Module

Description

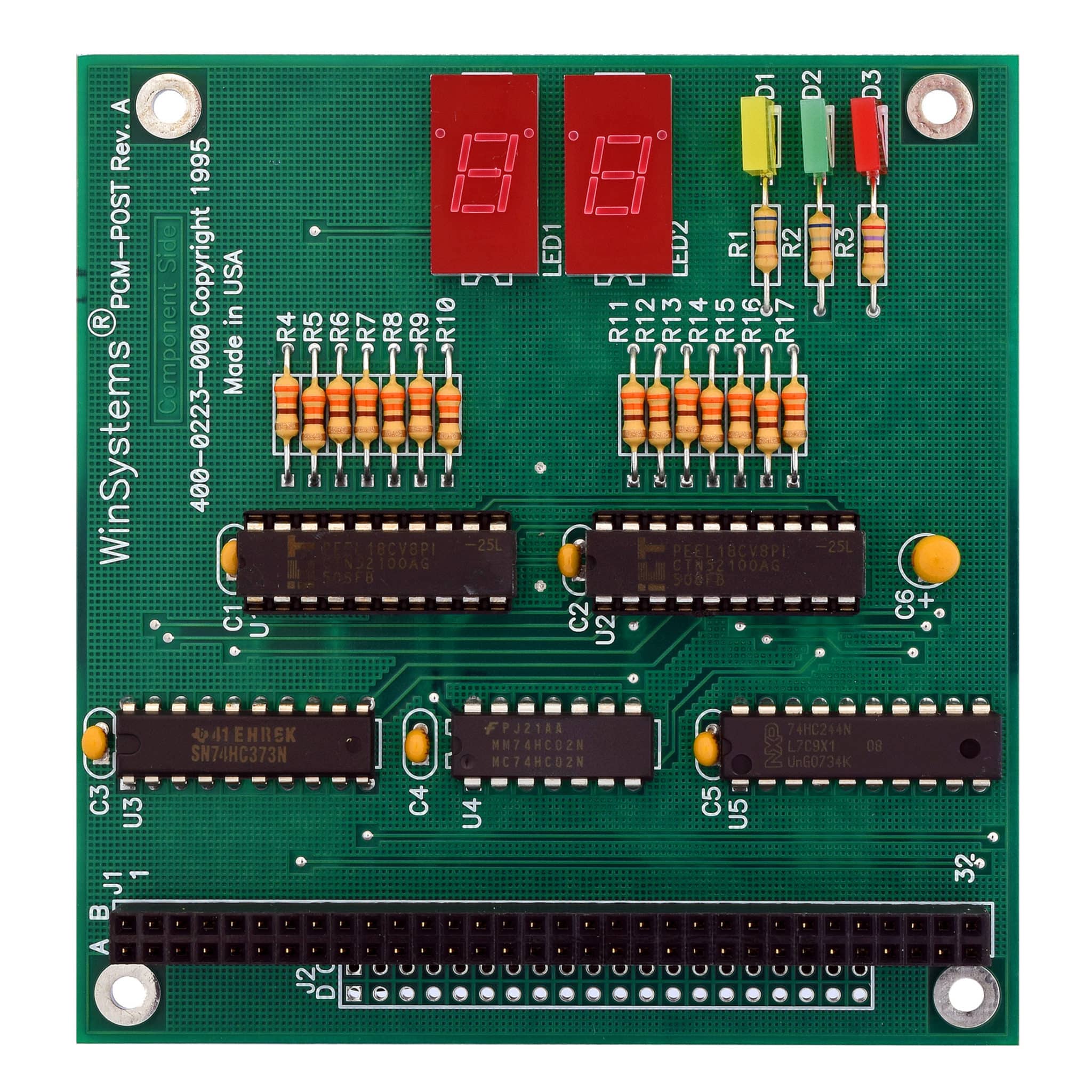

The PCM-POST PC/104 module is a helpful diagnostic tool used for isolating power-up problems occasionally found in AT-compatible single board computers. During boot-up, the ROM BIOS (Basic Input/Output System) routines test the board’s status. If a problem is found, it immediately defines and displays a status code on the digital display.

Features

Power-on System Test (POST) PC/104 module
BIOS Diagnostic POST codes shown on two 7-segment displays
User diagnostic and status code support
Light Emitting Diodes (LEDs) on +5, 12 and -12 volt lines provide visual status of power supplies
Only +5V supply required for operation

Data Sheet

Product Manual

Start Building Now

Name*
Full name
Company*
Email*
Phone*
State:*
State / Province / Region
Country*
Please select your country
I am a:*
- New Customer
- Existing Customer
I'm looking to:*
- Fill out a general Contact Form
- Submit a new Project Inquiry
Message*
Please give us a little more info
I'm looking for:*
- Technical Support
- Information about a New Project Inquiry
Product Part Number*
Serial Number (If Available)
Brief Description of Issue*
Please describe the issue you would like support for. We'll contact you for more info, but please give us as much as possible.
Brief Description of Project & Technical Requirements*
Please describe the project. We'll contact you for more info, but please give us as much as possible.
How did you hear about us?
Privacy*
- By using this form you agree with the storage and handling of your data by this website.

Feature	PCM-POST
Power	+5V required, 175 mA typical
Mechanical	PC/104-compliant Dimensions: 3.6 x 3.8 inches (90 x 96 mm)
Operating Temperature Range	-40 to +85 degrees celcius
Standard Features	RoHS-compliant

PCM-POST

PC/104 Diagnostic Module
