Features | |
---|---|
Digital I/O | 96 Bidirectional lines with Input, Output or Output with Readback (WS16C48) |
Event Sense | 48 Event Sense lines supported |
Bus Interface | 16-bit, PC/104 |
Power | +5V required, 24 mA typical (configured for inputs only) |
Mechanical | PC/104-compliant |
Operating Temperature Range | -40°C to 85°C |

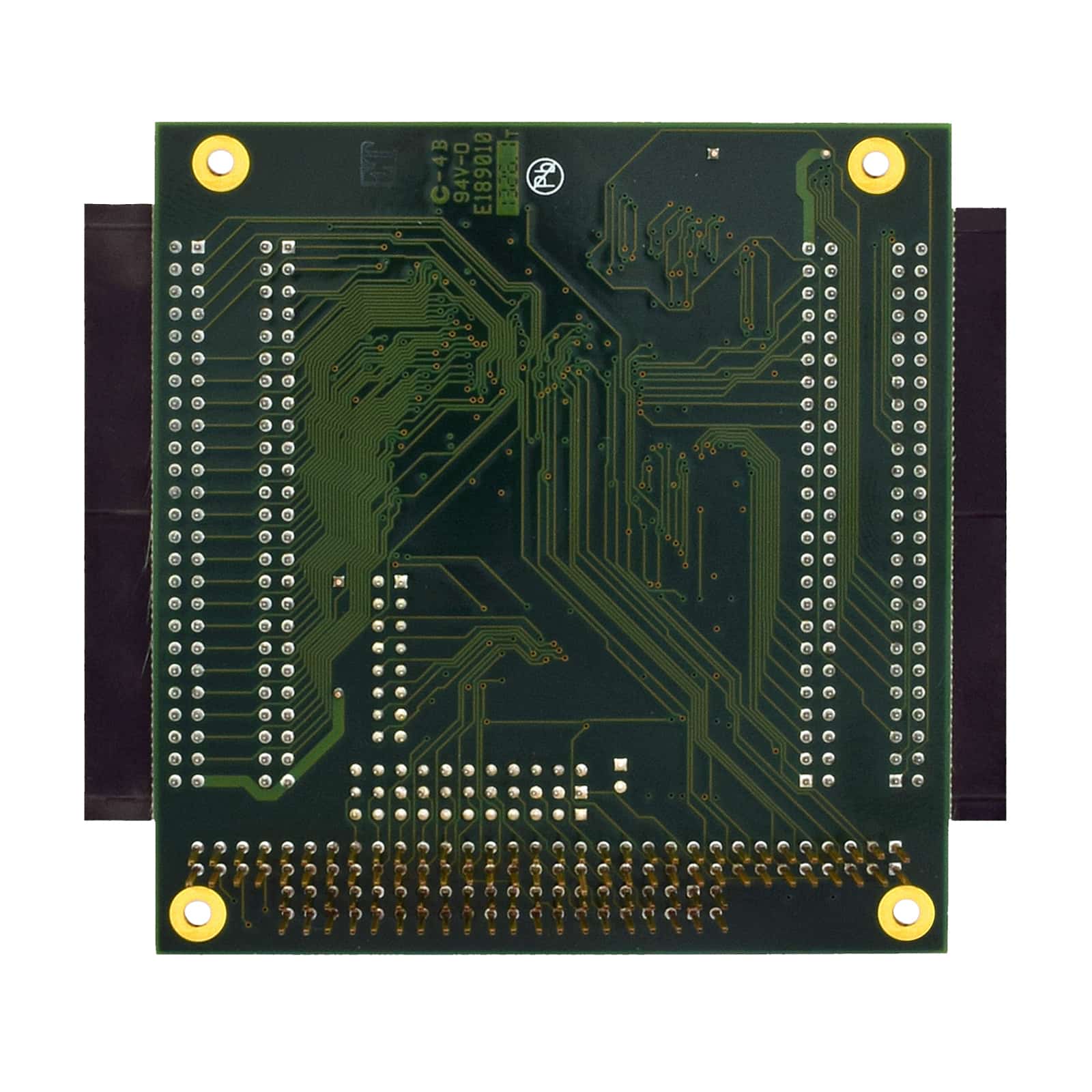

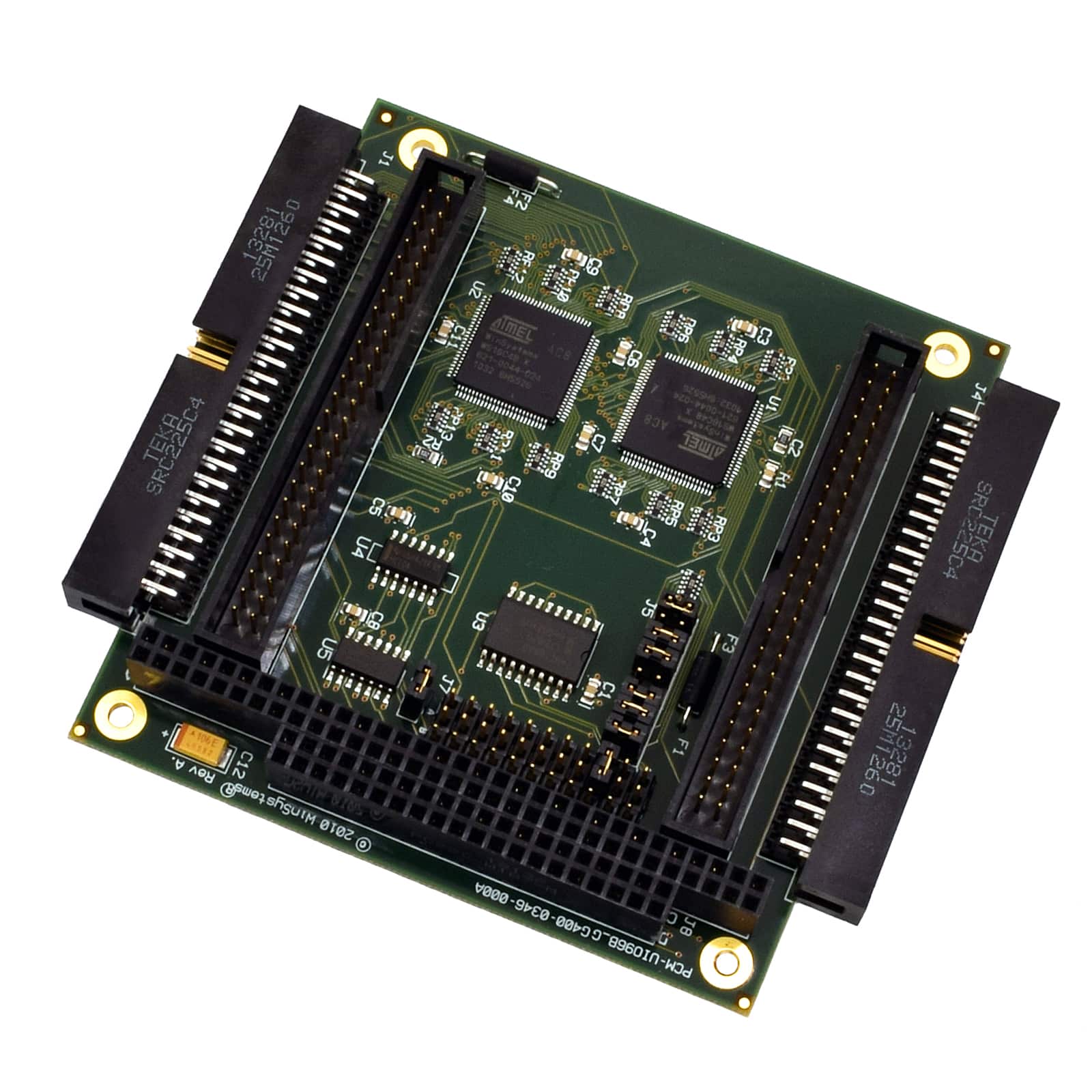

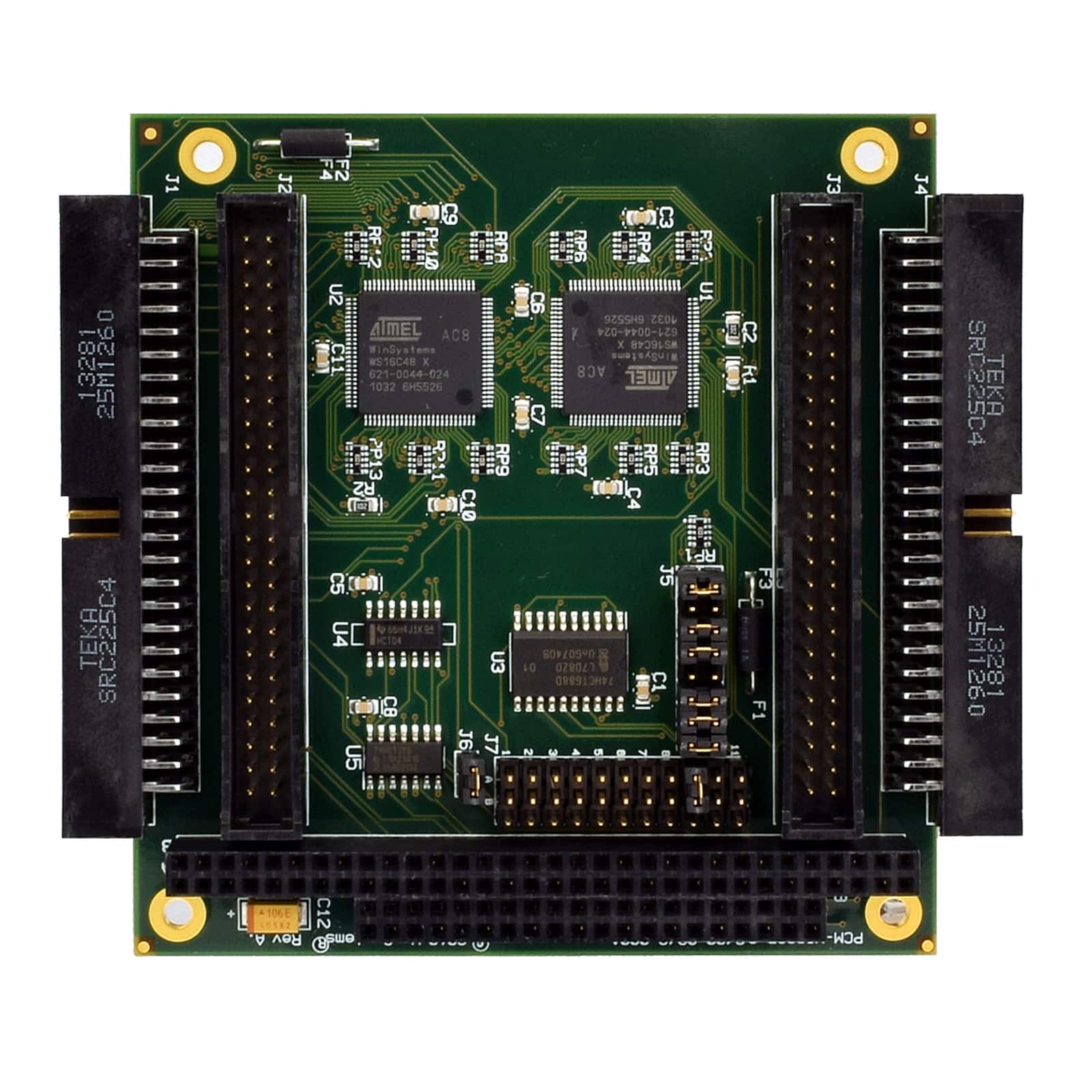

PCM-UIO96B-G
Description
PC/104 digital I/O module with 96 bidirectional lines (GPIO), 48 of which support event sense interrupts.
Features
- 96 bidirectional digital I/O lines support:
- Input, Output or Output with Readback
- 12 mA sink current
- 48 of the lines also support event sense:
- Generates an interrupt on change-of-state
- Software selectable edge polarity for each line
- Software enabled interrupt for each line
- Change-of-state latched for each line
- Industrial -40° to +85°C operational temperature
- Custom configurations available in OEM quantities
- PCM-UIO96B-G Datasheet (PDF)
Datasheets
- PCM-UIO96B-G Product Manual (PDF)
Product Manuals
- Latest Released Drivers
- Windows 7/10 32bit- WS16C48 Digital I/O
- Windows 7/10 64bit - WS16C48 Digital I/O
- Linux - Kernel 4+ - WS16C48 Digital I/O
- Archives
- DOS Example C Functions - WS16C48 Digital I/O
- Linux - Kernel 2.2, 2.4 - WS16C48 Digital I/O
- Linux - Kernel 2.6 - WS16C48 Digital I/O
- Linux - Kernel 2.6.18+ - WS16C48 Digital I/O
- Linux - Kernel 2.6.36+ - WS16C48 Digital I/O
Drivers
