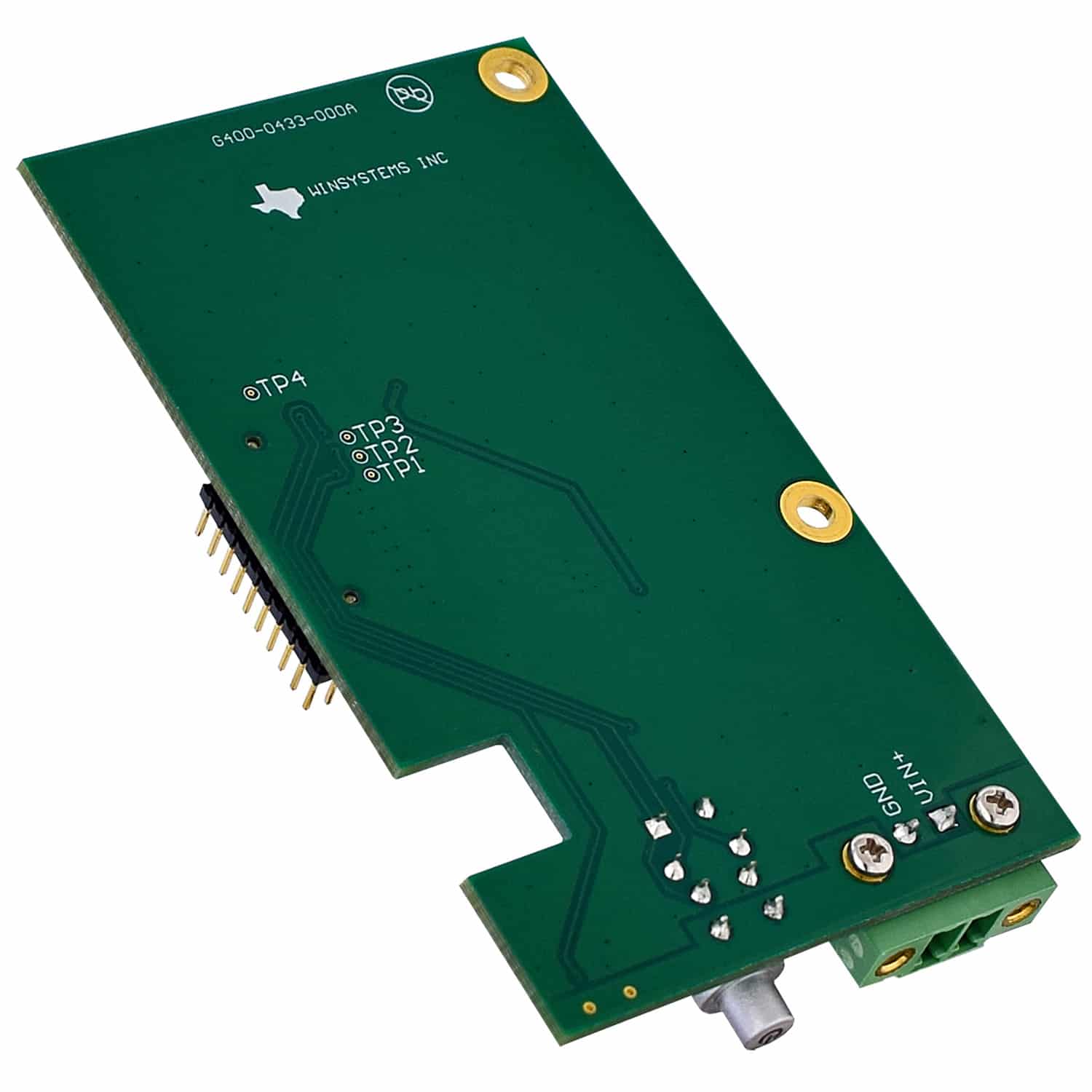

ADP-PS-433

Description

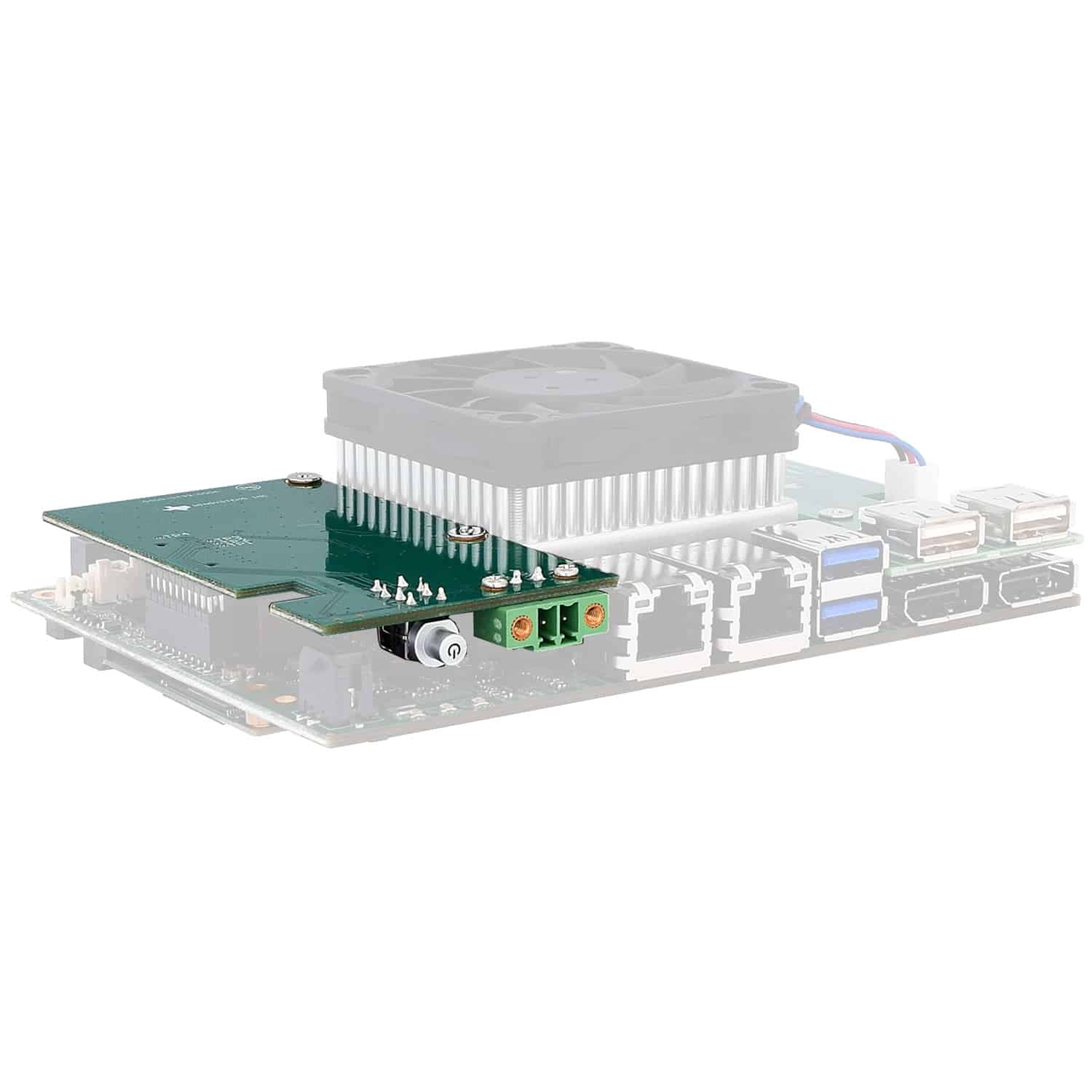

The ADP-PS-433 power adapter provides power and reset buttons as well as an easily accessible power connection to the WINSYSTEMS SBC35-427 single board computer. This power connector offers a highly reliable and secure connection to the external power supply allowing easy access to physically remove power from the front I/O panel.

Features

SKU: ADP-PS-433 Categories: , , Tag:
Features
POWER

+10 to 50 VDC

ENVIRONMENTAL

Operational from -40°C to +85°C (-40°F to +185°F)

RoHS compliant

MECHANICAL

Dimensions – 3.5 in x 2.00 in (88.9 mm x 50.8 mm)

Weight – 0.79 oz (22.5 g)

PC Board thickness 0.062 inches

MECHANICAL SHOCK TESTING

IEC 60068-2-27

40 g half-sine, 6 ms, 18 shocks

RANDOM VIBRATION TESTING

Vibration specification IEC 60068-2-64

7 g rms for all X, Y, and Z directions; 3 hours

ORDER INFORMATION

Part Number:

ADP-PS-433



Package Contents:

  • ADP-PS-433 power adapter
  • Two m3 x 5mm standoffs
  • Two m3 x 5mm wafer head bolts
