PPC3-6.5-407

Description

The PPC3-6.5-407 from WINSYSTEMS utilizes the E3800 family of Atom™ processors from Intel® to provide low power and high performance in a compact 6.5-inch Panel PC. Designed for harsh environments and reliability, the design includes a sunlight-readable display and soldered RAM for added shock and vibration resistance with operating temperature ranges available from -10°C to +70°C.

This industrial Panel PC is a full-featured embedded system with a variety of onboard I/O options. It’s available in multi-core options to fit a variety of application requirements, offering scalable performance options including single, dual or quad-core processing. Each processor option is available with 2G or 4G of soldered DDR3 memory and optional stack-through PC/104-Plus connectors.

PRODUCT MANUAL
DATA SHEET
PRODUCT INFO

Features

  • Compact LCD Panel

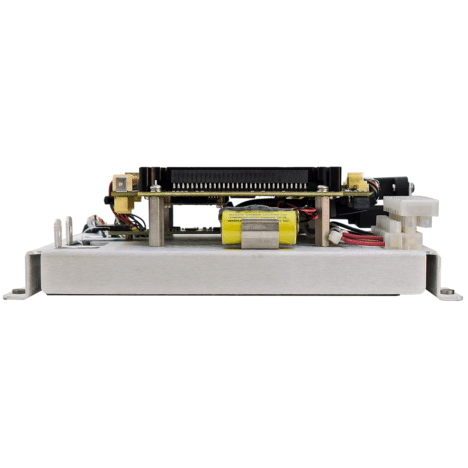

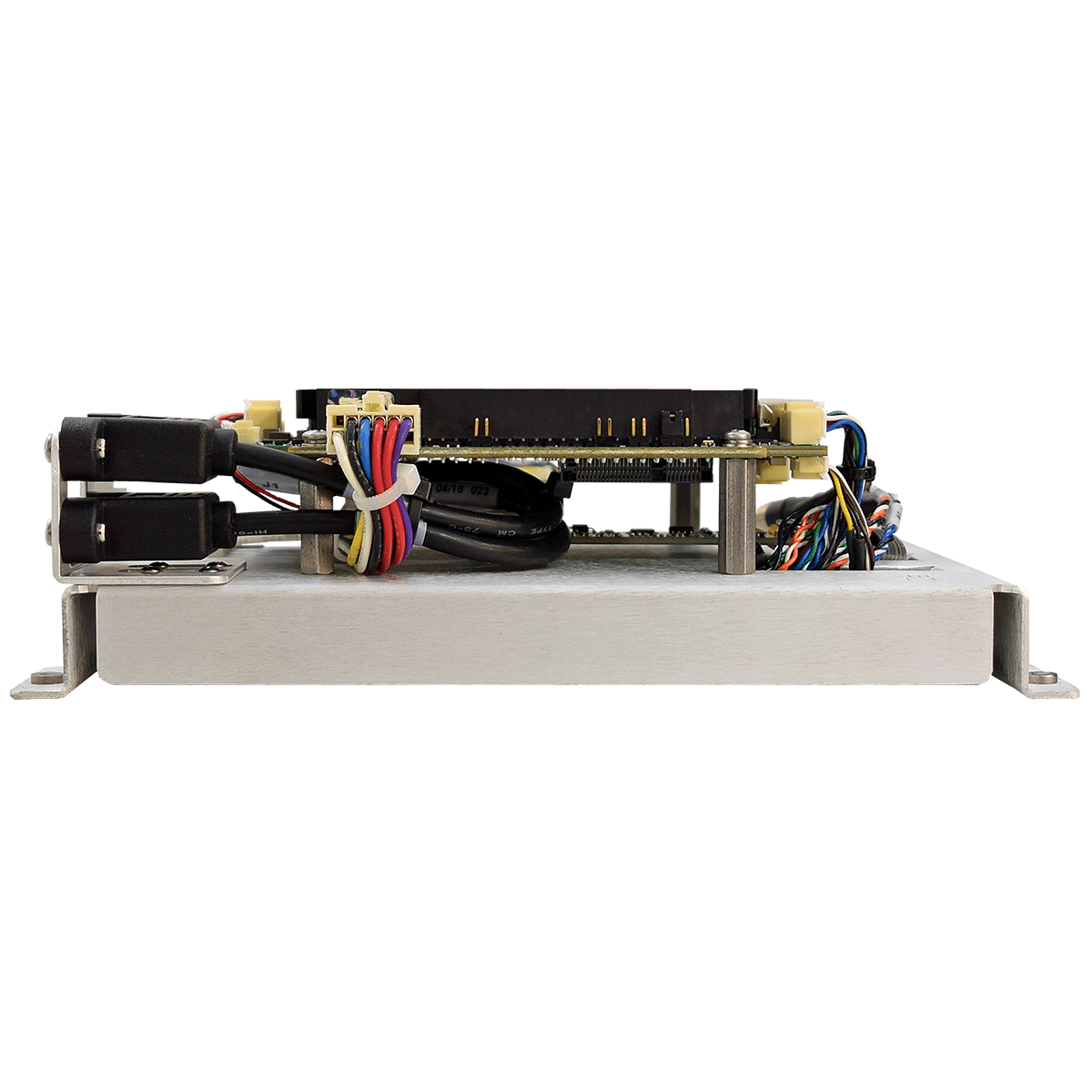

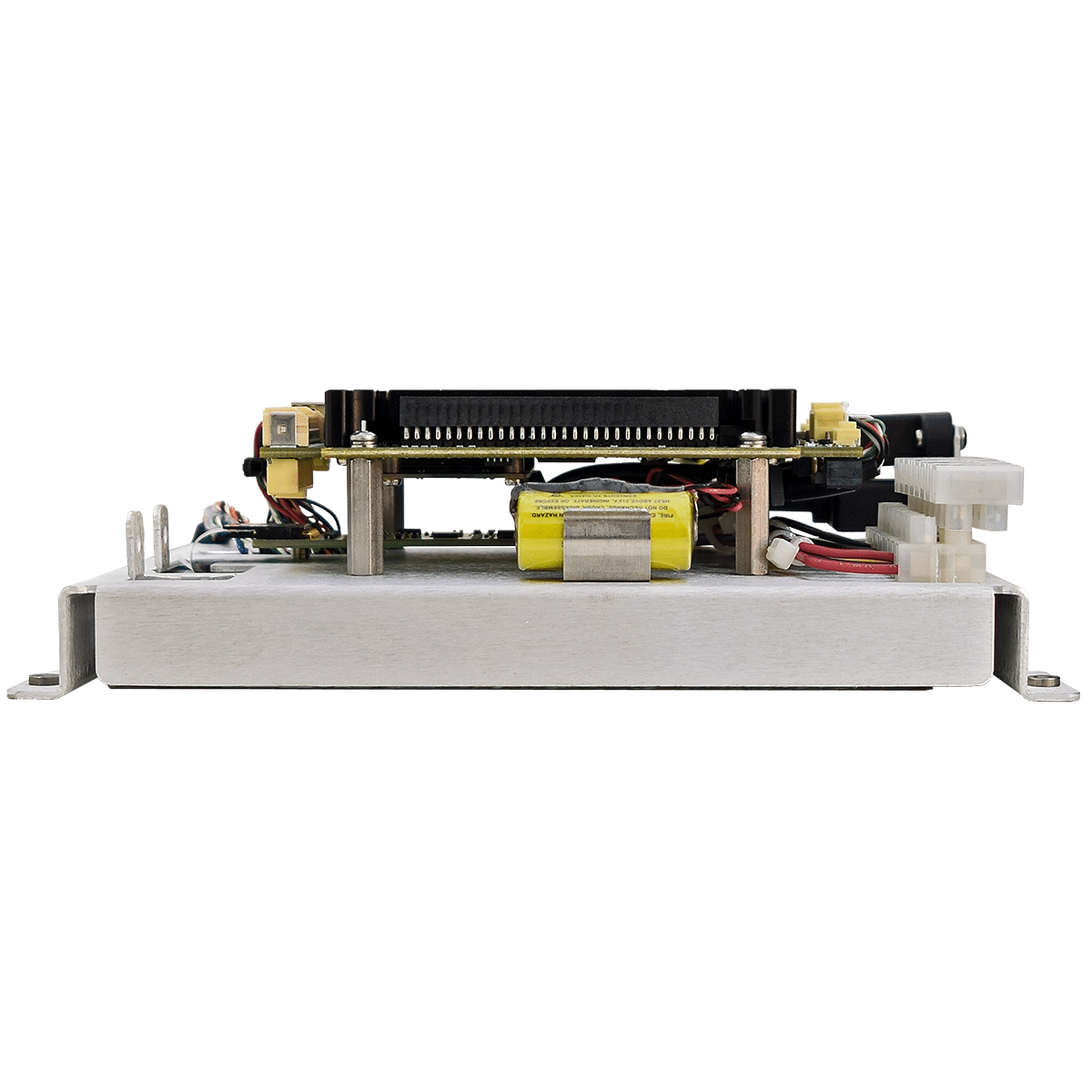

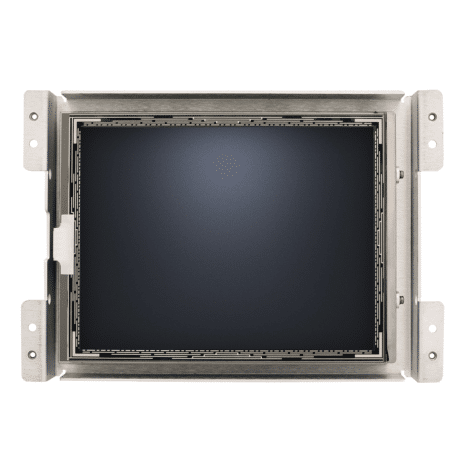

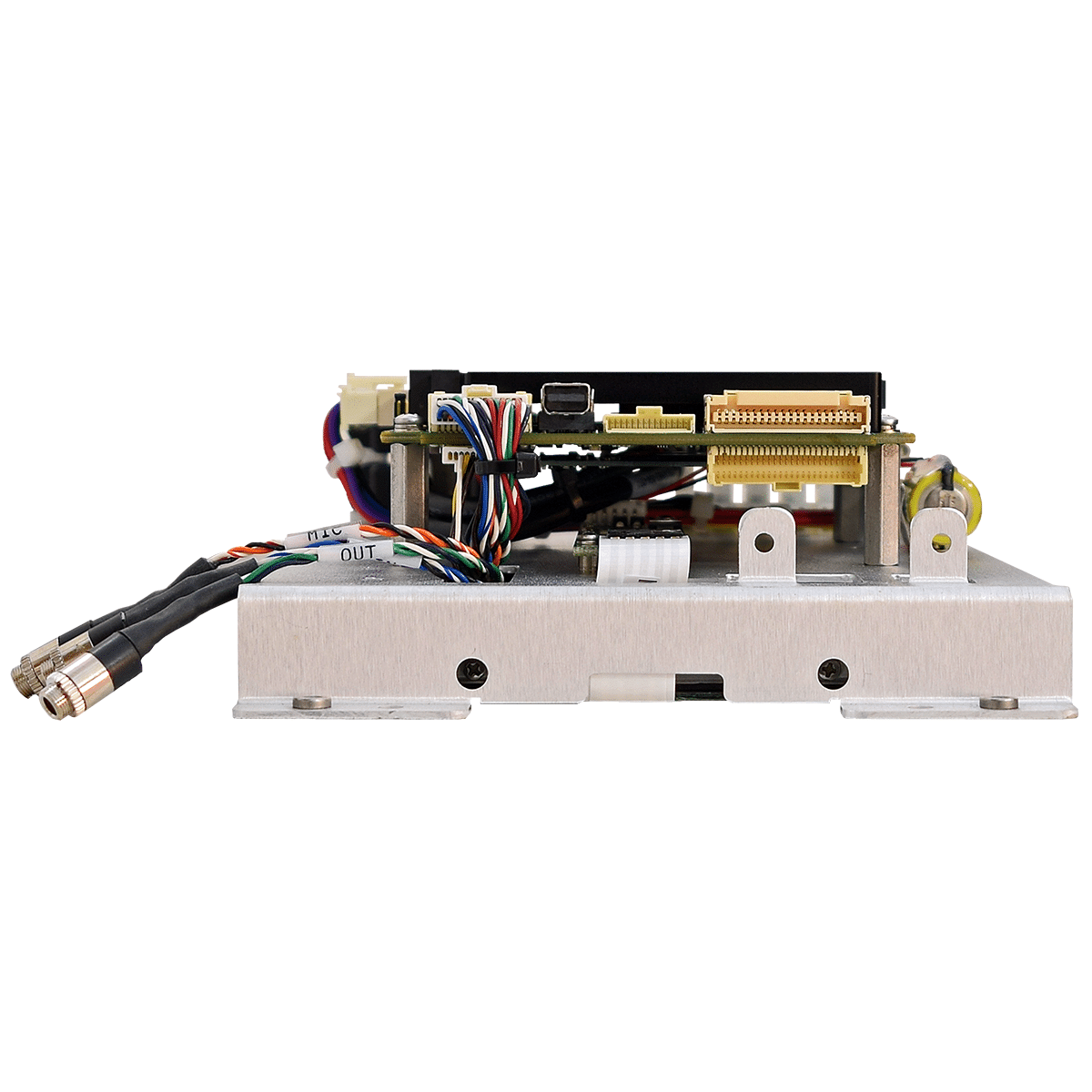

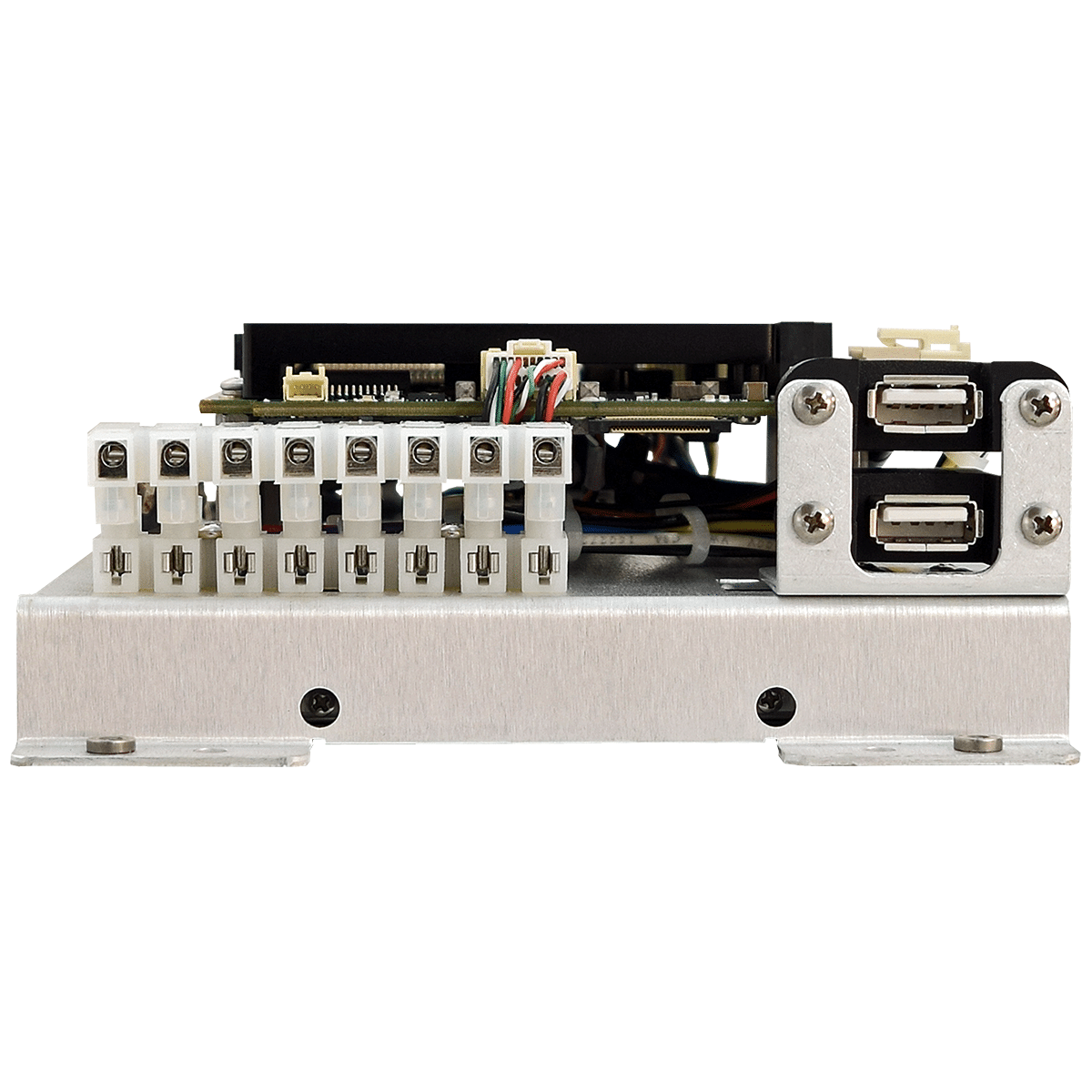

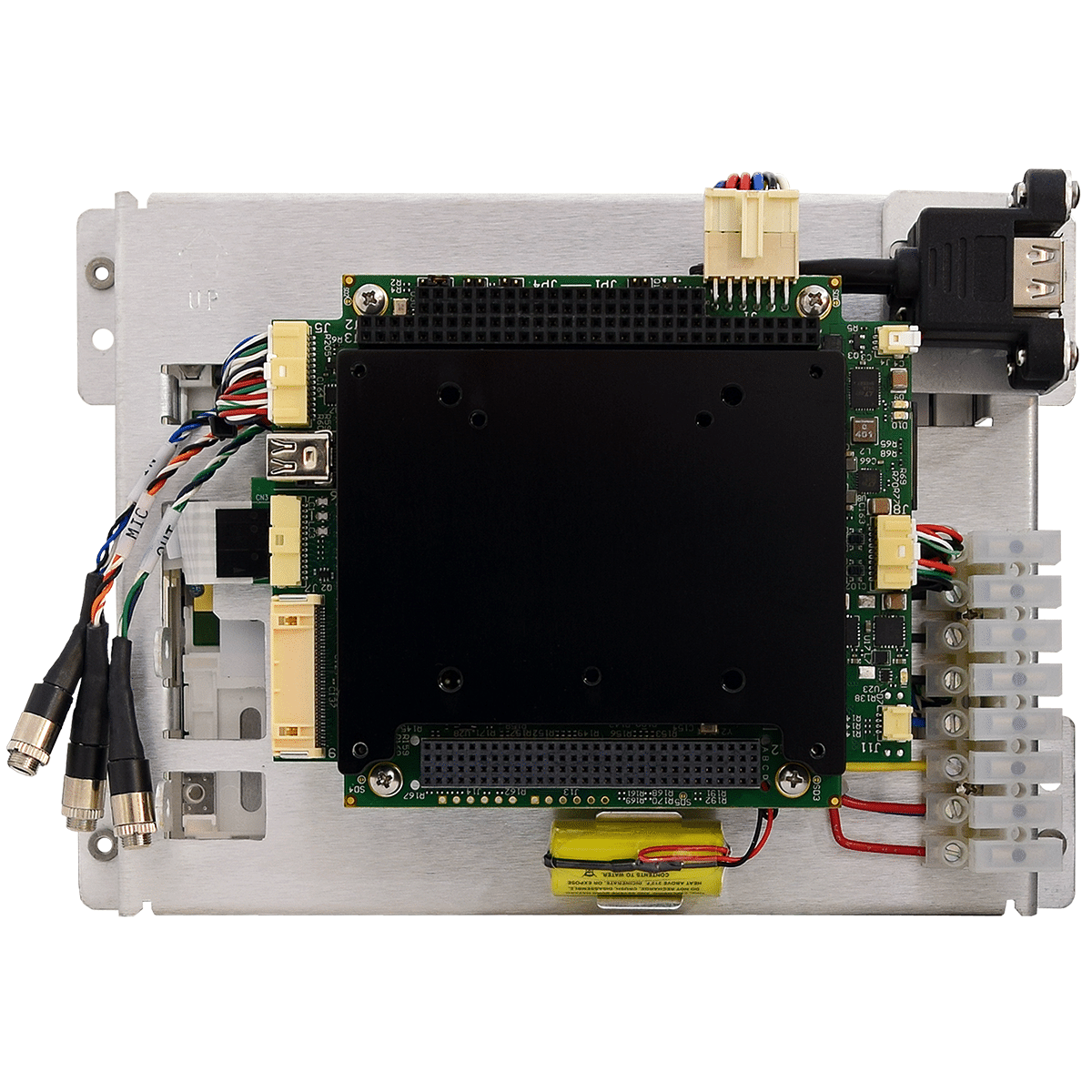

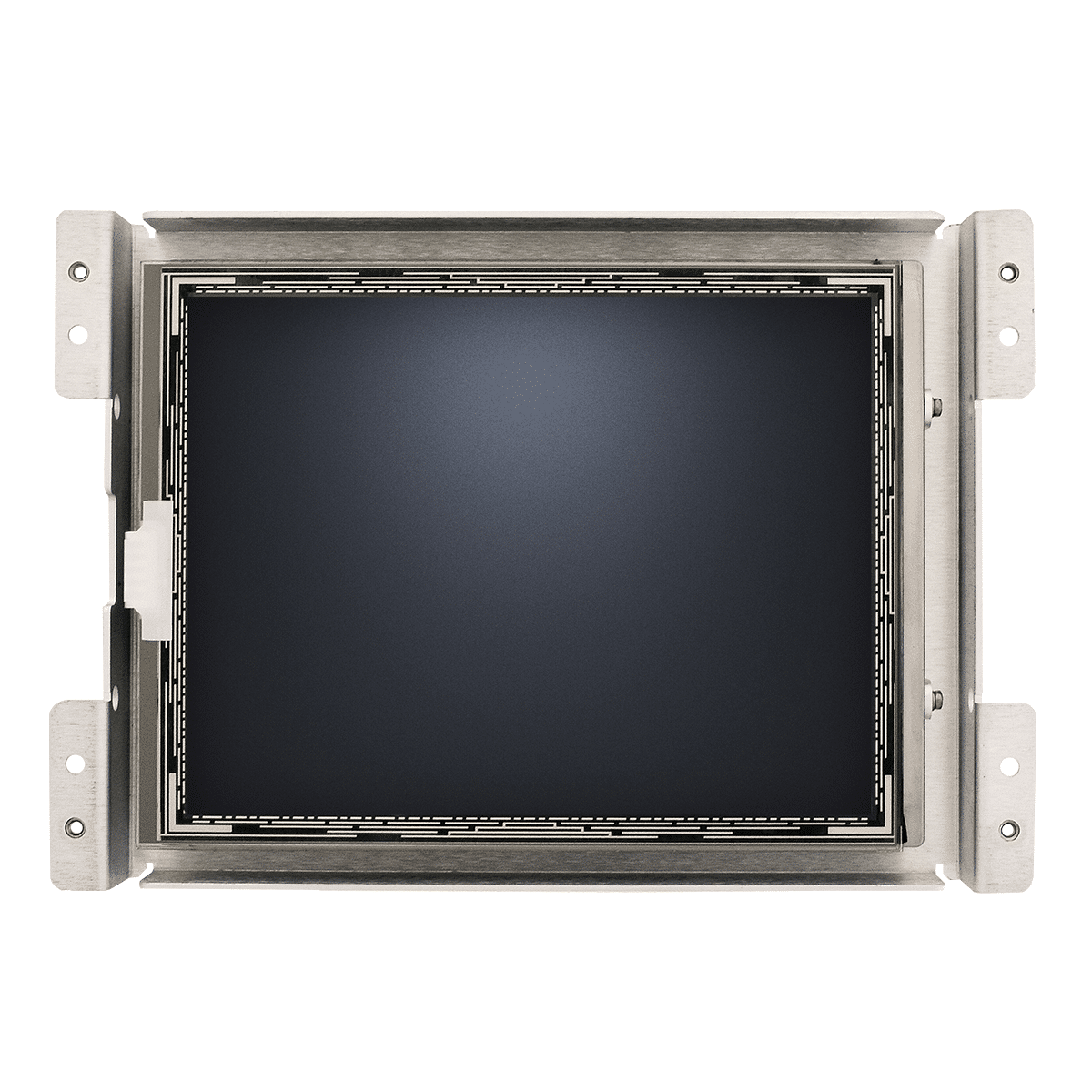

    • 6.5-inch TN LCD panel
    • Brightness up to 700 nits (cd/m2)
  • Performance for Industrial IoT Applications
    • Intel® Atom™ E3800 PC/104-Plus Processor
    • Up to 4 GB Soldered Down DDR3L System RAM
  • Rugged Design for Demanding Environments
    • -10°C to +70°C Operating Temperature Range
    • PC/104-Plus Small Form Factor SBC
  • Fast Graphics at High Resolutions
    • Intel® Gen7 Graphics Engine
    • Multiple Displays Supported
  • Secure and Trusted Data
    • Intel Security Engine
    • Cryptographic Acceleration
  • Connectivity and I/O for Embedded Systems
    • Ethernet
    • 2x USB 2.0
    • 24 GPIO with Event Sense
    • Four Serial Ports
  • Expansion Options
    • PC/104-Plus (PC/104 and PCI-104)
    • MiniPCIe/mSATA Sockets
Features
  • PPC3-6.5-407-3815-R
  • PPC3-6.5-407-3825-R
  • PPC3-6.5-407-3845-R
Processor
  • Intel® Atom™ E3815 Single-Core(-R)
  • Intel® Atom™ E3825 Dual-Core(-R)
  • Intel® Atom™ E3845 Quad-Core(-R)
Memory
  • R = 2 – 2GB DDR3L Soldered RAM
    R = 4 – 4GB DDR3L Soldered RAM
  • R = 2 – 2GB DDR3L Soldered RAM
    R = 4 – 4GB DDR3L Soldered RAM
  • R = 2 – 2GB DDR3L Soldered RAM
    R = 4 – 4GB DDR3L Soldered RAM
Storage
  • SATA 2.0 channel
    mSATA socket (Shared with miniPCIe)
  • SATA 2.0 channel
    mSATA socket (Shared with miniPCIe)
  • SATA 2.0 channel
    mSATA socket (Shared with miniPCIe)
Display
  • Intel® Gen7 Graphics
    Up to Two Simultaneous Active Displays
    − VGA up to 2560×1536
    − LVDS 18 or 24bpp
    − DisplayPort Version 1.1
  • Intel® Gen7 Graphics
    Up to Two Simultaneous Active Displays
    − VGA up to 2560×1536
    − LVDS 18 or 24bpp
    − DisplayPort Version 1.1
  • Intel® Gen7 Graphics
    Up to Two Simultaneous Active Displays
    − VGA up to 2560×1536
    − LVDS 18 or 24bpp
    − DisplayPort Version 1.1
Network Interface
  • One Intel® i210 Gb Ethernet port
  • One Intel® i210 Gb Ethernet port
  • One Intel® i210 Gb Ethernet port
Onboard I/O
  • Two USB 2.0 ports with surge protection
    One USB 2.0 port for touch controller
    Two 16C550-compatible RS-232/422/485 serial channels with speeds up to 500Kbps
    Two 16C550-compatible RS-232 serial channels with speeds up to 250Kbps
    24 lines of general purpose digital I/O (5V tolerant)
    Speaker output for beep tones
    Status LEDs for Ethernet, 3.3V Stand-By, and one software controlled
    Stereo audio output, mic, and line input
    Realtime clock with optional battery back-up
    Watchdog timer adjustable from 1 second to 255 minutes
  • Two USB 2.0 ports with surge protection
    One USB 2.0 port for touch controller
    Two 16C550-compatible RS-232/422/485 serial channels with speeds up to 500Kbps
    Two 16C550-compatible RS-232 serial channels with speeds up to 250Kbps
    24 lines of general purpose digital I/O (5V tolerant)
    Speaker output for beep tones
    Status LEDs for Ethernet, 3.3V Stand-By, and one software controlled
    Stereo audio output, mic, and line input
    Realtime clock with optional battery back-up
    Watchdog timer adjustable from 1 second to 255 minutes
  • Two USB 2.0 ports with surge protection
    One USB 2.0 port for touch controller
    Two 16C550-compatible RS-232/422/485 serial channels with speeds up to 500Kbps
    Two 16C550-compatible RS-232 serial channels with speeds up to 250Kbps
    24 lines of general purpose digital I/O (5V tolerant)
    Speaker output for beep tones
    Status LEDs for Ethernet, 3.3V Stand-By, and one software controlled
    Stereo audio output, mic, and line input
    Realtime clock with optional battery back-up
    Watchdog timer adjustable from 1 second to 255 minutes
Expansion BUS
  • PC/104-Plus Expansion (includes PC/104 and PCI-104)
    MiniPCIe Expansion slot (shared with mSATA)
  • PC/104-Plus Expansion (includes PC/104 and PCI-104)
    MiniPCIe Expansion slot (shared with mSATA)
  • PC/104-Plus Expansion (includes PC/104 and PCI-104)
    MiniPCIe Expansion slot (shared with mSATA)
Power
  • +5V DC required (Power consumption estimates are for the PPM-C407 only and exclude any external devices)
  • +5V DC required (Power consumption estimates are for the PPM-C407 only and exclude any external devices)
  • +5V DC required (Power consumption estimates are for the PPM-C407 only and exclude any external devices)
Software
  • UEFI compliant BIOS in SPI Flash Device
    Compatible with Linux, Windows, and other x86 operating systems
  • UEFI compliant BIOS in SPI Flash Device
    Compatible with Linux, Windows, and other x86 operating systems
  • UEFI compliant BIOS in SPI Flash Device
    Compatible with Linux, Windows, and other x86 operating systems
Environmental
  • -10ºC to +70ºC Operational temperature
    RoHS-compliant
  • -10ºC to +70ºC Operational temperature
    RoHS-compliant
  • -10ºC to +70ºC Operational temperature
    RoHS-compliant
Mechanical
  • Dimensions – 7.75 x 5.375 x 2.25 inches
    (196.85 x 136.53 x 57.15 mm)
  • Dimensions – 7.75 x 5.375 x 2.25 inches
    (196.85 x 136.53 x 57.15 mm)
  • Dimensions – 7.75 x 5.375 x 2.25 inches
    (196.85 x 136.53 x 57.15 mm)
