Es| Features | |
|---|---|
| CFAST | CFAST-B-XXG-SI Industrial CFast card |
| MEMORY TYPE | 2 GB to 32 GB density, SLC-based memory |
| POWER | 3.3 VDC |
| SOFTWARE | Compatible with Linux, Android, Windows 10 IoT Core |
| ENVIRONMENTAL | Operational from -40ºC to +85ºC (-40°F to +185ºF) Storage temperature: -50°C to 100°C Shock: 12G Sawtooth pulse, 11 ms duration, 3 axes Sine Vibration: 10Hz ~2000Hz, 16.3 G peak to peak, 3 axes Random Vibration: 10Hz ~2000Hz, 1.49 GRMS, 3 axes Humidity: 10 – 95% RH, non-condensing RoHS compliant |
| MECHANICAL | Dimensions: 1.433 in x 1.685 in x .142 in. (36.4 mm x 42.8 mm x 3.6 mm) Weight: 0.42 oz (12.0 g) |

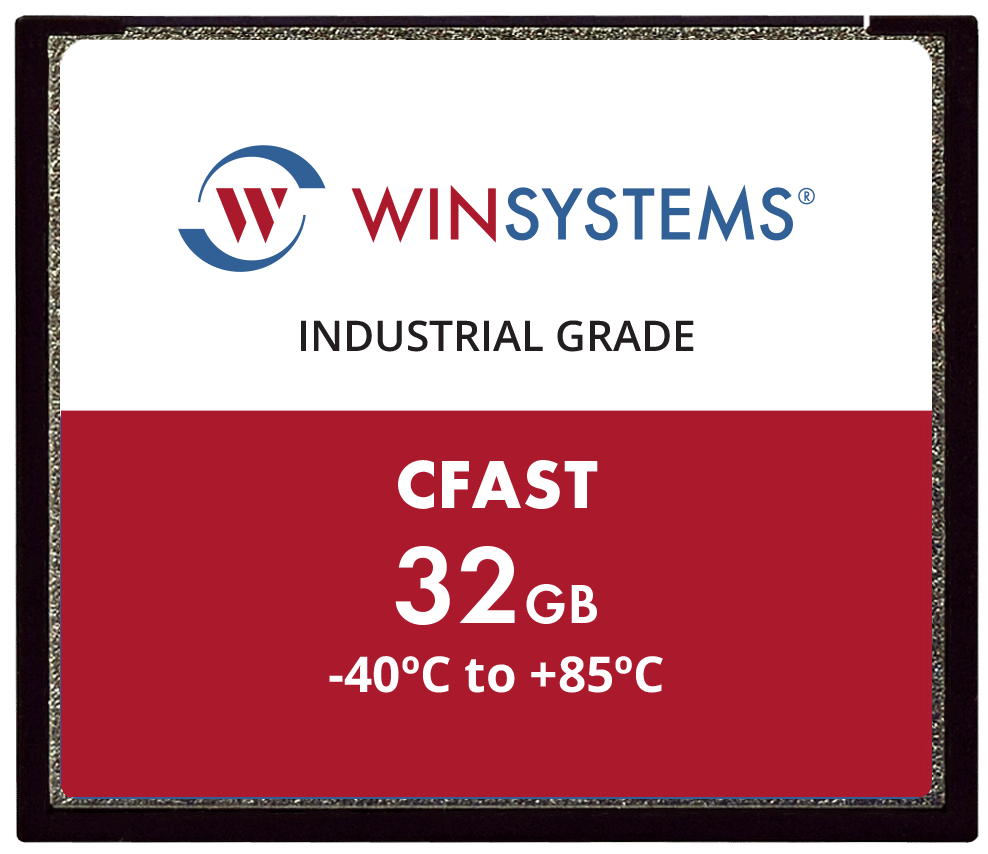

CFAST-B-XXG-SI
Description
The CFAST-B-XXG-SI is a USA-made product line of Industrial SLC-based CFast memory cards. These small form factor CFast cards provide SATA level performance while featuring robust features needed for industrial applications. These cards contain a locked-down Bill of Materials to ensure consistent product performance and future compatibility.
Industrial-grade reliability and industry-standard compatibility make WINSYSTEMS’ CFast cards ideal for industrial, military, and other high endurance applications.
Features
General
- 2 GB to 32 GB density
- CFast 2.0 Compliant
- SATA 3.3 Compliant
- SMART Functionality
Performance
- Sequential read from 65 MB/s up to 255 MB/s
- Sequential write from 45 MB/s up to 90 MB/s
Environment
- -40°C to +85°C Operating Temperature Range
- Shock: 12G Sawtooth pulse, 11 ms duration, 3 axes
- Sine Vibration: 10Hz ~2000Hz, 16.3 G peak to peak, 3 axes
- Random Vibration: 10Hz ~2000Hz, 1.49 GRMS, 3 axes
- Humidity: 10 – 95% RH, non-condensing
Reliability
- Data Retention:
− 10 Years when up to 10% of the P/E cycles have been consumed
− 1 year when 100% of the P/E cycles have been consumed - Static and Global Wear Leveling
- BCH ECC error correction
- Bad Block Management
- Supports Secure Erase and Sanitize via ATA pass-through commands
- Power loss detection and sudden power fail management
- Read disturb management
- MTBF: 2,000,000 hours at 0°C to 25°C
