| PPM-LX800-G | PC/104-Plus Single Board Computer with Video, Ethernet and Digital I/O |
| PPM-LX800-G-ST | PC/104-Plus SBC with Video, Ethernet and Digital I/O with stackthrough connectors |

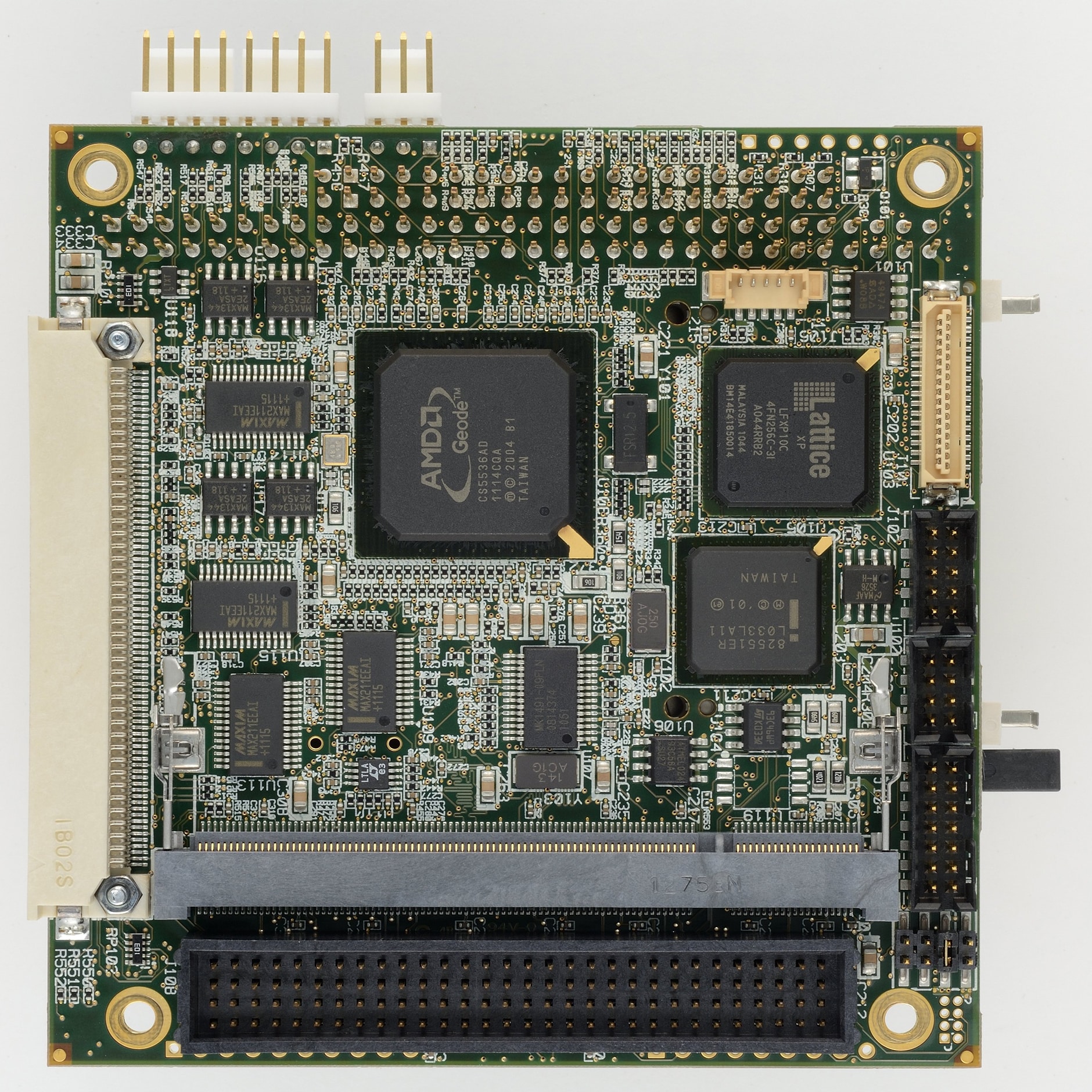

PPM-LX800-G
Description
The PPM-LX800-G is a highly integrated, industrial PC/104-Plus single board computer (SBC) designed for embedded, space-limited, low power applications. It is a full-featured SBC that includes an AMD LX800 x86-compatible CPU, CRT and flat panel video controller, 10/100 Ethernet, two USB 2.0, 16 lines of digital I/O, and four COM channels on a single 3.6 x 3.8 inches (90 x 96mm) module.
Features
- Low Power 500 MHz AMD LX800 processor
- PC/104-Plus SBC with PC104 and PCI-104 Expansion
- One 10/100 Mbps Ethernet port
- Dual video with simultaneous LCD and CRT outputs
- Two USB, 2.0 ports, with overcurrent protection
- Four serial ports (two RS-232/422/485 and two RS-232)
- 16 Bidirectional GPIO with event sense
- CompactFlash socket
- AC’97 audio, WDT, RTC and activity LEDs
- Fanless: -40°C to +85°C operation
- PCM-LX800-G Datasheet (PDF)
Datasheets
- PCM-LX800-G Product Manual (PDF)
Product Manuals
- PCM-LX800-G Mechanical Drawing (PDF)
- PCM-LX800-G Solid Works
- PCM-LX800-G Step
- PCM-LX800-G IGS
Mechanical Drawings
- DOS - Ethernet - Packet
- DOS - Ethernet
- DOS - Example - DOS tick for high resolution timing
- DOS - WS16C48 Digital I/O
- Windows CE 3.0 - Ethernet
- Windows CE.NET - Ethernet
- Windows NT Embedded 4.0 - Ethernet
- Windows NT4/2000 - Ethernet - NDIS 4
- Windows 98 - Ethernet - NDIS 4
- Windows XP/2000 - Ethernet
- Windows XP - Video
- Windows XP - Audio
- Windows XP - AES Encryption
- Windows XP - WS16C48 Digital I/O
- Windows XP - WINSYSTEMS WatchDogTimer
- Linux - Kernel 2.2 - Ethernet
- Linux - Kernel 2.4,2.6 - Ethernet
- Linux - Kernel 2.2, 2.4 - WS16C48 Digital I/O
- Linux - Kernel 2.6.18+ - WS16C48 Digital I/O
- Linux - Kernel 2.6.36+ - WS16C48 Digital I/O
- Linux - Kernel 3+ - WS16C48 Digital I/O
- Linux - Kernel 4+ - WS16C48 Digital I/O
- Linux - Kernel 3+ - Watchdog Timer
Drivers
- CBL-SET-359-G-1 | Cable Set for PPM-LX800
- ISM-DC-AT512-P | Industrial +5V and +12V DC/DC power supply
- PPM-DC-ATX-P | PC104-Plus ATX DC/DC power supply
- PCM-DC-AT512-P | PC104 +5V +/-12V DC/DC power supply
- PCM-DC-AT500 | PC/104 +5V output power supply
- PS-RS50-5 | 50W Universal A/C Switching Power Supply with +5V DC output
- PS-RS25-5 | 25W power supply +5V Output
- BAT-LTC-E-36-16-1 | External 3.6V, 1650 mAH battery
- RISER-PPM-1 | Spacer board with PCI-104 Connector
- CBL-352-G-1-1.5 | Multi-I/O – Dual 40-pin IDE, Digital I/O (50-pin Female), 12″
- USB - Dual Type A, 12" | USB – Dual Type A, 12″
- CBL-275-G-1-0.5 | USB – Dual Type A, 6″
- CBL-271-G-1-1.5 | Digital LCD CABLE, 456mm, Female to Female 31-pin HiRose
- CBL-271-G-1-0.83 | Digital LCD CABLE, 254mm, Female to Female 31-pin HiRose
- CBL-270-G-1-1.5 | Audio – 3.5mm Mini-Jacks (Line In, Line Out and Mic), 18″
- CBL-251-G-1-1.5 | Multi-I/O – KYB, Mouse, Serial, LPT, Ethernet and Misc, 18″
- CBL-251-0 | Multi-I/O – Unterminated, 24″
- CBL-174-G-1-1.5 | Power – Unterminated, 18″
- CBL-234-G-1-1.375 | Video – VGA (DB15), 16.5″
- RISER-PCM-1 | Spacer board with PC/104 Connector
- BAT-LTC-E-36-27-1 | External 3.6V, 2400 mAH battery
