SBC35-427

Description

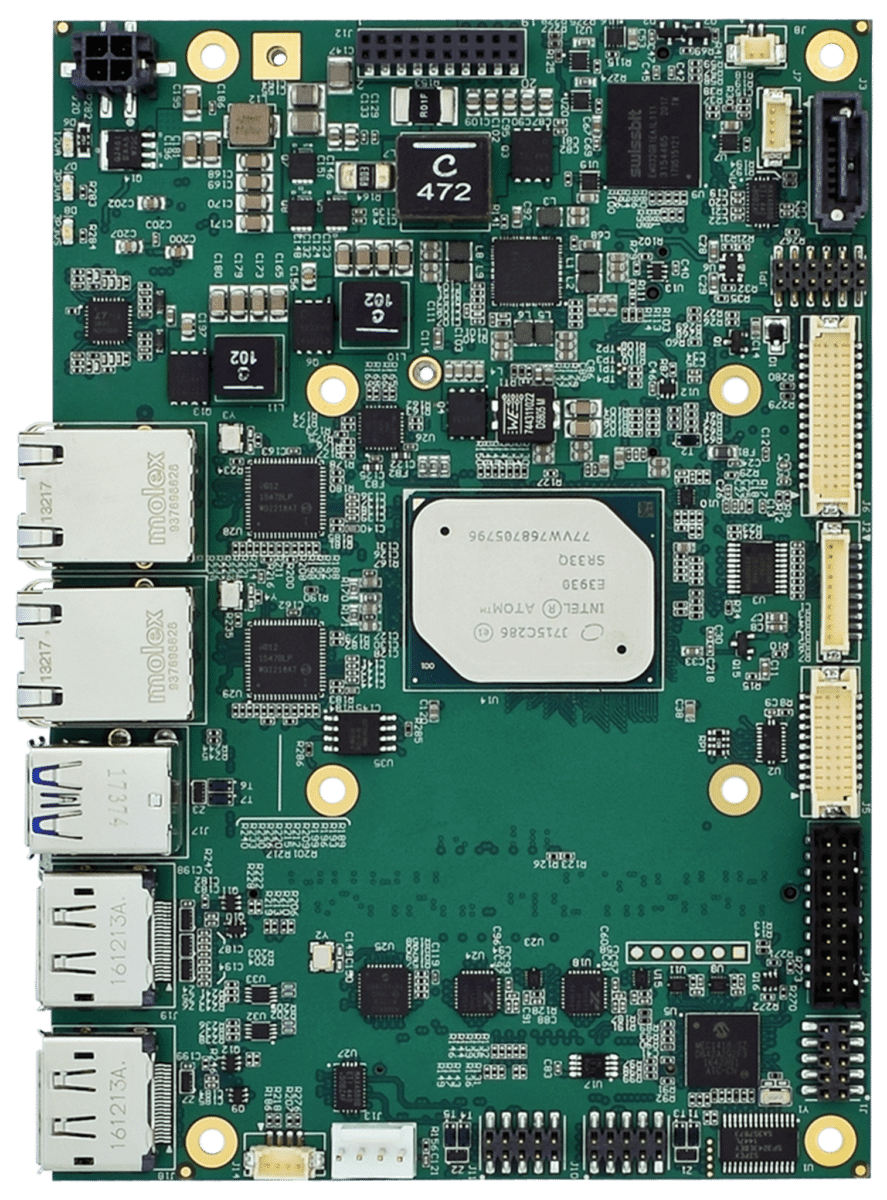

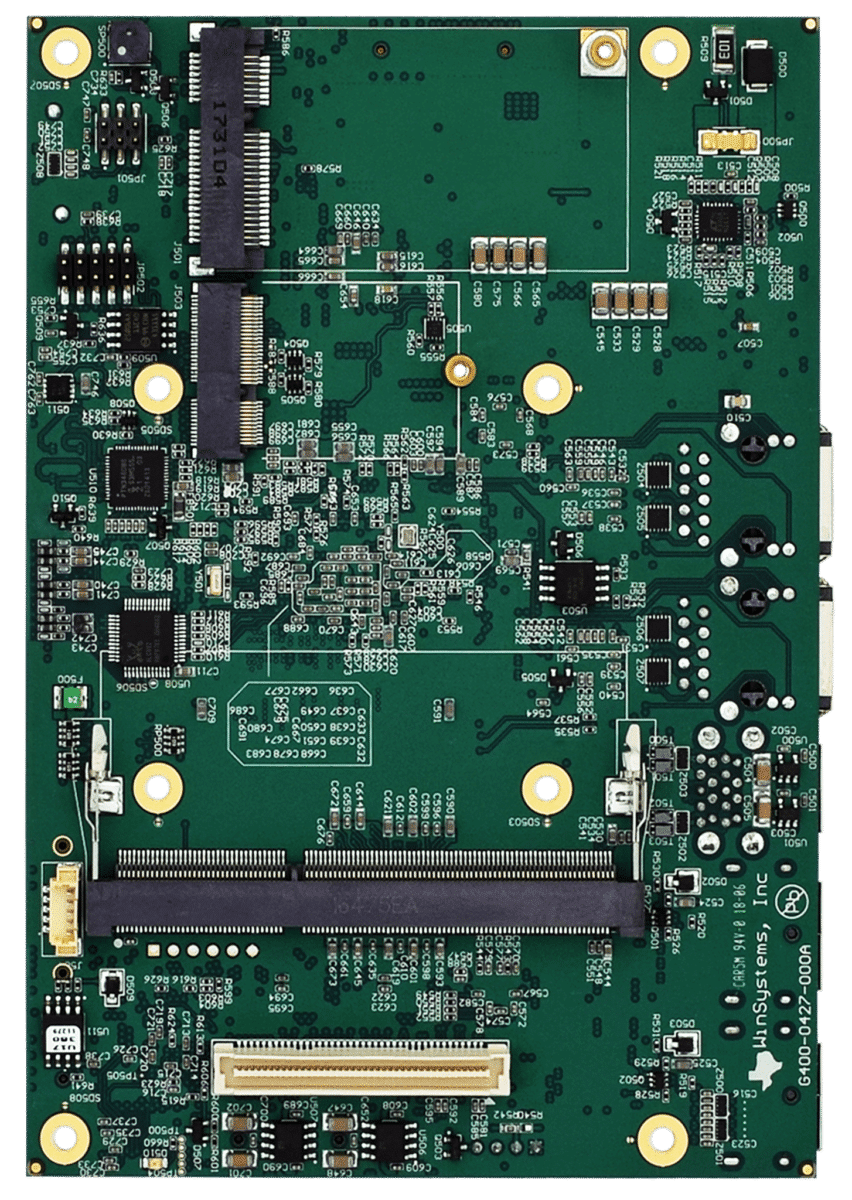

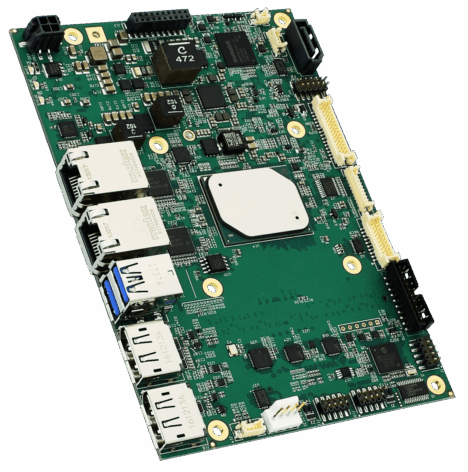

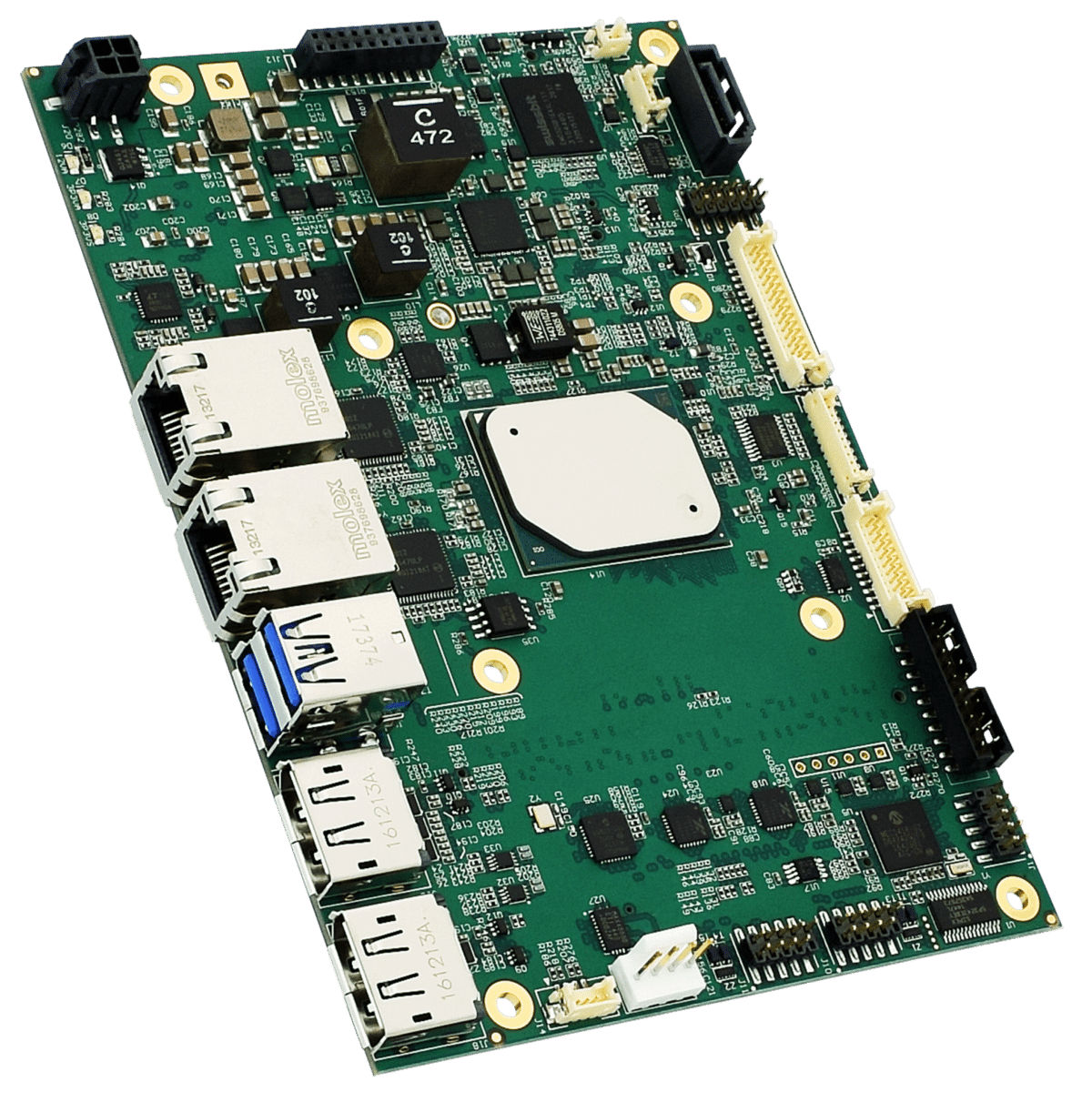

WINSYSTEMS’ SBC35-427 is an industrial single board computer, which uses Intel®’s Apollo Lake-I E3900 series processor. Its combination of off-the-shelf functionality with multiple expansion and configuration options make it a great fit for industrial IoT applications.

Features

  • Intel® Bay Trail E3900 Processor
  • Three Simultaneous Display Outputs
    • Dual DisplayPort
    • LVDS with digital backlight and touch support
  • Two 10/100/1000 Mbps Ethernet Ports
  • Two USB 3.0 Ports
  • Four USB 2.0 Ports
  • Eight Bidirectional GPIO
  • Two Analog-to-Digital (ADC) Inputs
  • Two Serial Ports (RS-232/422/485)
  • One Serial Port (RS-232)
  • One MiniPCIe/MSATA Socket
  • One M.2 E-Key Socket
  • Hi-Definition Audio
  • Onboard eMMC SSD up to 64G
  • mSATA
  • -40°C to +85°C Operational Temperature
  • 3.5-Inch Single Board Computer (SBC)
Features
  • SBC35-427-3030-m-0
  • SBC35-427-3940-m-0
  • SBC35-427-3950-m-0
Processor
  • Intel Atom x5-E3030 Dual-Core 1.8GHz
  • Intel Atom x5-E3940 Quad-Core 1.8GHz
  • Intel Atom x5-E3950 Quad-Core 2.0GHz
Operating System Compatibility
  • Linux, Windows, DOS and other x86 compatible OS
  • Linux, Windows, DOS and other x86 compatible OS
  • Linux, Windows, DOS and other x86 compatible OS
Memory (RAM)
  • Up to 8 GB of DDR3LV with ECC SODIMM (Socketed)
  • Up to 8 GB of DDR3LV with ECC SODIMM (Socketed)
  • Up to 8 GB of DDR3LV with ECC SODIMM (Socketed)
BIOS
  • AMI – UEFI
  • AMI – UEFI
  • AMI – UEFI
Display
  • Three independent display outputs:
    LVDS with digital backlight and touch control
    2x DisplayPort (Front Panel I/O)
  • Three independent display outputs:
    LVDS with digital backlight and touch control
    2x DisplayPort (Front Panel I/O)
  • Three independent display outputs:
    LVDS with digital backlight and touch control
    2x DisplayPort (Front Panel I/O)
Ethernet
  • 2 Intel® 10/100/1000 Mbps controllers
  • 2 Intel® 10/100/1000 Mbps controllers
  • 2 Intel® 10/100/1000 Mbps controllers
Storage
  • 1 eMMC up to 64G
    1 mSATA Socket
    1 SATA 3.1
  • 1 eMMC up to 64G
    1 mSATA Socket
    1 SATA 3.1
  • 1 eMMC up to 64G
    1 mSATA Socket
    1 SATA 3.1
Data Acquistion
  • 8 lines of general purpose I/O
    2 channels ADC (16 bit resolution)
  • 8 lines of general purpose I/O
    2 channels ADC (16 bit resolution)
  • 8 lines of general purpose I/O
    2 channels ADC (16 bit resolution)
Serial I/O
  • 1 serial ports (RS-232)
    2 serial ports (RS-232/422/485)
  • 1 serial ports (RS-232)
    2 serial ports (RS-232/422/485)
  • 1 serial ports (RS-232)
    2 serial ports (RS-232/422/485)
Expansion
  • Mini PCI Express Socket
    M.2 Socket (E-Key)
    WinSystems IO80
  • Mini PCI Express Socket
    M.2 Socket (E-Key)
    WinSystems IO80
  • Mini PCI Express Socket
    M.2 Socket (E-Key)
    WinSystems IO80
USB
  • 4 USB 2.0 ports
    2 USB 3.0 ports
  • 4 USB 2.0 ports
    2 USB 3.0 ports
  • 4 USB 2.0 ports
    2 USB 3.0 ports
Watchdog Timer
  • Adjustable from 1 second to 255 minute reset
  • Adjustable from 1 second to 255 minute reset
  • Adjustable from 1 second to 255 minute reset
Audio
  • HD Audio supported
  • HD Audio supported
  • HD Audio supported
Power
  • Typical Power = +10-15V DC @ TBD
    Maximum power = +10-15V DC @ TBD
    Standby (S3) = +10-15V DC @ TBD
  • Typical Power = +10-15V DC @ TBD
    Maximum power = +10-15V DC @ TBD
    Standby (S3) = +10-15V DC @ TBD
  • Typical Power = +10-15V DC @ TBD
    Maximum power = +10-15V DC @ TBD
    Standby (S3) = +10-15V DC @ TBD
Mechanical
  • Dimensions: 5.75 x 4.02 inches (146 x 102 mm)
    Weight: TBD oz (TBDg)
    PC Board thickness: 0.078 inches (1.98mm)
  • Dimensions: 5.75 x 4.02 inches (146 x 102 mm)
    Weight: TBD oz (TBDg)
    PC Board thickness: 0.078 inches (1.98mm)
  • Dimensions: 5.75 x 4.02 inches (146 x 102 mm)
    Weight: TBD oz (TBDg)
    PC Board thickness: 0.078 inches (1.98mm)
Operating Temperature Range
  • -40°C to 85°C
  • -40°C to 85°C
  • -40°C to 85°C
