SYS-ITX-N-3800

Description

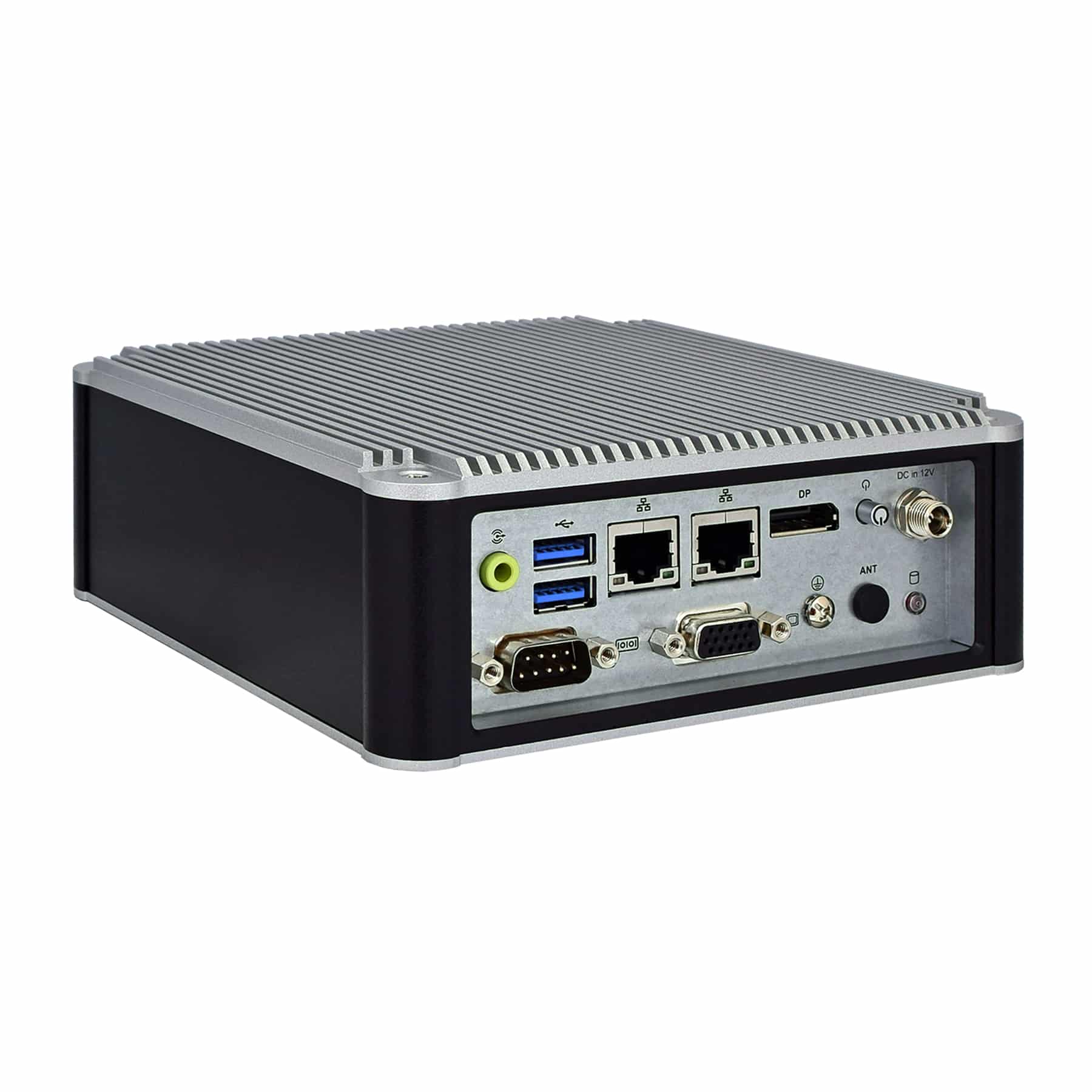

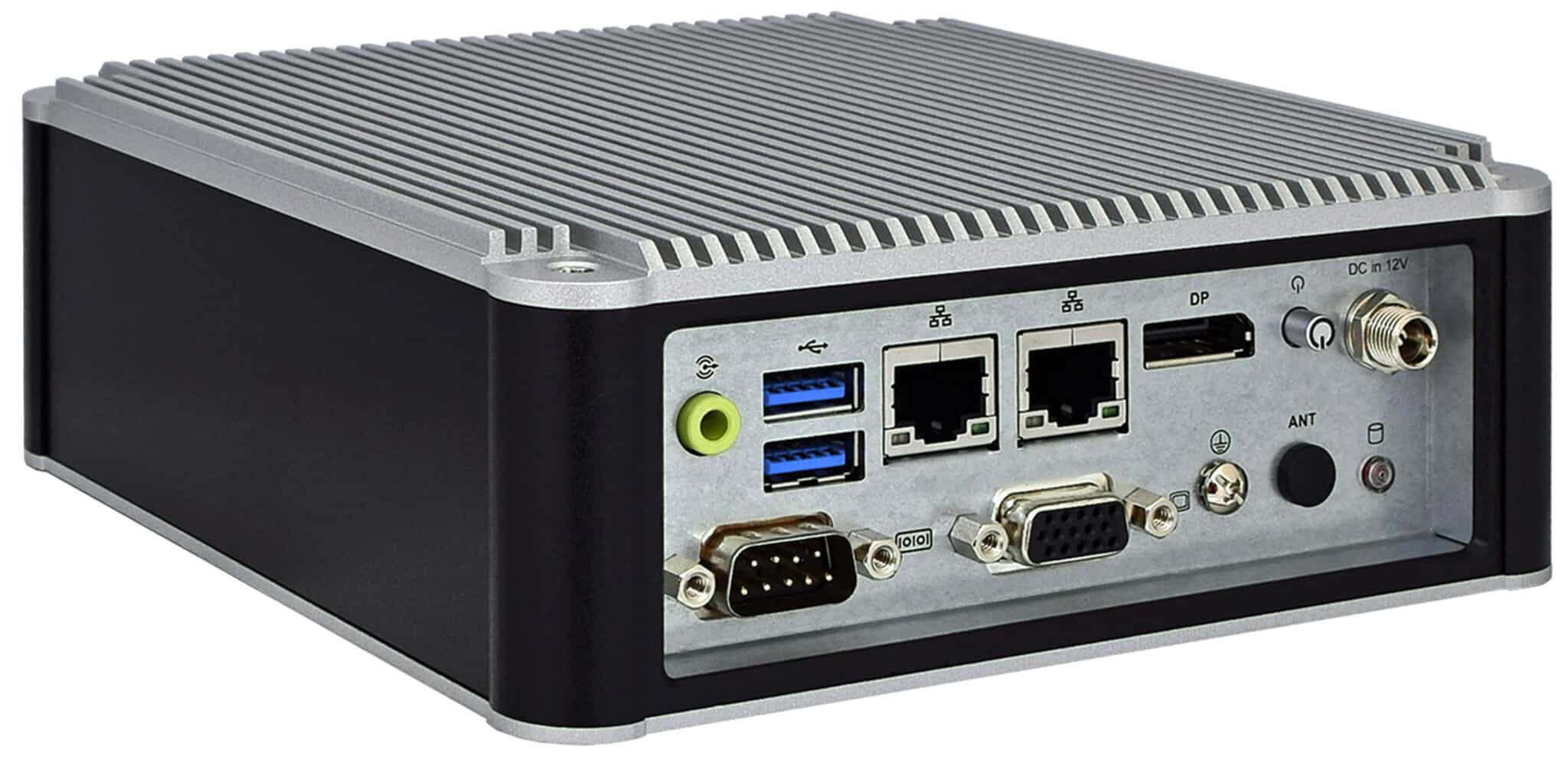

WINSYSTEMS’ SYS-ITX-N-3800 is a NANO-ITX Industrial Computer (SBC) based on the Intel® Atom™ E3800 Bay Trail processor
family. It uses less than 10 watts for fanless applications and performs reliably in industrial operating temperatures ranging from -25º to
+60ºC. It includes a SODIMM socket supporting up to 8 GB of DDR3 system memory and internal mounting support for one 2.5” SATA
HDD/SSD. Additional expansion is available through MiniPCIe.

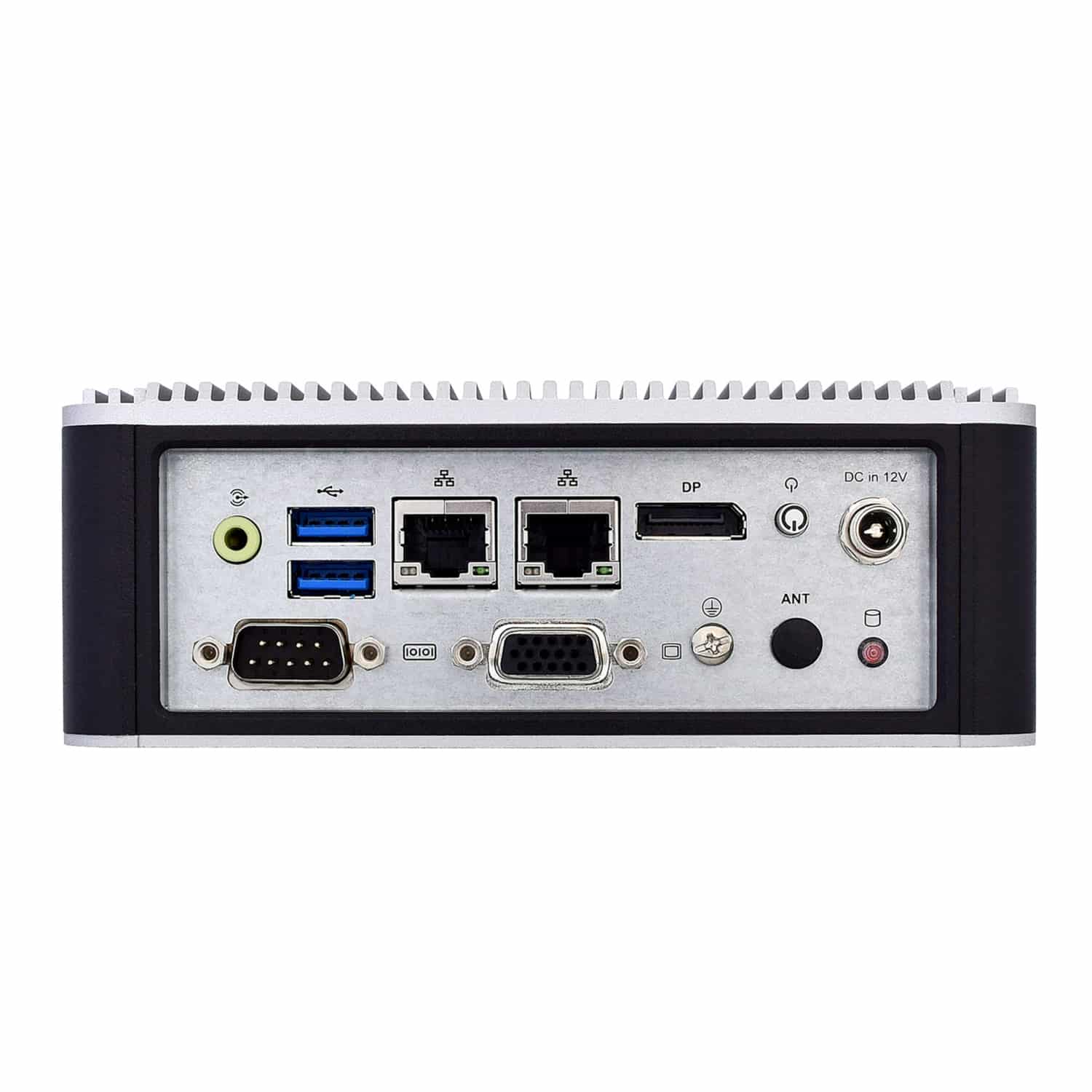

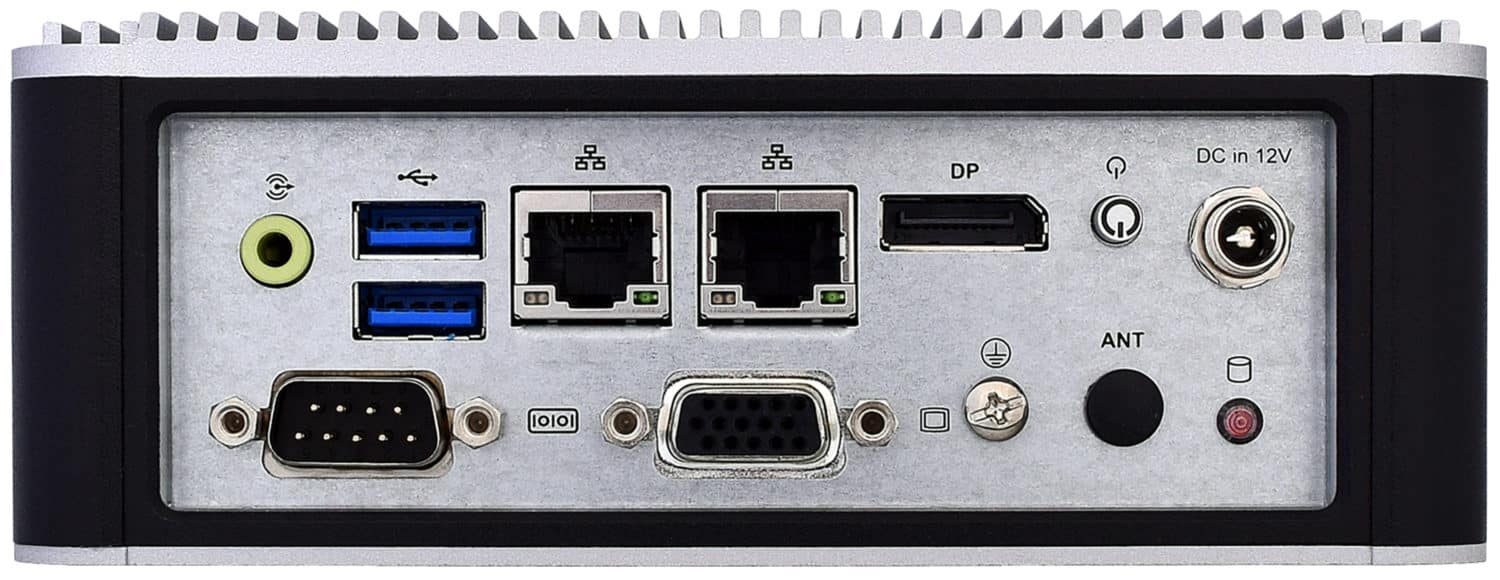

The SYS-ITX-N-3800 is a full-featured fanless embedded computer with onboard I/O that simultaneously supports VGA and DisplayPort video,
dual Gigabit Ethernet ports, two USB 3.0 ports, one serial RS-232/422/485 port, audio, and watchdog timer. It also has a half-size MiniPCIe
socket and an antenna hole for WiFi or 3G/GPS module.

This embedded computer supports Linux, Windows® 10 desktop, Windows 10 IoT, and other x86-compatible real-time operating systems.
Drivers are available from the WinSystems website. The SYS-ITX-N-3800 is designed for long-term availability  and  is FCC- and CE-certified, and designed for industrial IoT, medical, communications and digital signage applications.


Features

  • Intel® Bay Trail E3845/E3827 Processor
  • Two 10/100/1000 Mbps Ethernet Ports
  • DisplayPort and VGA outputs for dual displays
  • Up to 8GB DDR3-LV RAM
  • 2 USB 3.0
  • 1 Serial Port (RS-232/422/485)
  • Audio Output
  • 1 Half MiniPCIe Socket, 1 PCIe slot MSATA
  • Two SATA 3.0 ports and 1 Micro SD for storage
  • -25°C to +60°C Operational Temperature
