ITX-P-3800

Description

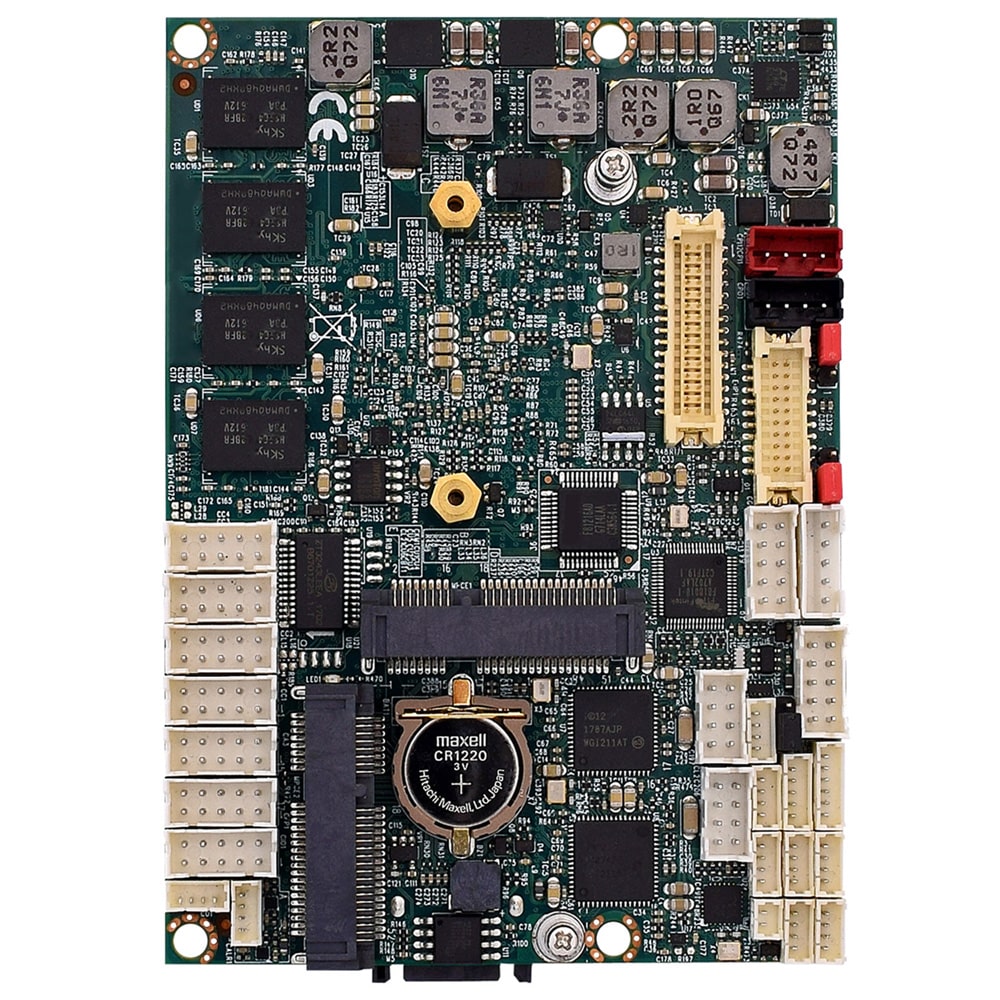

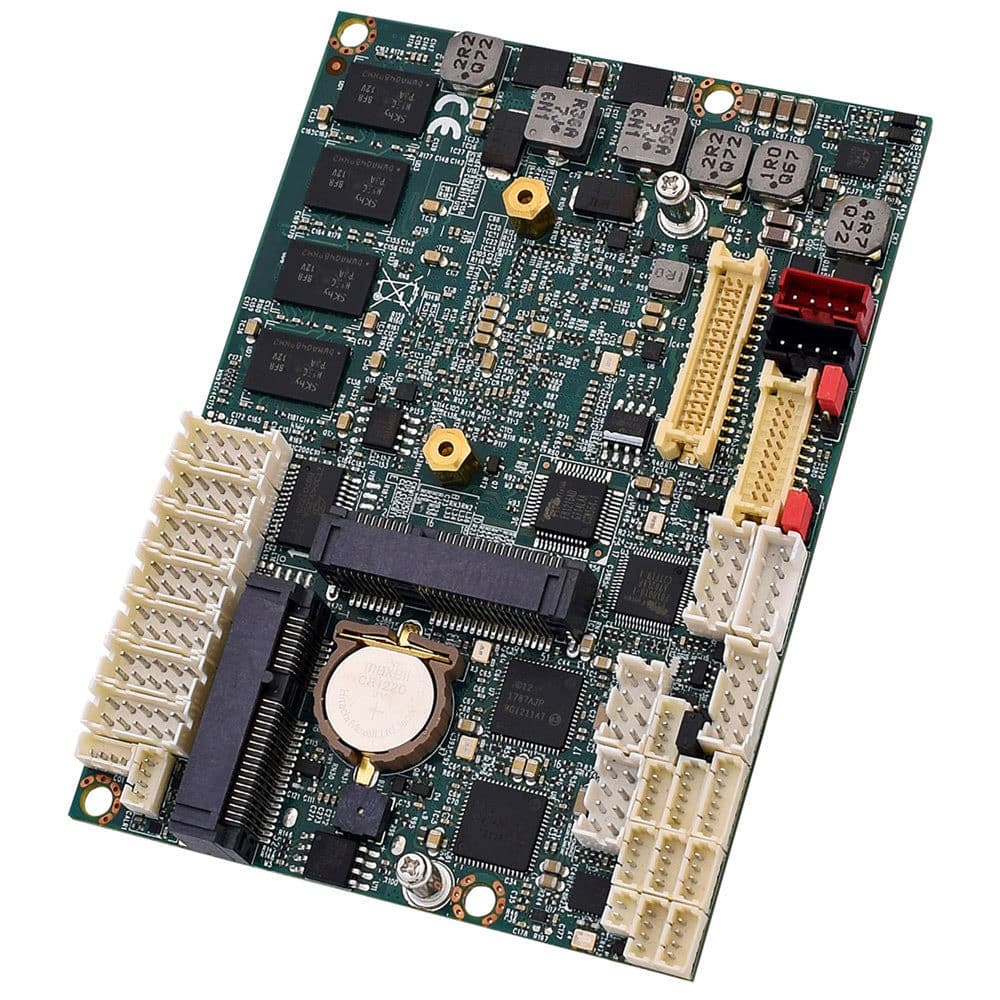

WINSYSTEMS’ ITX-P-3800 Series single board computers pack an impressive feature set into a small form factor Pico-ITX design. The SBC’s are based on the Intel E3800 processor family which provides CPU and graphics performance. The ITX-P-3800 is a perfect choice for applications requiring low power and Intel performance in a small form factor package with industrial connectors and I/O.

The single board computer supports Linux, Windows 10 IoT, and other x86-compatible real-time operating systems.

The ITX-P-3800 from WINSYSTEMS is a very compact, PC compatible single board computer which is a perfect fit for applications in UAV,
energy, medical diagnostics, and industrial control.


Features

  • PICO-ITX Form Factor (102mm x 73mm)
  • Intel® ATOM E3845/E3825 Processor
  • Up to 4GB DDR3-LV RAM
  • Dual Gigabit Ethernet
  • 4x USB 2.0 and 1x USB 3.1 Gen 1
  • Two 10/100/1000 Mbps Ethernet Ports
  • 4x Serial Ports
  • 4x Digital Inputs and 4x Digital Outputs
  • One Full PCIe Mini Card/mSATA slot and One Half PCIe Mini Card slot
  • Wide Range Power Input (+9 to +36V DC)
  • -20°C to +70°C Operational Temperature
