RISER-SUMIT-2

Description

WINSYSTEMS’ RISER-SUMIT-2 boards are designed to provide extra space in a SUMIT stack. They are printed circuit boards (PCBs) with SUMIT mounting holes and bus connectors. They allow a board with either tall components or heat sinks to be placed in a stack of boards in a location other than only at the top. The additional separation is 0.60 inches using standard PC/104-type spacers.

Features

  • Provides additional space between boards for tall components, heat sinks, and other thermal solutions
  • RISER boards available with and without connectors
  • Includes nylon standoffs
  • RoHS-compliant
  • -40 to +85°C operation
Features

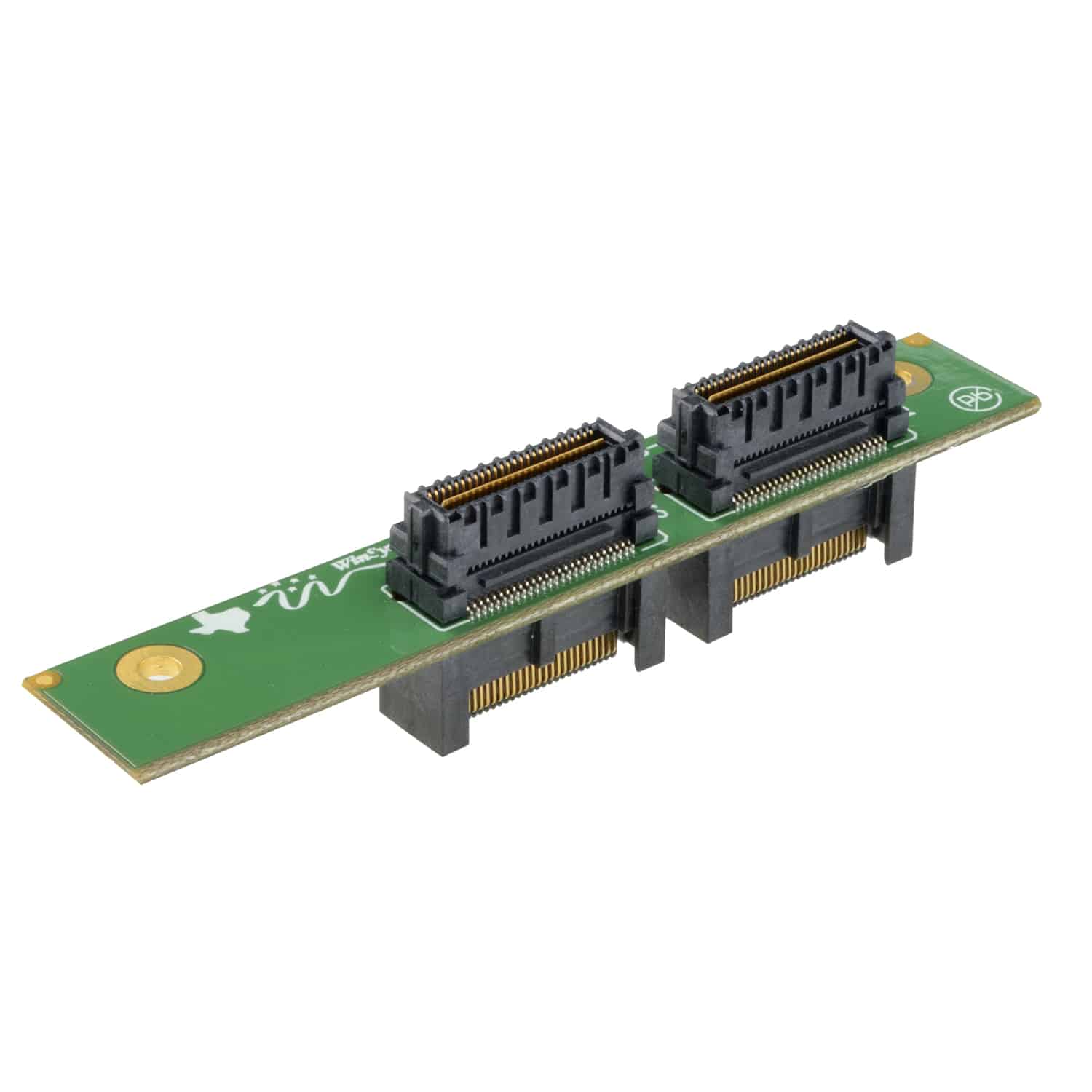

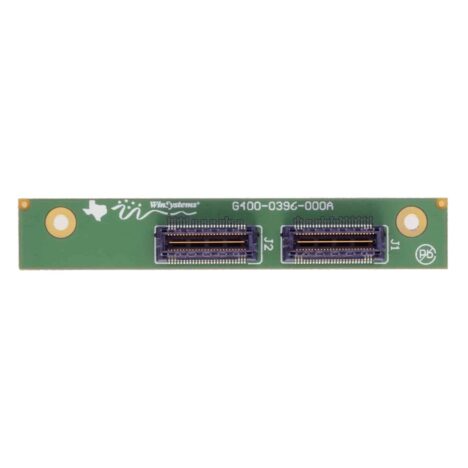

RISER-SUMIT-2

Spacer board with SUMIT AB Connectors

RISER-SUMIT-0

Spacer board without SUMIT Connectors
